NSN 5305-00-167-2936 AN53044, AN530-4-4, TYPEZSIZE4
Product Details | TAPPING SCREW

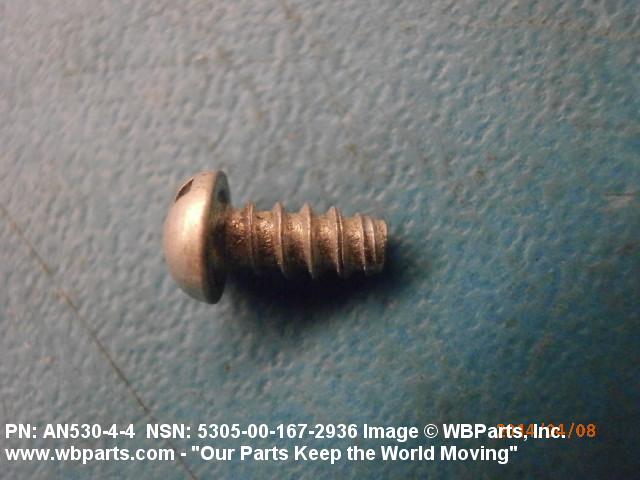

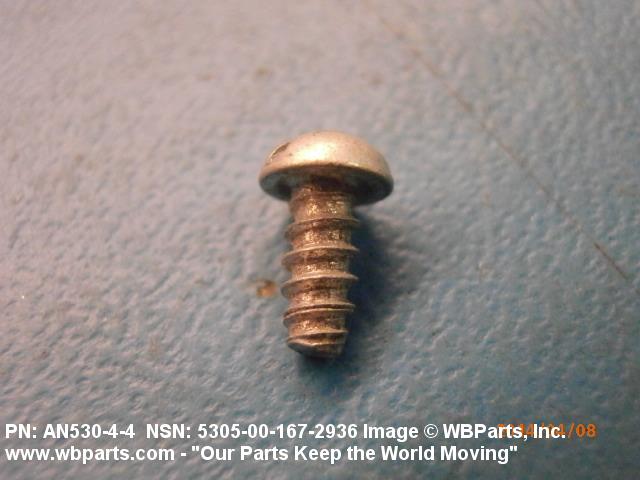

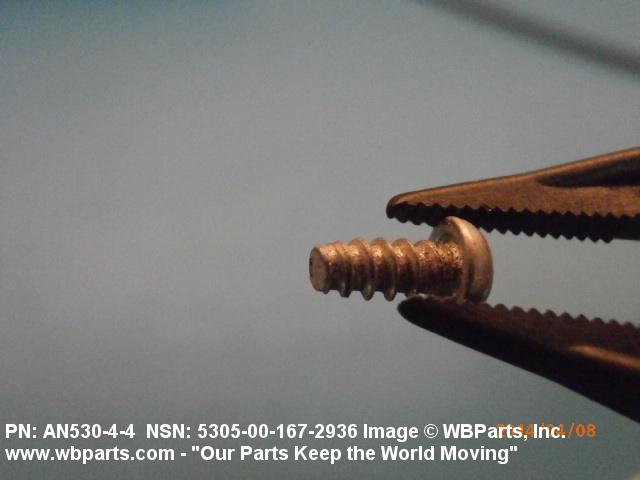

5305-00-167-2936 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Part Alternates: AN53044, AN530-4-4, TYPEZSIZE4, 2627855, 26278-55, 531678132ND, 531678-132ND, 54Z44, 54Z4-4, 5305-00-167-2936, 00-167-2936, 5305001672936, 001672936
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-2936 | 41756 ( SCREW, TAPPING ) |

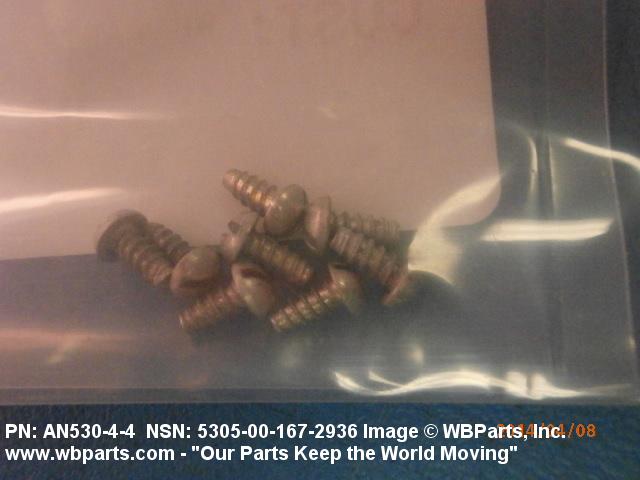

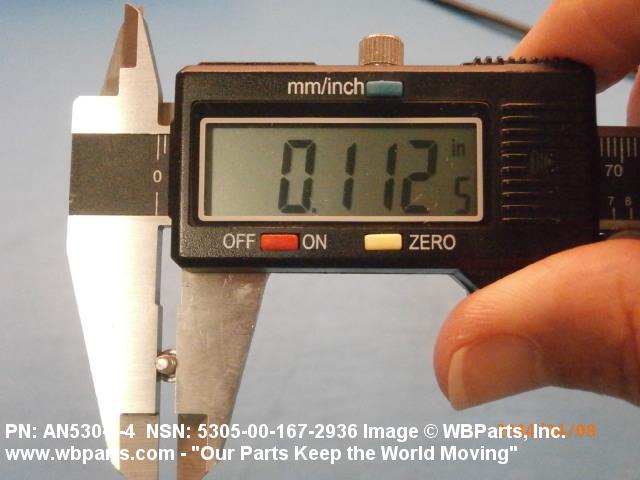

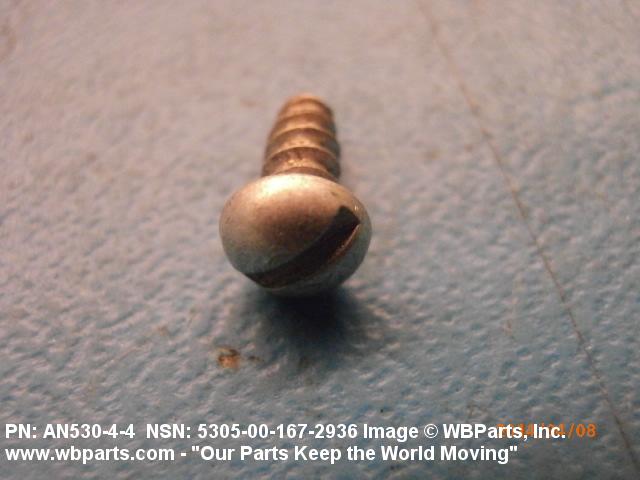

Drawings & Photos | NSN 5305-00-167-2936
Demand History | NSN 5305-00-167-2936
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN53044 | 2018-03-78 | 36 | United States |
| AN53044 | 2015-09-259 | 2 | United States |
| 5305-00-167-2936 | 2014-03-73 | 8 | United States |
| AN53044 | 2014-02-51 | 8 | US |
| AN53044 | 2012-03-61 | 180 | US |
Cross Reference | NSN 5305-00-167-2936
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-167-2936
Technical Data | NSN 5305-00-167-2936
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | A12 DOG TYPE |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.112 INCHES |

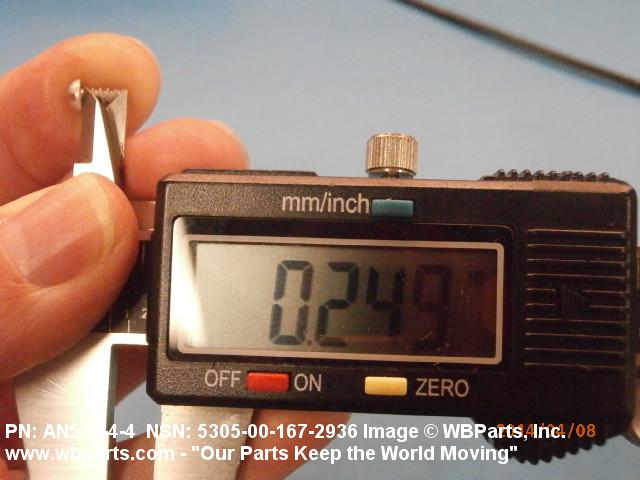

| FASTENER LENGTH | 0.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-685,AMED. 5,CONDITION N FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| HEAD STYLE | C37 ROUND |

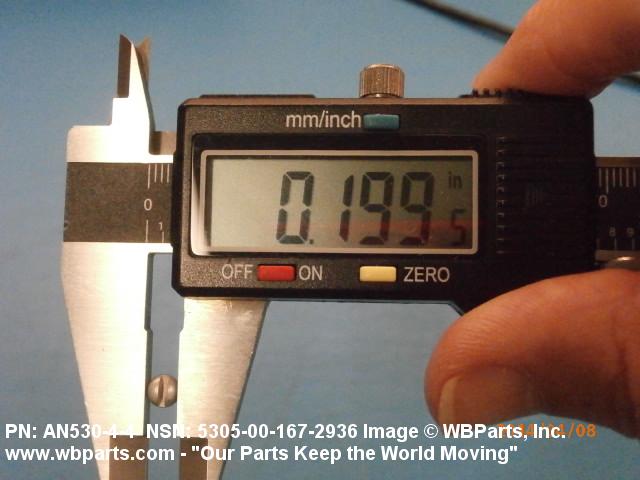

| HEAD DIAMETER | 0.193 INCHES MINIMUM AND 0.211 INCHES MAXIMUM |

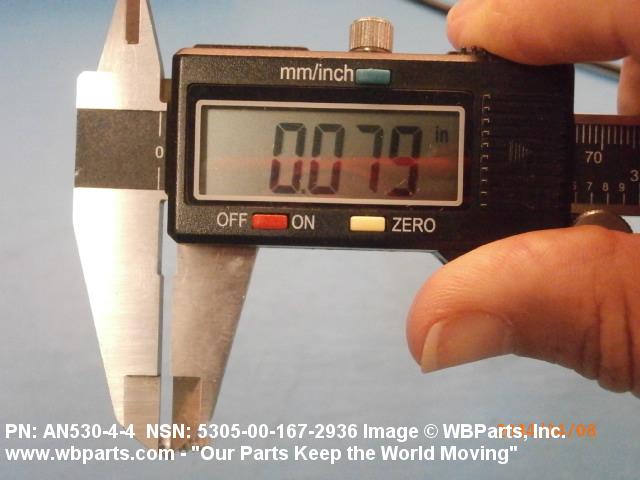

| HEAD HEIGHT | 0.075 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |

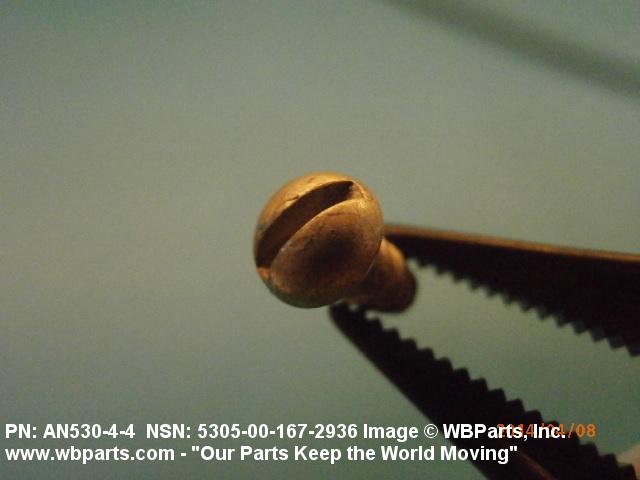

| INTERNAL DRIVE STYLE | D14 SLOT |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN530-4-4 |
Restrictions/Controls & Freight Information | NSN 5305-00-167-2936
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
