NSN 5305-00-167-3893 AN5251014, AN525-10-14, MILS7839
Product Details | MACHINE SCREW
5305-00-167-3893 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AN5251014, AN525-10-14, MILS7839, 5305-00-167-3893, 00-167-3893, 5305001673893, 001673893
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-3893 | 06657 ( SCREW, MACHINE ) |

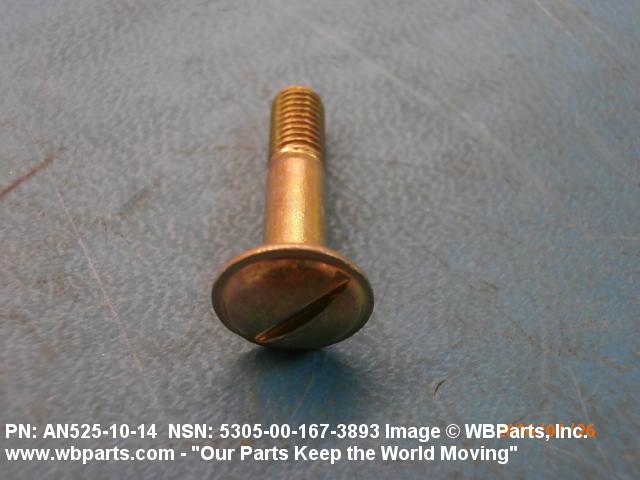

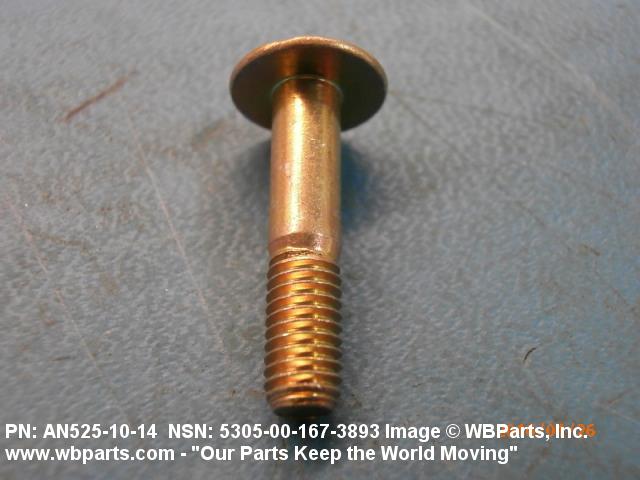

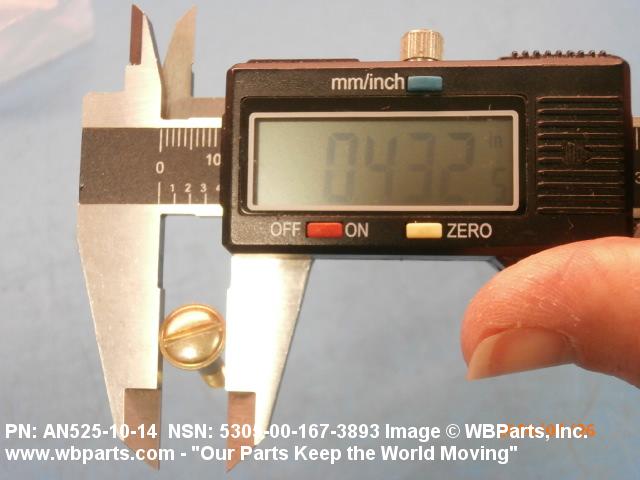

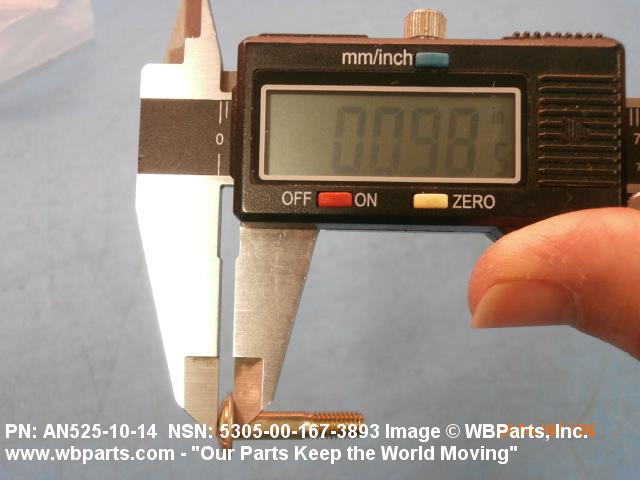

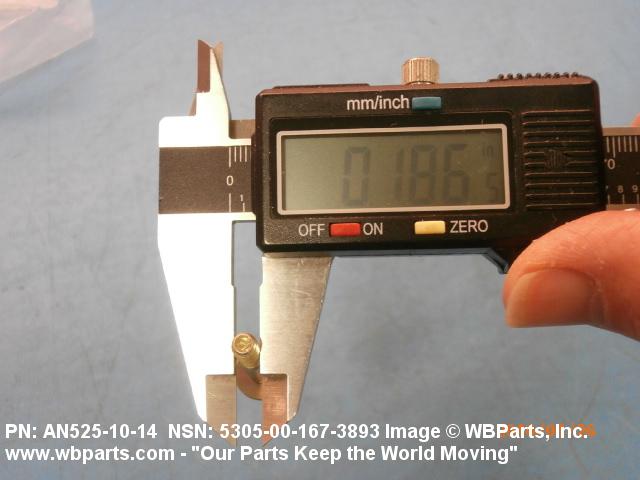

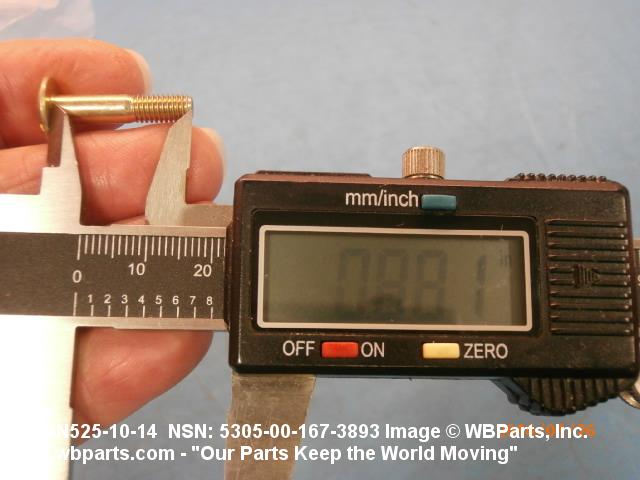

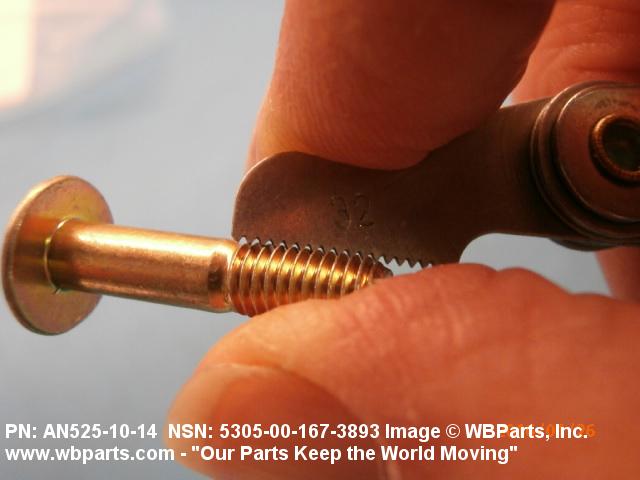

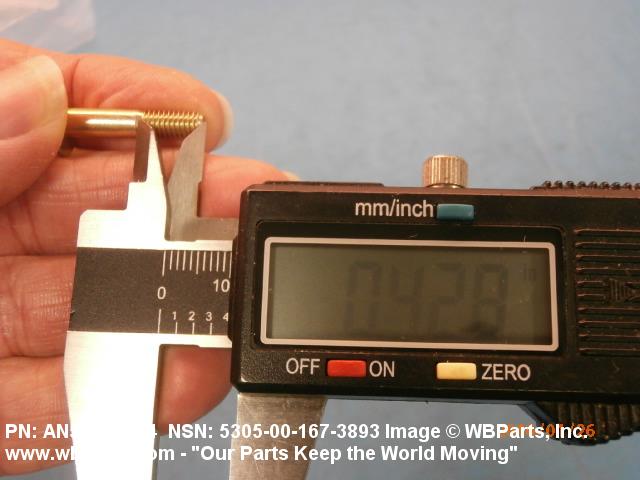

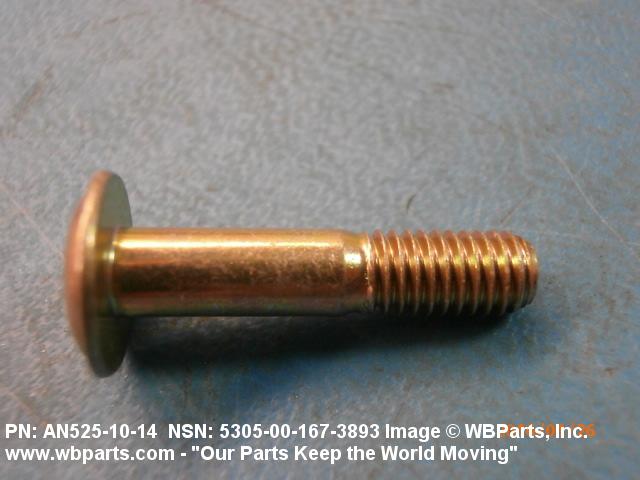

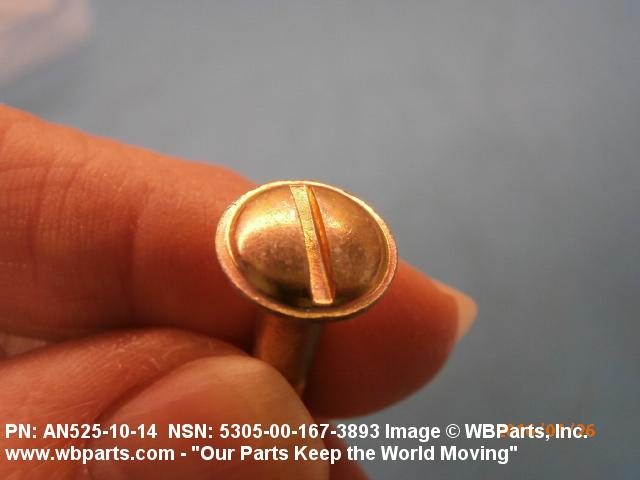

Drawings & Photos | NSN 5305-00-167-3893
Demand History | NSN 5305-00-167-3893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN5251014 | 2015-10-294 | 14 | China |
| AN5251014 | 2010-03-76 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-167-3893
Technical Data | NSN 5305-00-167-3893
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.406 INCHES MINIMUM |
| FASTENER LENGTH | 0.844 INCHES MINIMUM AND 0.906 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |
| SCREW SURFACE TREATMENT | CADMIUM |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AN-P-61 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 100000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A29 ROUND EXTENDED WASHER |
| HEAD DIAMETER | 0.375 INCHES NOMINAL |
| HEAD HEIGHT | 0.089 INCHES MINIMUM AND 0.099 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.437 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.025 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | B10 SLOT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN525-10-14 |
