NSN 5305-00-175-3230 MS21311814, MS213118-14 , MS2131814

Product Details | DRIVE SCREW

5305-00-175-3230 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.

Part Alternates: MS21311814, MS213118-14 , MS2131814, MS21318-14 , MS2131824, MS21318-24 , MS2138114, MS21381-14 , MS2141814, MS21418-14 , A245838 , AMN53523, AMN535-2-3 , AN53523, AN535-2-3 , FFS107TYPEUSTYLE1P , U2X1875 , UNUMBER2BY316INCHL0NG, UNUMBER2BY3-16INCHL0NG , USIZE2 3-16 , USIZE2316, 53051753230, 5305-175-3230 , 606307 , 801291, 80129-1 , 01628 , 05041003, 05-041003 , 0PK23B, 0PK2-3B , 10905008, 10-90500-8 , 188216 , 220299, 4123297, 412-3297 , 4736 , 49X3, 4MS2131814, 4MS21318-14 , 5305-00-175-3230, 00-175-3230, 5305001753230 , 001753230

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-175-3230	15896 ( SCREW, DRIVE )

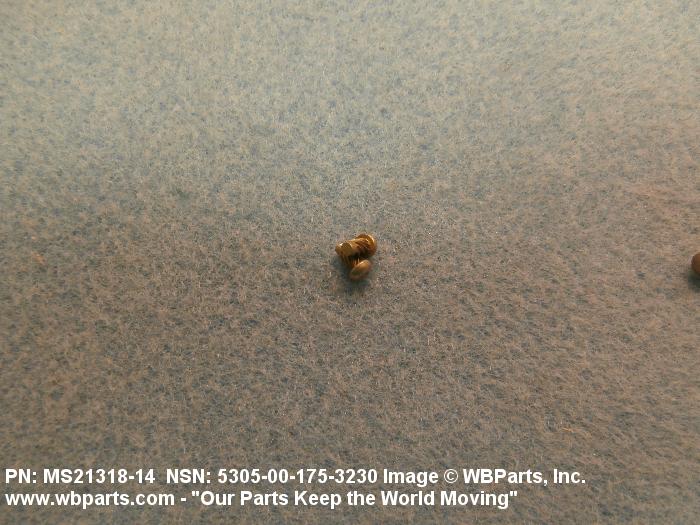

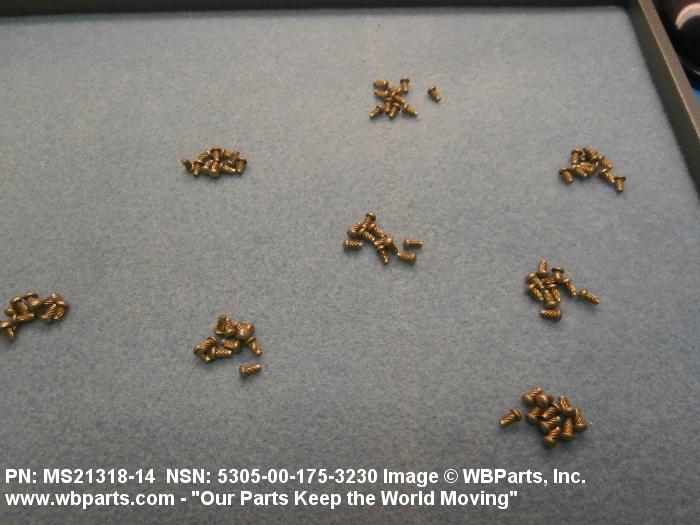

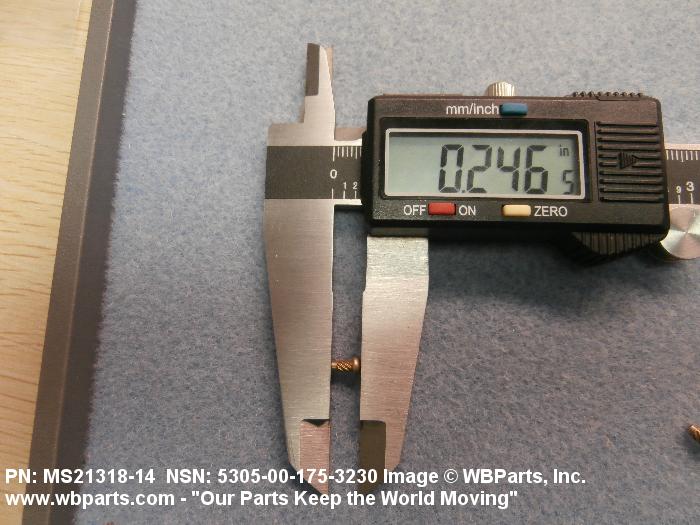

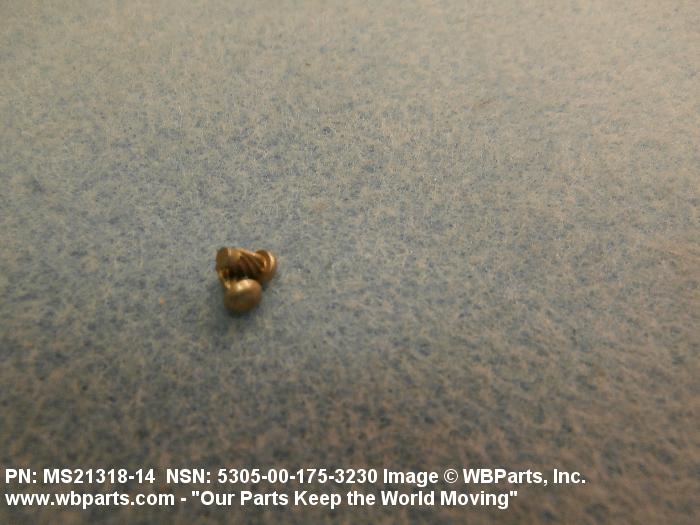

Drawings & Photos | NSN 5305-00-175-3230

Part Number	Request Date	QTY	Origin
MS2131814	2025-11-322	400	Turkey
MS2131814	2024-08-233	17	Japan
AN53523	2022-04-102	8	US
5305-00-175-3230	2019-07-183	100	Taiwan
MS2131814	2018-03-79	160	United States
MS21318-14	2016-02-39	100	United States
MS2131814	2014-11-318	80	Australia
MS21318-14	2014-08-232	260	Australia
MS21318-14	2014-08-232	260	United States
MS21318-14	2014-08-232	260	United States
MS21318-14	2014-08-227	260	Australia
MS2131814	2014-07-211	150	Australia
5305-00-175-3230	2014-05-125	213	DIBBS
5305-00-175-3230	2014-04-113	213	DIBBS
MS2131814	2013-04-98	4	US
5305-00-175-3230	2012-12-340	576	DIBBS
AN53523	2012-11-310	10	US
AN53523	2012-10-277	4	United States
MS2131814	2012-03-80	25	US
MS2131814	2011-12-339	100	US
MS2131814	2011-10-304	6	United States
5305-00-175-3230	2011-07-203	1000	US
5305-00-175-3230	2011-05-151	150	DIBBS
5305-00-175-3230	2011-01-20	1023	DIBBS
AN53523	2009-12-337	4	United States
AN53523	2009-12-337	4	United States
5305-00-175-3230	2009-12-335	23	UM
MS2131814	2009-11-327	25	US
MS2131814	2009-11-327	25	US
5305-00-175-3230	2009-10-286	30	US
5305-00-175-3230	2009-09-257	25	US
MS2131814	2009-08-236	12000	US
MS2131814	2009-08-233	128	US
MS2131814	2009-08-233	128	US
MS2131814	2009-08-233	128	US
MS2131814	2009-08-229	18000	US
AN53523	2009-08-222	4	US
AN53523	2009-08-222	5	US
AN53523	2009-07-205	10000	United Kingdom
5305-00-175-3230	2009-07-202	751	DIBBS
AN53523	2009-06-179	10000	IR
5305-00-175-3230	2009-06-175	4	US
MS2131814	2009-04-118	1000	US
MS2131814	2008-07-196	100	US
5305-00-175-3230	2008-07-193	30000	US
5305-00-175-3230	2008-02-52	2000	US
5305-00-175-3230	2008-02-37	1	US

Cross Reference | NSN 5305-00-175-3230

Part Number	Cage Code	Manufacturer
01628	96046	CRANE PUMPS & SYSTEMS, INC.
05-041003	52793	SAGINAW PRODUCTS CORPORATION DBA CIGNYS
0PK2-3B	03670	TYCO FIRE PRODUCTS, LP DBA TYCO FIRE SUPPRESSION & BUILDING
10-90500-8	22787	PRECISION AEROSPACE CORPORATION DBA PRECISION ENGINE CONTROL
10-90500-8	59501	UNISON INDUSTRIES, LLC
10-90500-8	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
188216	31361	WOODWARD, INC. DBA INDUSTRIAL PRODUCTS GROUP
188216	66503	WOODWARD, INC. DBA WOODWARD
220299	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
4736	79938	EMERSON ELECTRIC CO U S ELECTRICAL MOTORS DIV
49X3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
4MS21318-14	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305-175-3230	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305001753230	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
606307	07464	BADGER FIRE PROTECTION INC
606307	6L214	BADGER FIRE PROTECTION INC
80129-1	29201	JOHN DEER CONSUMER PRODUCTS INC
A245838	00000	ORDNANCE CORPS
AMN535-2-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN535-2-3	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FFS107TYPEUSTYLE1P	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS21318-14	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21318-14	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21318-14	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21318-24	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21381-14	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21418-14	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
U2X1875	45722	USM CORP SUB OF EMHART INDUSTRIES INC
UNUMBER2BY3-16INCHL0NG	45722	USM CORP SUB OF EMHART INDUSTRIES INC
USIZE2 3-16	45722	USM CORP SUB OF EMHART INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-175-3230

Compare

Related Products | NSN 5305-00-175-3230

5305-00-175-3231, 5305-00-175-3232, 5305-00-175-3233, 5305-00-175-3234, 5305-00-175-3235

Technical Data | NSN 5305-00-175-3230

Characteristic	Specifications
NONMACHINE THREAD STYLE	A16 DRIVE SCREW

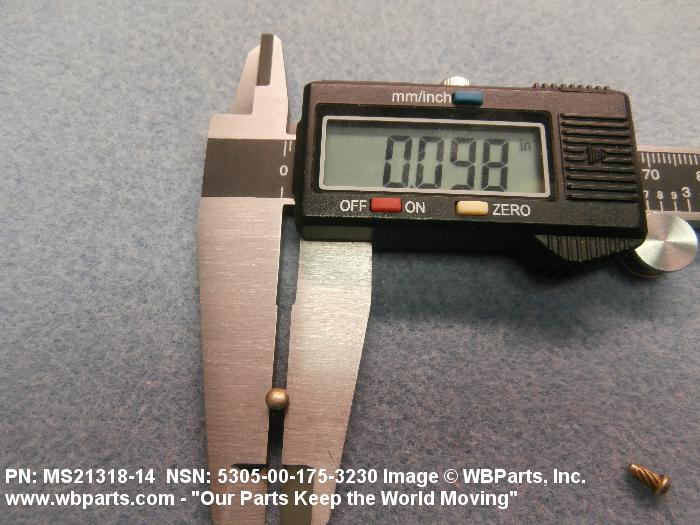

NONMACHINE NOMINAL THREAD DIAMETER	0.098 INCHES

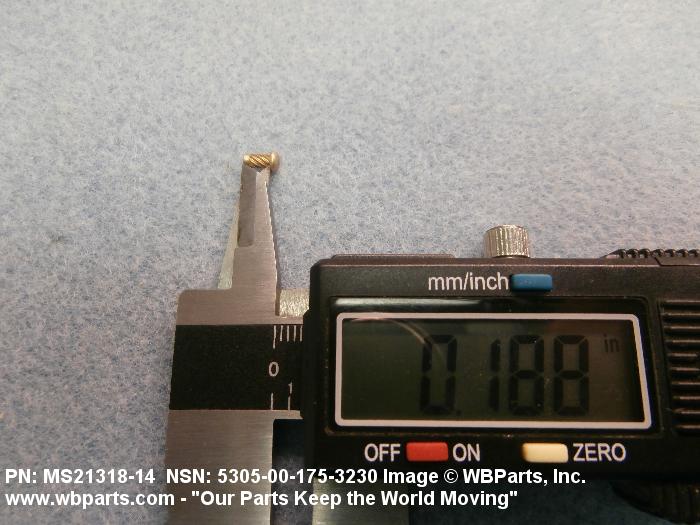

FASTENER LENGTH	0.188 INCHES NOMINAL
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HEAD STYLE	C37 ROUND

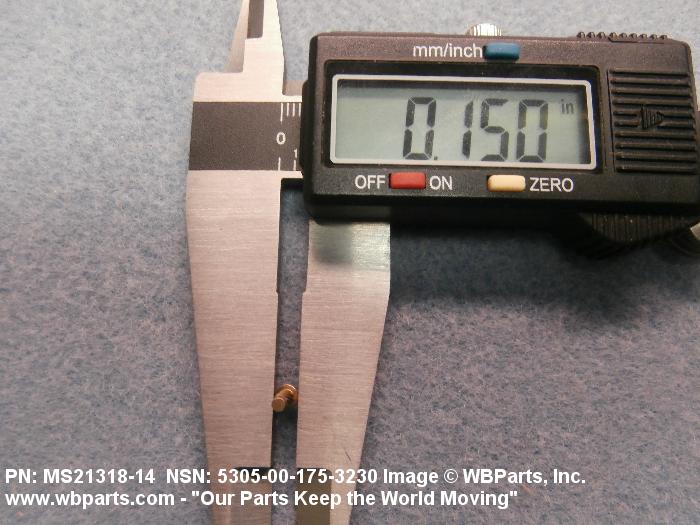

HEAD DIAMETER	0.146 INCHES MINIMUM AND 0.162 INCHES MAXIMUM

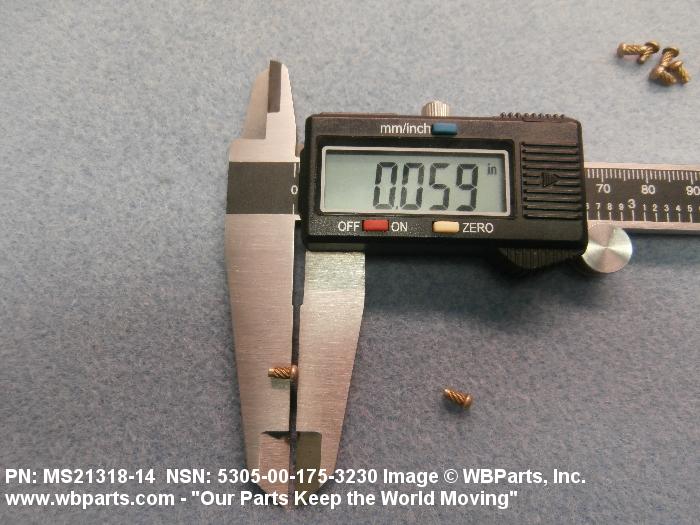

HEAD HEIGHT	0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM
PILOT DIAMETER	0.080 INCHES MINIMUM AND 0.083 INCHES MAXIMUM
PILOT LENGTH	0.047 INCHES NOMINAL
FEATURES PROVIDED	CASEHARDENED

Restrictions/Controls & Freight Information | NSN 5305-00-175-3230

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-175-3230

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
