NSN 5305-00-181-0935 HT8068044, HT8068-04-4 , 1120910001
Product Details | MACHINE SCREW
5305-00-181-0935 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: HT8068044, HT8068-04-4 , 1120910001, 112-0910-001, 5305-00-181-0935, 00-181-0935, 5305001810935, 001810935
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 FEB 1970 | 00-181-0935 | 06657 ( SCREW, MACHINE ) |

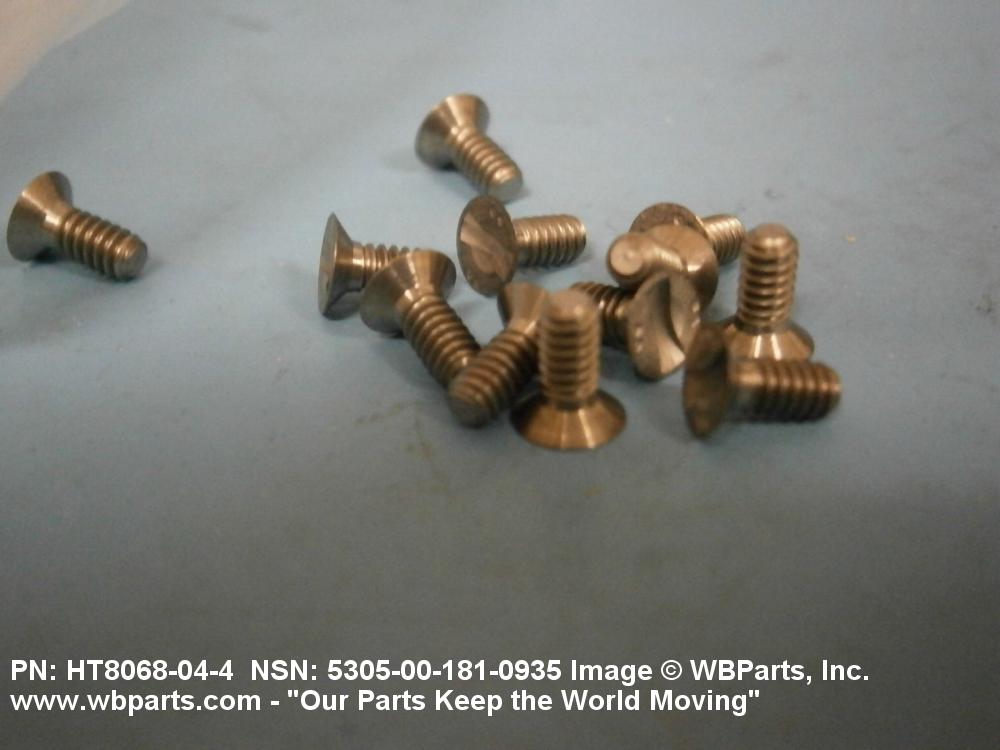

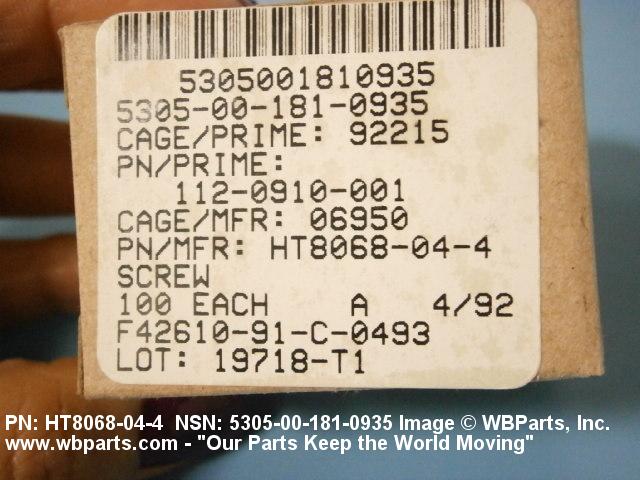

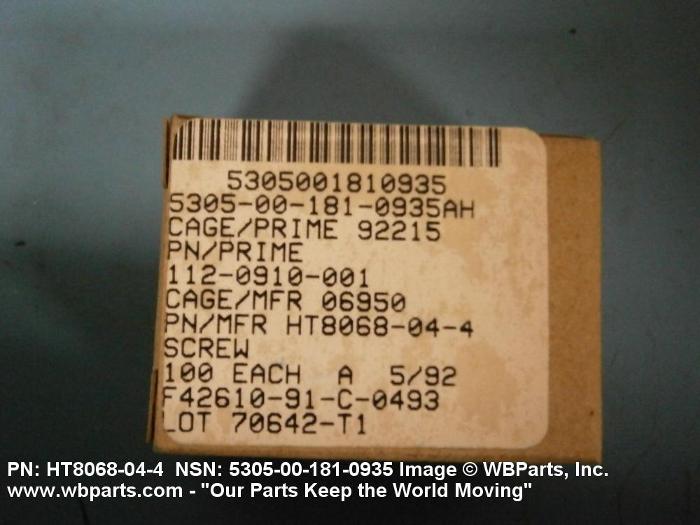

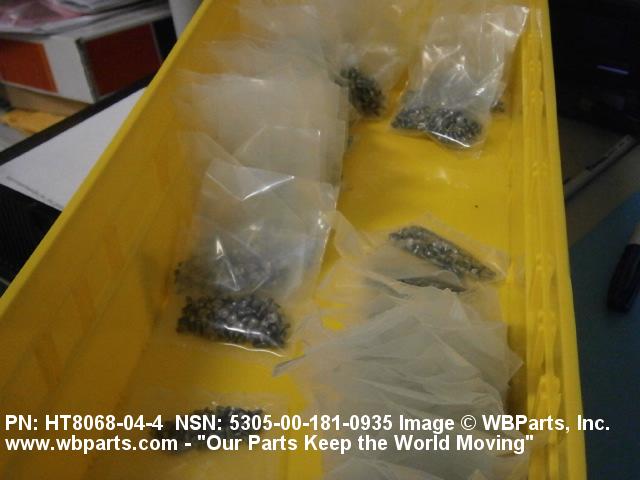

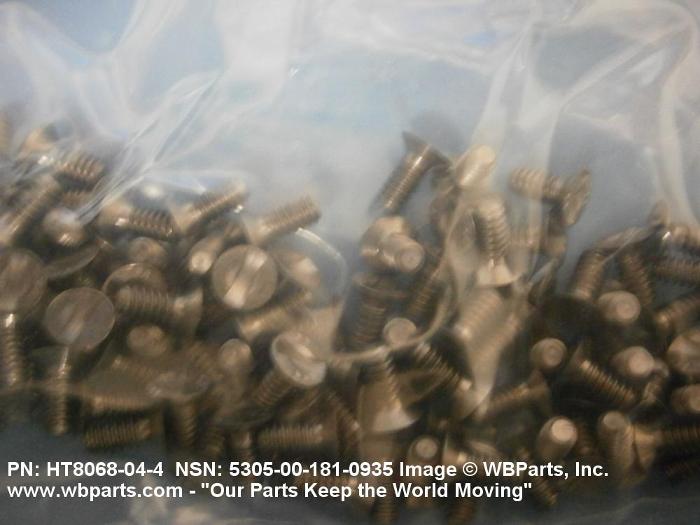

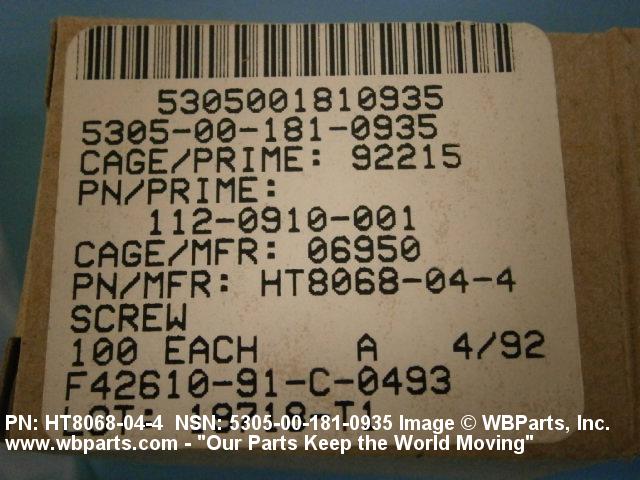

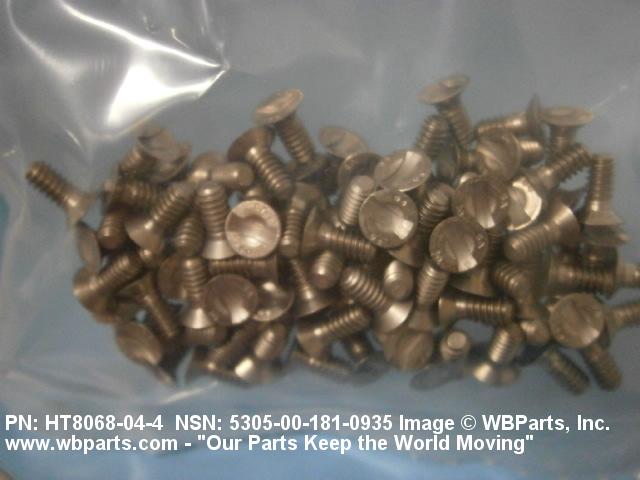

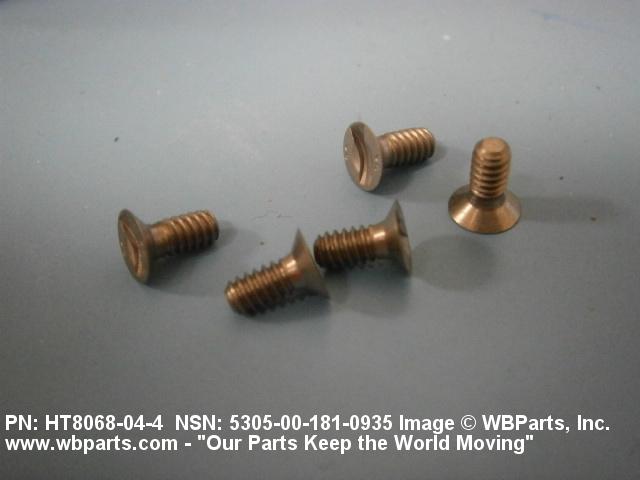

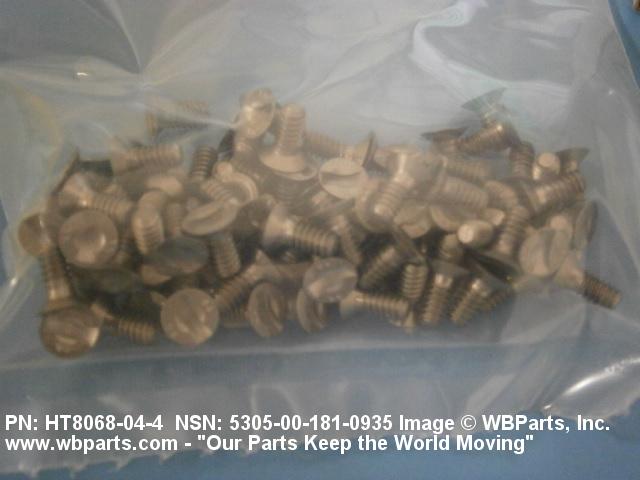

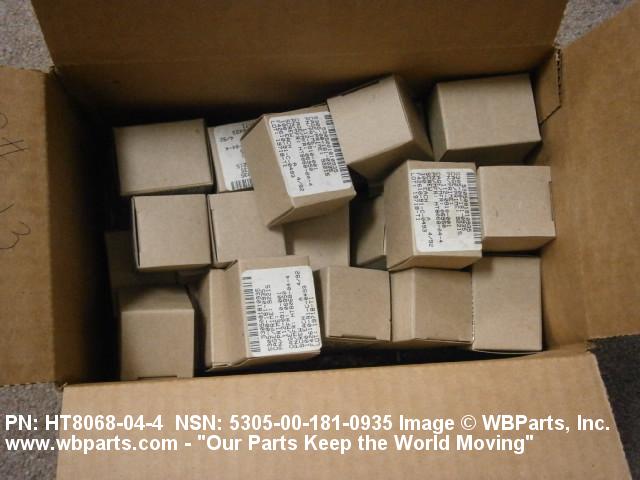

Drawings & Photos | NSN 5305-00-181-0935
Demand History | NSN 5305-00-181-0935
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-181-0935 | 2014-11-309 | 13 | US |
| 5305-00-181-0935 | 2013-03-74 | 12144 | DIBBS |
| 5305-00-181-0935 | 2012-08-216 | 3368 | DIBBS |
| 5305-00-181-0935 | 2012-07-194 | 3368 | DIBBS |
| 5305-00-181-0935 | 2011-12-336 | 0 | United States |
| 5305-00-181-0935 | 2011-11-332 | 0 | United States |
| 5305-00-181-0935 | 2011-11-321 | 5212 | DIBBS |
| 5305-00-181-0935 | 2011-10-294 | 0 | United States |
| 5305-00-181-0935 | 2011-10-279 | 5212 | DIBBS |
| HT8068044 | 2011-09-264 | 1 | United States |
| 5305-00-181-0935 | 2011-08-241 | 3642 | DIBBS |
| 5305-00-181-0935 | 2011-08-229 | 3188 | DIBBS |
Cross Reference | NSN 5305-00-181-0935
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112-0910-001 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 112-0910-001 | 0HL40 | MECAIR AEROSPACE INDUSTRIES SUBSIDIARY OF SPS TECHNOLOGIES DIV D |
| 112-0910-001 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 112-0910-001 | 98247 | CANADIAN COMMERCIAL CORP DBACORPORATION COMMERCIALE |
| HT8068-04-4 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HT8068-04-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-181-0935
Technical Data | NSN 5305-00-181-0935
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.201 INCHES NOMINAL |
| FASTENER LENGTH | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| SCREW MATERIAL | TITANIUM ALLOY |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | NAS 621 6AL-4A CQBCJP160000 ASSN STD SINGLE MATERIAL RESPONSE |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.194 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B6 HIGH-TORQUE |
| MANUFACTURERS CODE | 94756 |
| MFR SOURCE CONTROLLING REFERENCE | 112-0910-001 |
Restrictions/Controls & Freight Information | NSN 5305-00-181-0935
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096630 | SCREWS NOI BRASS/BRONZE/COPPER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-181-0935
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
