NSN 5305-00-206-1327 7994215, 92708, 00-206-1327
Product Details | ASSEMBLED WASHER SCREW
5305-00-206-1327 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: 7994215, 92708, 5305-00-206-1327, 00-206-1327, 5305002061327, 002061327
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-206-1327 | 06660 ( SCREW, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5305-00-206-1327
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-206-1327
Related Products | NSN 5305-00-206-1327
Technical Data | NSN 5305-00-206-1327
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.853 INCHES MINIMUM |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1010 OR STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-630 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-631 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-634 FED SPEC 1ST MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.094 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.250 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |
| WASHER QUANTITY | 1 |

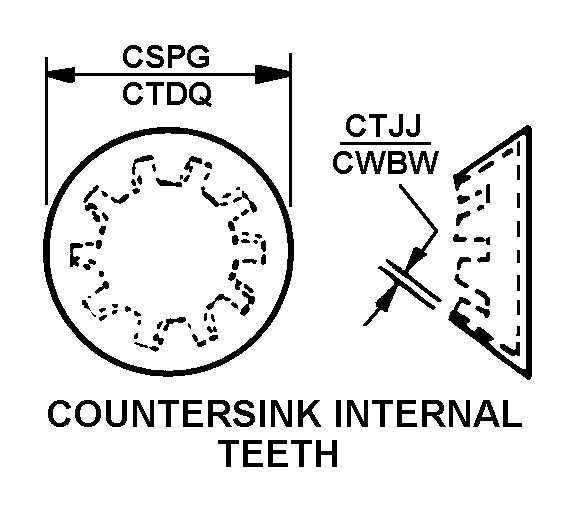

| PRIMARY WASHER STYLE | G4 COUNTERSINK INTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| PRIMARY WASHER MATERIAL THICKNESS | 0.022 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-00-206-1327
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
