NSN 5305-00-207-1535 AN53502, AN535-0-2, PK53502
Product Details | DRIVE SCREW

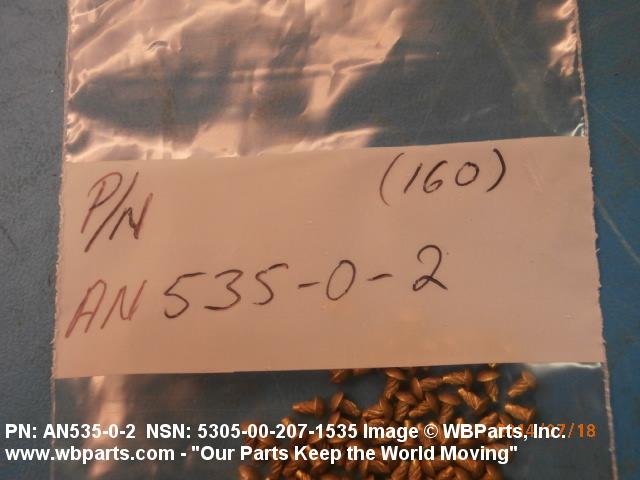

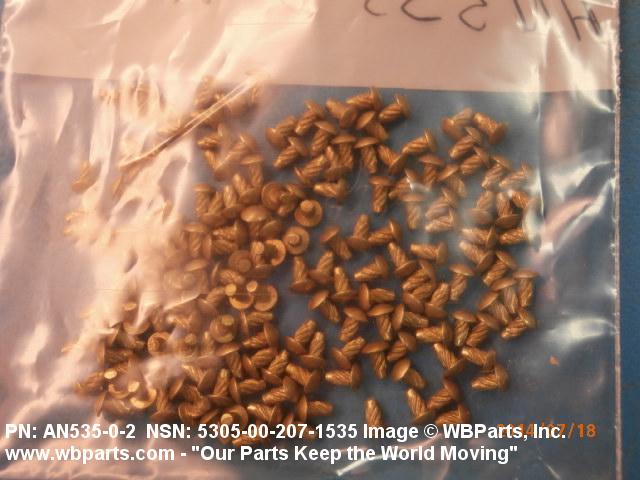

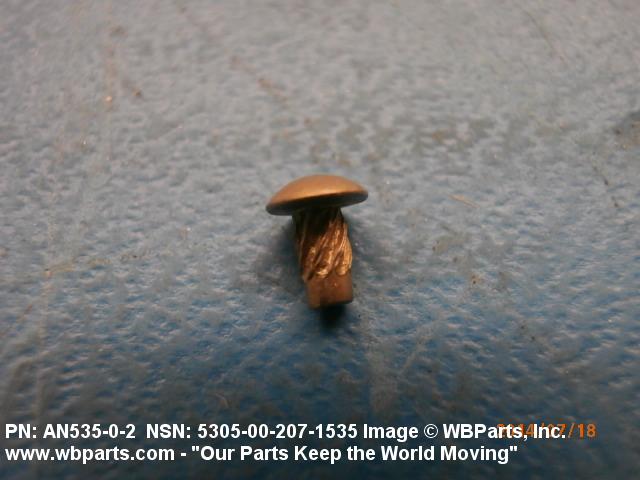

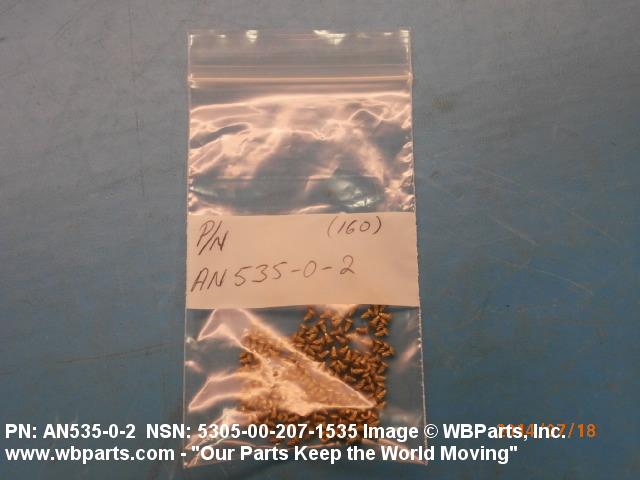

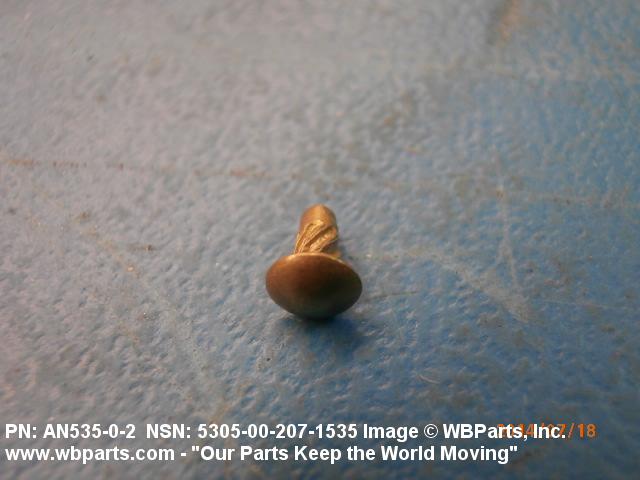

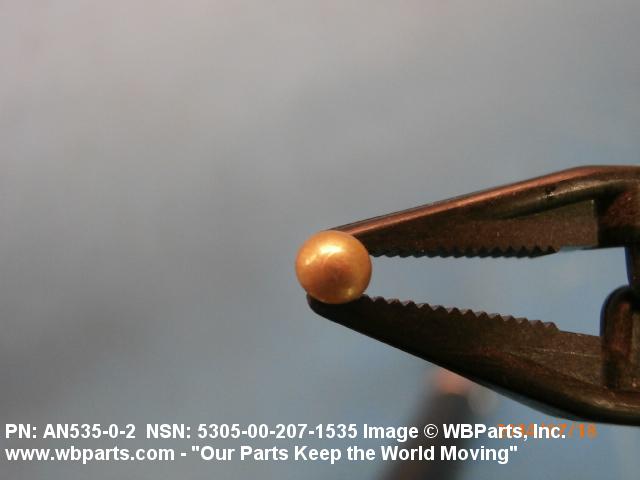

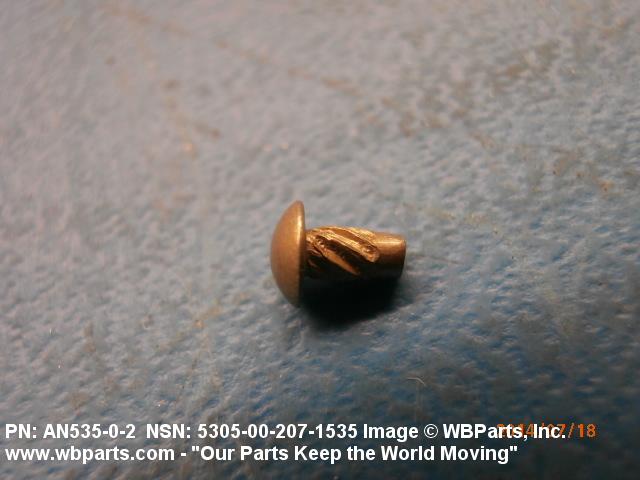

5305-00-207-1535 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.
Part Alternates: AN53502, AN535-0-2, PK53502, PK535-0-2, 6040755, 852872, 1017712, 10-17712, 10401, 1131, 113-1, 122902, 2081004P4, 208-1004P4, 5305-00-207-1535, 00-207-1535, 5305002071535, 002071535
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-207-1535 | 15896 ( SCREW, DRIVE ) |
Drawings & Photos | NSN 5305-00-207-1535
Demand History | NSN 5305-00-207-1535
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10401 | 2021-04-93 | 0 | |
| AN53502 | 2016-11-334 | 70 | AE |
| AN53502 | 2014-04-97 | 160 | United States |
| AN53502 | 2014-04-92 | 160 | United States |
| 5305-00-207-1535 | 2014-01-10 | 100 | United States |
| AN53502 | 2008-05-136 | 4 | United States |
| 5305-00-207-1535 | 2007-04-115 | 650 | US |
Cross Reference | NSN 5305-00-207-1535
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-17712 | 28839 | TELEDYNE INDUSTRIES INC TELEDYNE POWER SYSTEMS DIV |
| 10-17712 | 59501 | UNISON INDUSTRIES, LLC |
| 10-17712 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 10401 | 84760 | STANADYNE CORPORATION DBA STANADYNE DIESEL SYSTEMS |
| 113-1 | 84760 | STANADYNE CORPORATION DBA STANADYNE DIESEL SYSTEMS |
| 122902 | F1688 | GOODRICH ACTUATION SYSTEMS BUCVERNON SAS |
| 122902 | F6103 | LUCAS FRANCE SA DIV AEROSPACE FRANCE |
| 208-1004P4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 6040755 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6040755 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 6040755 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 852872 | 05257 | GENERAL DYNAMICS CANADA LTD |
| AN535-0-2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| PK535-0-2 | 45722 | USM CORP SUB OF EMHART INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-207-1535
Technical Data | NSN 5305-00-207-1535
| Characteristic | Specifications |
|---|---|
| NONMACHINE NOMINAL THREAD DIAMETER | 0.073 INCHES |

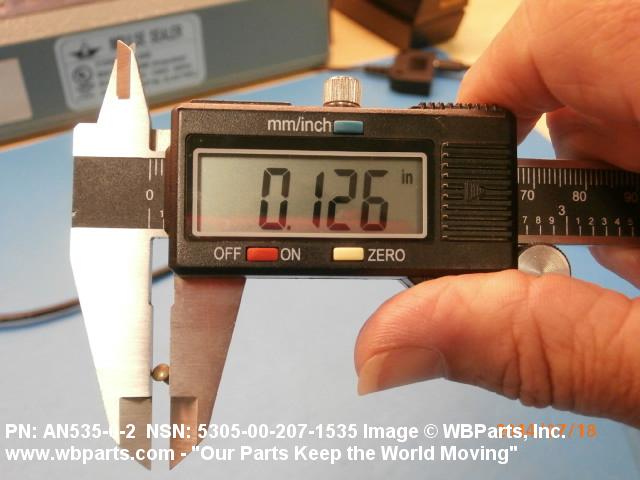

| FASTENER LENGTH | 0.125 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C37 ROUND |

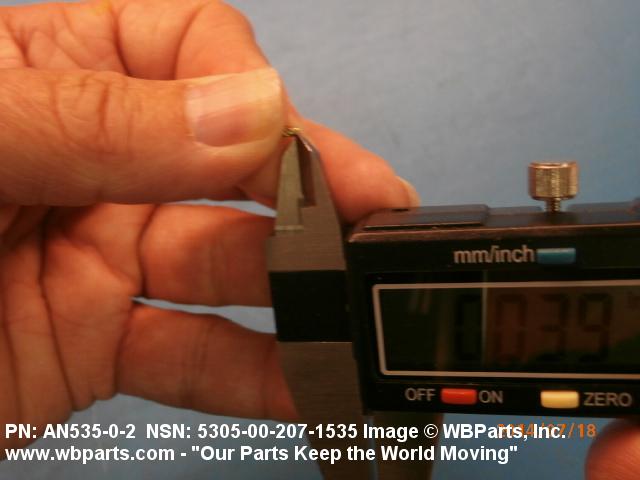

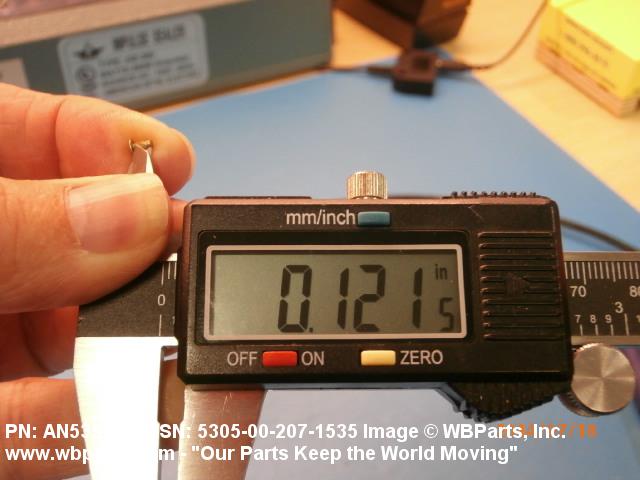

| HEAD DIAMETER | 0.118 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |

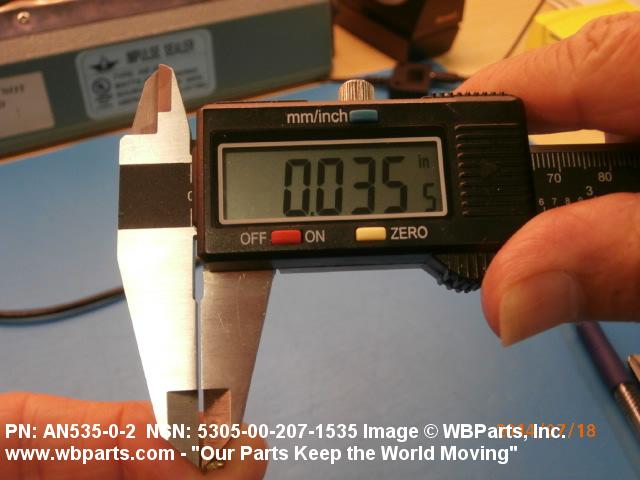

| HEAD HEIGHT | 0.041 INCHES MINIMUM AND 0.049 INCHES MAXIMUM |

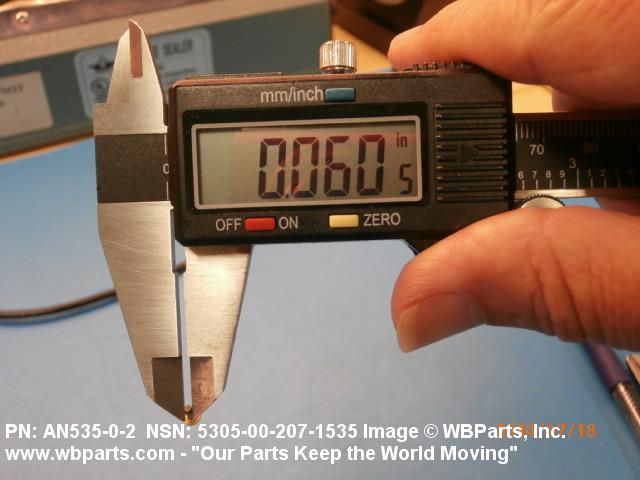

| PILOT DIAMETER | 0.062 INCHES NOMINAL |
