Product Details | HEXAGON HEAD CAP SCREW

5305-00-225-3843 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS352918, MS35291-8, MS353018, MS35301-8, MS907258, MS90725-8, MS907288, MS90728-8, N9694 , S1616, B1821BH025C100N, 5305PL0655799 , 647732, 6477-32, 72024441, 720244-41, 9440320, 00540, 01847026, 01847-026, 0S1616, 10082445, 121900, 1420X1, 1-4-20X1, 15784620, 157846-20, 18257005, 18257-005, 186647, 1C416, 1C6360P07, 213546, 26416, 26-416, 2950264, 303841, 3176210A005, 3176210-A-005, 35A2C5, 456720125105, 522C500006, 5305-00-225-3843, 00-225-3843, 5305002253843, 002253843

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-225-3843	18257 ( SCREW, CAP, HEXAGON HEAD )

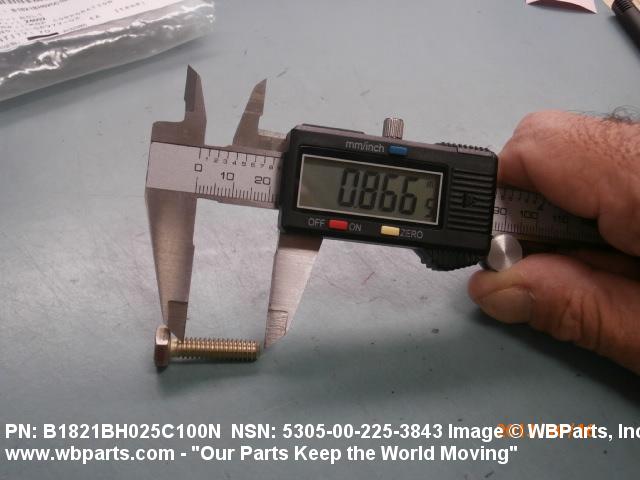

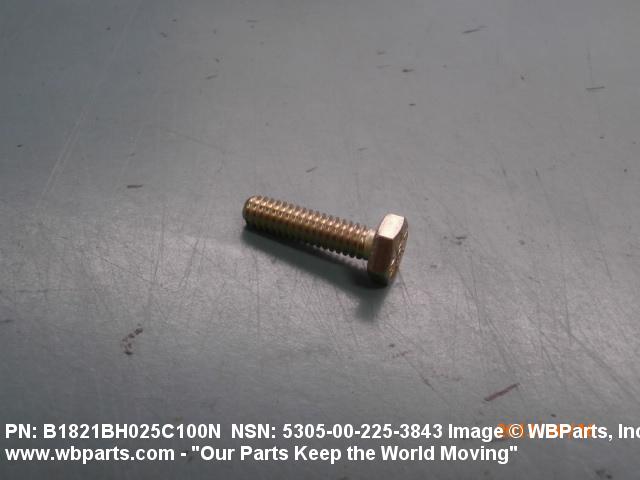

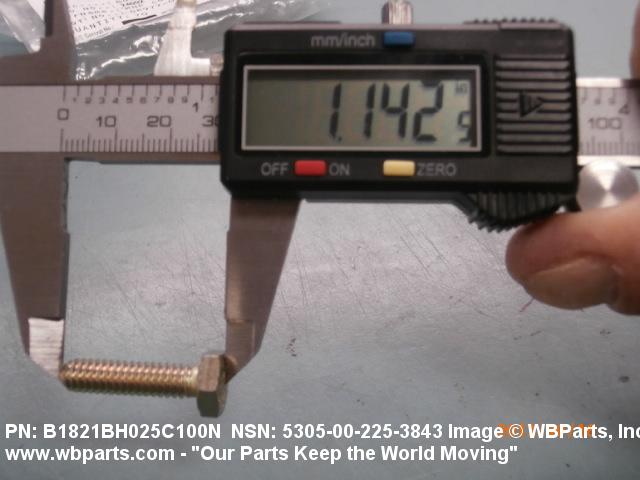

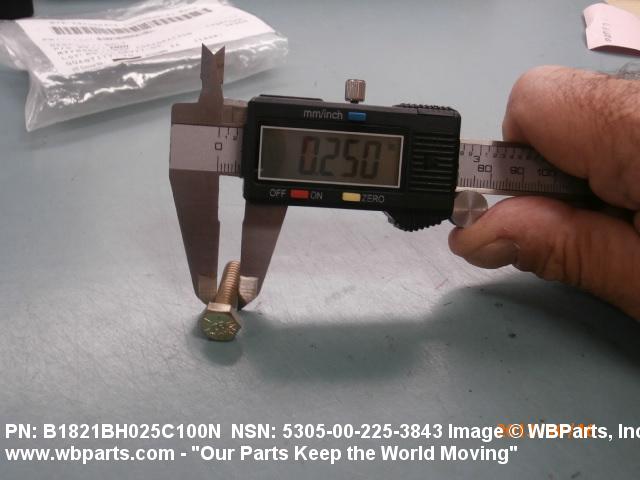

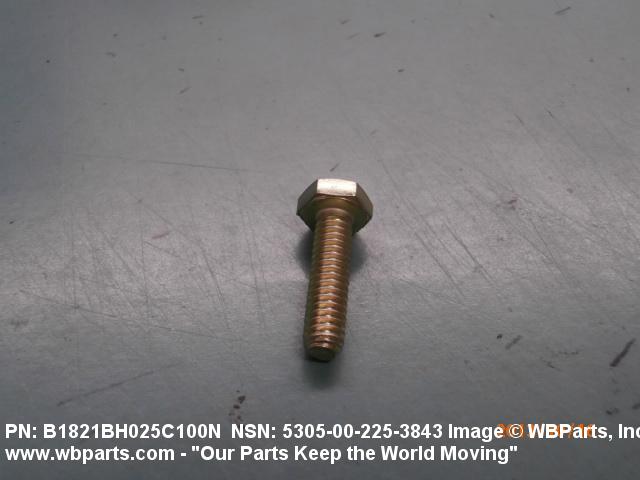

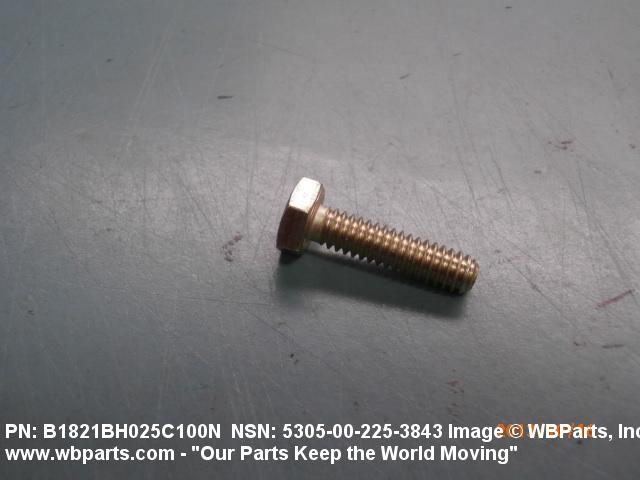

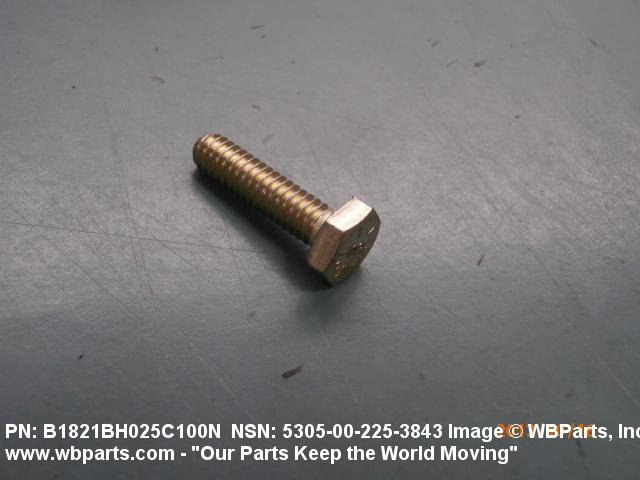

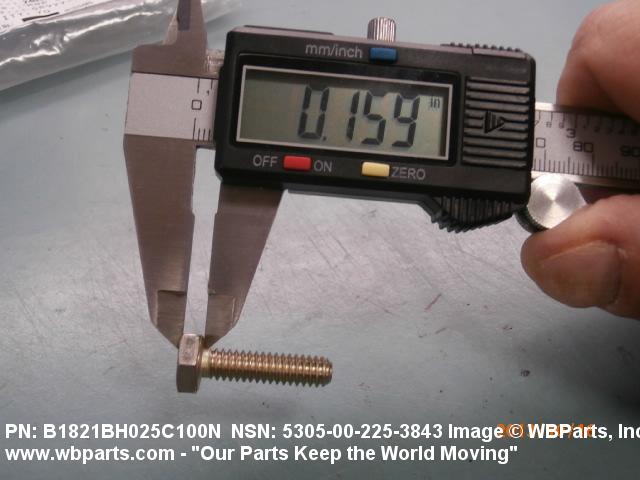

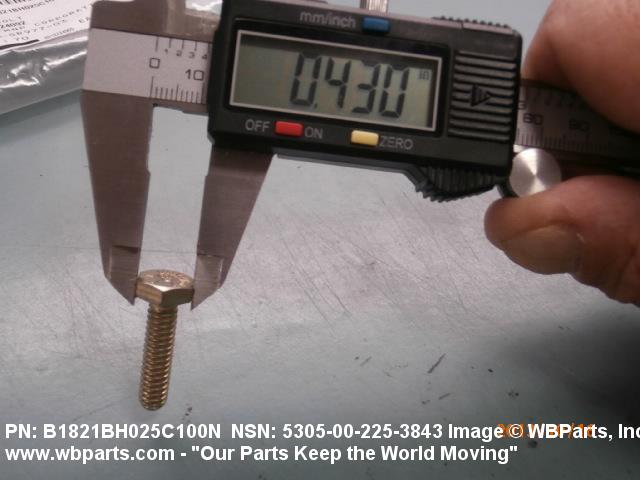

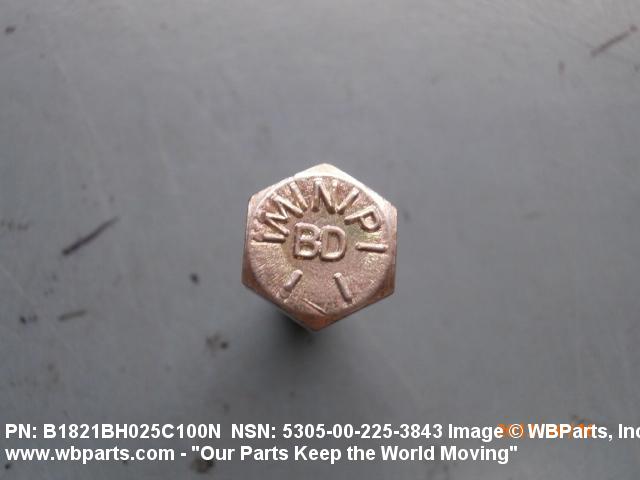

Drawings & Photos | NSN 5305-00-225-3843

Part Number	Request Date	QTY	Origin
B1821BH025C100N	2025-08-213	1868	United States
B1821BH025C100N	2025-08-213	1868	United States
5305-00-225-3843	2025-05-149	24	US
MS907258	2025-05-139	45	Malaysia
B1821BH025C100N	2025-04-101	1868	United States
B1821BH025C100N	2024-10-302	1500	United States
5305-00-225-3843	2024-07-204	6	US
5305-00-225-3843	2024-07-183	4000	United States
5305-00-225-3843	2024-06-169	6	United States
5305-00-225-3843	2024-04-121	1381	DIBBS
