NSN 5305-00-225-6400 MS246933C, MS24693-3C, MS24693C003

Product Details | MACHINE SCREW

5305-00-225-6400 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS246933C, MS24693-3C, MS24693C003, MS24693-C003, MS24693C3, MS24693-C3, MS24963C3, M2142045 , M24693C3, M24693-C3, AN507C440R5, NAS662C4R5, B70111, GA3138003, GA3138-003, RFG5F5-6K0HMSP0 RM2PCT1-4W, RFG5F56K0HMSP0RM2PCT14W, 7903133-02, 89549807, 8954980-7, 94014P3, 9465313003, 946531-3003, 962C4752, 962C475-2, 089-6008-05, 10125063 , 10511924, 1121055003, 112-1055-003, 135556-003, 15650018-3, 2012508, 2301443003, 23-01443-003, 2504188127, 2504188-127, 2504188128, 2504188-128, 272.353.801, 3029668003, 30-296-680-03, 31311020100, 3131-1020-100, 40001045801, 4177085-90, 418300-222, 418359-222, 51490027002, 514-90027-002, 60633038, 60-633038, 6517K70P004, 74455202005, 5305-00-225-6400, 00-225-6400, 5305002256400, 790313302, 418359222, 418300222, 417708590, 089600805, 141700109, 156500183, 135556003, 272353801, 002256400

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-225-6400	06657 ( SCREW, MACHINE )

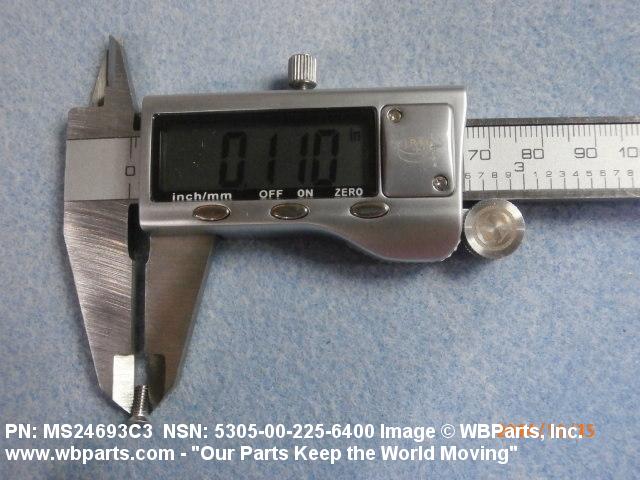

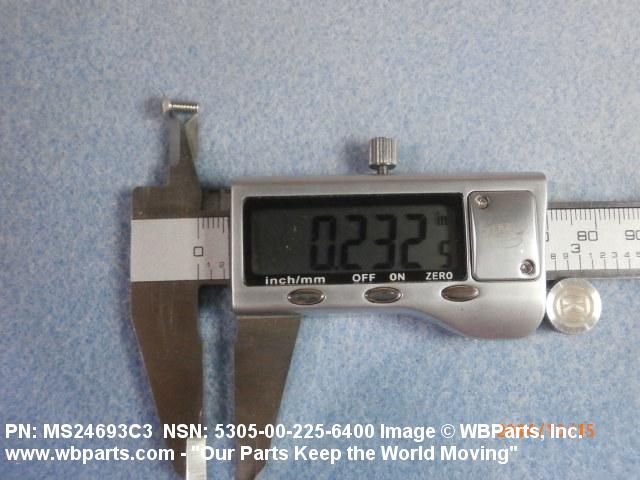

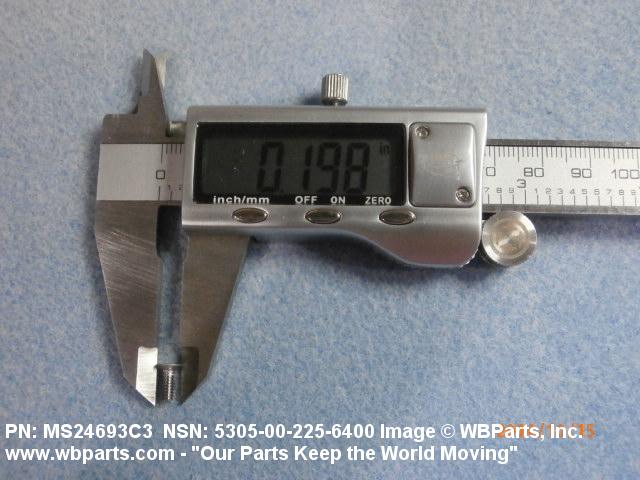

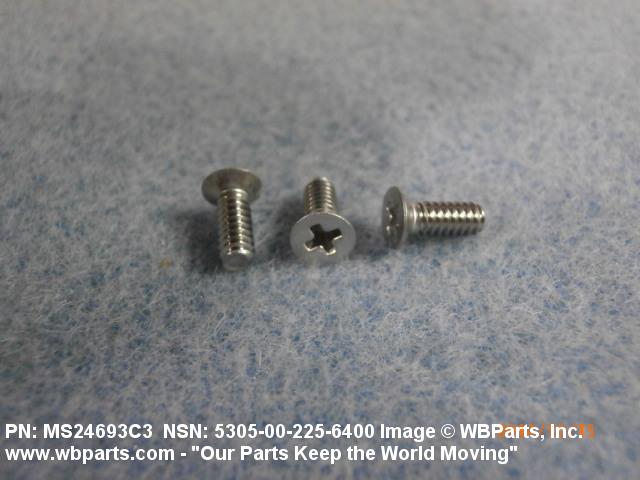

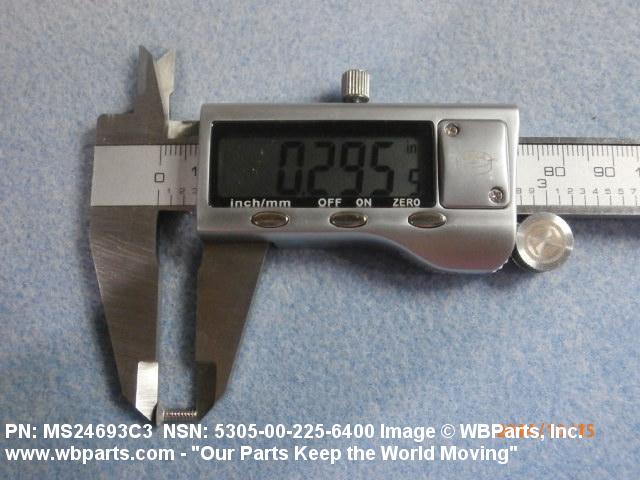

Drawings & Photos | NSN 5305-00-225-6400

Part Number	Request Date	QTY	Origin
MS24693C3	2024-09-261	928	Japan
MS24693C3	2023-09-249	1	US
MS24693-C3	2021-05-137	2100	US
MS24693C3	2021-05-124	12	IN
5305-00-225-6400	2021-04-119	5	US
MS24693-C3	2020-06-174	120	Hong Kong
MS24693C3	2020-04-100	12	US
MS24693C3	2019-02-49	500	United States
5305-00-225-6400	2019-02-37	1	United States
MS24693C3	2016-10-279	100	United States
MS24693C3	2015-10-300	18000	US
MS24693C3	2015-05-146	1700	US
5305-00-225-6400	2015-05-139	1700	US
MS24693C3	2014-09-271	100	United States
MS24693C3	2014-09-259	288	United States
MS24693C3	2014-07-212	100	US
MS24693C3	2014-07-199	100	United States
MS24693C3	2014-04-113	160	India
MS24693C3	2014-01-29	30	United States
MS24693-C003	2013-08-229	10200	Canada
MS24693C3	2012-11-310	50
5305-00-225-6400	2012-07-210	1000	AE
5305-00-225-6400	2012-07-210	4000	AE
MS24693C3	2012-04-108	1	United States
5305-00-225-6400	2012-02-59	3500	DIBBS
NAS662C4R5	2012-02-51	22000	US
NAS662C4R5	2012-02-51	22000	US
MS24693C3	2012-01-26	12	us
MS24693C3	2011-07-201	100	United Kingdom
5305-00-225-6400	2011-02-48	40	US
MS24693C3	2010-11-308	100	Singapore
5305-00-225-6400	2010-10-281	4	US
5305-00-225-6400	2010-10-278	98	us
5305-00-225-6400	2010-06-175	200	India
5305-00-225-6400	2009-07-196	200	us
5305-00-225-6400	2009-04-106	4	US
5305-00-225-6400	2008-10-287	100	China
MS24693C3	2008-09-273	3300	us
MS24693C3	2008-09-273	117600	us
MS24693C3	2008-06-162	500	United States
5305-00-225-6400	2007-04-108	1000	Malaysia
5305-00-225-6400	2006-12-348	25	US
5305-00-225-6400	2006-09-252	100	South Korea
5305-00-225-6400	2006-09-252	100	South Korea

Cross Reference | NSN 5305-00-225-6400

Part Number	Cage Code	Manufacturer
089-6008-05	22373	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
10511924	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
112-1055-003	94756	BOEING COMPANY, THE DBA BOEING
135556-003	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
141700109	D1876	L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK
15650018-3	F6151	SAFRAN
15650018-3	FAQ15	SAGEM DEFENSE SECURITE - GROUPESAFRAN
2012508	001JK	EMBRAER S/A
2012508	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
23-01443-003	K0268	RAYTHEON SYSTEMS LTD
2504188-127	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2504188-128	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
272.353.801	D3683	ESW GMBH DIV JENOPTIK DEFENSE AND CIVIL
30-296-680-03	K0802	MEGGITT (UK) LTD DBA MEGGITT SENSING SYSTEMS
3131-1020-100	K0656	BAE SYSTEMS (OPERATIONS) LTD
40001045801	D1739	COOPER CROUSE-HINDS GMBH STANDORTEBERBACH
4177085-90	05869	RAYTHEON COMPANY DBA RAYTHEON
418300-222	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418359-222	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
514-90027-002	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
60-633038	15280	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION
60-633038	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
6517K70P004	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
74455202005	89944	KOLLSMAN, INC.
7903133-02	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
7903133-02	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
8954980-7	11447	L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST
8954980-7	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
94014P3	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
946531-3003	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946531-3003	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
962C475-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN507C440R5	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
B70111	K0967	MBDA UK LTD
GA3138-003	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M2142045	1045G	AERO VODOCHODY A.S.
M24693-C3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-3C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-C003	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24693-C3	7K754	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
MS24693-C3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24693-C3	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
MS24693-C3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24693C3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24963C3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS662C4R5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
RFG5F5-6K0HMSP0 RM2PCT1-4W	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-225-6400

Compare

Related Products | NSN 5305-00-225-6400

5305-00-225-6403, 5305-00-225-6863, 5305-00-225-6866, 5305-00-225-6885, 5305-00-225-6893

Technical Data | NSN 5305-00-225-6400

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.262 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
FASTENER LENGTH	0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A39 FLAT COUNTERSUNK
HEAD DIAMETER	0.191 INCHES MINIMUM AND 0.225 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-225-6400

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-225-6400

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
