NSN 5305-00-225-7774 MS1699624, MS16996-24, P916306616

Product Details | SOCKET HEAD CAP SCREW

5305-00-225-7774 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699624, MS16996-24, P916306616, 946606-328, 003007948024, 003-007948-024, 13616424, 136164-24, 4806034, 4806-034, 5F2010417, 5F20-1041-7, 91160704, 911607-04, 5305-00-225-7774, 00-225-7774, 5305002257774, 946606328, 002257774

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-225-7774	16282 ( SCREW, CAP, SOCKET HEAD )

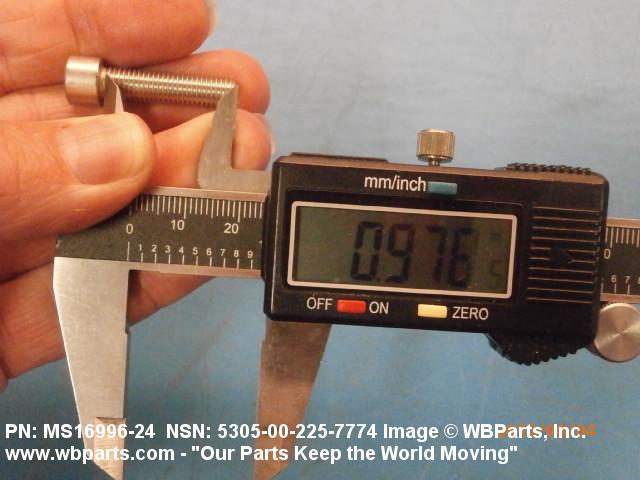

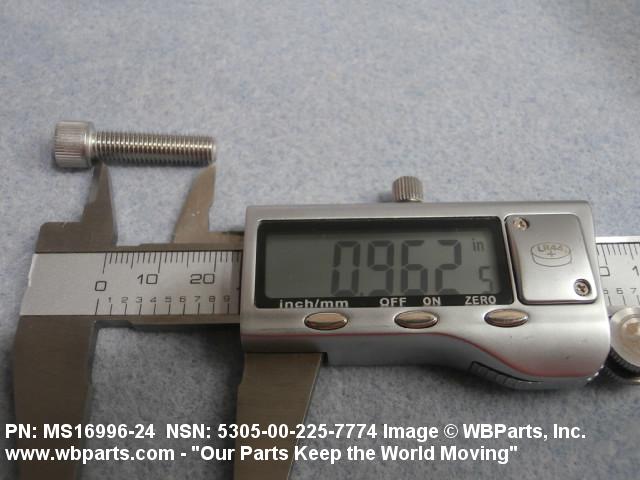

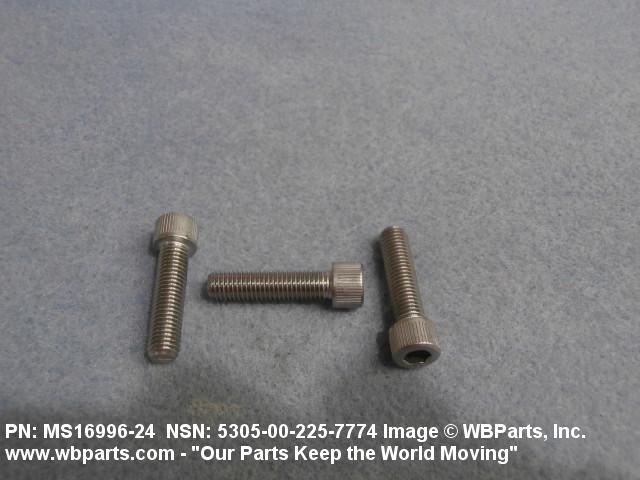

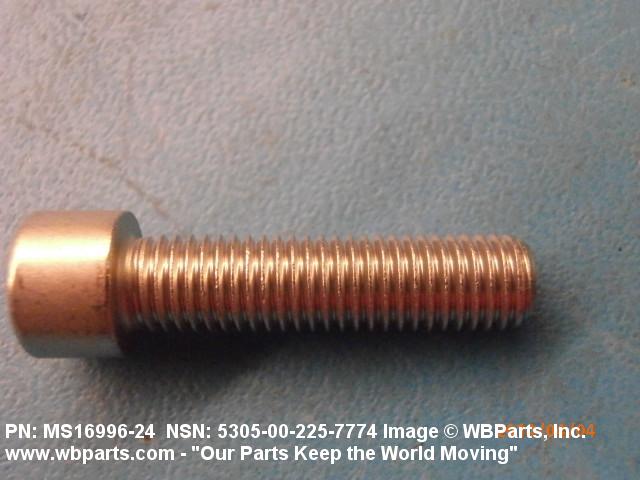

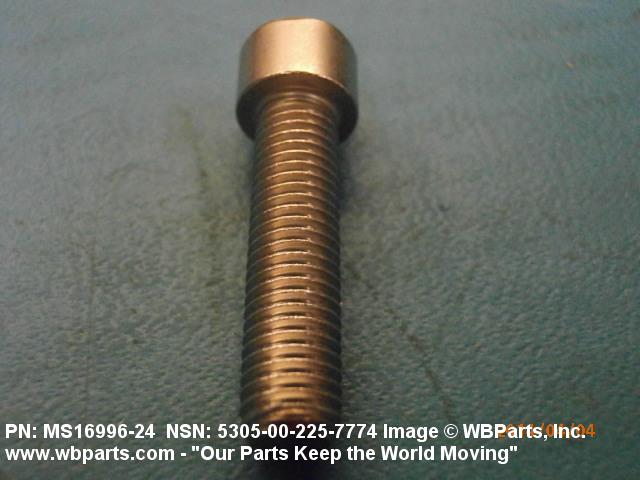

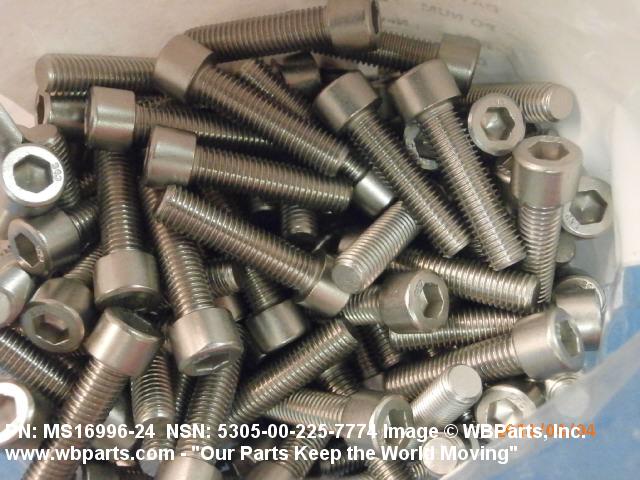

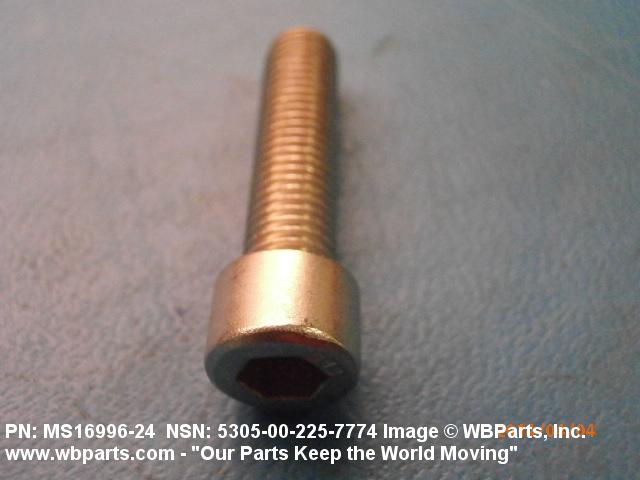

Drawings & Photos | NSN 5305-00-225-7774

Part Number	Request Date	QTY	Origin
5305-00-225-7774	2025-07-199	50	Germany
5305-00-225-7774	2025-05-136	60	Germany
MS1699624	2024-12-344	4	Japan
MS1699624	2024-12-344	4	Japan
MS1699624	2024-12-344	4	Japan
MS1699624	2024-12-344	4	Japan
5305-00-225-7774	2024-08-219	312	DIBBS
5305-00-225-7774	2024-06-177	488	DIBBS
MS1699624	2024-04-101	50000	US
MS1699624	2024-04-101	100000	US
MS1699624	2024-04-101	140000	US
5305-00-225-7774	2024-03-88	1055	DIBBS
5305-00-225-7774	2024-03-80	1055	DIBBS
5305-00-225-7774	2023-08-222	1055	DIBBS
5305-00-225-7774	2023-08-214	1055	DIBBS
5305-00-225-7774	2023-05-151	457	DIBBS
5305-00-225-7774	2020-10-288	58	United States
MS16996-24	2018-11-310	208	Israel
MS1699624	2018-05-149	62	India
5305-00-225-7774	2015-12-342	30	us
MS16996-24	2014-11-314	288	IL
MS1699624	2014-07-209	200	United States
MS1699624	2014-07-196	10	US
5305-00-225-7774	2014-07-187	12064	DIBBS
5305-00-225-7774	2014-06-162	7032	DIBBS
MS1699624	2014-03-87	200	United States
MS1699624	2014-03-86	300	United States
MS1699624	2013-03-81	1	US
5305-00-225-7774	2013-01-16	100	IT
5305-00-225-7774	2013-01-16	100	IT
MS1699624	2012-04-114	6	Australia
5305-00-225-7774	2011-12-362	50	US
5305-00-225-7774	2011-12-362	50	US
MS1699624	2010-05-125	85	US
MS1699624	2010-01-26	30	US
5305-00-225-7774	2008-08-241	25	India

Cross Reference | NSN 5305-00-225-7774

Part Number	Cage Code	Manufacturer
003-007948-024	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
136164-24	37695	RAYTHEON COMPANY DBA RAYTHEON
4806-034	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5F20-1041-7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
911607-04	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
946606-328	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
MS16996-24	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16996-24	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
P916306616	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-225-7774

Compare

Related Products | NSN 5305-00-225-7774

5305-00-225-7775, 5305-00-225-7776, 5305-00-225-8367, 5305-00-225-8368, 5305-00-225-8369

Technical Data | NSN 5305-00-225-7774

Characteristic	Specifications

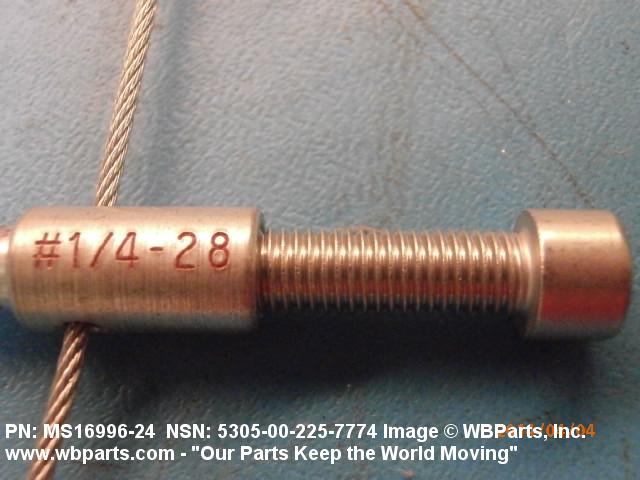

THREAD SERIES DESIGNATOR	UNF

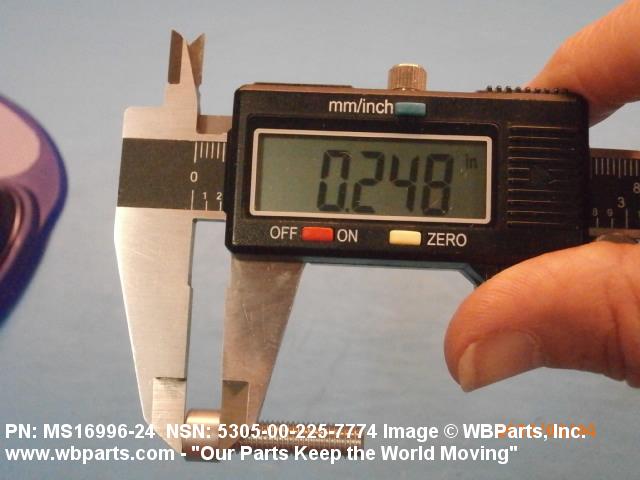

NOMINAL THREAD DIAMETER	0.250 INCHES

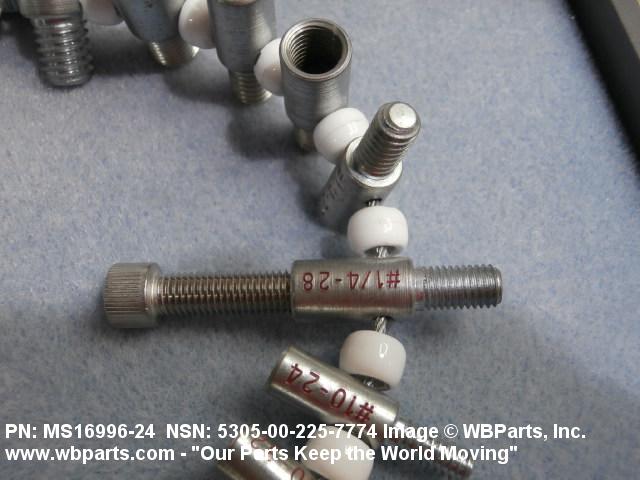

THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.945 INCHES MINIMUM

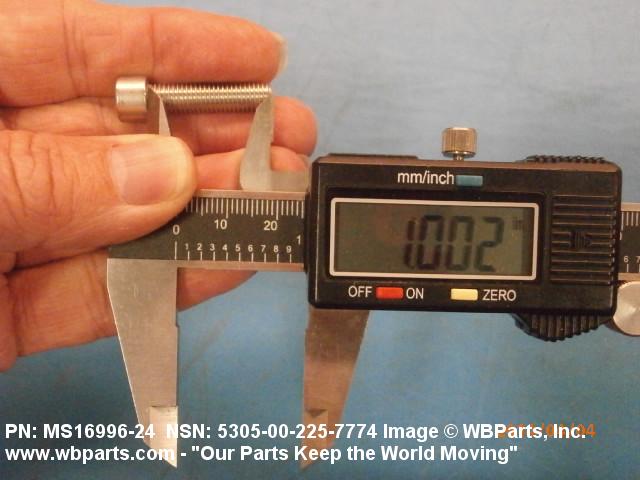

FASTENER LENGTH	1.000 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER

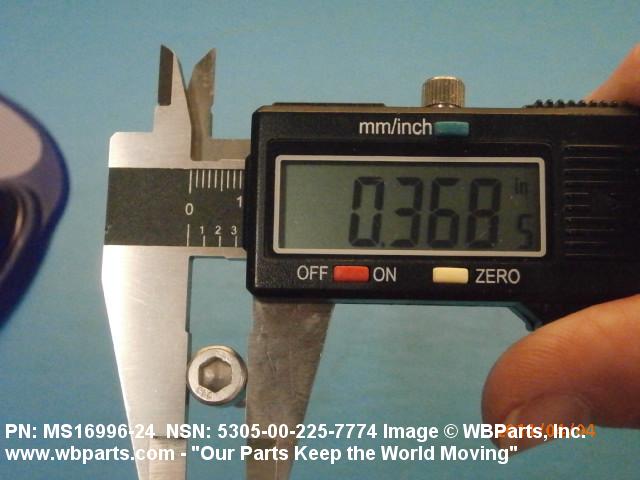

HEAD DIAMETER	0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM

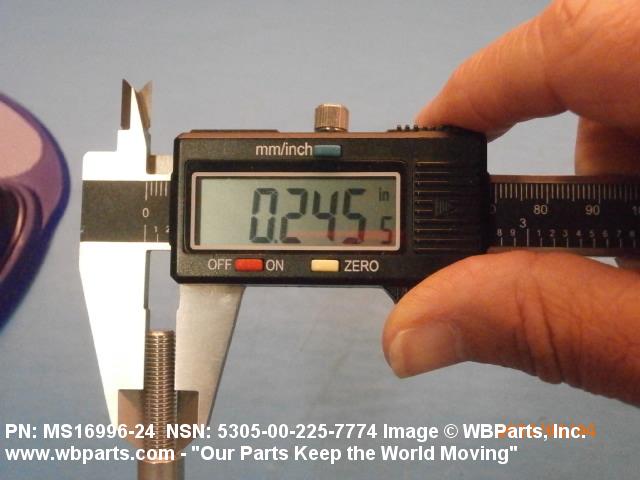

HEAD HEIGHT	0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM

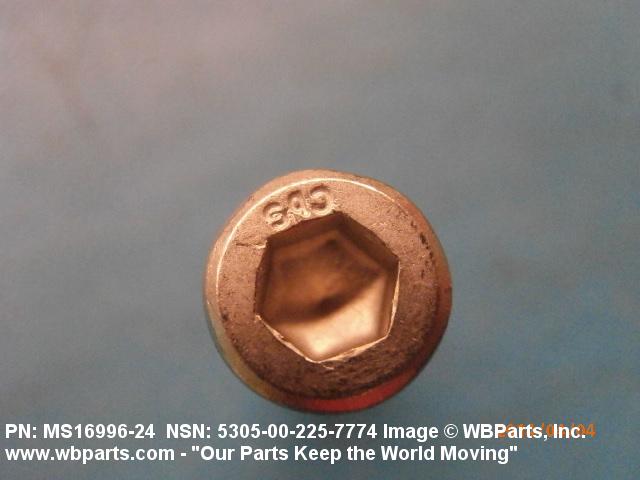

INTERNAL DRIVE STYLE	D5 HEXAGON

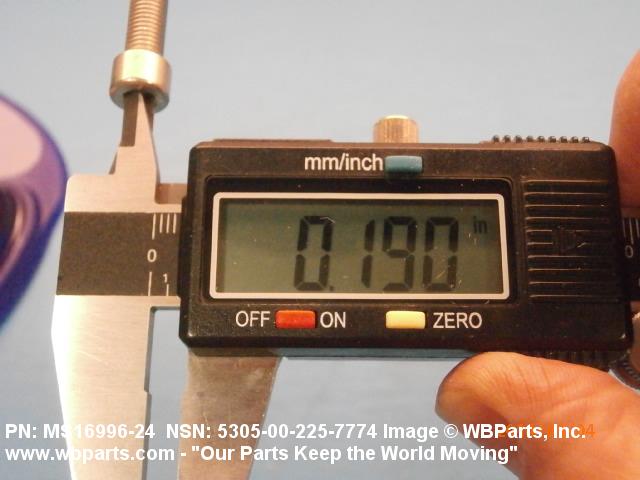

WIDTH ACROSS FLATS	0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-00-225-7774

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-225-7774

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
