NSN 5305-00-253-5614 MS2131820, MS21318-20, AN53543

Product Details | DRIVE SCREW

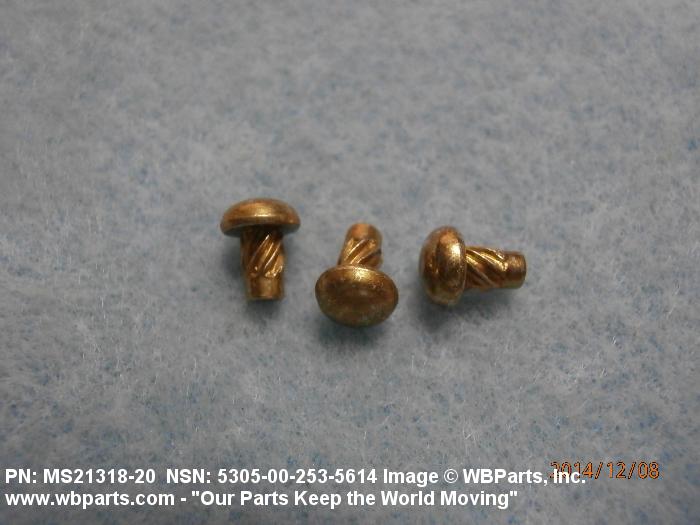

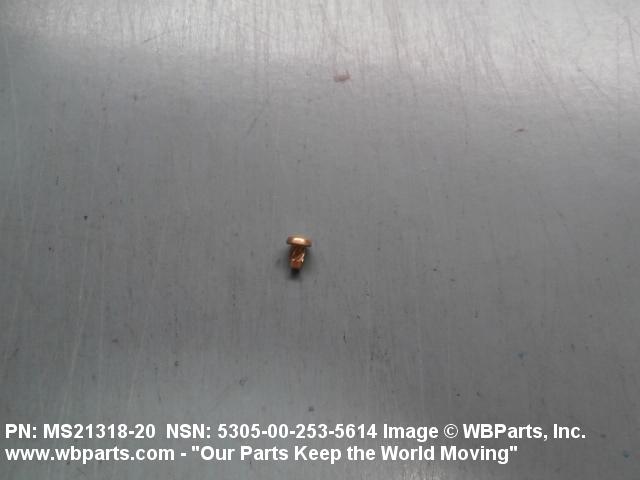

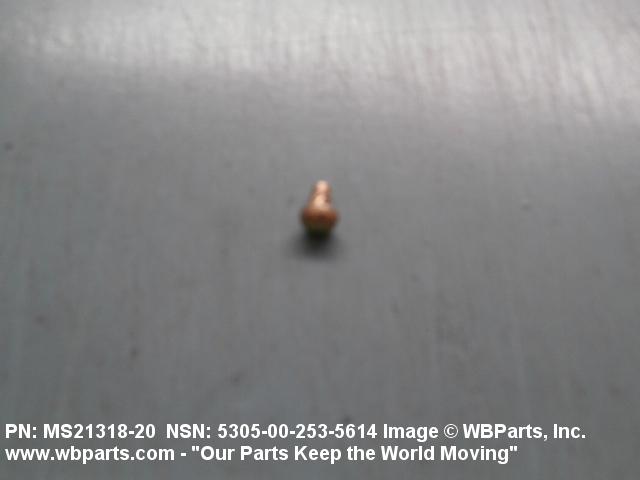

5305-00-253-5614 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.

Part Alternates: MS2131820, MS21318-20, AN53543, AN535-4-3, H26845, H26-845, S021029, FFS107, 53052535614, 5305-253-5614 , 5952317, 922002, 957C3899, 957C389-9, 11446173, 145369, 4123333, 412-3333 , 5000 980000, 5000980000, 5305-00-253-5614, 00-253-5614, 2105002535614 , 5305002535614, 002535614

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-253-5614	15896 ( SCREW, DRIVE )

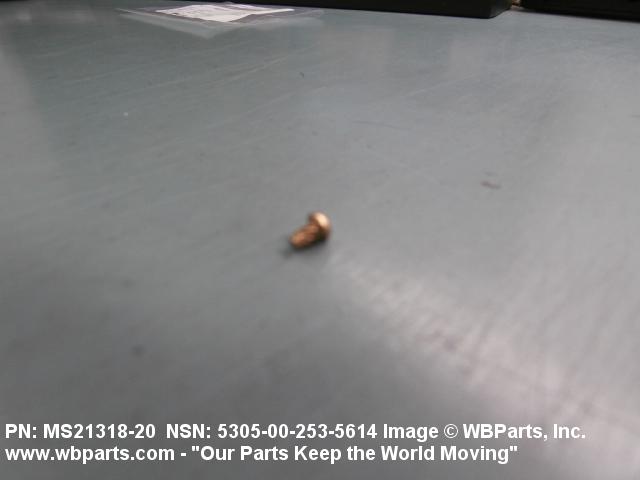

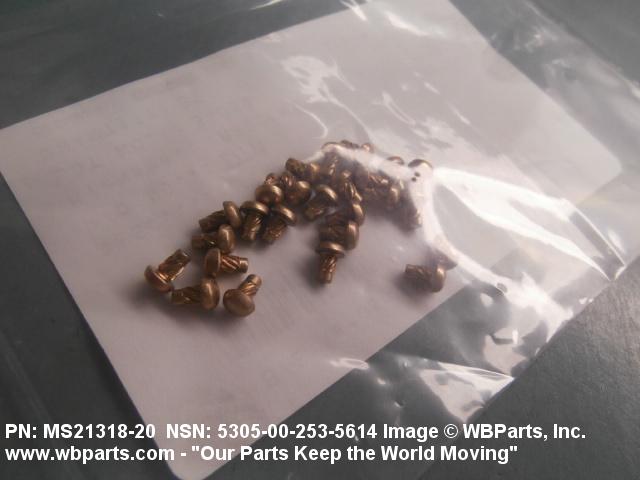

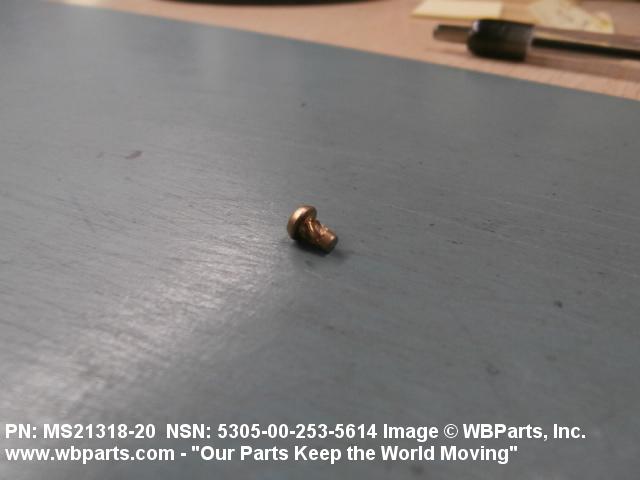

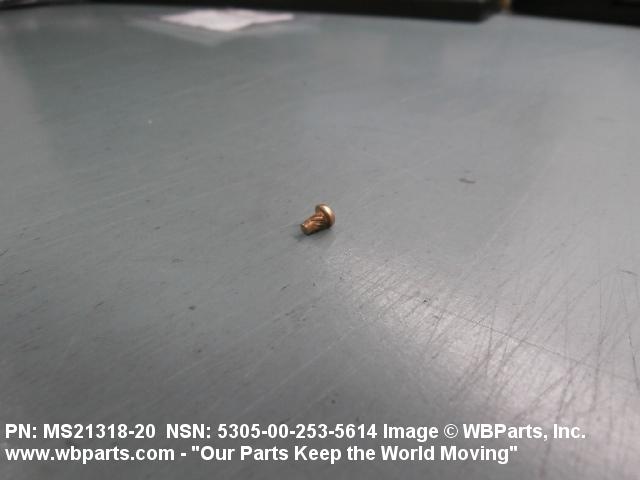

Drawings & Photos | NSN 5305-00-253-5614

Part Number	Request Date	QTY	Origin
MS2131820	2025-04-91	16	Japan
5305-00-253-5614	2024-04-116	485	DIBBS
MS2131820	2023-08-233	500	United States
MS2131820	2022-06-180	120	US
MS2131820	2021-09-259	212	United States
MS2131820	2020-04-118	500	Greece
5305-00-253-5614	2020-03-70	4636	DIBBS
MS2131820	2020-02-41	25	United States
5305-00-253-5614	2019-11-324	2885	DIBBS
MS2131820	2019-11-316	6	US
MS2131820	2019-09-255	16	United States
MS2131820	2019-09-255	24	United States
5305-00-253-5614	2019-02-35	1000	US
AN53543	2016-10-301	50	United States
MS2131820	2015-09-253	1000	US
MS2131820	2015-06-153	600	US
MS2131820	2015-05-127	1	us
MS21318-20	2014-09-271	100	United States
MS21318-20	2014-07-199	100	United States
5305-00-253-5614	2014-07-184	25	Australia
AN535-4-3	2012-03-67	211	China
MS2131820	2011-05-124	60	US
FFS107	2011-02-49	10	US
FFS107	2011-02-49	17	US
MS2131820	2010-11-307	100	United States
MS2131820	2010-11-305	100	United States
5305-00-253-5614	2010-04-109	1500	US
5305-00-253-5614	2009-09-265	8900	DIBBS
AN53543	2009-05-133	348	China
5305-00-253-5614	2009-04-111	2815	DIBBS
MS2131820	2009-03-89	100	US
5305-00-253-5614	2009-03-75	880	DIBBS
FFS107	2009-03-62	1800	US
5305-00-253-5614	2009-01-29	851	DIBBS
MS2131820	2009-01-22	296	Greece
MS2131820	2008-07-203	10	US
5305-00-253-5614	2008-07-193	197	DIBBS
5305-00-253-5614	2008-06-162	10000	US
5305-00-253-5614	2008-04-92	1	DIBBS
FFS107	2007-12-347	600	United States

Cross Reference | NSN 5305-00-253-5614

Part Number	Cage Code	Manufacturer
11446173	18876	U S ARMY AVIATION AND MISSILE COMMAND
11446173	8A932	HUMBOLDT MACHINE SHOP, INC.
145369	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2105002535614	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5000 980000	04801	POWER PARAGON INC DBA POWER SYSTEMS GROUP
5305-253-5614	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305002535614	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5952317	S0522	TADIRAN LTD
922002	99832	SCOTT HUBER ESSICK A CO OF FIGGIE INTERNATIONAL INC
957C389-9	99167	HAMILTON SUNDSTRAND CORPORATION
AN535-4-3	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FFS107	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
H26-845	31435	LUCAS AEROSPACE POWER EQUIPMENT CORPORATION
MS21318-20	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21318-20	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
S021029	03677	ANTHONY YORK CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-253-5614

Compare

Related Products | NSN 5305-00-253-5614

5305-00-253-5615, 5305-00-253-5616, 5305-00-253-5617, 5305-00-253-5618, 5305-00-253-5619

Technical Data | NSN 5305-00-253-5614

Characteristic	Specifications
NONMACHINE THREAD STYLE	A16 DRIVE SCREW

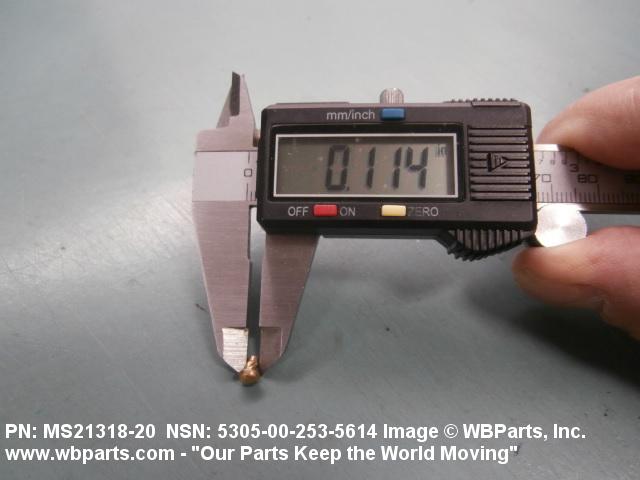

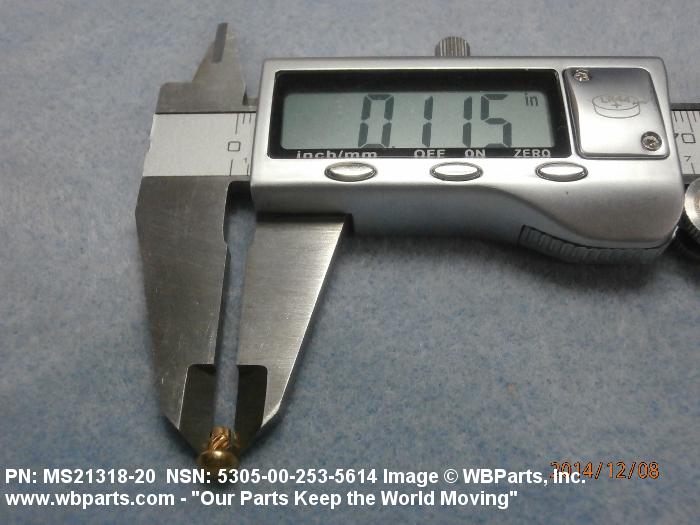

NONMACHINE NOMINAL THREAD DIAMETER	0.114 INCHES

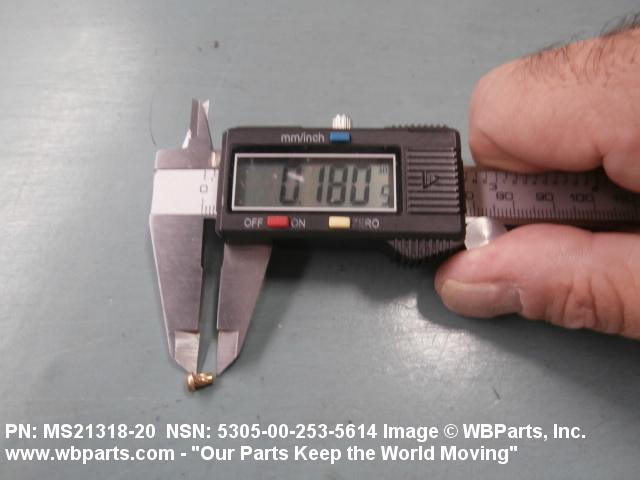

FASTENER LENGTH	0.172 INCHES MINIMUM AND 0.204 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HEAD STYLE	C37 ROUND

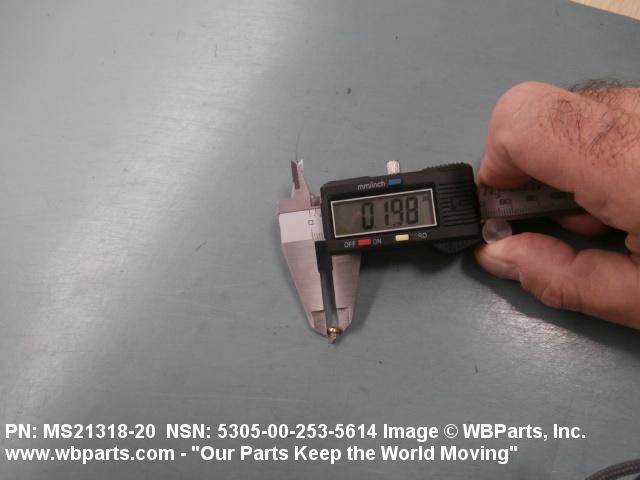

HEAD DIAMETER	0.193 INCHES MINIMUM AND 0.211 INCHES MAXIMUM

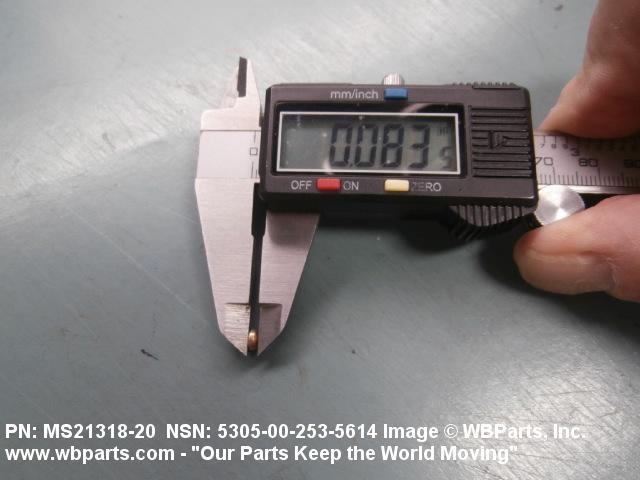

HEAD HEIGHT	0.075 INCHES MINIMUM AND 0.086 INCHES MAXIMUM

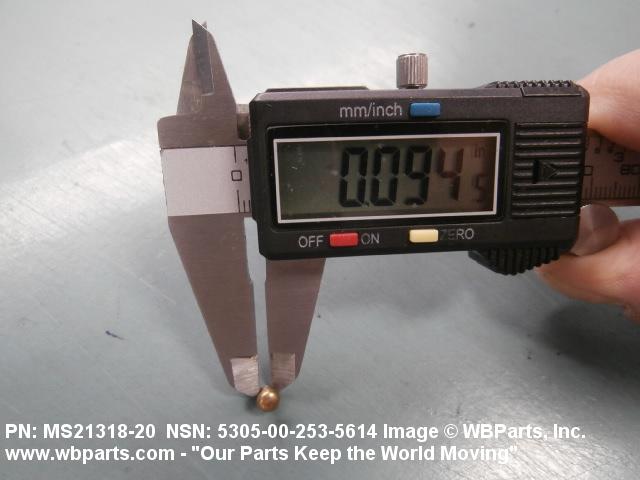

PILOT DIAMETER	0.092 INCHES MINIMUM AND 0.096 INCHES MAXIMUM

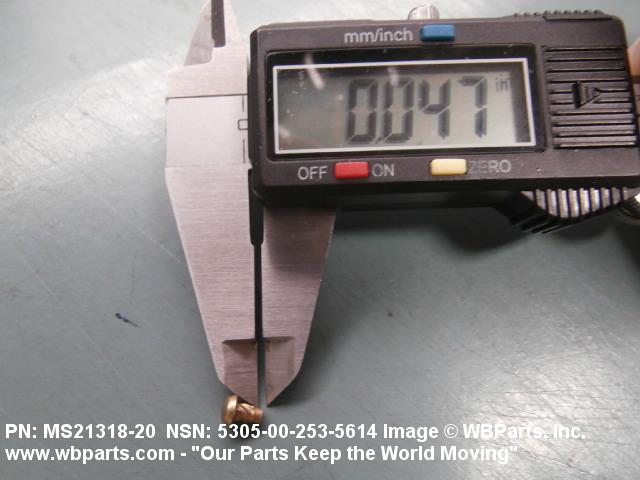

PILOT LENGTH	0.047 INCHES NOMINAL
FEATURES PROVIDED	CASEHARDENED
NONDEFINITIVE SPEC/STD DATA	U TYPE
III END ITEM IDENTIFICATION	W/S:VEHICLE, AIRCRAFT REFUELER R-14; AIRCRAFT, GALAXY C-5; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); SUPPORT EQUIPMENT, B-1 AIRCRAFT; MISSILE, AIR-TO-AIR, PHOENIX (AIM-54); TORPEDO, MK 48; MISSILE, ALL-WEATHER ANTI-SHIP, HARPOON (AGM-84); CLOSE IN WEAPON SYSTEM (CIWS-PHALANX); MISSILE AIR-TO-AIR, SPARROW (AIM-7); GROUND MOBILE FORCE SATELLITE COMM TERM (AN/TSC-85A);2320-01-097-0260 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS107

Restrictions/Controls & Freight Information | NSN 5305-00-253-5614

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-253-5614

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
