NSN 5305-00-267-8956 MS9072512, MS90725-12, MS9072612
Product Details | HEXAGON HEAD CAP SCREW
5305-00-267-8956 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS9072512, MS90725-12, MS9072612, MS90726-12, MS9072712, MS90727-12, B1821BH025F150, B1821BH025F150N, FFB571ANDCLASSA, FFS85, FF-S-85, 20Z1273D7, 5305-00-267-8956, 00-267-8956, 5305002678956, 002678956
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-267-8956 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

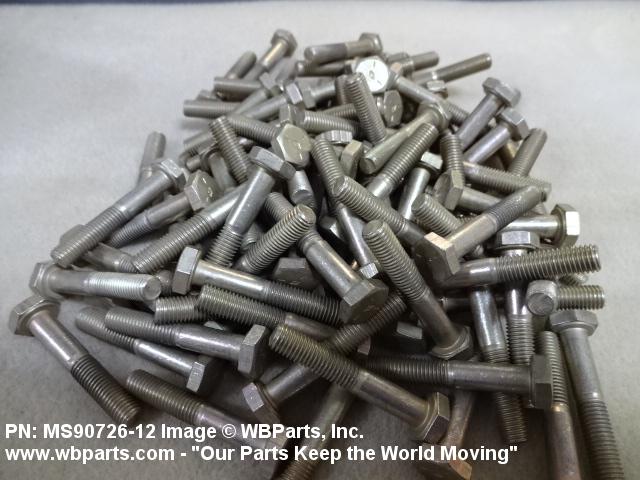

Drawings & Photos | NSN 5305-00-267-8956
Demand History | NSN 5305-00-267-8956
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-267-8956 | 2025-07-208 | 4342 | DIBBS |
| 5305-00-267-8956 | 2023-07-198 | 217 | DIBBS |
| MS9072612 | 2018-07-193 | 100 | United States |
| MS9072512 | 2013-10-287 | 2000 | United States |
| FFS85 | 2013-01-11 | 473 | US |
| MS9072512 | 2011-12-361 | 100 | United States |
| FFS85 | 2011-10-280 | 95 | United States |
| FFS85 | 2011-09-265 | 14 | US |
| MS9072512 | 2011-07-202 | 2000 | US |
| MS9072712 | 2011-07-202 | 2000 | US |
| MS9072512 | 2011-06-167 | 1000 | us |
| FFS85 | 2010-03-84 | 100 | US |
| FFS85 | 2010-02-43 | 10 | United States |
| FFS85 | 2009-09-272 | 50 | US |
| MS9072612 | 2009-08-233 | 16 | US |
| MS9072612 | 2009-08-233 | 16 | US |
| MS9072612 | 2009-08-233 | 16 | US |
Cross Reference | NSN 5305-00-267-8956
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20Z1273D7 | 27315 | MORRIS MATERIAL HANDLING, INC. |
| 5305002678956 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| B1821BH025F150 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| B1821BH025F150N | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| FF-S-85 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| FFB571ANDCLASSA | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS90725-12 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS90726-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS90727-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-267-8956
Technical Data | NSN 5305-00-267-8956
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

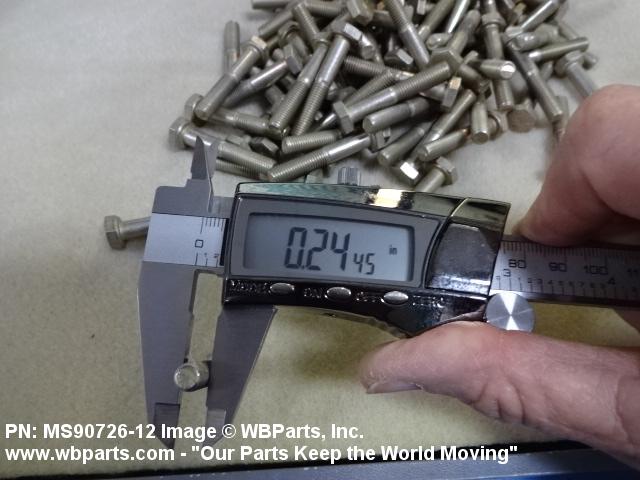

| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

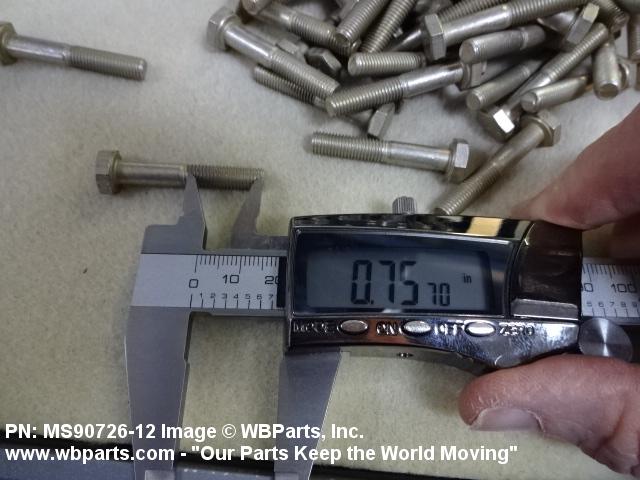

| THREAD LENGTH | 0.750 INCHES MINIMUM AND 0.938 INCHES MAXIMUM |

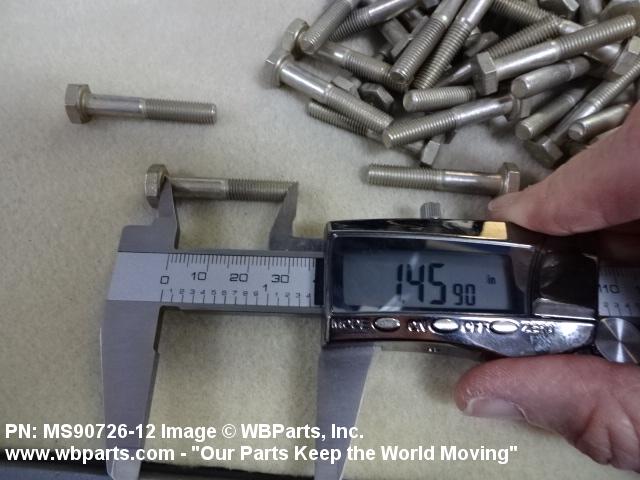

| FASTENER LENGTH | 1.500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE J429 GR 8 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |

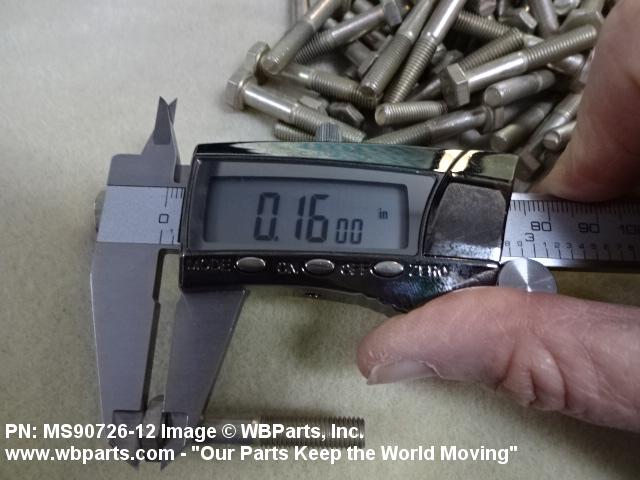

| HEAD HEIGHT | 0.150 INCHES MINIMUM AND 0.163 INCHES MAXIMUM |

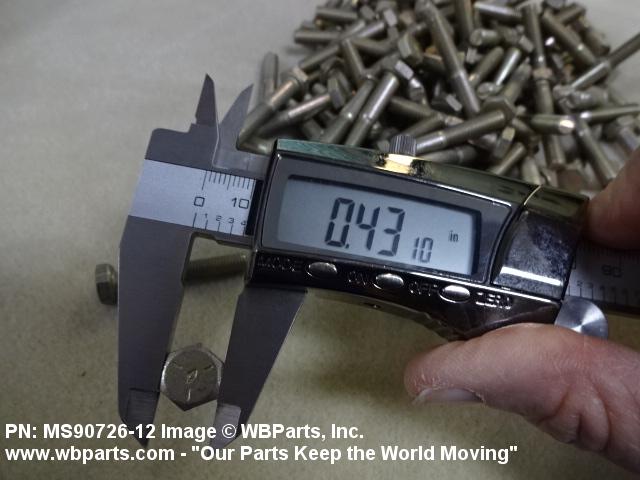

| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 10P STYLE AND 8 GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-85 |
Restrictions/Controls & Freight Information | NSN 5305-00-267-8956
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
