NSN 5305-00-273-6267 MS24677101, MS24677-101, 12Z119699
Product Details | SOCKET HEAD CAP SCREW
5305-00-273-6267 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS24677101, MS24677-101, 12Z119699, 12Z1196-99, 429782PC9, 444304PC6, 734908PC33, 5305-00-273-6267, 00-273-6267, 5305002736267, 002736267
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-273-6267 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

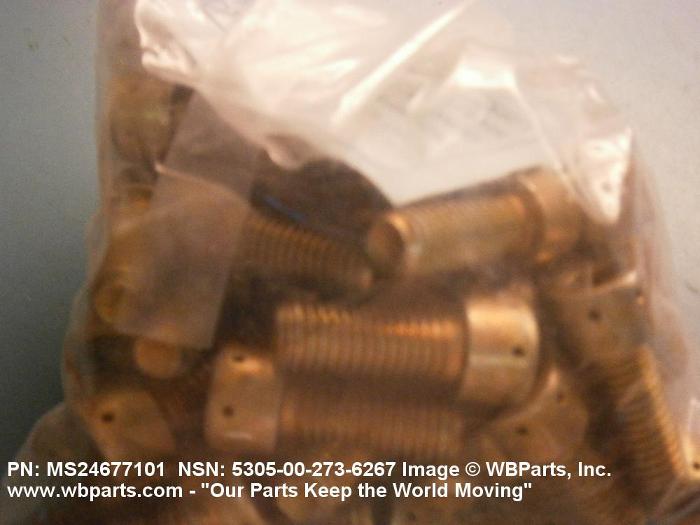

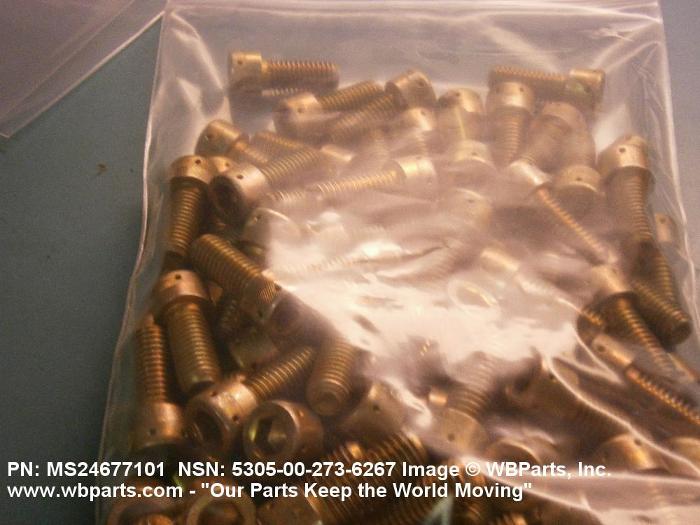

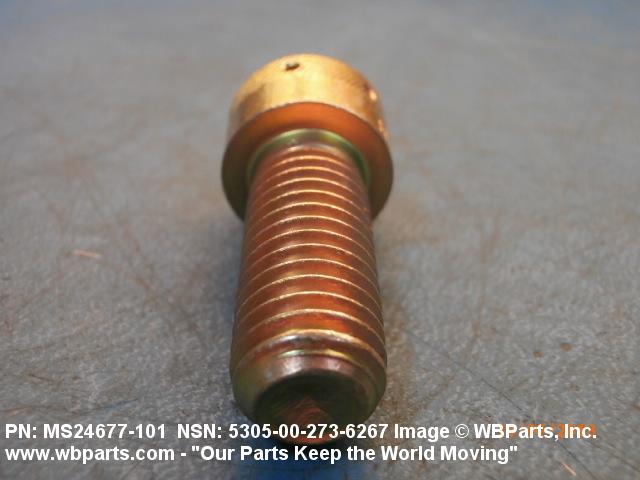

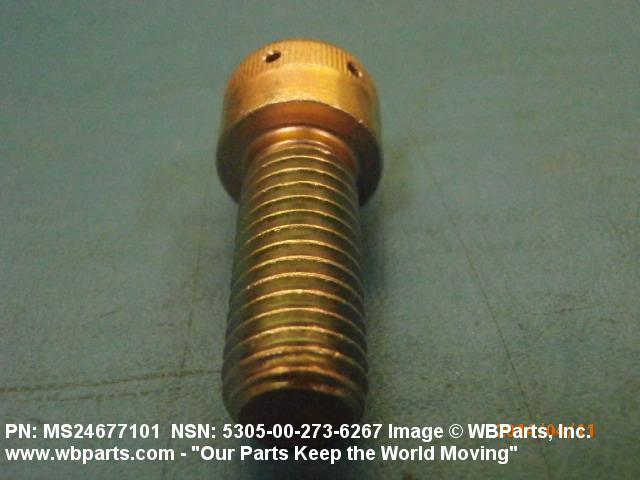

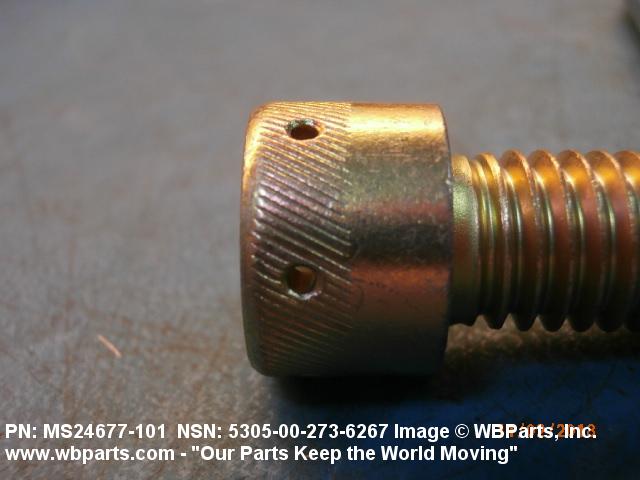

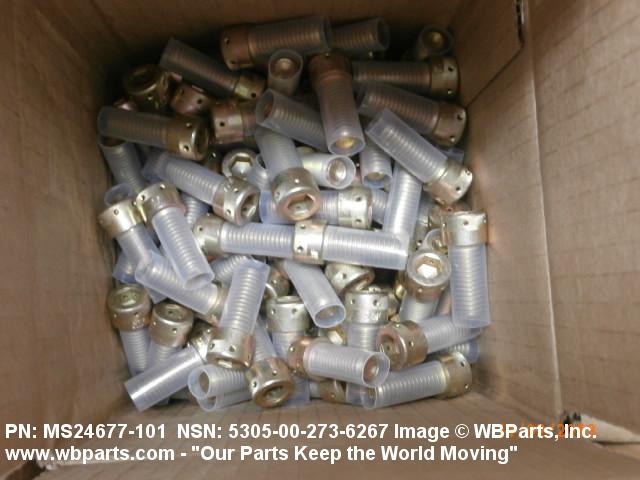

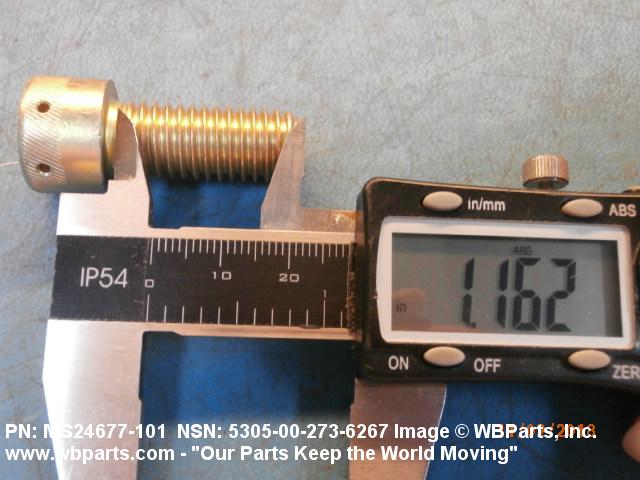

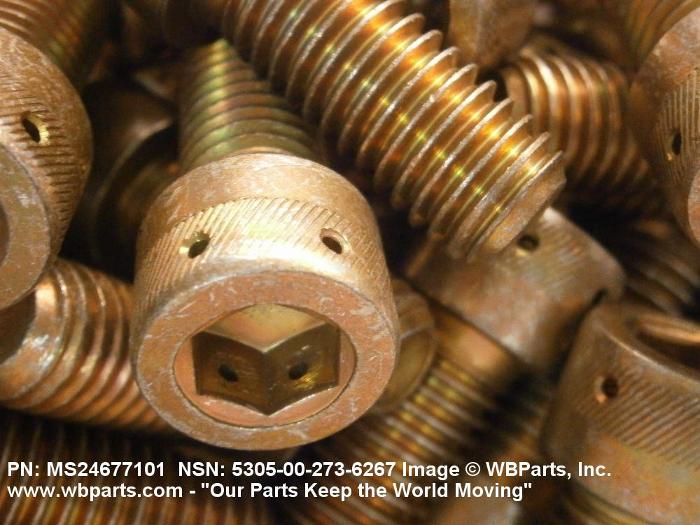

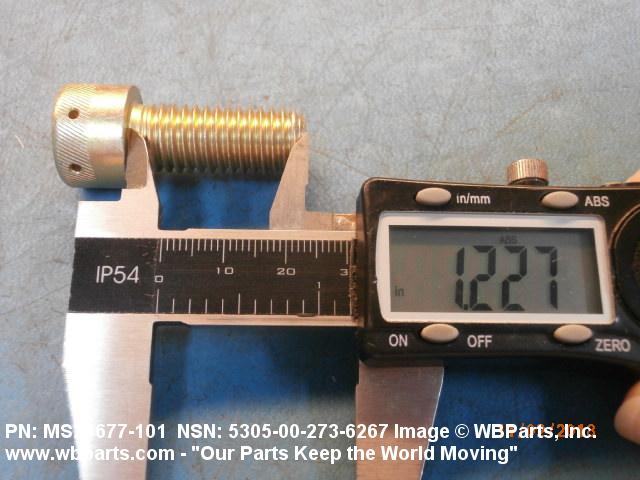

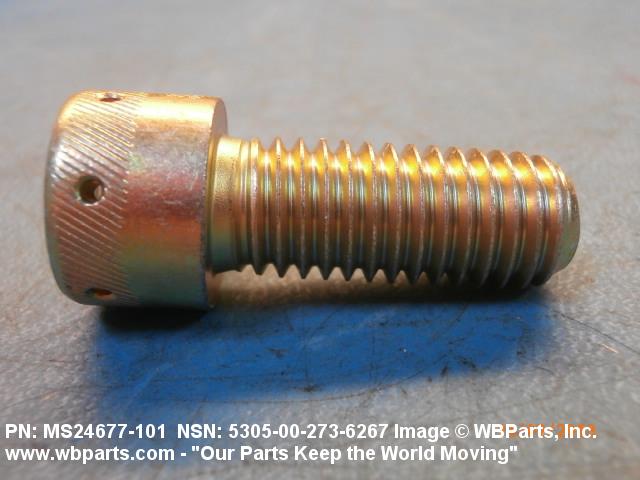

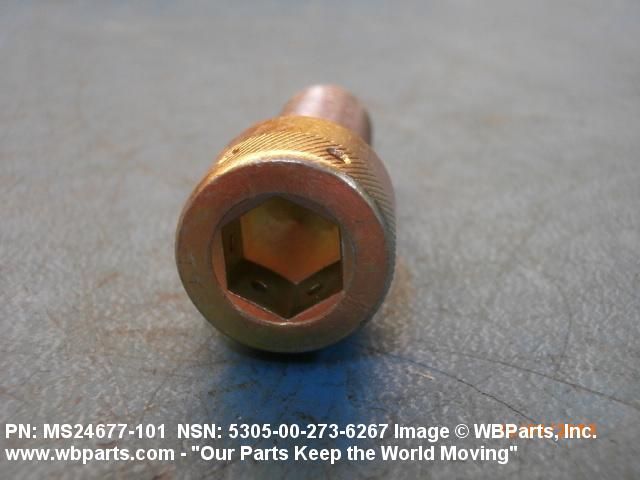

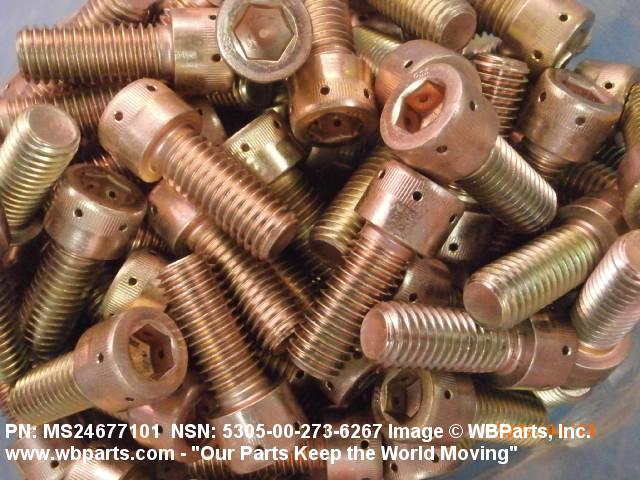

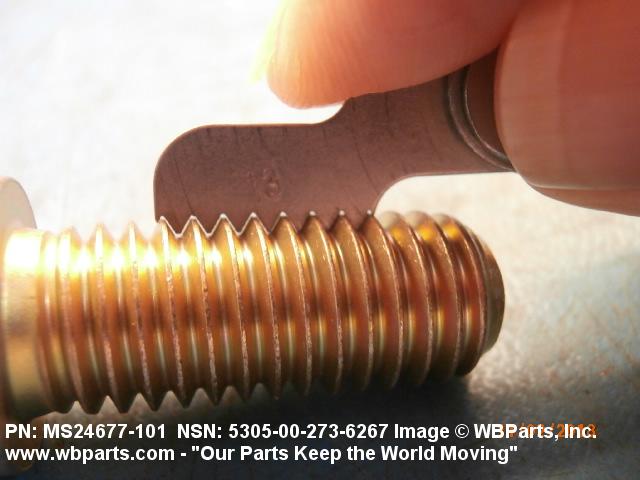

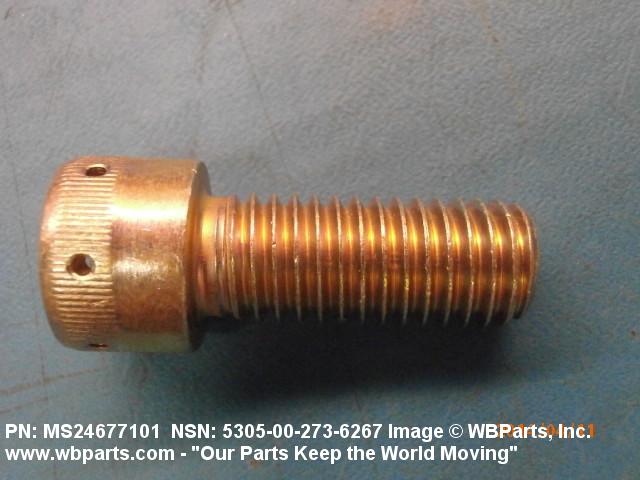

Drawings & Photos | NSN 5305-00-273-6267
Demand History | NSN 5305-00-273-6267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-273-6267 | 2024-07-184 | 500 | DIBBS |
| 5305-00-273-6267 | 2023-01-31 | 360 | US |
| MS24677101 | 2023-01-26 | 360 | United States |
| 5305-00-273-6267 | 2022-03-79 | 3865 | DIBBS |
| 5305-00-273-6267 | 2021-12-346 | 9837 | DIBBS |
| 5305-00-273-6267 | 2018-10-304 | 300 | Canada |
| MS24677101 | 2017-09-270 | 80 | United States |
| 5305-00-273-6267 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-00-273-6267 | 2016-06-154 | 2845 | DIBBS |
| 5305-00-273-6267 | 2016-05-129 | 1448 | DIBBS |
| MS24677101 | 2014-03-85 | 200 | United States |
| MS24677101 | 2013-04-98 | 54 | United States |
| MS24677101 | 2013-01-07 | 700 | United States |
| 5305-00-273-6267 | 2012-10-297 | 350 | United States |
| MS24677101 | 2012-07-192 | 100 | United States |
| MS24677101 | 2012-07-192 | 700 | United States |
| MS24677101 | 2011-08-220 | 50 | US |
| 5305-00-273-6267 | 2009-11-334 | 6 | United States |
| 5305-00-273-6267 | 2009-04-104 | 3152 | DIBBS |
| 5305-00-273-6267 | 2008-07-211 | 600 | US |
Cross Reference | NSN 5305-00-273-6267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z1196-99 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 429782PC9 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 444304PC6 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 734908PC33 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MS24677-101 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24677-101 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-273-6267
Related Products | NSN 5305-00-273-6267
Technical Data | NSN 5305-00-273-6267
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

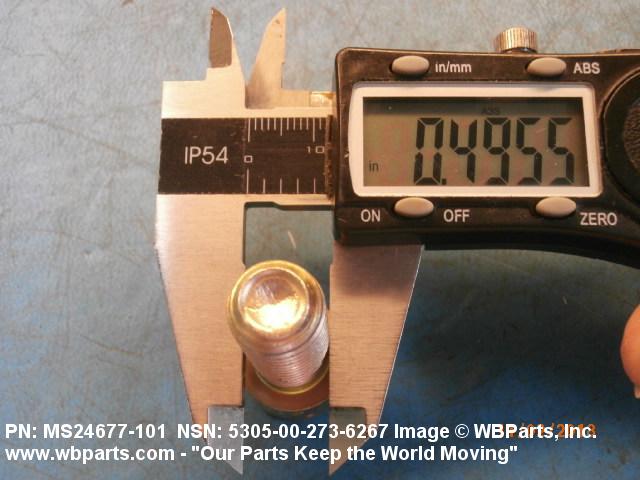

| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.127 INCHES MINIMUM |
| FASTENER LENGTH | 1.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 130000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

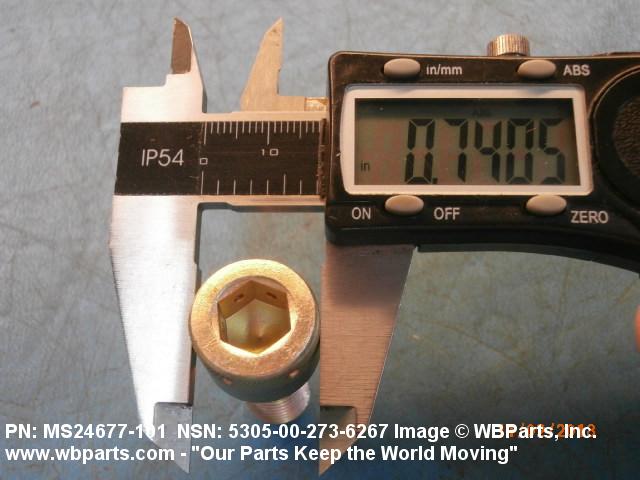

| HEAD DIAMETER | 0.735 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |

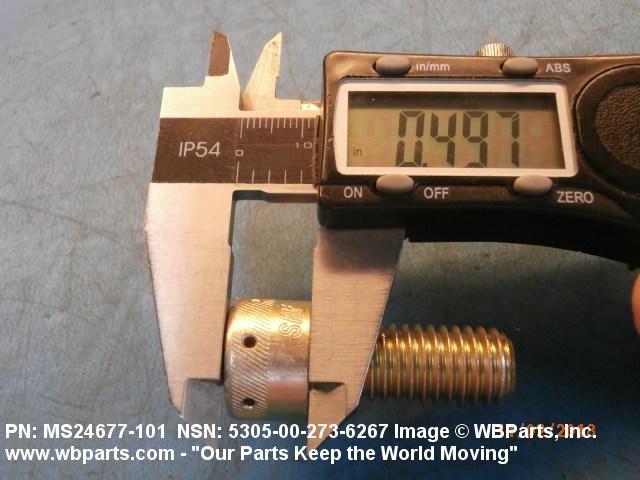

| HEAD HEIGHT | 0.492 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |

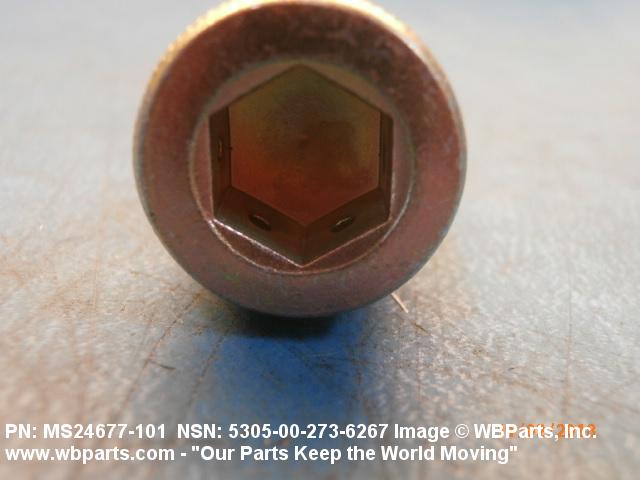

| INTERNAL DRIVE STYLE | D5 HEXAGON |

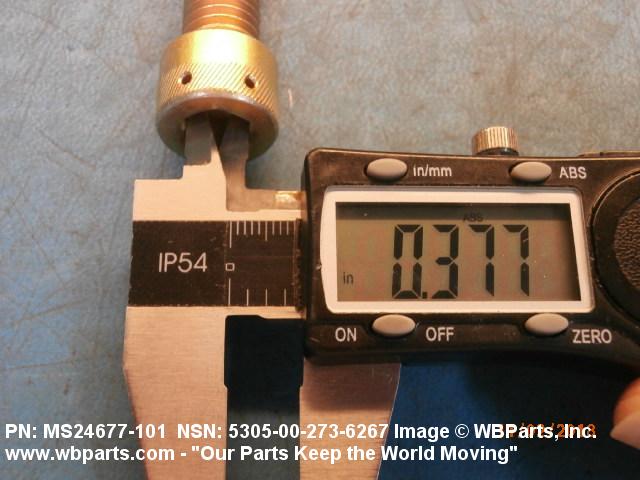

| WIDTH ACROSS FLATS | 0.375 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E11 ROUND INTERNAL HEXAGON |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 6 |

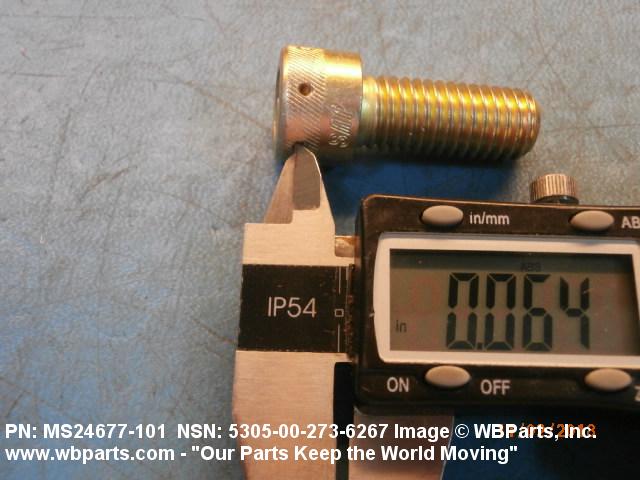

| HOLE DIAMETER | 0.061 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-00-273-6267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
