NSN 5305-00-285-5731 00-285-5731, 002855731
Product Details | MACHINE SCREW
5305-00-285-5731 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 5305-00-285-5731, 00-285-5731, 5305002855731, 002855731
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-285-5731 | 06657 ( SCREW, MACHINE ) |

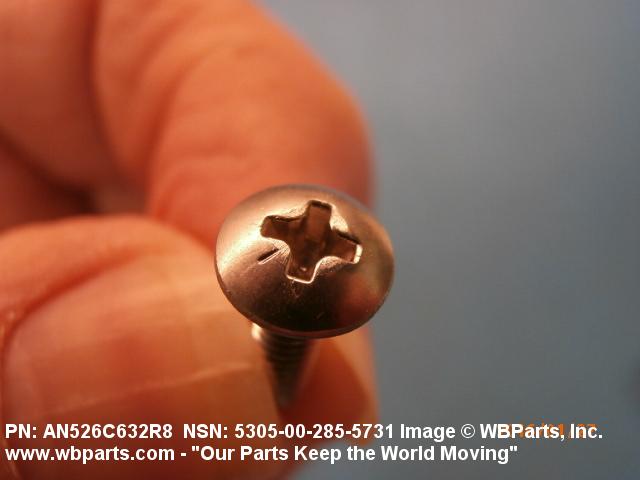

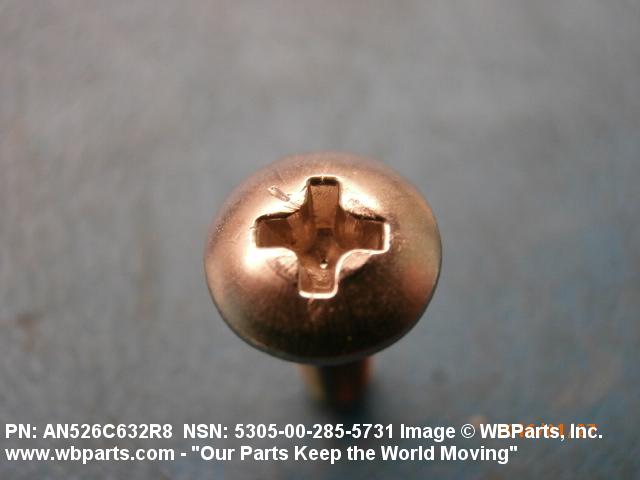

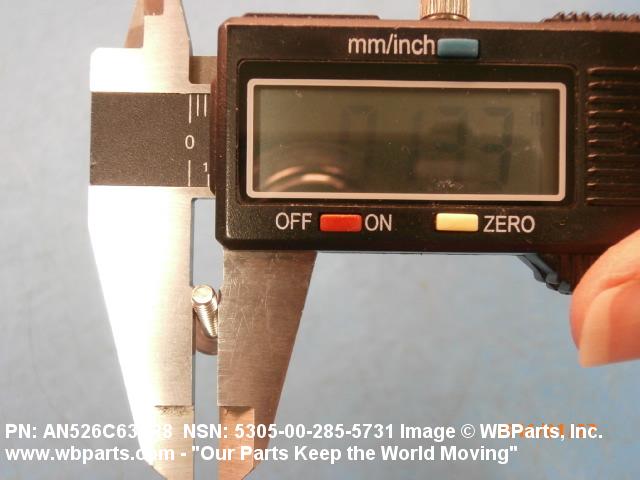

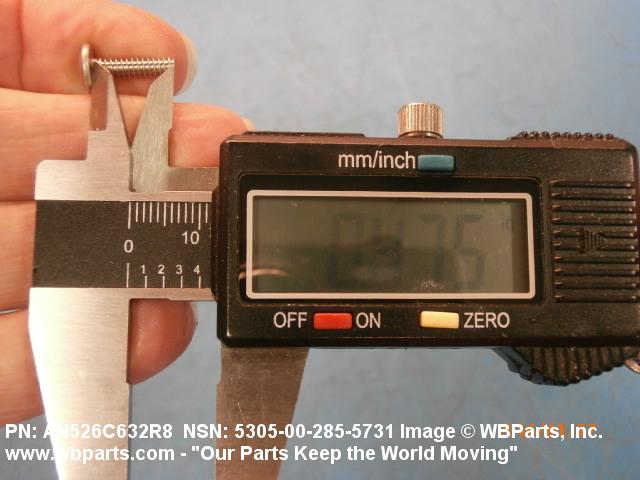

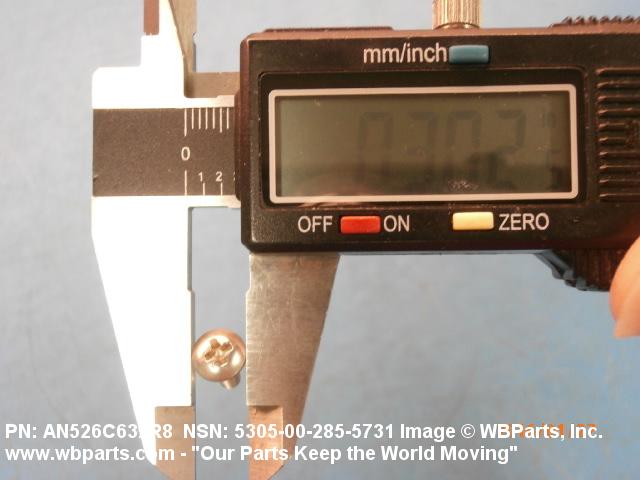

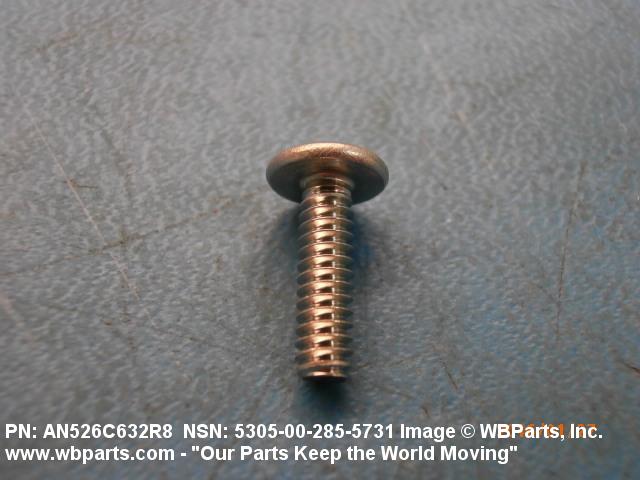

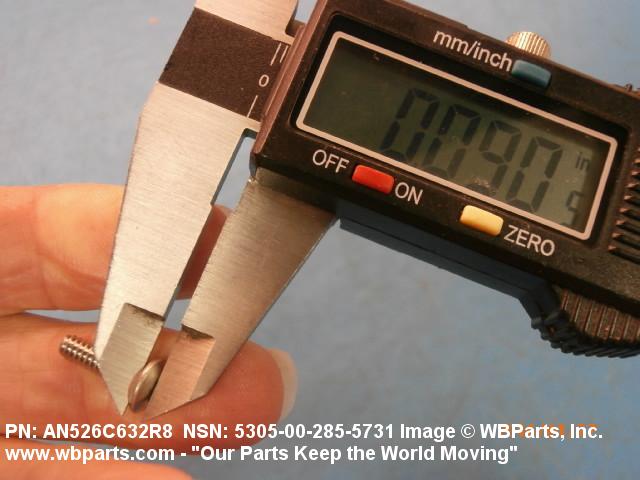

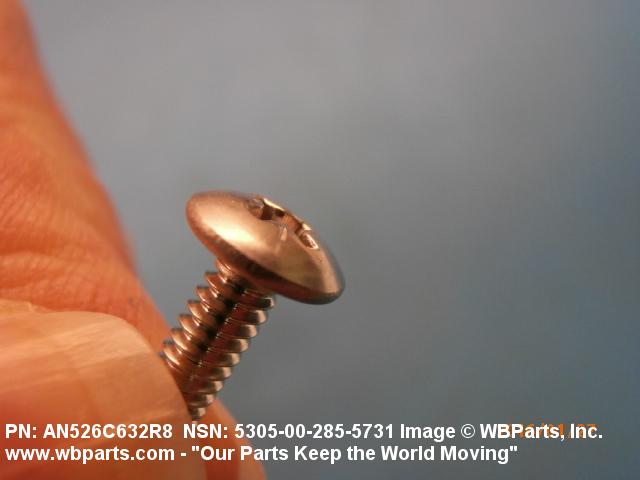

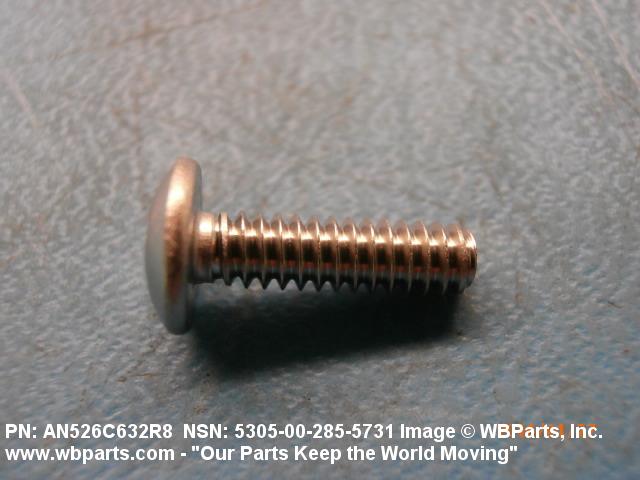

Drawings & Photos | NSN 5305-00-285-5731
Cross Reference | NSN 5305-00-285-5731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003-007864-030 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 010236-030 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 01030P62-16 | 07031 | TEMPO INSTRUMENT INC DEFENSE ELECTRONICS DIV |
| 0210-0030 | 33783 | BR COMMUNICATIONS INC |
| 0453-226 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 0716868 | S3002 | GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH |
| 0919-30 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 100024-7 | 19565 | SYMBOLIC DISPLAYS, INC. |
| 112-1052-030 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 173010 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 173010 | 24617 | GENERAL MOTORS CORP |
| 2012792 | 001JK | EMBRAER S/A |
| 2012792 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2012792 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 23-00874-007 | K0268 | RAYTHEON SYSTEMS LTD |
| 230-207-030 | A1997 | ELETTRONICA SPA |
| 230-207-030 | C3141 | ELETTRONICA GMBH |
| 23046 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 23046ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 245201 | 35679 | SINCLAIR TECHNOLOGIES INC. |
| 26301 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 284-515-0608 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 31-119918-6208 | 96795 | GOULD INSTRUMENT SYSTEMS INC |
| 330-3059-350 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 330-3059-350 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 352250022704 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 40523006816 | S0522 | TADIRAN LTD |
| 41-49575-37 | 53908 | COMPUTER AUTOMATION INC |
| 418293-30 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 4912531-04 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 4912531-04 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 5000 251906 | 04801 | POWER PARAGON INC DBA POWER SYSTEMS GROUP |
| 5120006-08 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5305-054-6654 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5305000546654 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 534470-30 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 54176-030 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 6-32X1/2SKTBTNHD32-303 | 70276 | ALLEN MFG CO SUB OF CHICAGO PNEUMATIC TOOL CO |
| 615061 | 21793 | ASTRONICS TEST SYSTEMS INC. |
| 6574W14P015 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 657W14P015 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 70A3210616-480 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 74455226030 | 89944 | KOLLSMAN, INC. |
| 7581384P0045 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 7581384P45 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 77630 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 787-16-02-001 | 13913 | WESTERN RESERVE ELECTRONICS INC |
| 8EP68R3 | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| 8X3&80DX1&32SST | 70318 | ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS |
| 915013-0030 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 91792A148 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| 935.63.11.437 | S4080 | PILATUS AIRCRAFT LTD |
| 9440191 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 946830-0608 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 946830-610 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| F36237-20 | 89016 | WACO PRODUCTS, INC. |
| FF-S-92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| FPS-29152-1242 | 53908 | COMPUTER AUTOMATION INC |
| MS1957-327 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35216-27 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35233-30 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51937-30 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS51957-030 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS51957-30 | 63020 | CRESCENT MANUFACTURING OPERATING COMPANY |
| MS51957-30 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51957B30 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NKS51957-30 | 03038 | LONG-LOK FASTENERS CORPORATION |
| P330-3059-350 | 77250 | ALLIED PRODUCTS CORP PHEOLL MFG CO DIV |
| VA-97-0168-030 | K0668 | SELEX ES LTD DBA SELEX S & A S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-285-5731
Technical Data | NSN 5305-00-285-5731
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| FASTENER LENGTH | 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 430 OR STEEL COMP 302 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR MIL-S-7720 MIL SPEC 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| HEAD STYLE | A21 BUTTON |
| HEAD DIAMETER | 0.303 INCHES MINIMUM AND 0.321 INCHES MAXIMUM |
| HEAD HEIGHT | 0.086 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN526C632R8 |
Restrictions/Controls & Freight Information | NSN 5305-00-285-5731
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
