NSN 5305-00-452-7363 BM1691, BM169-1, 99-1447126
Product Details | SOCKET HEAD CAP SCREW
5305-00-452-7363 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: BM1691, BM169-1, 99-1447126, 5305-00-452-7363, 00-452-7363, 5305004527363, 004527363, 130035304, 991447126
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAY 1970 | 00-452-7363 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

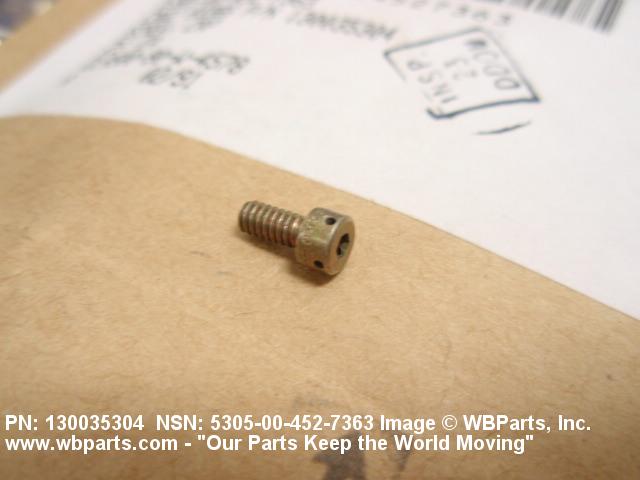

Drawings & Photos | NSN 5305-00-452-7363
Demand History | NSN 5305-00-452-7363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 130035304 | 2024-04-120 | 18 | DIBBS |
| 130035304 | 2023-08-221 | 14 | DIBBS |
| 5305-00-452-7363 | 2019-01-02 | 25 | DIBBS |
| 5305-00-452-7363 | 2018-12-359 | 25 | DIBBS |
| 5305-00-452-7363 | 2018-09-266 | 32 | DIBBS |
| 5305-00-452-7363 | 2018-07-200 | 26 | DIBBS |
| 5305-00-452-7363 | 2018-07-190 | 16 | DIBBS |
| 5305-00-452-7363 | 2018-07-182 | 16 | DIBBS |
| 5305-00-452-7363 | 2018-04-94 | 8 | DIBBS |
| 5305-00-452-7363 | 2017-11-316 | 10 | DIBBS |
| 5305-00-452-7363 | 2017-08-243 | 2 | DIBBS |
| 5305-00-452-7363 | 2016-08-244 | 7 | DIBBS |
| 130035304 | 2016-04-100 | 1 | IN |
| 5305-00-452-7363 | 2016-03-61 | 3 | DIBBS |
| 5305-00-452-7363 | 2016-02-40 | 1 | DIBBS |
| 5305-00-452-7363 | 2016-01-20 | 3 | DIBBS |
| 5305-00-452-7363 | 2016-01-14 | 3 | DIBBS |
| 5305-00-452-7363 | 2015-12-350 | 1 | DIBBS |
| 5305-00-452-7363 | 2013-03-74 | 3 | DIBBS |
| 5305-00-452-7363 | 2012-01-03 | 4 | DIBBS |
| 5305-00-452-7363 | 2010-07-192 | 4 | DIBBS |
| 130035304 | 2010-06-168 | 27 | India |
| 130035304 | 2010-04-116 | 27 | India |
| 130035304 | 2010-02-32 | 27 | India |
| 130035304 | 2009-04-110 | 27 | India |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-452-7363
Related Products | NSN 5305-00-452-7363
Technical Data | NSN 5305-00-452-7363
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.190 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| FASTENER LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | PS.100-2,FSCM K0654 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.183 INCHES MINIMUM AND 0.191 INCHES MAXIMUM |
| HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.078 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | E11 ROUND INTERNAL HEXAGON |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.029 INCHES MINIMUM AND 0.033 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-00-452-7363
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-452-7363
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
