NSN 5305-00-576-5417 MS35302360, MS35302-360, MS35307360

Product Details | HEXAGON HEAD CAP SCREW

5305-00-576-5417 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS35302360, MS35302-360, MS35307360, MS35307-360, MS3530760, MS35307-60, NASM35307360, NASM35307-360 , A32100953, A3210095-3, AMD-1403 ITEM 45, AMD1403ITEM45, C140319, SPP620157, SPP62-0157, WG107147, R54500, 5D30239023, 5D3-02390-23, 6525479, 652-5479, 68091208, 6961898 FIND 54, 6961898FIND54, 801625-551-003 PC NO 46B, 801625551003PCNO46B, 01-0296 ITEM NO 59, 010296ITEMNO59, 04-0060 ITEM NO 58, 040060ITEMNO58, 100A900123, 101530, 123335, 1233-35, 20099458001, 2071161P60, 207-1161P60, 212585, 21-2585, 212585P, 21-2585P, 245451094553, 245-4510945-53, 32018008CK, 32018-008-CK, 364-16050 PIECE 60, 36416050PIECE60, 42570, 4F1003016, 4F10030-16, 5017368091ITEMSNO3555, 501-7368092 ITEM NO 46, 5017368092ITEMNO46, F24, 5305-00-576-5417, 00-576-5417, 5305005765417, 005765417

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-576-5417	18257 ( SCREW, CAP, HEXAGON HEAD )

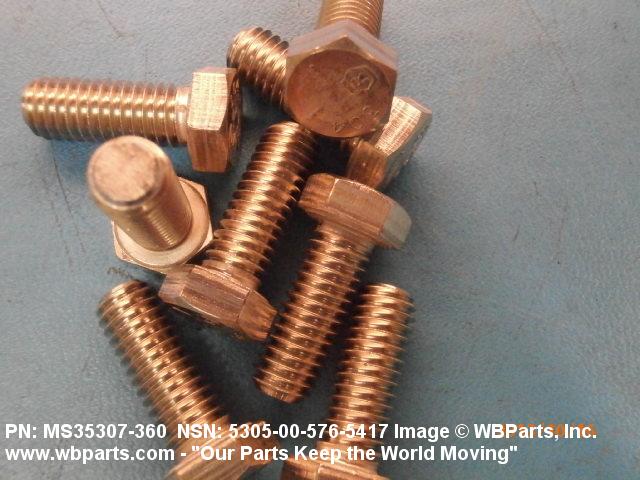

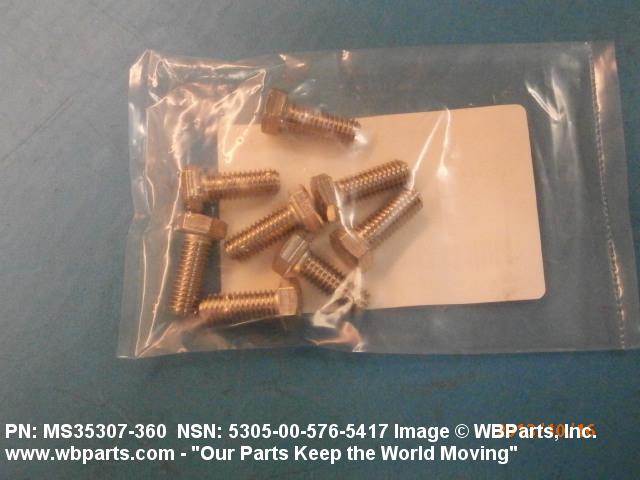

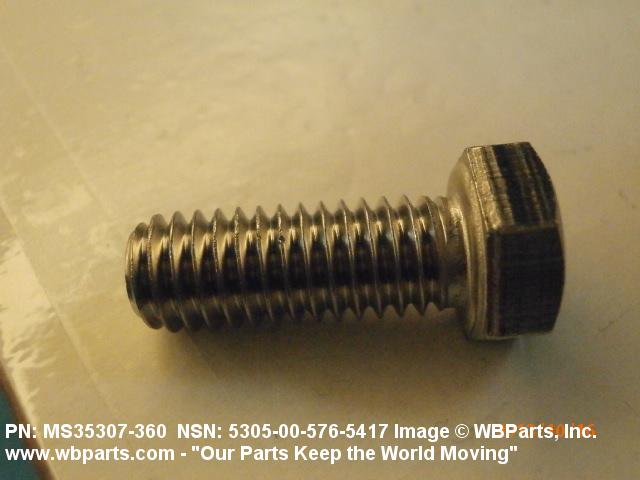

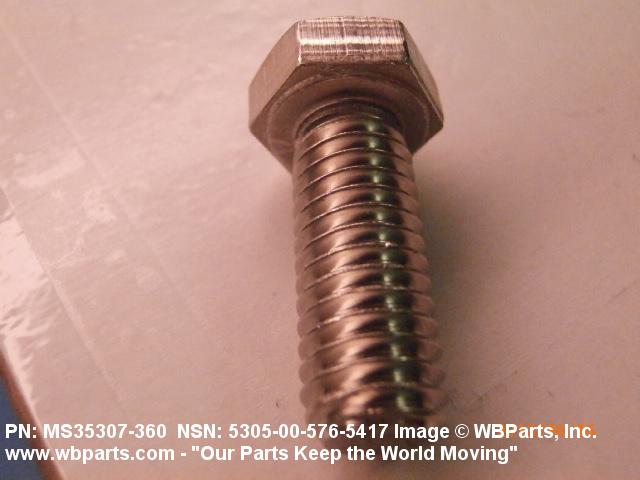

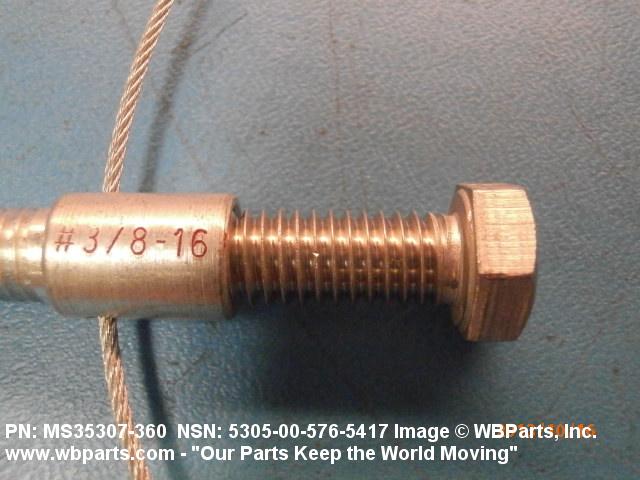

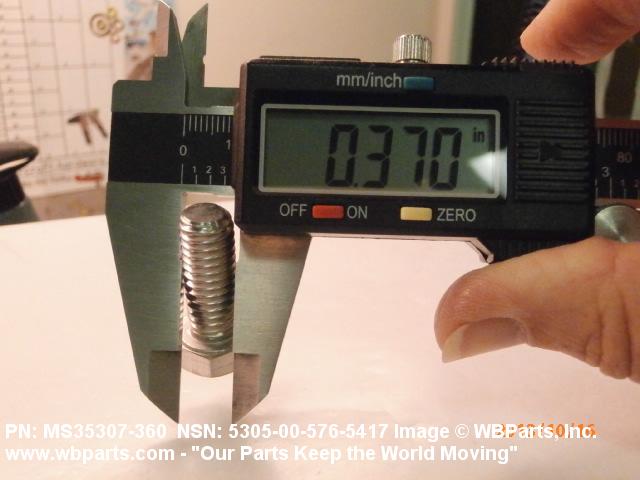

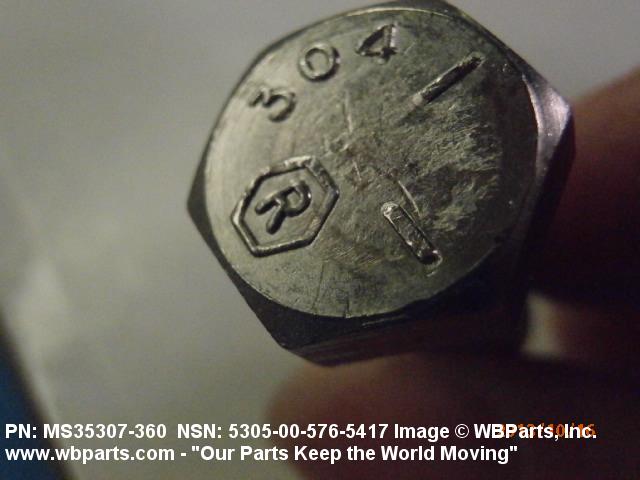

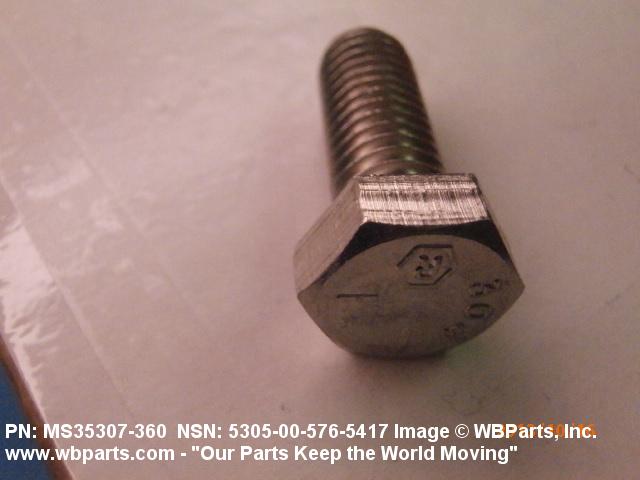

Drawings & Photos | NSN 5305-00-576-5417

Part Number	Request Date	QTY	Origin
05765417SX	2025-11-321	2	DIBBS
05765417SX	2025-11-321	2	DIBBS
MS35307360	2025-11-316	16	US
5305-00-576-5417	2025-02-57	228	DIBBS
05765417SX	2024-05-142	4	DIBBS
5305-00-576-5417	2024-03-86	14	us
5305-00-576-5417	2022-05-131	2	US
5305-00-576-5417	2021-06-155	12	United States
5305-00-576-5417	2021-06-155	10	United States
5305-00-576-5417	2021-04-113	1	US
5305-00-576-5417	2021-03-71	60	US
5305-00-576-5417	2021-02-46	1	United States
5305-00-576-5417	2019-07-207	1	United States
5305-00-576-5417	2018-03-74	5	United States
5305-00-576-5417	2017-04-97	92	United States
5305-00-576-5417	2016-12-350	500	SA
5305-00-576-5417	2016-11-327	1	DIBBS-RFPs
5305-00-576-5417	2016-07-203	10	United States
MS35307360	2015-04-100	35	United States
MS35307360	2013-09-270	8	United States
MS35307360	2013-03-67	368	US
MS35307360	2013-01-03	2	United States
MS35307360	2012-11-335	4	United States
5305-00-576-5417	2012-09-263	90000	DIBBS
MS35307-360	2012-01-25	12	US
MS35307360	2012-01-17	12	US
5305-00-576-5417	2011-05-143	10	United States
MS35307360	2010-12-356	1	Italy
5305-00-576-5417	2010-11-309	2	US
5305-00-576-5417	2010-10-278	400	us
5305-00-576-5417	2010-07-196	45000	DIBBS
5305-00-576-5417	2009-12-356	50000	DIBBS
MS35307360	2009-09-265	100	US
5305-00-576-5417	2009-08-219	72	US
5305-00-576-5417	2009-07-211	12	US
5305-00-576-5417	2009-06-162	85000	DIBBS
5305-00-576-5417	2008-11-310	57000	DIBBS
5305-00-576-5417	2008-11-310	81646	DIBBS
A32100953	2008-09-269	60	US
5305-00-576-5417	2008-06-182	6000	DIBBS
5305-00-576-5417	2008-05-122	38600	DIBBS

Cross Reference | NSN 5305-00-576-5417

Part Number	Cage Code	Manufacturer
01-0296 ITEM NO 59	20019	WARD LEONARD ELECTRIC CO INC
04-0060 ITEM NO 58	20019	WARD LEONARD ELECTRIC CO INC
100A900123	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
101530	60635	ECKEL MFG CO
1233-35	81495	KOEHRING CRANES INC DBA TEREX CRANES DIV WAVERLY
2009+9458+001	06032	ANTENNA PRODUCTS CORPORATION
207-1161P60	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
207-1161P60	49956	RAYTHEON COMPANY DBA RAYTHEON
21-2585	66935	YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS
21-2585P	66935	YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS
245-4510945-53	51563	ROHR, INC DBA GOODRICH AEROSTRUCTURES GROUP
32018-008-CK	71956	RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS
364-16050 PIECE 60	66935	YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS
42570	03476	TEREX REEDRILL DBA REEDRILL TEXOMA DIV TEREX MINING
4F10030-16	96105	FUNK MFG CO SUB OF DEERE AND CO
501-7368091 ITEMS NO 35 & 55	53711	NAVAL SEA SYSTEMS COMMAND
501-7368092 ITEM NO 46	53711	NAVAL SEA SYSTEMS COMMAND
5305005765417	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5D3-02390-23	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
652-5479	26687	TELEDYNE TECHNOLOGIES INCORPORATED DBA TELEDYNE
68091208	H0632	VOESTALPINE POLYNORM B.V.
6961898 FIND 54	53711	NAVAL SEA SYSTEMS COMMAND
801625-551-003 PC NO 46B	71956	RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS
A3210095-3	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
AMD-1403 ITEM 45	70433	APPLETON MARINE, INC.
C140319	53591	SCHWITZER ENGINE COMPONENTS A HOUSEHOLD INTL CO
F24	00365	TLD ACE CORPORATION
MS35302-360	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35307-360	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35307-360	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35307-60	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NASM35307-360	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
R54500	1J955	JOHN DEERE CONSTRUCTION & FORESTRY COMPANY
R54500	75755	DEERE & COMPANY DBA JOHN DEERE
SPP62-0157	20019	WARD LEONARD ELECTRIC CO INC
SPP62-0157	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
WG107147	97578	TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-576-5417

Compare

Related Products | NSN 5305-00-576-5417

5305-00-576-5419, 5305-00-576-5488, 5305-00-576-5489, 5305-00-576-5620, 5305-00-576-5641

Technical Data | NSN 5305-00-576-5417

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.375 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

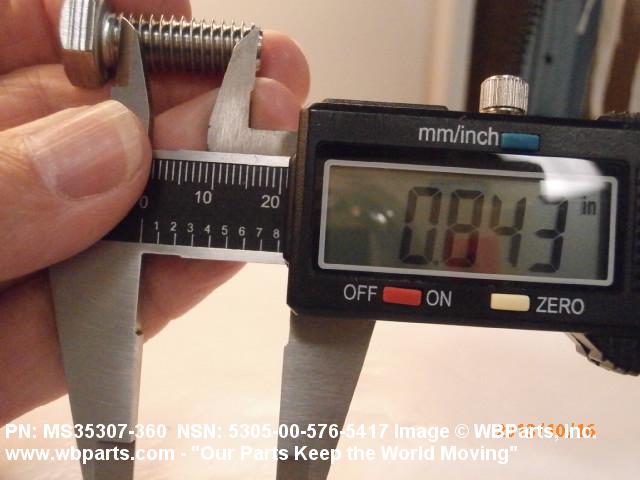

THREAD LENGTH	0.813 INCHES MINIMUM AND 0.844 INCHES MAXIMUM

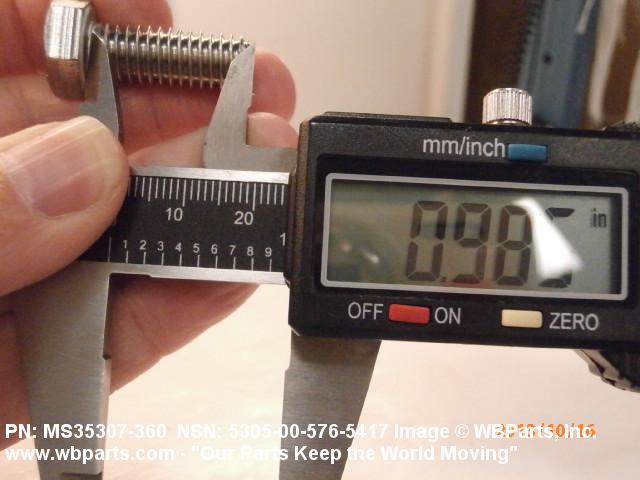

FASTENER LENGTH	0.969 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

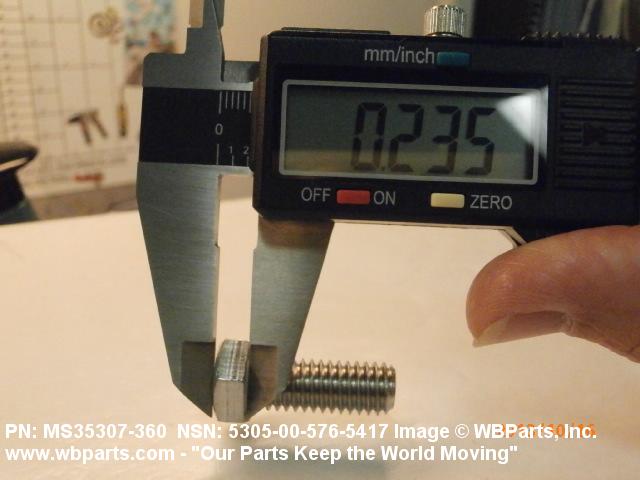

HEAD HEIGHT	0.226 INCHES MINIMUM AND 0.243 INCHES MAXIMUM

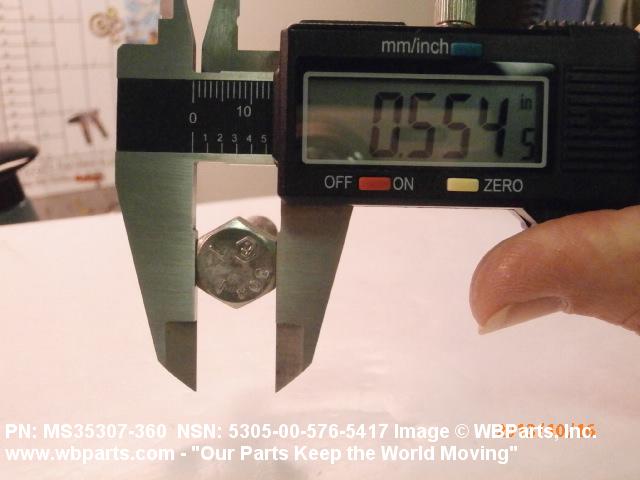

WIDTH BETWEEN FLATS	0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-00-576-5417

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-576-5417

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	O	Reparable item. When uneconomically reparable, condemn and dispose of at organization level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
