NSN 5305-00-582-9609 AN526C832R8, AN526C-832R8 , 935.65.16.327
Product Details | MACHINE SCREW
5305-00-582-9609 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AN526C832R8, AN526C-832R8 , 935.65.16.327, 9356516327, 5305-00-582-9609, 00-582-9609, 5305005829609, 005829609
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-582-9609 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-582-9609
Demand History | NSN 5305-00-582-9609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN526C832R8 | 2023-12-352 | 40062 | United States |
| AN526C832R8 | 2023-12-348 | 40062 | United States |
| 5305-00-582-9609 | 2023-07-198 | 100 | GT |
| AN526C832R8 | 2023-06-180 | 100 | United States |
| AN526C832R8 | 2023-06-160 | 100 | United States |
| AN526C832R8 | 2023-06-160 | 1 | United States |
| AN526C832R8 | 2022-12-335 | 100 | United States |
| AN526C832R8 | 2021-11-334 | 1000 | Croatia |
| AN526C832R8 | 2018-05-122 | 600 | PK |
| 5305-00-582-9609 | 2015-07-188 | 50 | US |
| AN526C832R8 | 2014-09-271 | 100 | United States |
| AN526C832R8 | 2014-07-199 | 100 | United States |
| 5305-00-582-9609 | 2014-04-95 | 105 | MX |
| AN526C832R8 | 2011-11-319 | 100 | US |
| 9356516327 | 2011-02-54 | 100 | MX |
| AN526C832R8 | 2011-02-54 | 100 | MX |
| AN526C832R8 | 2011-02-54 | 500 | MX |
| AN526C832R8 | 2011-02-54 | 1000 | MX |
| 9356516327 | 2011-02-54 | 1 | MX |
| AN526C832R8 | 2010-01-18 | 600 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-582-9609
Technical Data | NSN 5305-00-582-9609
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

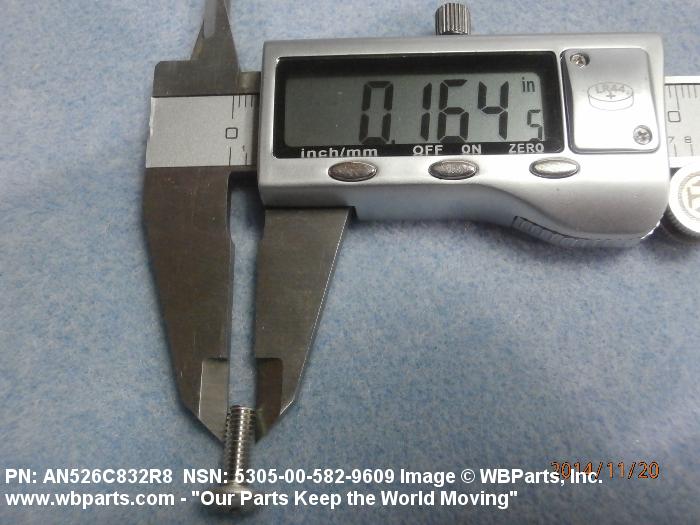

| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

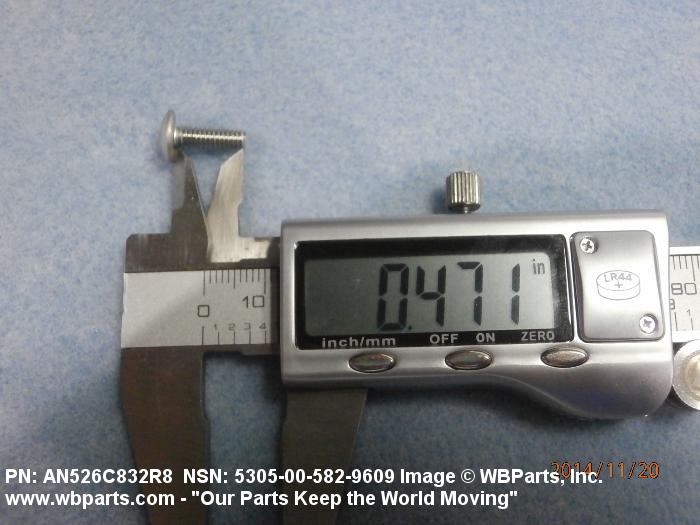

| THREAD LENGTH | 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| FASTENER LENGTH | 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 430 OR STEEL COMP 302 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR MIL-S-7720 MIL SPEC 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |

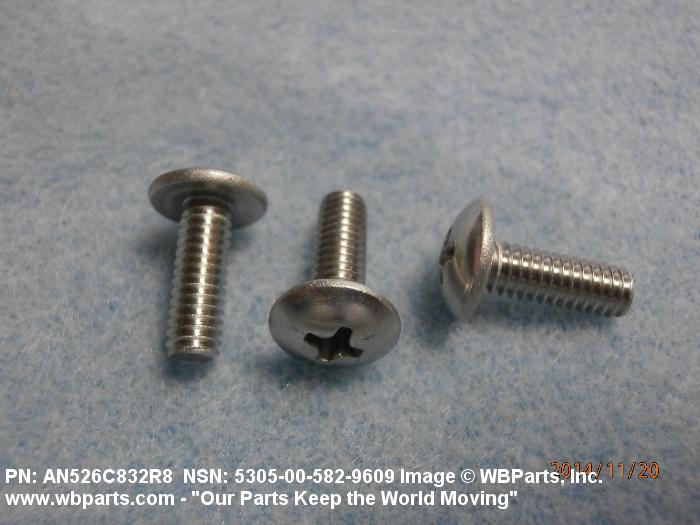

| HEAD STYLE | A21 BUTTON |

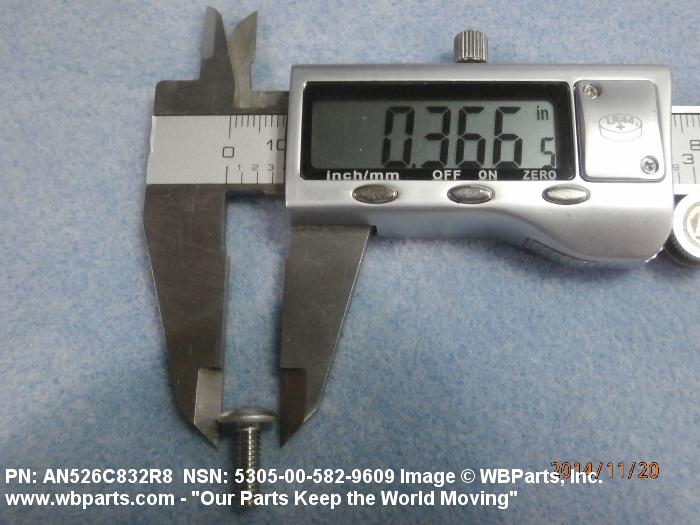

| HEAD DIAMETER | 0.364 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
