NSN 5305-00-620-5492 AN500AC10PC8, AN500AD108, AN500AD10-8
Product Details | MACHINE SCREW
5305-00-620-5492 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AN500AC10PC8, AN500AD108, AN500AD10-8, JANFFS92, 0202251032, 0202-251032, 218063, 280454PC74, 5305-00-620-5492, 00-620-5492, 5305006205492, 006205492
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 FEB 1975 | 00-620-5492 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-620-5492
Demand History | NSN 5305-00-620-5492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-620-5492 | 2019-01-10 | 210 | us |
| AN500AD10-8 | 2010-11-333 | 28 | |
| AN500AD108 | 2009-10-302 | 25 | Italy |
Cross Reference | NSN 5305-00-620-5492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0202-251032 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 218063 | 66503 | WOODWARD, INC. DBA WOODWARD |
| 280454PC74 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| AN500AC10PC8 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| AN500AD10-8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| JANFFS92 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-620-5492
Technical Data | NSN 5305-00-620-5492
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

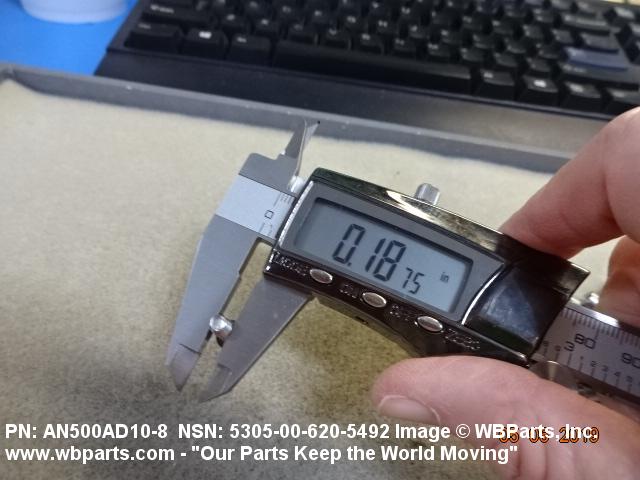

| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

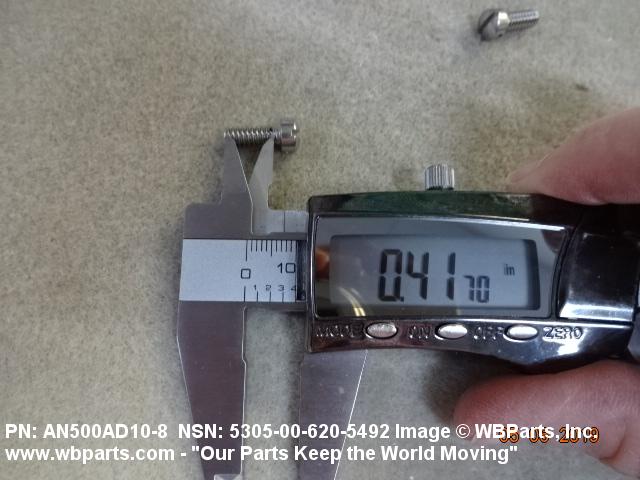

| THREAD LENGTH | 0.417 INCHES NOMINAL |

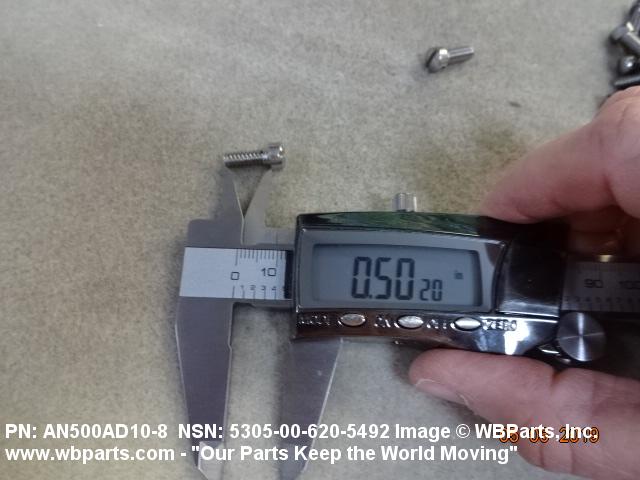

| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC ALL MATERIAL RESPONSES OR 66 FED STD ALL MATERIAL RESPONSES |
| HEAD STYLE | A33 FILLISTER |

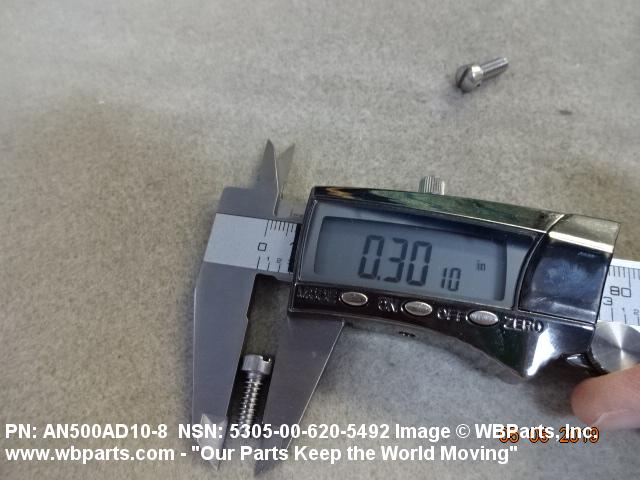

| HEAD DIAMETER | 0.292 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |

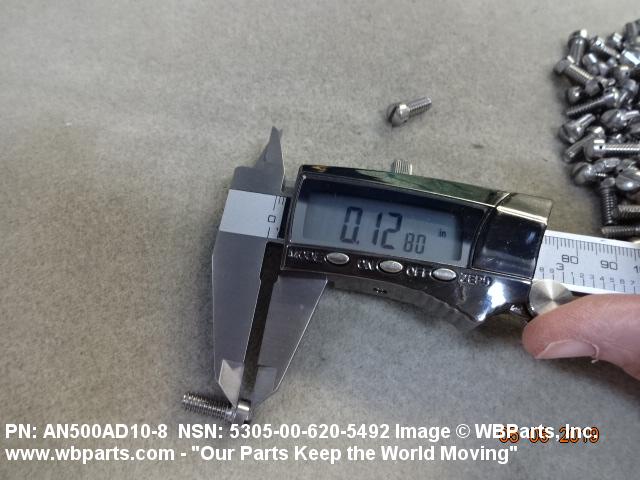

| HEAD HEIGHT | 0.123 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B10 SLOT |
| HEAD HOLE CONFIGURATION STYLE | C8 ROUND |
| HOLE QUANTITY | 1 |

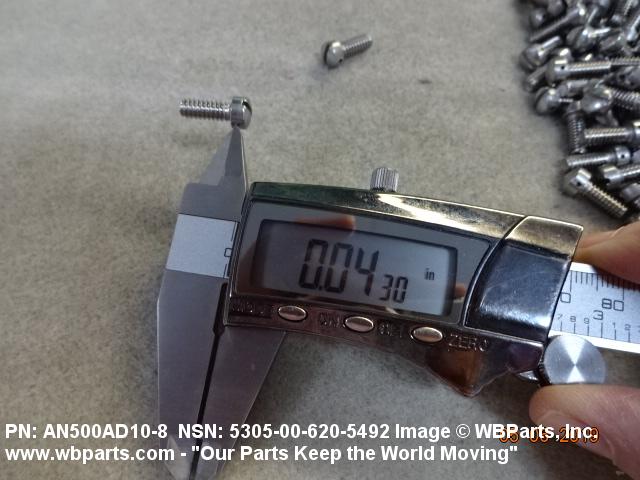

| HOLE DIAMETER | 0.046 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN500AD10-8 |
| MANUFACTURERS CODE | 81350 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JANFFS92 |
Restrictions/Controls & Freight Information | NSN 5305-00-620-5492
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
