NSN 5305-00-638-0653 MS3523314, MS35233-14, FFS92TYPE1STYLE9C
Product Details | MACHINE SCREW
5305-00-638-0653 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS3523314, MS35233-14, FFS92TYPE1STYLE9C, KB8005101, KB80051-01, 8599273102, 8599273-102, 0453128, 0453-128, 17043, 17043ADX, 3402200144, 340-220-0144, 500717, 5007-17, 5305-00-638-0653, 00-638-0653, 5305006380653, 006380653
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-0653 | 06657 ( SCREW, MACHINE ) |

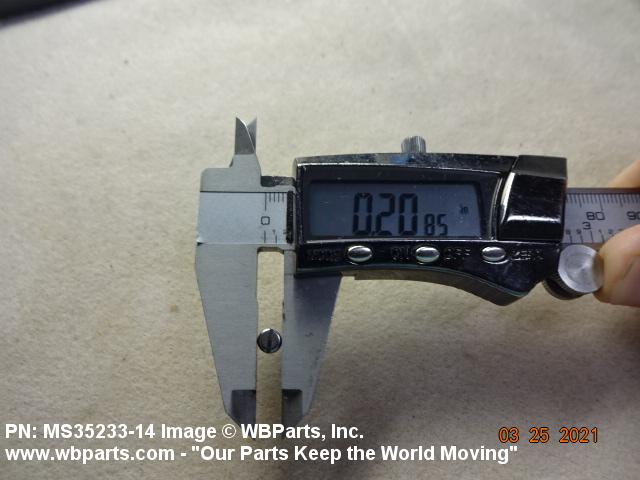

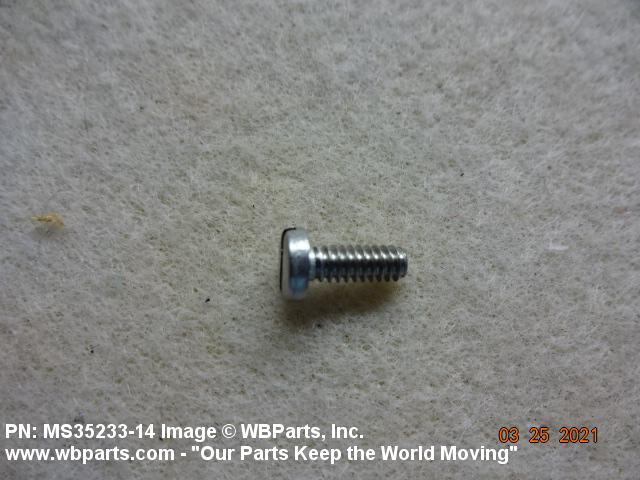

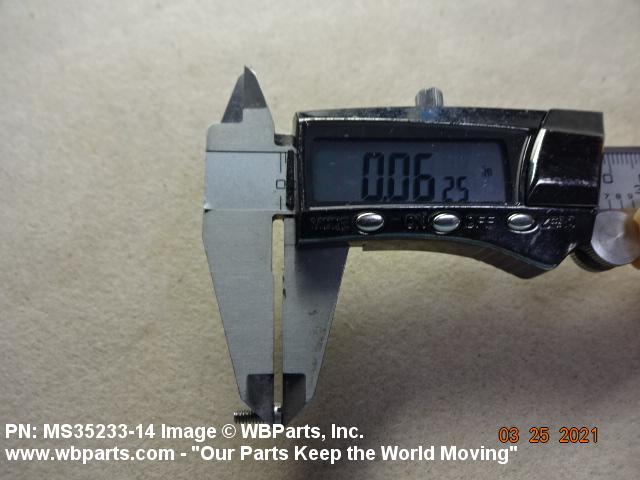

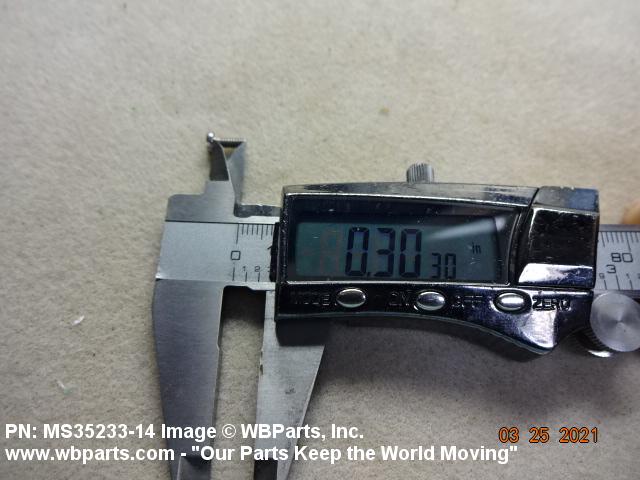

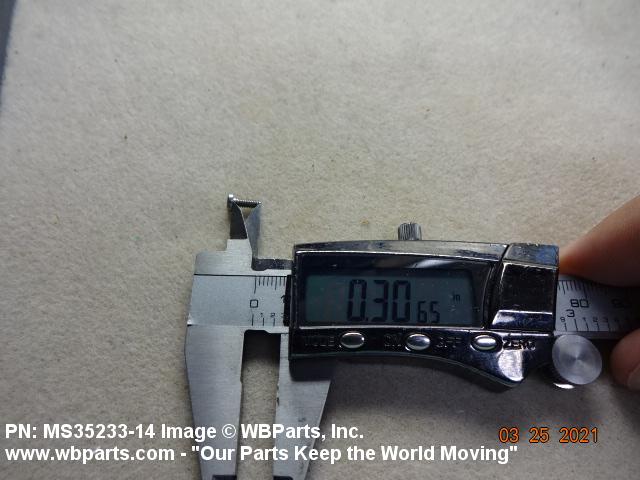

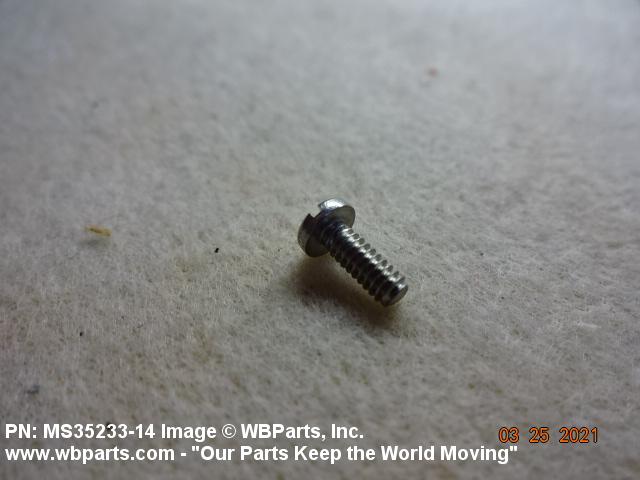

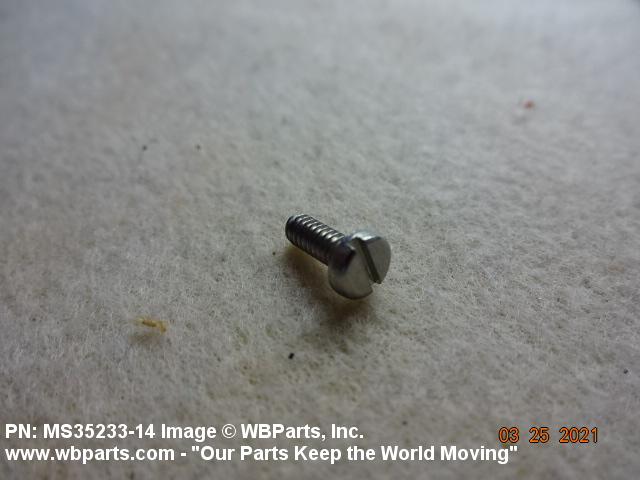

Drawings & Photos | NSN 5305-00-638-0653
Demand History | NSN 5305-00-638-0653
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3523314 | 2021-03-70 | 4 | United States |
| 17043 | 2015-05-138 | 2 | United States |
| MS3523314 | 2010-11-328 | 500 | US |
Cross Reference | NSN 5305-00-638-0653
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0453-128 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 0453-128 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 17043 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 17043ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 340-220-0144 | 86197 | CLIFTON PRECISION DIV OF LITTON SYSTEMS INC |
| 340-220-0144 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 5007-17 | 26344 | NEW HAVEN MFG CORP |
| 8599273-102 | 24617 | GENERAL MOTORS CORP |
| 8599273-102 | 99974 | DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS |
| FFS92TYPE1STYLE9C | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| KB80051-01 | 07703 | ATK LAUNCH SYSTEMS INC. DBA ATK LAUNCH SYSTEMS-PROMONTORY |
| MS35233-14 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-638-0653
Technical Data | NSN 5305-00-638-0653
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.312 INCHES MAXIMUM |
| FASTENER LENGTH | 0.312 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 310 OR STEEL COMP 316 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC ALL MATERIAL RESPONSES OR QQ-W-423 FED SPEC ALL MATERIAL RESPONSES |
| SCREW SURFACE TREATMENT | PASSIVATE |
| HEAD STYLE | A24 PAN NO. 2 |
| HEAD DIAMETER | 0.212 INCHES NOMINAL |
| HEAD HEIGHT | 0.063 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | B10 SLOT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92TYPE1STYLE9C |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35233-14 |
Restrictions/Controls & Freight Information | NSN 5305-00-638-0653
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-638-0653
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
