Product Details | ASSEMBLED WASHER SCREW
5305-00-639-7765 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: H6308131501, H63-081315-01, 5305-00-639-7765, 00-639-7765, 5305006397765, 006397765
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-639-7765 | 06660 ( SCREW, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5305-00-639-7765
Cross Reference | NSN 5305-00-639-7765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H63-081315-01 | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-639-7765
Related Products | NSN 5305-00-639-7765
Technical Data | NSN 5305-00-639-7765
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.697 INCHES MINIMUM |
| FASTENER LENGTH | 0.812 INCHES NOMINAL |
| MATERIAL | STEEL PRIMARY WASHER STEEL COMP 1022 FASTENER |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.275 INCHES MINIMUM AND 0.305 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 1 |

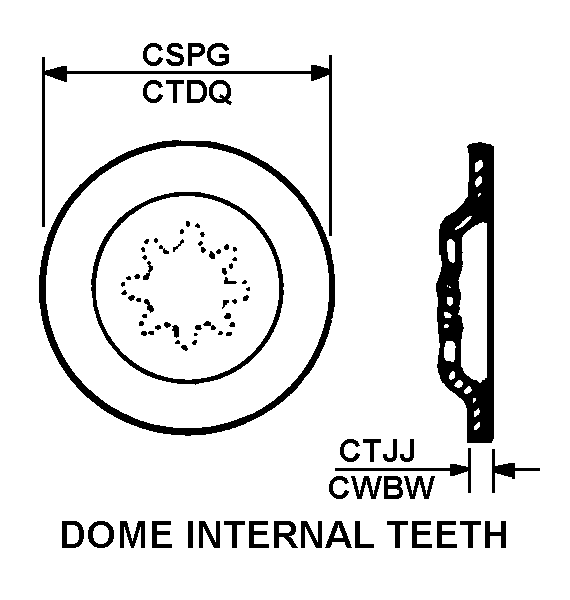

| PRIMARY WASHER STYLE | G6 DOME INTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.645 INCHES NOMINAL |
| PRIMARY WASHER MATERIAL THICKNESS | 0.018 INCHES NOMINAL |
| MANUFACTURERS CODE | 78189 |
| DESIGN CONTROL REFERENCE | H63-081315-01 |
