NSN 5305-00-688-2021 MS35308301, MS35308-301, AN17814A

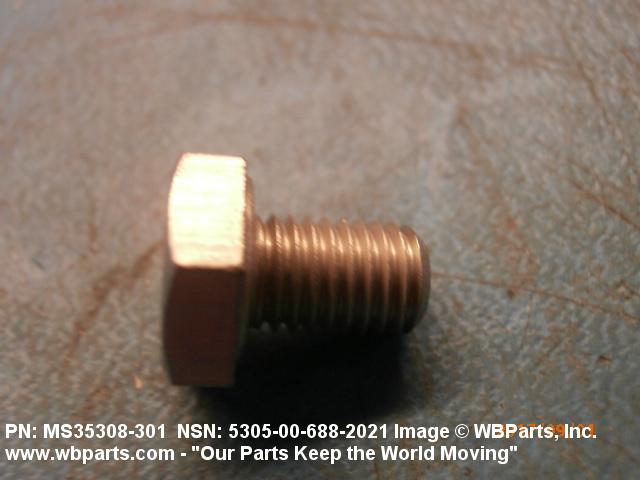

Product Details | HEXAGON HEAD CAP SCREW
5305-00-688-2021 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS35308301, MS35308-301, AN17814A, AN178-14A , FFS85TYPE2STYLE10P, MILB6812, 14706913, 14-7069-13, 5305-00-688-2021, 00-688-2021, 5305006882021, 006882021
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-688-2021 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

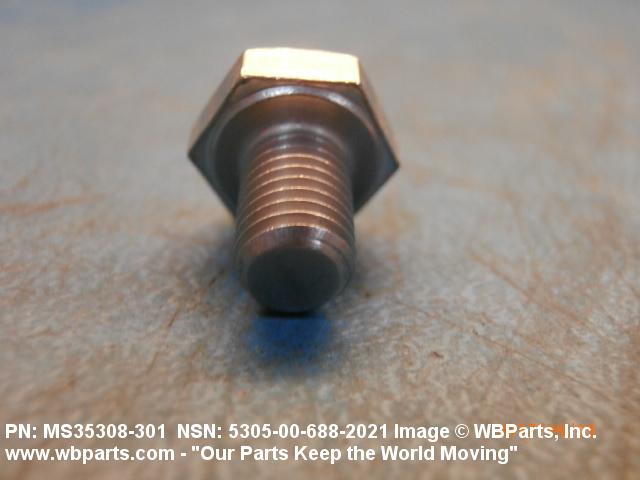

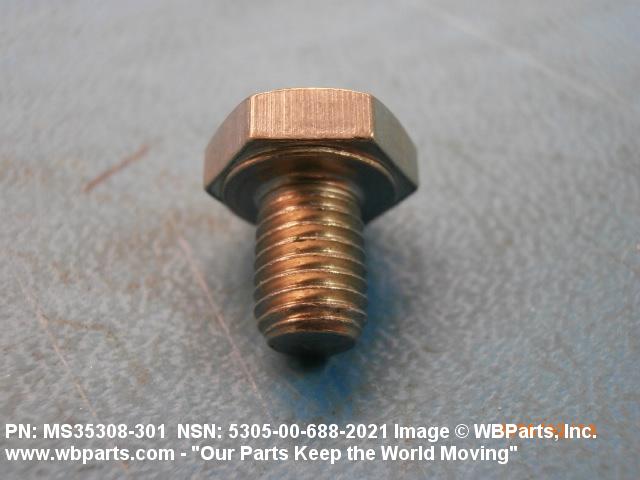

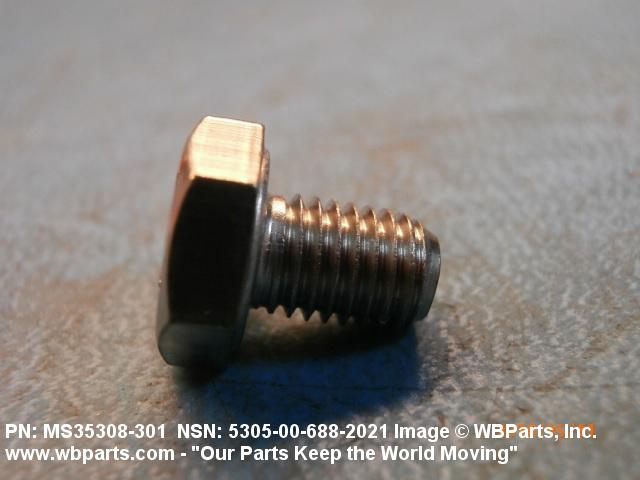

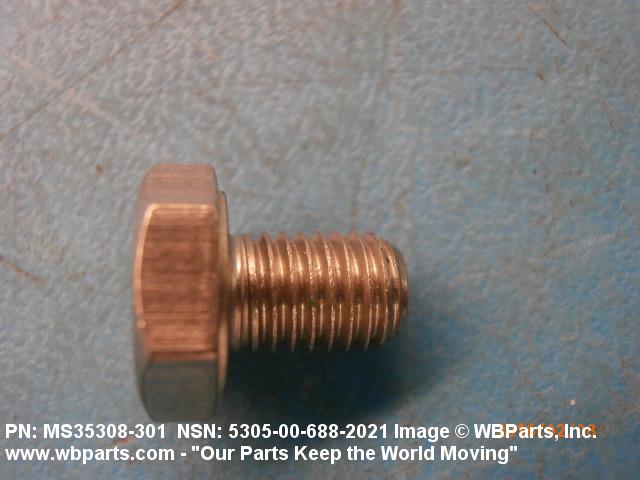

Drawings & Photos | NSN 5305-00-688-2021
Demand History | NSN 5305-00-688-2021
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN17814A | 2024-09-274 | 6 | United States |
| 5305-00-688-2021 | 2024-01-22 | 400 | US |
| MS35308301 | 2021-03-69 | 250 | United States |
| AN17814A | 2020-11-316 | 15 | United States |
| 5305-00-688-2021 | 2018-04-113 | 10 | Sweden |
| 5305-00-688-2021 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-00-688-2021 | 2016-09-246 | 16 | Sweden |
| 5305-00-688-2021 | 2016-02-33 | 6 | Sweden |
| 5305-00-688-2021 | 2015-11-312 | 981 | DIBBS |
| MS35308-301 | 2014-05-136 | 24 | US |
| AN17814A | 2013-03-85 | 8 | Sweden |
| 5305-00-688-2021 | 2012-11-332 | 1996 | DIBBS |
| 5305-00-688-2021 | 2012-11-316 | 1996 | DIBBS |
| 5305-00-688-2021 | 2012-08-244 | 595 | DIBBS |
| MS35308301 | 2010-09-245 | 1 | US |
| FFS85TYPE2STYLE10P | 2009-10-288 | 150 | US |
Cross Reference | NSN 5305-00-688-2021
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14-7069-13 | 64186 | NORTH AMERICAN MARINE JET INC |
| FFS85TYPE2STYLE10P | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35308-301 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35308-301 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-688-2021
Related Products | NSN 5305-00-688-2021
Technical Data | NSN 5305-00-688-2021

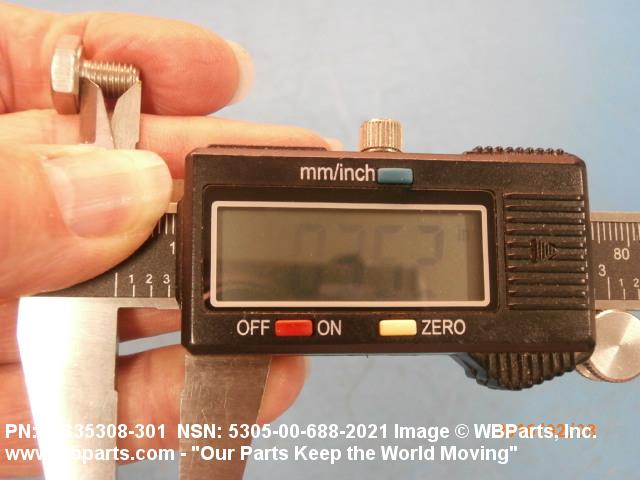

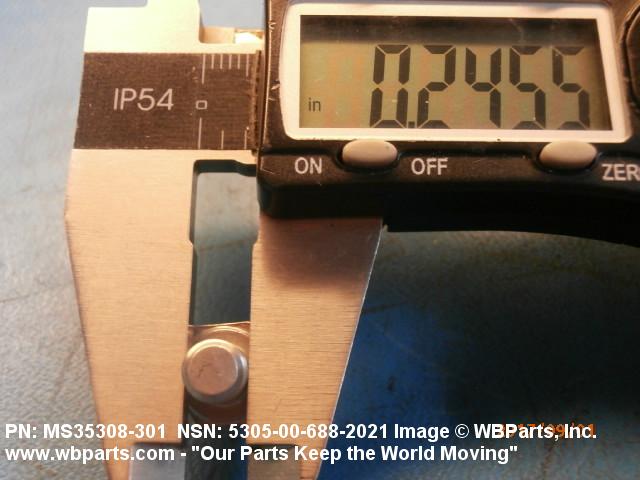

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |

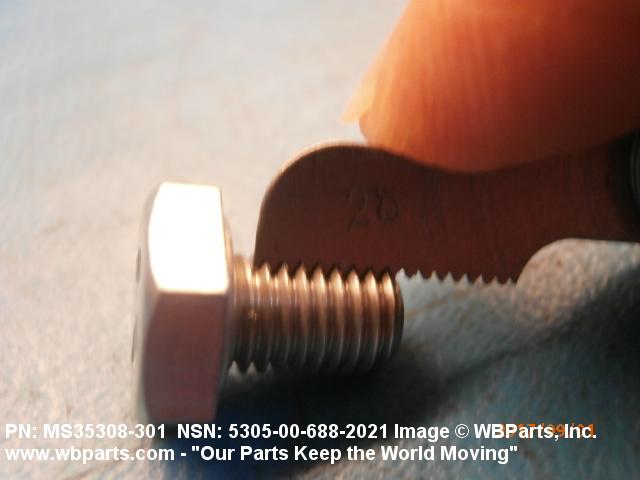

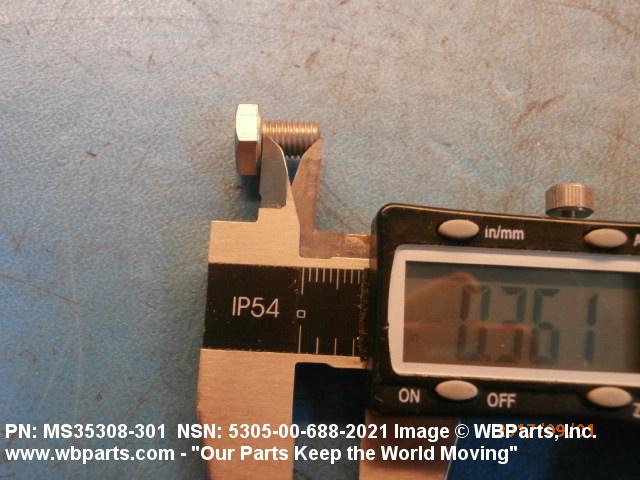

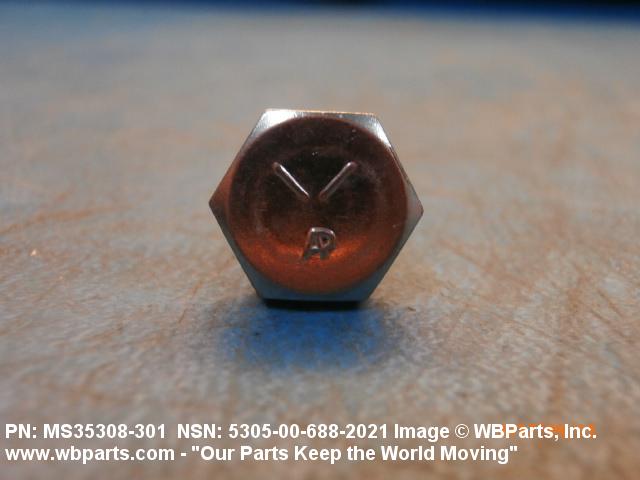

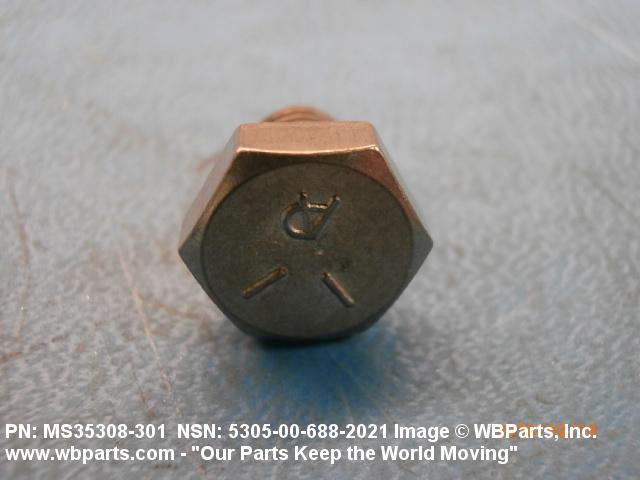

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.375 INCHES MAXIMUM |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |

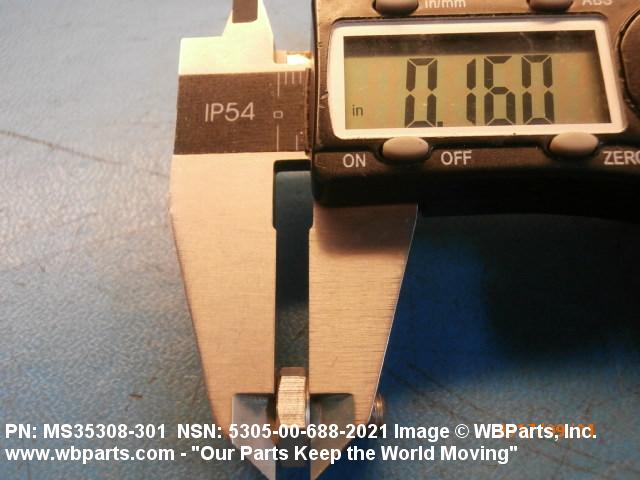

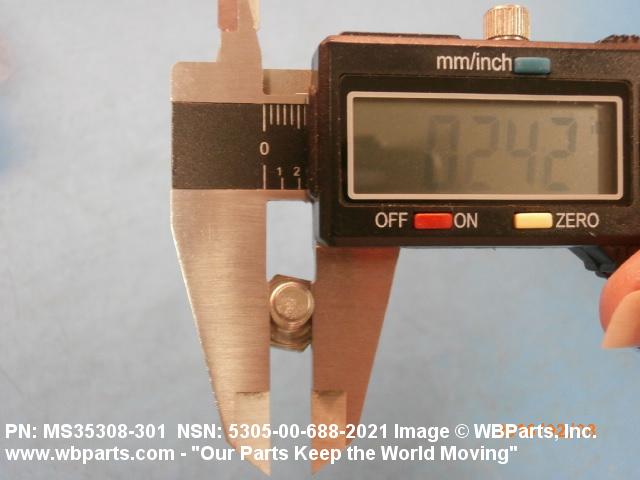

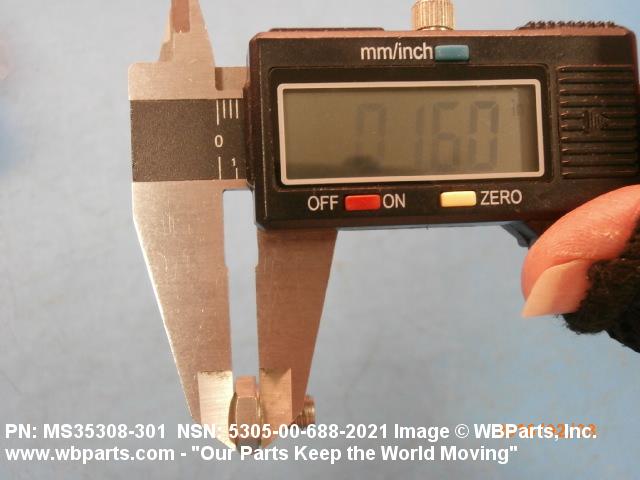

| HEAD HEIGHT | 0.150 INCHES MINIMUM AND 0.163 INCHES MAXIMUM |

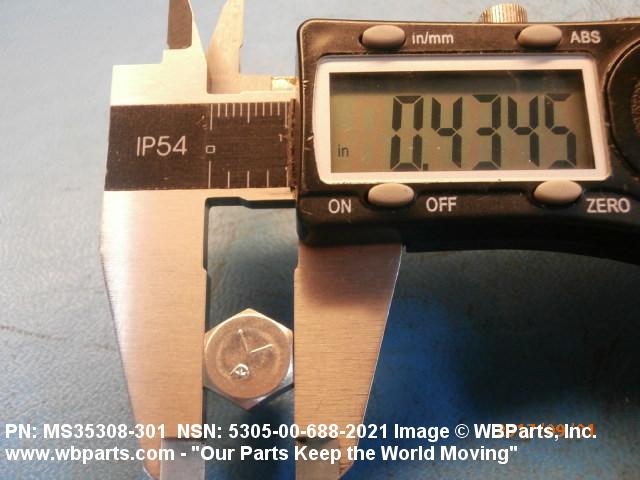

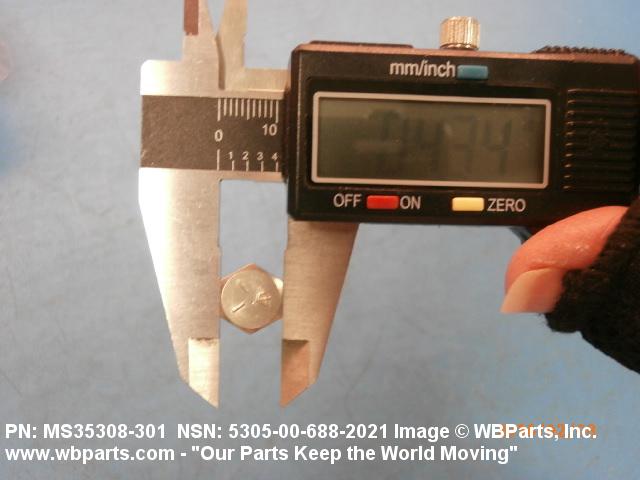

| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
