NSN 5305-00-702-7802 AN500AD26, AN500AD2-6, 00-702-7802
Product Details | MACHINE SCREW

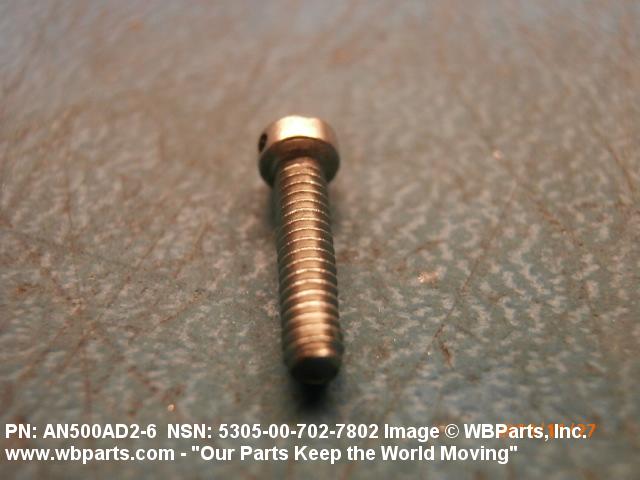

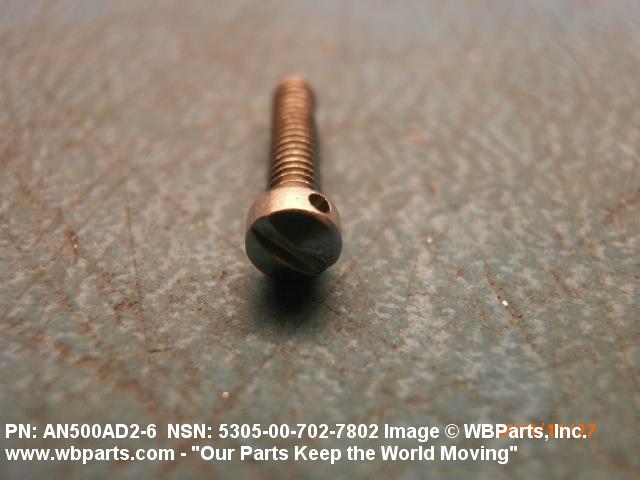

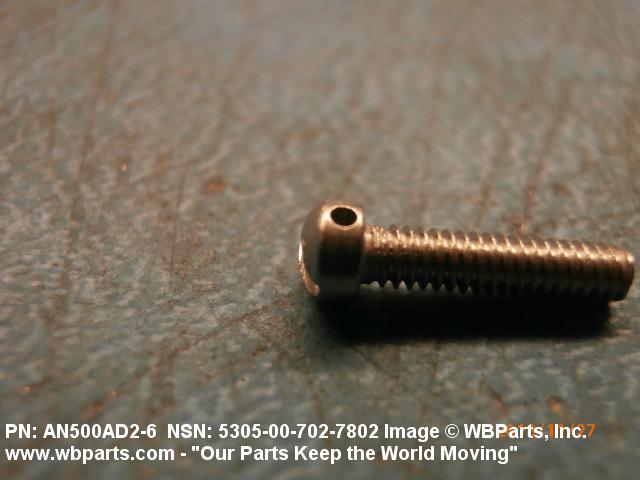

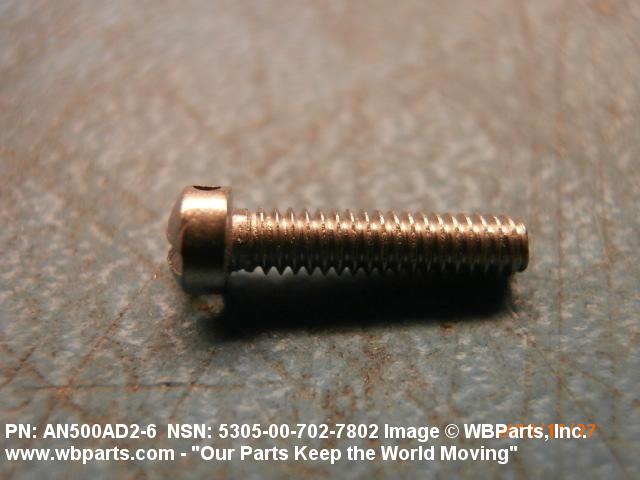

5305-00-702-7802 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AN500AD26, AN500AD2-6, 5305-00-702-7802, 00-702-7802, 5305007027802, 007027802
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-702-7802 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-702-7802
Demand History | NSN 5305-00-702-7802
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-702-7802 | 2022-02-54 | 2 | US |
| 5305-00-702-7802 | 2018-11-316 | 20 | United States |
| 5305-00-702-7802 | 2017-03-66 | 100 | KR |
Cross Reference | NSN 5305-00-702-7802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN500AD2-6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-702-7802
Technical Data | NSN 5305-00-702-7802
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.339 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 302 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 316 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
| SCREW SURFACE TREATMENT | PASSIVATE |
| HEAD STYLE | A33 FILLISTER |
| HEAD DIAMETER | 0.124 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| HEAD HEIGHT | 0.055 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| HEAD HOLE CONFIGURATION STYLE | C8 ROUND |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.031 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN500AD2-6 |
