NSN 5305-00-705-2472 MS24694S67, 404810R25, 40-48-10R25
Product Details | MACHINE SCREW
5305-00-705-2472 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS24694S67, 404810R25, 40-48-10R25, 5305-00-705-2472, 00-705-2472, 5305007052472, 007052472
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-705-2472 | 06657 ( SCREW, MACHINE ) |

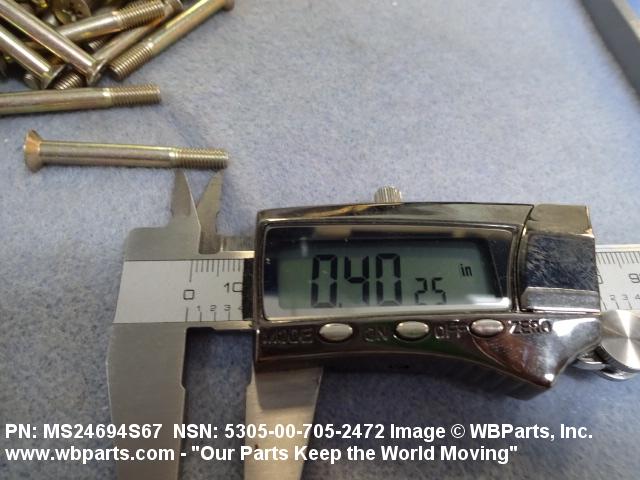

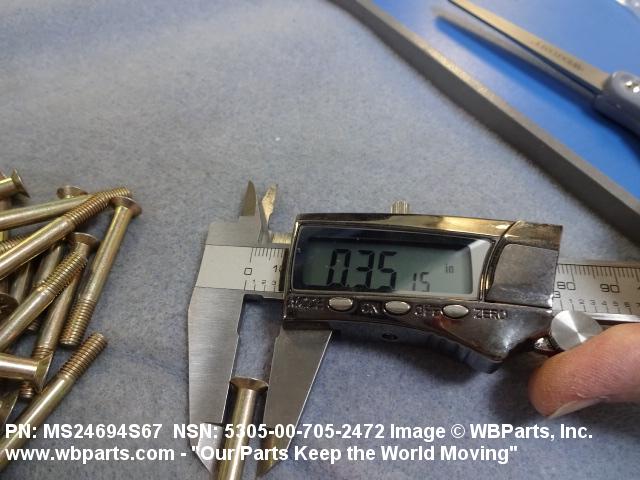

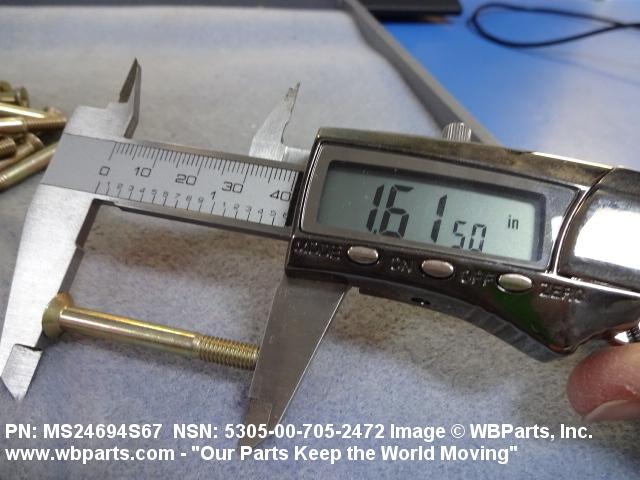

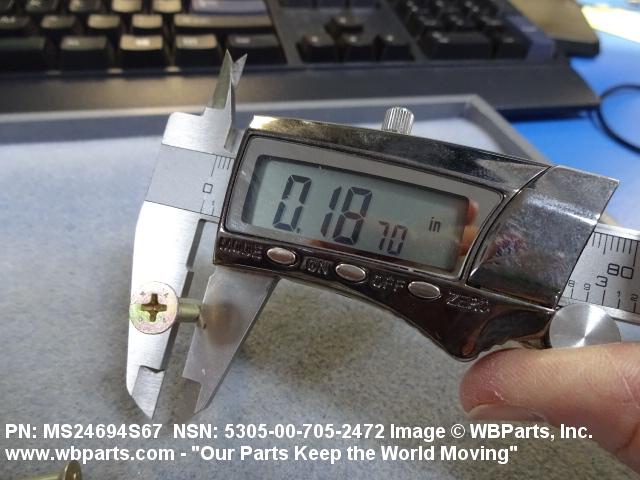

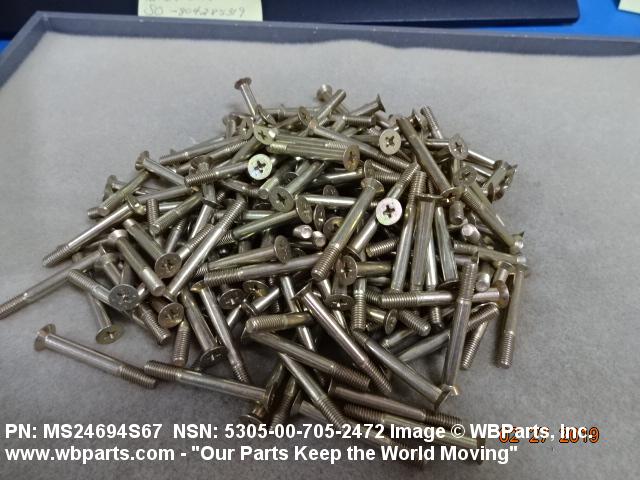

Drawings & Photos | NSN 5305-00-705-2472
Demand History | NSN 5305-00-705-2472
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24694S67 | 2025-07-201 | 150 | United States |
| MS24694S67 | 2024-11-311 | 200 | United States |
| MS24694S67 | 2024-05-150 | 125 | United States |
| MS24694S67 | 2024-04-99 | 17 | DIBBS |
| MS24694-S67 | 2024-04-99 | 17 | DIBBS |
| MS24694S67 | 2024-04-94 | 100 | United States |
| MS24694S67 | 2024-02-53 | 200 | US |
| MS24694S67 | 2024-01-17 | 7440 | DIBBS |
| MS24694-S67 | 2024-01-17 | 7440 | DIBBS |
| MS24694S67 | 2023-12-345 | 255 | DIBBS |
| MS24694-S67 | 2023-12-345 | 255 | DIBBS |
| MS24694S67 | 2023-11-318 | 491 | DIBBS |
| MS24694-S67 | 2023-11-318 | 491 | DIBBS |
| MS24694S67 | 2023-09-272 | 100 | United States |
| MS24694S67 | 2023-09-272 | 100 | United States |
| 5305-00-705-2472 | 2022-04-96 | 173 | DIBBS |
| 5305-00-705-2472 | 2021-12-340 | 19 | DIBBS |
| 5305-00-705-2472 | 2021-02-56 | 71 | DIBBS |
| 5305-00-705-2472 | 2019-04-101 | 274 | DIBBS |
| 5305-00-705-2472 | 2019-02-38 | 368 | DIBBS |
| 5305-00-705-2472 | 2018-10-289 | 167 | DIBBS |
| 5305-00-705-2472 | 2018-06-162 | 228 | DIBBS |
| 5305-00-705-2472 | 2018-02-44 | 228 | DIBBS |
| 5305-00-705-2472 | 2017-02-54 | 65 | DIBBS |
| MS24694S67 | 2017-02-40 | 50 | United States |
| 5305-00-705-2472 | 2016-11-318 | 210 | DIBBS |
| 5305-00-705-2472 | 2014-07-194 | 393 | DIBBS |
| 5305-00-705-2472 | 2014-03-71 | 450 | DIBBS |
| 5305-00-705-2472 | 2010-09-250 | 601 | DIBBS |
| 5305-00-705-2472 | 2010-06-158 | 394 | DIBBS |
| 5305-00-705-2472 | 2009-07-188 | 589 | DIBBS |
| 5305-00-705-2472 | 2008-09-266 | 93 | DIBBS |
| 5305-00-705-2472 | 2008-03-70 | 420 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-705-2472
Technical Data | NSN 5305-00-705-2472
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.407 INCHES MINIMUM |
| FASTENER LENGTH | 1.578 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.327 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-00-705-2472
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-705-2472
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
