NSN 5305-00-717-5592 MS24693275, MS24693-275, MS24693C275
Product Details | MACHINE SCREW
5305-00-717-5592 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS24693275, MS24693-275, MS24693C275, MS24693-C275, MS24693PC275, AIC8133R14, AIC813-3-R14, AOL4168413, AOL4168-413, E125413, E125-413, FS2003-3/413C, FS20033413C, PBF1068413C, PBF1068-413C, 7903133-52, 9145413, 9145-413, 965813413C, 965813-413C, 1067513413C, 106751-3-413C, 1121055053, 112-1055-053, 128C603GC275, 381842700101, 5305-00-717-5592, 00-717-5592, 5305007175592, 007175592, 790313352
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-717-5592 | 06657 ( SCREW, MACHINE ) |

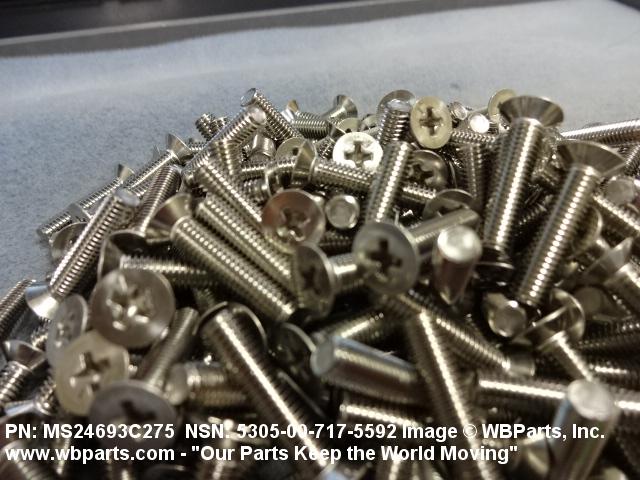

Drawings & Photos | NSN 5305-00-717-5592
Demand History | NSN 5305-00-717-5592
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24693C275 | 2024-08-215 | 110 | Japan |
| 5305-00-717-5592 | 2023-12-341 | 758 | DIBBS |
| 5305-00-717-5592 | 2023-11-333 | 758 | DIBBS |
| MS24693C275 | 2020-01-28 | 50 | CA |
| MS24693C275 | 2019-11-316 | 6 | US |
| MS24693C275 | 2019-09-247 | 10 | Germany |
| MS24693-C275 | 2018-05-135 | 3 | FX |
| MS24693C275 | 2015-04-92 | 10000 | US |
| MS24693275 | 2015-02-56 | 24 | Saudi Arabia |
| MS24693C275 | 2014-10-296 | 720 | Israel |
| MS24693C275 | 2014-10-296 | 720 | Israel |
| MS24693C275 | 2011-04-105 | 500 | US |
| MS24693C275 | 2010-08-237 | 500 | Italy |
| MS24693C275 | 2009-06-163 | 192 | US |
| MS24693-275 | 2006-01-12 | 25 | Canada |
Cross Reference | NSN 5305-00-717-5592
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 106751-3-413C | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 112-1055-053 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 128C603GC275 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 381842700101 | 86329 | PARKER-HANNIFIN CORPORATION DBA FLUID SYSTEMS DIVISION |
| 7903133-52 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 7903133-52 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 9145-413 | 58251 | FIRST AMERICAN SALES CO INC |
| 965813-413C | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| AIC813-3-R14 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| AOL4168-413 | 57472 | ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE |
| E125-413 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| E125-413 | 97928 | HUCK INTL INC |
| FS2003-3/413C | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| MS24693-275 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24693-C275 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24693-C275 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24693C275 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24693PC275 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PBF1068-413C | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-717-5592
Technical Data | NSN 5305-00-717-5592
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

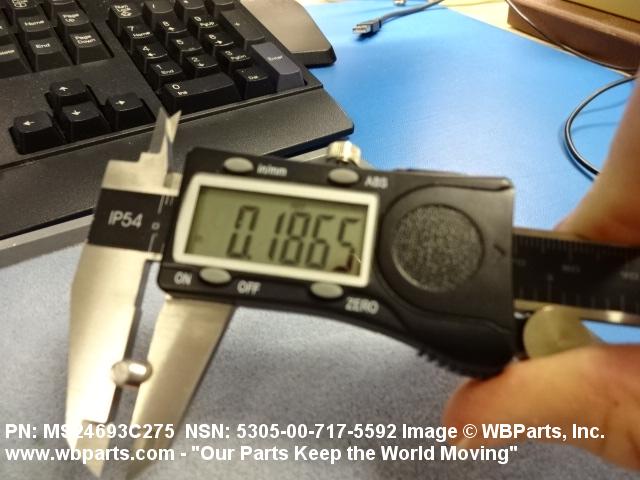

| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

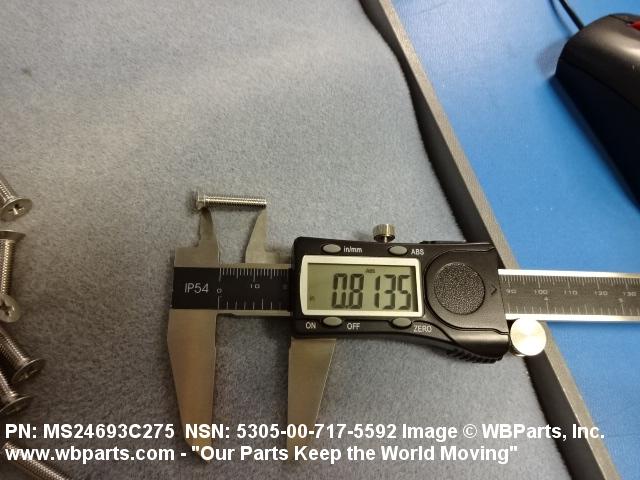

| THREAD LENGTH | 0.813 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |

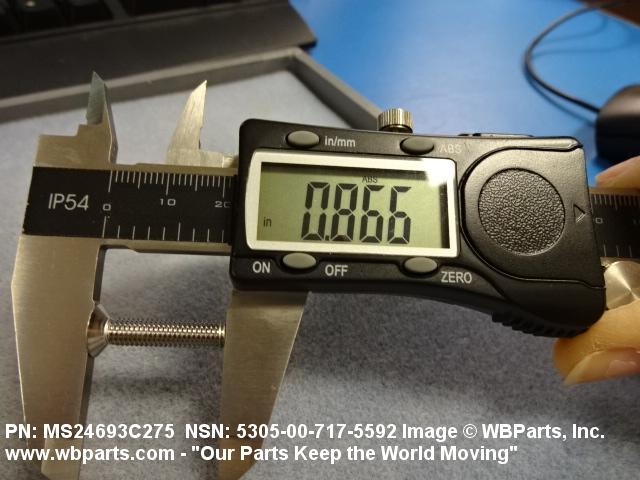

| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
| SCREW SURFACE TREATMENT | PASSIVATE |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |

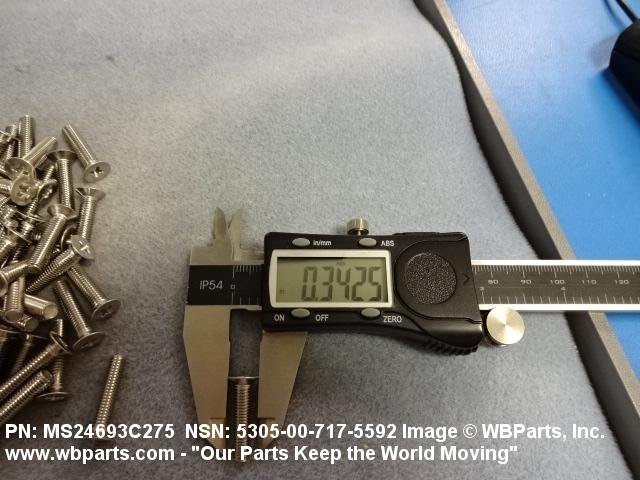

| HEAD DIAMETER | 0.333 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-00-717-5592
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
