NSN 5305-00-725-2317 MS9072564, MS90725-64, MS9072864

Product Details | HEXAGON HEAD CAP SCREW

5305-00-725-2317 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS9072564, MS90725-64, MS9072864, MS90728-64, AES01C375A50AW9A91, ASEM B18.2.1 , ASEMB1821, B1821BH038C150N, HC-45, SPE306J24, F114, HC45, 5305PL0705560 , 5593200, 6051776, 64-17780C PIECE, 6417780CPIECE, 7114564, 71145-64, 91236A628, 0188800158, 10082581, 1034354, 10-34354, 108707, 1138861, 12Z24244, 12Z24-244, 12Z2444, 12Z24-44, 15A00406-0000 I, 15A00406-0000 ITEM NO 40, 15A004060000I, 15A004060000ITEMNO40, 177FX4, 179843, 186628, 22524R1, 2309436150, 23-09436-150 , 2310746150, 23-10746-150 , 2AN592 , 303843, 403421, 522C502008, 5305-00-725-2317, 00-725-2317, 5305002693214 , 5305007252317, 007252317

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-725-2317	18257 ( SCREW, CAP, HEXAGON HEAD )

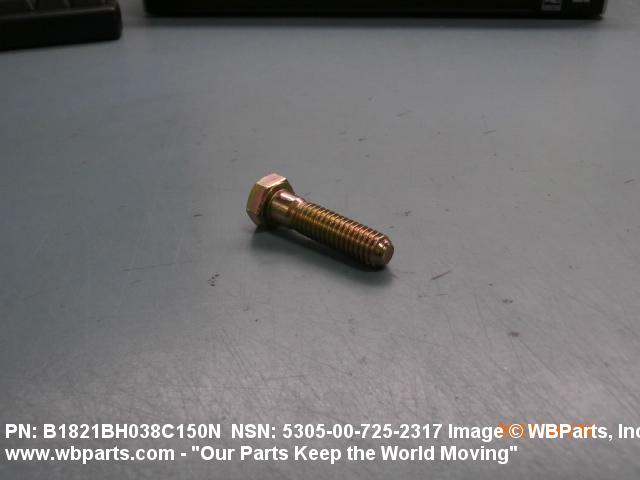

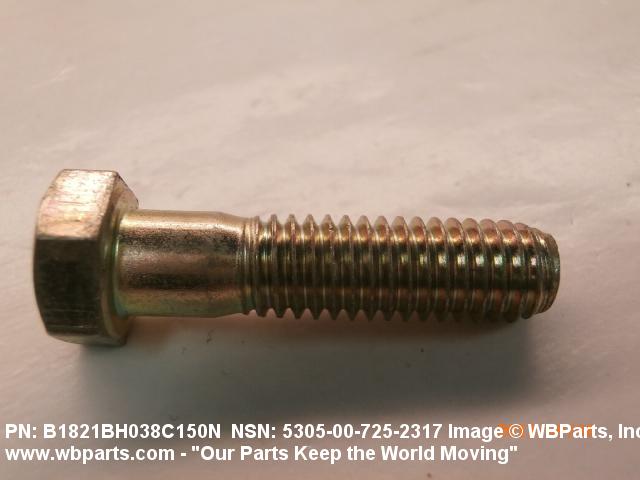

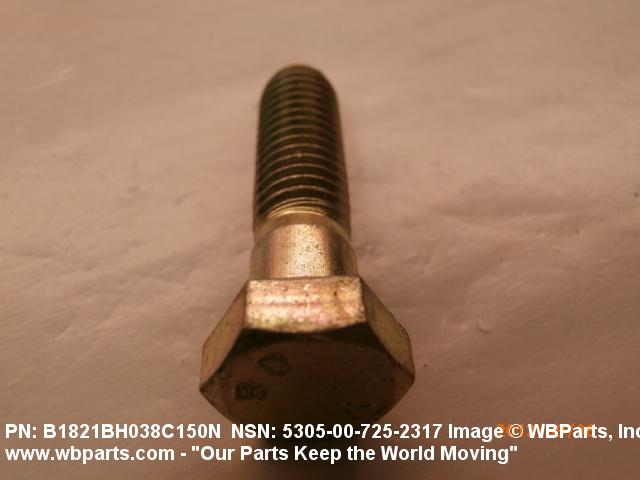

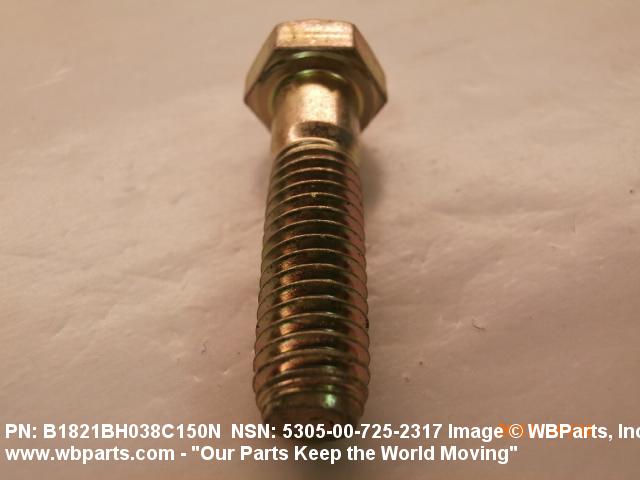

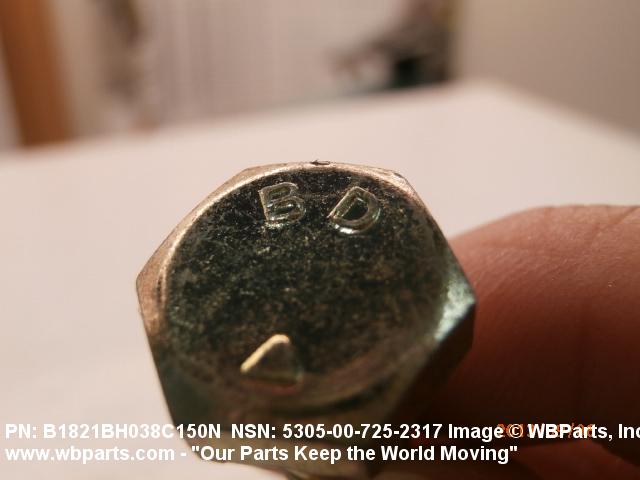

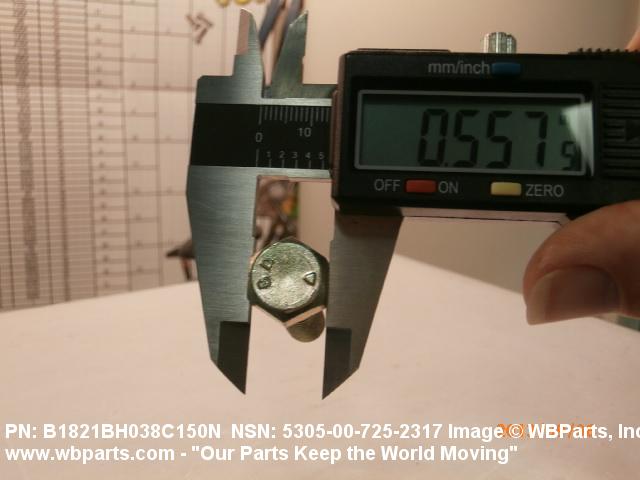

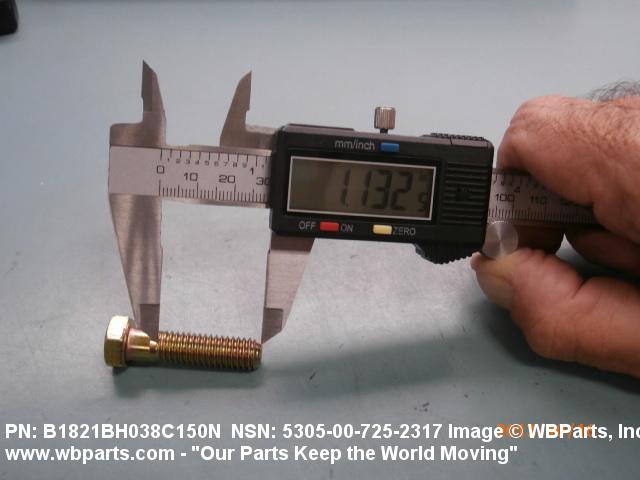

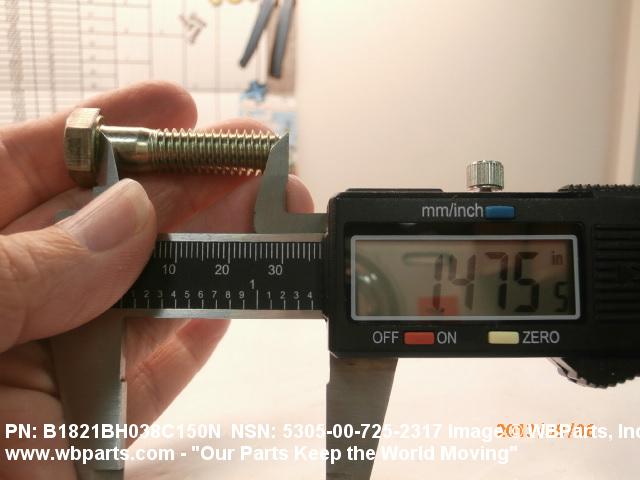

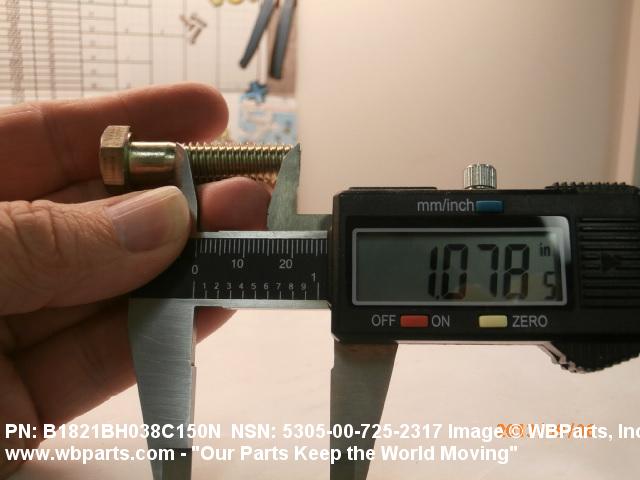

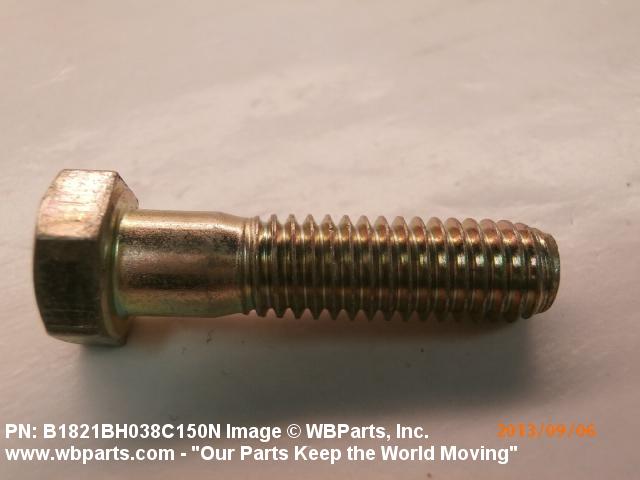

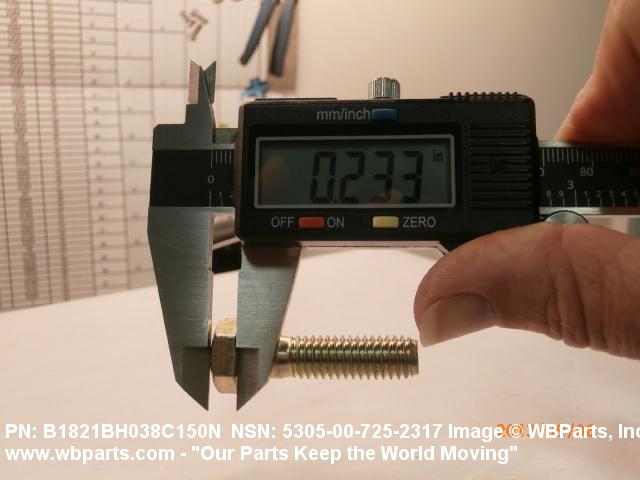

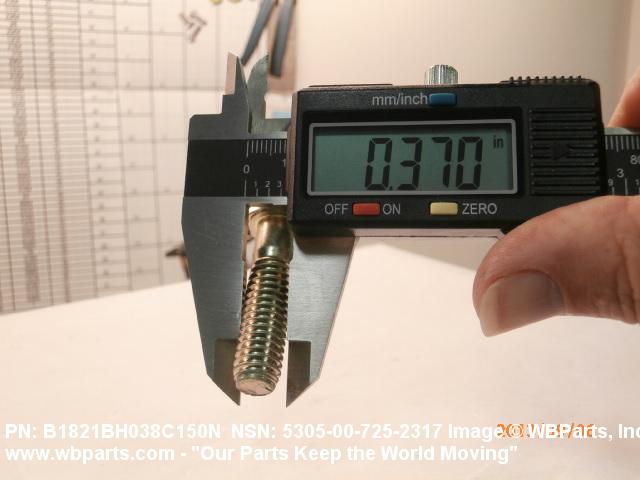

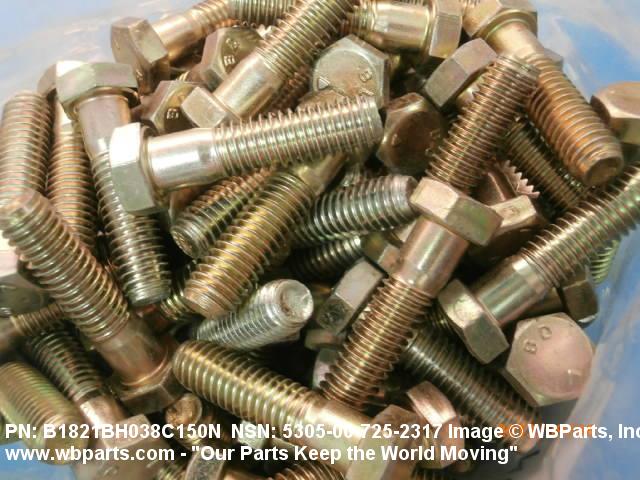

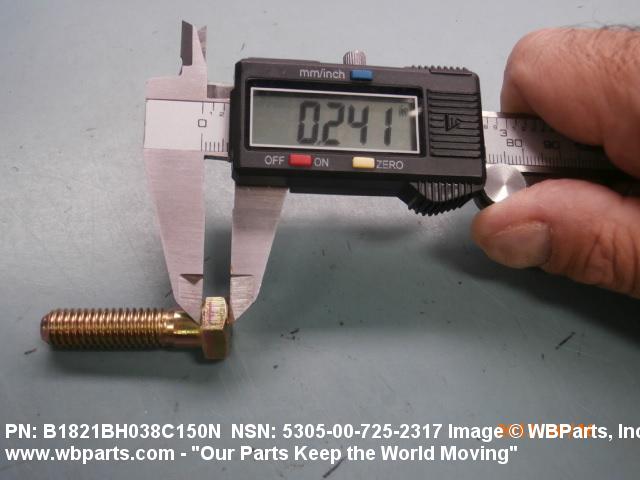

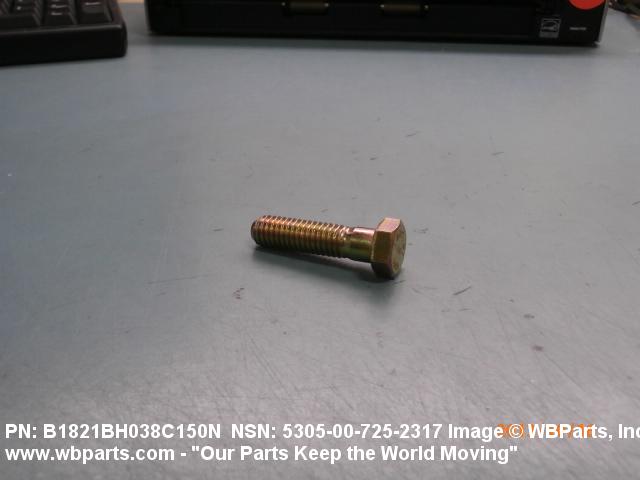

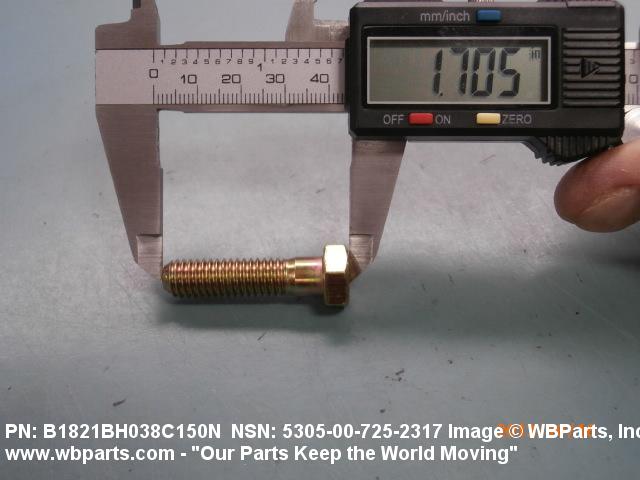

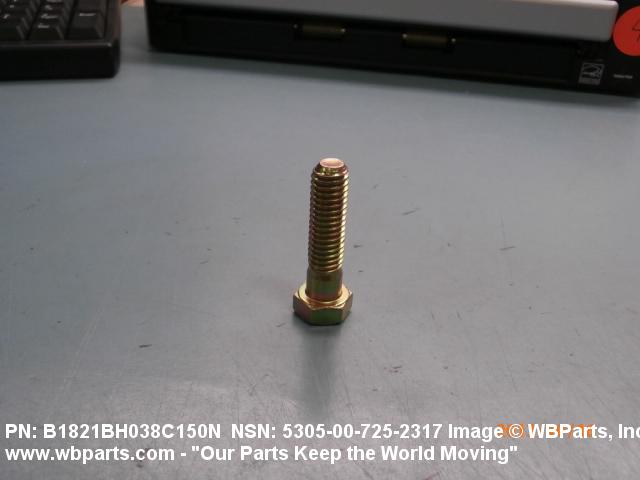

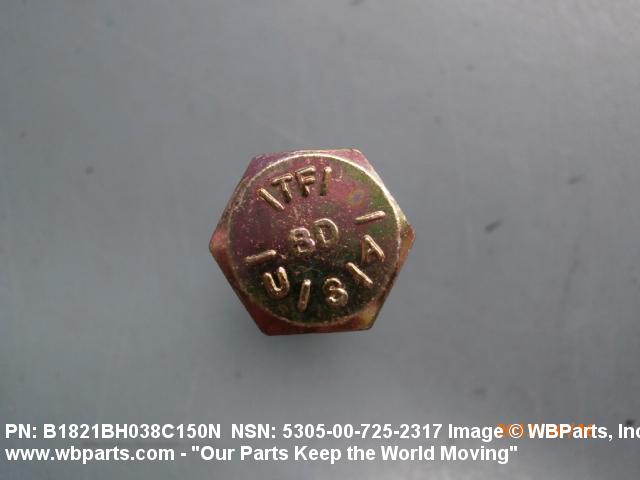

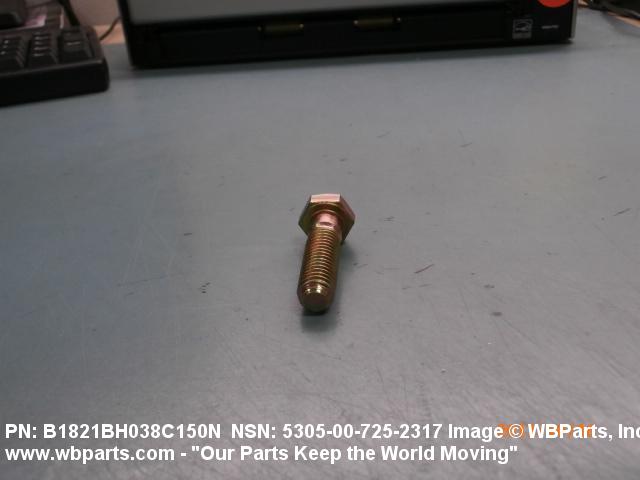

Drawings & Photos | NSN 5305-00-725-2317

Part Number	Request Date	QTY	Origin
5305-00-725-2317	2025-09-246	150	United States
5305-00-725-2317	2025-08-216	80	US
5305-00-725-2317	2024-07-183	4000	United States
5305-00-725-2317	2024-06-171	50	US
5305-00-725-2317	2024-05-138	5	US
MS9072864	2021-04-104	10	United States
5305-00-725-2317	2021-02-40	16	United States
MS9072564	2020-12-338	10	United States
5305-00-725-2317	2020-07-203	75	United States
5305-00-725-2317	2020-06-182	48	MANUAL
MS9072564	2019-07-210	32	Taiwan
5305-00-725-2317	2019-07-210	32	Taiwan
MS9072564	2018-01-17	432	United States
MS9072564	2017-03-89	8	Singapore
MS9072564	2016-10-298	250	Canada
MS90728-64	2016-05-137	10
MS90728-64	2016-05-137	10
MS90728-64	2016-05-137	32
5305-00-725-2317	2015-11-307	1275	Pakistan
MS9072564	2015-09-259	250	us
MS9072864	2015-01-28	50	United States
5305-00-725-2317	2014-08-219	2	US
B1821BH038C150N	2014-03-71	3588	United States
B1821BH038C150N	2013-10-280	125	United States
5305-00-725-2317	2013-09-248	200	United States
5305-00-725-2317	2013-07-183	2	US
5305-00-725-2317	2013-07-183	10	US
MS9072864	2012-12-356	40	us
MS9072564	2012-06-160	250	United States
B1821BH038C150N	2012-03-65	120	US
5305-00-725-2317	2011-05-137	4	Italy
5305-00-725-2317	2011-05-137	100	Italy
5305-00-725-2317	2011-05-126	4	United States
B1821BH038C150N	2011-03-75	32	US
5305-00-725-2317	2011-03-63	40000	United States
B1821BH038C150N	2011-02-45	3	US
5305-00-725-2317	2011-02-45	3800	DIBBS
B1821BH038C150N	2011-01-24	10200	US
5305-00-725-2317	2010-11-307	10000	DIBBS
MS9072564	2010-11-306	200	United States
5305-00-725-2317	2010-09-257	152	DIBBS
5305-00-725-2317	2010-06-161	270	DIBBS
5305-00-725-2317	2010-03-70	6000	DIBBS
B1821BH038C150N	2009-12-343	29526	US
B1821BH038C150N	2009-10-289	18824	United States
B1821BH038C150N	2009-07-208	7000	US
5305-00-725-2317	2009-06-160	8	US
MS9072564	2009-03-70	2200	US
B1821BH038C150N	2008-12-340	5000	US
5305-00-725-2317	2008-11-319	1419	US
B1821BH038C150N	2008-08-224	655	United States
B1821BH038C150N	2008-04-107	1300	US

Cross Reference | NSN 5305-00-725-2317

Part Number	Cage Code	Manufacturer
0188800158	5N978	THERMA-TECH ENGINEERING INC DBA A. R. LINTERN DIVISION
10-34354	88907	BRUNSWICK CORPORATION DBA MERCURY MARINE
108707	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1138861	62303	CONMACO INC
12Z24-244	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
12Z24-44	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
15A00406-0000 I	00U45	HSI ELECTRIC INC.
15A00406-0000 ITEM NO 40	01425	LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND
177FX4	45152	OSHKOSH CORPORATION
177FX4	75Q65	OSHKOSH DEFENSE, LLC
177FX4	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
179843	72915	GENERAL MOTORS CORP ELECTRO-MOTIVE DIV
186628	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
22524R1	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
22524R1	66195	SOLAR TURBINES INCORPORATED
23-09436-150	64678	DAIMLER TRUCKS NORTH AMERICA LLC
23-10746-150	64678	DAIMLER TRUCKS NORTH AMERICA LLC
2AN592	45152	OSHKOSH CORPORATION
2AN592	75Q65	OSHKOSH DEFENSE, LLC
303843	H0G87	WIBA ZEVENAAR B.V.
403421	5X050	CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL
522C502008	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305002693214	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305007252317	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0705560	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
5593200	34623	AM GENERAL, LLC
6051776	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
64-17780C PIECE	66935	YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS
71145-64	95097	LITTLE GIANT CRANE AND SHOVEL INC
91236A628	39428	MCMASTER-CARR SUPPLY COMPANY
AES01C375A50AW9A91	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
ASEM B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B1821BH038C150N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
F114	00365	TLD ACE CORPORATION
HC-45	94223	SPAENAUR INC DBA SPAENAUR INC.
MS90725-64	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS90725-64	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS90728-64	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SPE306J24	K0378	ROLLS-ROYCE MILITARY AERO ENGINES LTD
