NSN 5305-00-727-8833 MS352003, MS35200-3, MS3524910

Product Details | MACHINE SCREW

5305-00-727-8833 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS352003, MS35200-3, MS3524910, MS35249-10, MS5195903, MS51959-03, MS519593, MS51959-3, N58P5004, AN505C24, AN505C2-4 , AN505C2R4, AN505CZR4, F924L, F9-2-4L, Q52310204, Q5231-02-04, 10079716, 16202, 2213027047, 2213-027047, 22202, 22202ADX, 256X14FLHSST, 2-56X1-4FLHSST, 256X14FLHST, 2-56X1-4FLHST, 30070208120, 3007-0208-120, 3007020-8120, 021.450544, 3157138-01, 40524002516, 4181983, 418198-3, 4183313, 418331-3, 946839-204, 5305-00-727-8833, 00-727-8833, 5305007278833 , 007278833, 021450544, 315713801, 946839204, 141700203

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-727-8833	06657 ( SCREW, MACHINE )

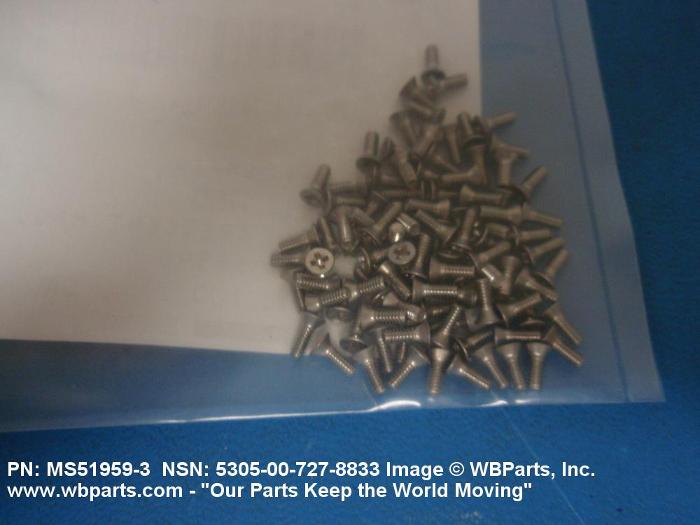

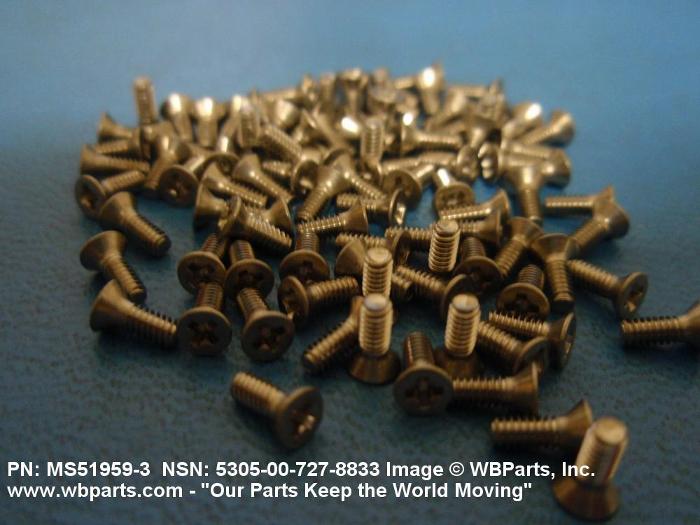

Drawings & Photos | NSN 5305-00-727-8833

Part Number	Request Date	QTY	Origin
5305-00-727-8833	2024-05-152	70	United States
5305-00-727-8833	2023-05-123	1580	DIBBS
MS51959-3	2019-02-45	360	South Korea
MS51959-3	2019-01-17	360	South Korea
MS51959-3	2018-05-135	212	South Korea
MS51959-3	2017-11-324	167	South Korea
5305-00-727-8833	2017-11-316	5	CN
MS519593	2017-07-193	160	Australia
MS51959-3	2017-01-19	370	South Korea
AN505C24	2016-04-119	200	United States
MS519593	2012-04-116	25	United States
MS519593	2012-04-116	50	United States
MS519593	2012-04-116	100	United States
MS519593	2012-04-116	200	United States
MS519593	2011-04-97	100	United States
MS519593	2011-04-97	100	United States
5305-00-727-8833	2010-10-278	1	us
5305-00-727-8833	2010-10-278	3	us
5305-00-727-8833	2010-04-103	25	US
5305-00-727-8833	2008-09-266	12	United States
5305-00-727-8833	2008-09-255	350	US

Cross Reference | NSN 5305-00-727-8833

Part Number	Cage Code	Manufacturer
021.450544	D1597	AIM INFRAROT-MODULE GMBH DBA AIM IR GMBH
141700203	D1876	L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK
16202	73734	FEDERAL SCREW PRODUCTS INC.
2-56X1-4FLHSST	97852	STAR STAINLESS SCREW CO
2-56X1-4FLHST	97852	STAR STAINLESS SCREW CO
2213-027047	S4276	TOKYO AIRCRAFT INSTRUMENTS CO. LTD
22202	73734	FEDERAL SCREW PRODUCTS INC.
22202ADX	1VN02	AIRDALE EXPRESS LLC
3007-0208-120	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
3007020-8120	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
3157138-01	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
40524002516	S0522	TADIRAN LTD
418198-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418331-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305007278833	A00AM	E.C.A ETABLISSEMENT CENTRAL DESAPPROVISIONNEMENTS DES FORCES
946839-204	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN505C2-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN505C2-4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN505C2R4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN505CZR4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
F9-2-4L	72314	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
MS35200-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35249-10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51959-03	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51959-3	63020	CRESCENT MANUFACTURING OPERATING COMPANY
MS51959-3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS51959-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N58P5004	03538	LOCKHEED MARTIN CORPORATION DIV MST
Q5231-02-04	35351	GE AVIATION SYSTEMS LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-727-8833

Compare

Related Products | NSN 5305-00-727-8833

5305-00-727-8834, 5305-00-727-8835, 5305-00-727-8836, 5305-00-727-8841, 5305-00-727-8848

Technical Data | NSN 5305-00-727-8833

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.086 INCHES
THREAD QUANTITY PER INCH	56
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.214 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
FASTENER LENGTH	0.219 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 316
SCREW SURFACE TREATMENT	PASSIVATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A39 FLAT COUNTERSUNK
HEAD DIAMETER	0.147 INCHES MINIMUM AND 0.172 INCHES MAXIMUM
COUNTERSINK ANGLE	80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-727-8833

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-727-8833

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
