NSN 5305-00-781-9057 MS27039108, MS27039-1-08, A113 1-2D

Product Details | MACHINE SCREW

5305-00-781-9057 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS27039108, MS27039-1-08, A113 1-2D, A11312D, S1029657P108, S1029657P10-8, FFS92TYPE3STYLE1C, 1101111420, 11011114-20, 2010855, 2A113 1-2D, 2A11312D, 721009675100 , 5305-00-781-9057, 00-781-9057, 5305001107996, 5305007819057, 007819057

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-781-9057	06657 ( SCREW, MACHINE )

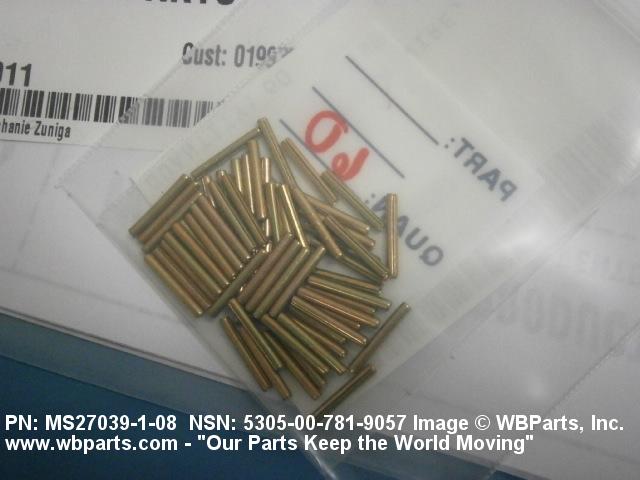

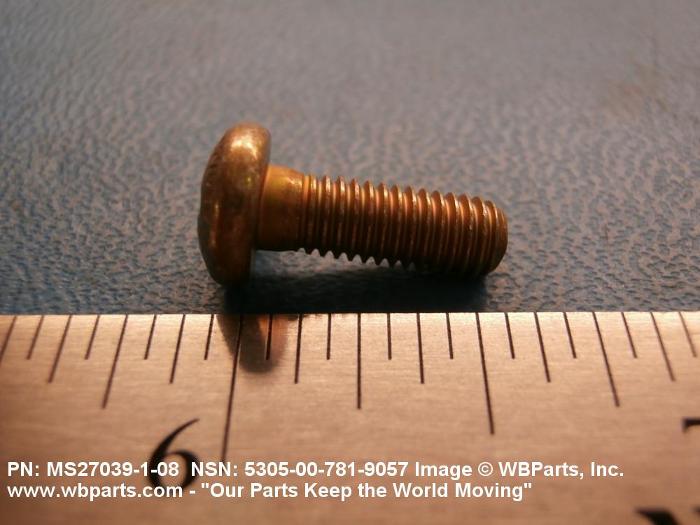

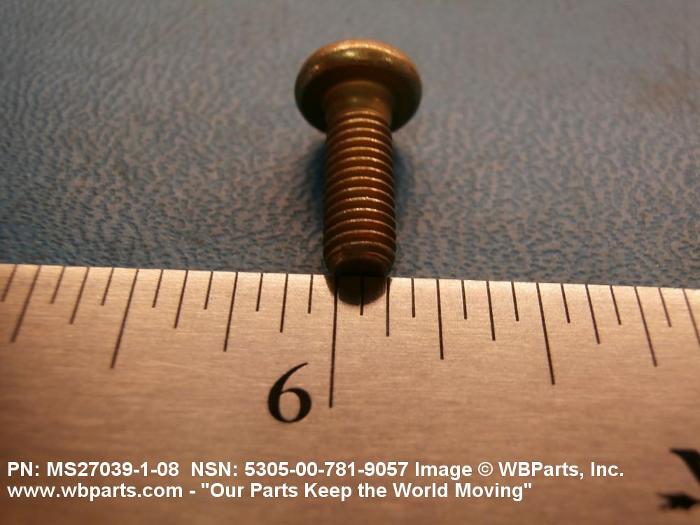

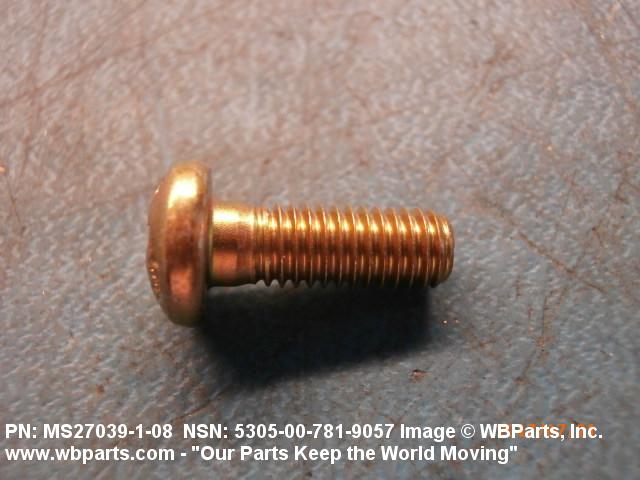

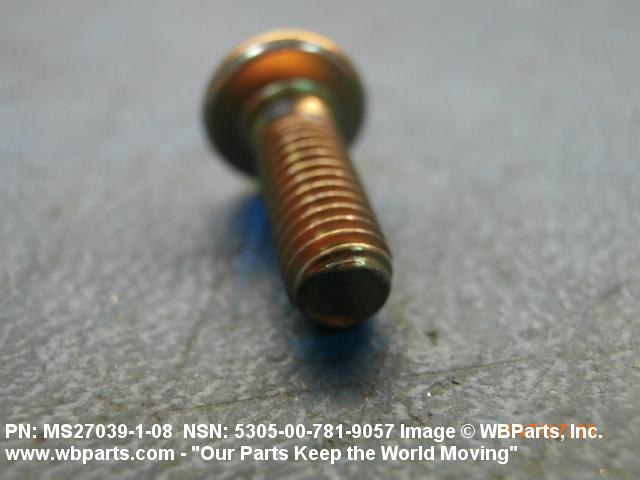

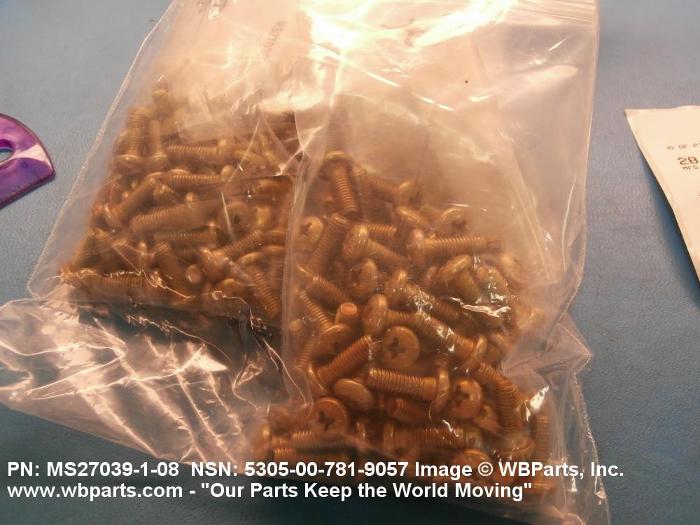

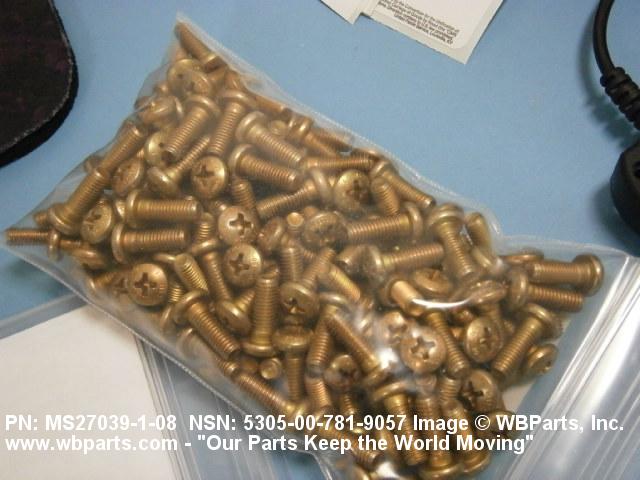

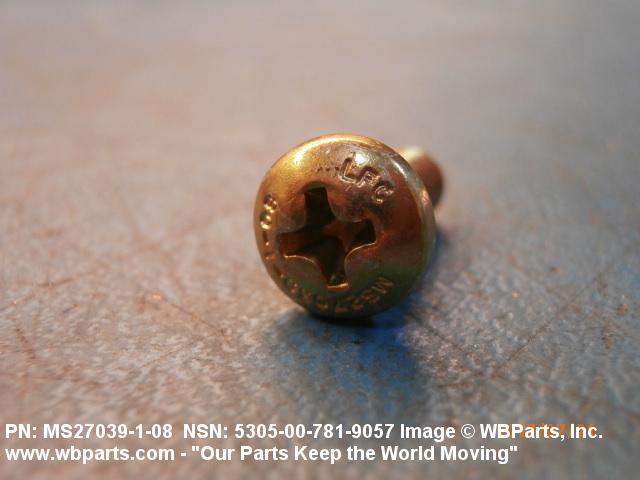

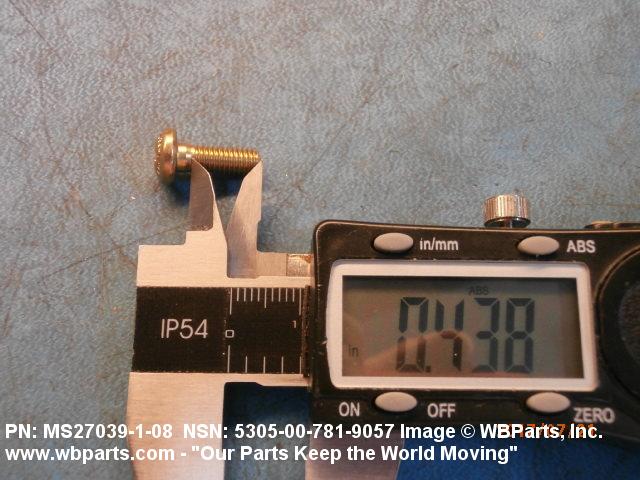

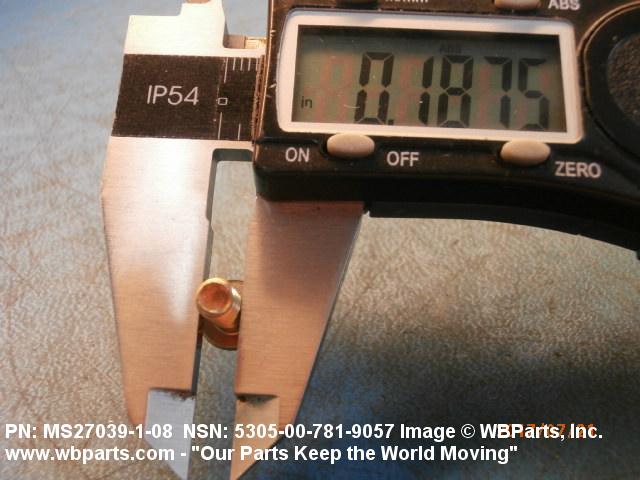

Drawings & Photos | NSN 5305-00-781-9057

Part Number	Request Date	QTY	Origin
MS27039108	2025-04-97	100	United States
MS27039108	2025-03-84	6	Malaysia
MS27039108	2025-03-69	100	United States
A11312D	2024-08-227	11000	India
MS27039108	2024-08-227	185	Japan
MS27039108	2024-06-166	100	United States
5305-00-781-9057	2023-03-81	500	UK
MS27039108	2022-10-301	625	UK
MS27039108	2022-10-301	580	UK
MS27039108	2022-07-192	200	United States
MS27039108	2022-01-21	200	Croatia
MS27039108	2021-12-361	100	Sri Lanka
5305-00-781-9057	2021-10-286	2675	DIBBS
MS27039108	2021-08-230	100	United States
5305-00-781-9057	2021-05-139	4	TW
5305-00-781-9057	2021-04-111	1480	DIBBS
5305-00-781-9057	2021-02-56	3778	DIBBS
5305-00-781-9057	2020-12-355	1480	DIBBS
5305-00-781-9057	2020-05-133	1	US
MS27039-1-08	2020-02-57	50	US
MS27039-1-08	2020-02-57	4	US
MS27039108	2020-02-44	400	US
MS27039-1-08	2020-02-37	400	US
MS27039-1-08	2020-02-37	400	US
5305-00-781-9057	2020-01-24	100	United States
5305-00-781-9057	2019-11-325	3014	DIBBS
5305-00-781-9057	2019-09-246	4233	DIBBS
5305-00-781-9057	2019-08-233	2585	DIBBS
5305-00-781-9057	2019-06-156	1648	DIBBS
MS27039108	2019-05-136	300	United States
5305-00-781-9057	2019-03-64	1272	DIBBS
MS27039-1-08	2019-02-42	200	Lebanon
5305-00-781-9057	2019-02-38	1077	DIBBS
5305-00-781-9057	2018-07-199	2094	DIBBS
5305-00-781-9057	2018-05-150	2869	DIBBS
MS27039108	2018-04-116	100	United States
5305-00-781-9057	2018-03-80	1082	DIBBS
5305-00-781-9057	2017-07-198	500	Lebanon
5305-00-781-9057	2017-06-165	500	Lebanon
5305-00-781-9057	2017-02-53	18	MANUAL
5305-00-781-9057	2016-12-348	15000	US
MS27039108	2016-12-344	10	United States
5305-00-781-9057	2016-11-312	7000	DIBBS
5305-00-781-9057	2016-10-278	5000	DIBBS
MS27039108	2016-09-252	50	US
5305-00-781-9057	2016-09-252	4	United States
5305-00-781-9057	2016-08-234	1973	DIBBS
MS27039108	2016-05-138	50	US
MS27039-1-08	2016-04-118	50	UY
5305-00-781-9057	2016-04-115	1692	DIBBS
MS27039108	2016-04-97	100	Mexico
MS27039108	2015-10-275	44	United States
5305-00-781-9057	2015-07-194	2005	DIBBS
MS27039108	2015-07-190	250	United States
5305-00-781-9057	2015-05-151	3042	DIBBS
5305-00-781-9057	2015-05-123	1437	DIBBS
5305-00-781-9057	2015-04-102	1834	DIBBS
MS27039-1-08	2015-03-71	25	US
MS27039108	2015-01-06	60	Taiwan
MS27039108	2014-12-339	60	Malaysia
MS27039-1-08	2014-11-330	60	MY
5305-00-781-9057	2014-08-229	2044	DIBBS
MS27039108	2014-06-160	225	United States
MS27039-1-08	2014-06-160	225	United States
5305-00-781-9057	2014-05-138	1664	DIBBS
5305-00-781-9057	2014-01-26	3141	DIBBS
MS27039-1-08	2013-11-322	500	Belgium
A11312D	2013-09-256	320	US
MS27039108	2013-08-241	1	India
MS27039108	2013-06-155	5	US
MS27039108	2012-12-340	3	Seychelles
MS27039-1-08	2012-11-310	206
5305-00-781-9057	2012-09-257	300	Seychelles
5305-00-781-9057	2012-06-171	100	MANUAL
MS27039-1-08	2012-06-171	100	Malaysia
5305-00-781-9057	2012-06-156	800	United States
MS27039-1-08	2012-04-115	100	IN
5305-00-781-9057	2012-04-114	32	MANUAL
5305-00-781-9057	2012-04-114	800	MANUAL
MS27039-1-08	2012-04-114	32	Taiwan
5305-00-781-9057	2012-04-104	4822	DIBBS
5305-00-781-9057	2012-03-69	4541	DIBBS
MS27039108	2012-01-11	100	VN
MS27039108	2011-11-326	170	United States
5305-00-781-9057	2011-10-300	9232	DIBBS
MS27039108	2011-09-257	2000	PK
5305-00-781-9057	2011-09-251	2000	PK
007819057	2011-06-167	4	Japan
5305-00-781-9057	2011-05-147	5059	DIBBS
5305-00-781-9057	2011-05-133	43	US
5305-00-781-9057	2011-03-76	12	US
5305-00-781-9057	2011-03-66	600	LK
5305-00-781-9057	2011-01-11	100	LK
MS27039108	2010-09-273	50	US
5305-00-781-9057	2010-07-206	50	UK
MS27039108	2010-06-161	200	Japan
5305-00-781-9057	2010-05-125	6000	DIBBS
5305-00-781-9057	2009-07-208	2414	DIBBS
5305-00-781-9057	2008-12-350	6	PT
5305-00-781-9057	2008-05-137	500	US
MS27039108	2008-04-92	5000	United States
MS27039108	2008-01-15	12	South Africa
MS27039108	2007-07-205	3	US
MS27039108	2007-07-186	30000	United States
5305-00-781-9057	2006-08-215	20	Malaysia

Cross Reference | NSN 5305-00-781-9057

Part Number	Cage Code	Manufacturer
11011114-20	19204	ARMY UNITED STATES DEPARTMENT OF THE
2010855	001JK	EMBRAER S/A
2010855	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
2A113 1-2D	U1604	MARTIN-BAKER AIRCRAFT CO LTD DBA MARTIN-BAKER
5305001107996	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
721009675100	A1140	OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA
A113 1-2D	35981	MARTIN-BAKER AIRCRAFT CO LTD
FFS92TYPE3STYLE1C	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS27039-1-08	0NFB8	DIALOGIC CORP. DBA DIALOGIC FASTENERS
MS27039-1-08	0P012	H. V. MODY, INC. DBA MODY AEROSPACE
MS27039-1-08	0RFT4	MAC FASTENERS, INC.
MS27039-1-08	2N935	B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES
MS27039-1-08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS27039-1-08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
S1029657P10-8	18355	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-781-9057

Compare

Related Products | NSN 5305-00-781-9057

5305-00-781-9059, 5305-00-781-9060, 5305-00-781-9478, 5305-00-781-9479, 5305-00-781-9482

Technical Data | NSN 5305-00-781-9057

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES

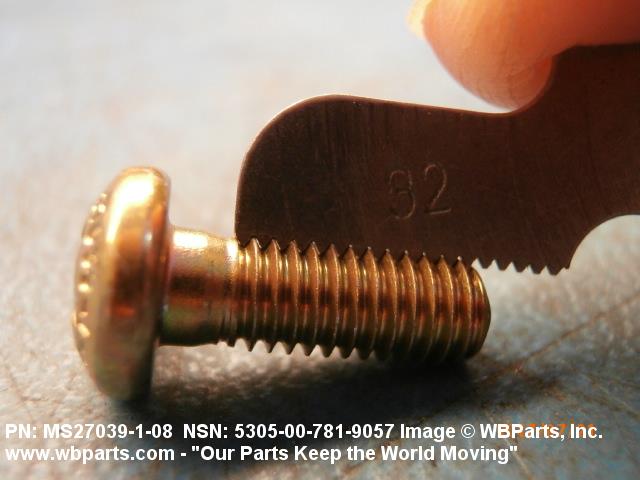

THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.377 INCHES MINIMUM AND 0.516 INCHES MAXIMUM

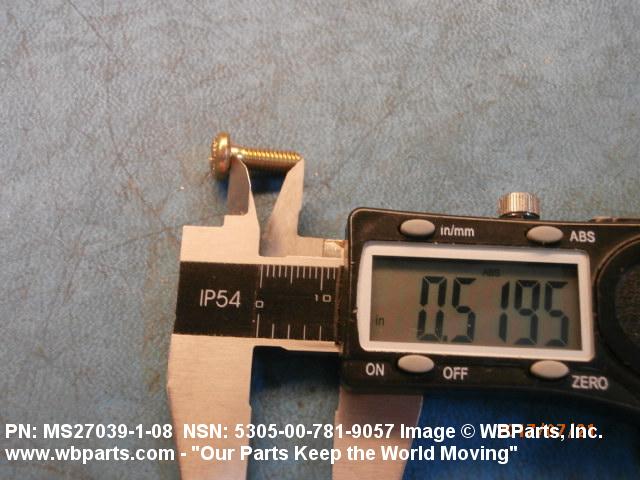

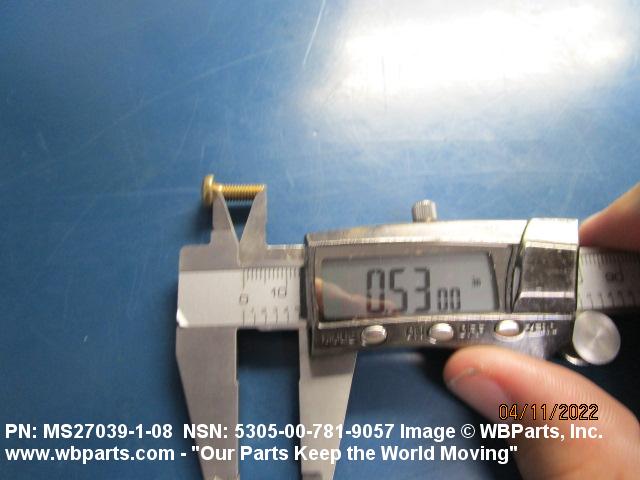

FASTENER LENGTH	0.516 INCHES MINIMUM AND 0.563 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 8630 OR STEEL COMP 4037
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH

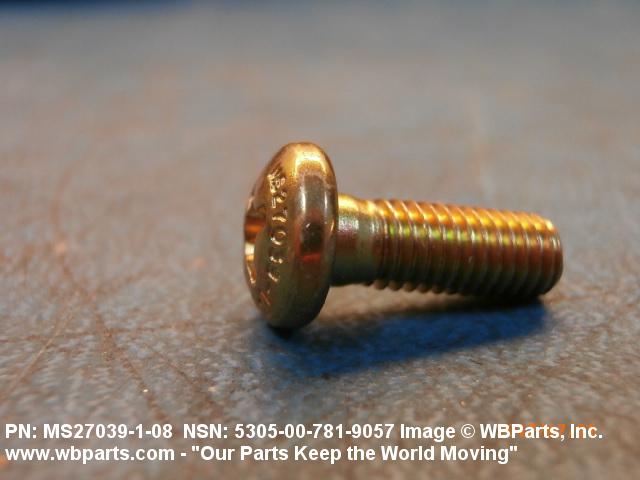

HEAD STYLE	A23 PAN

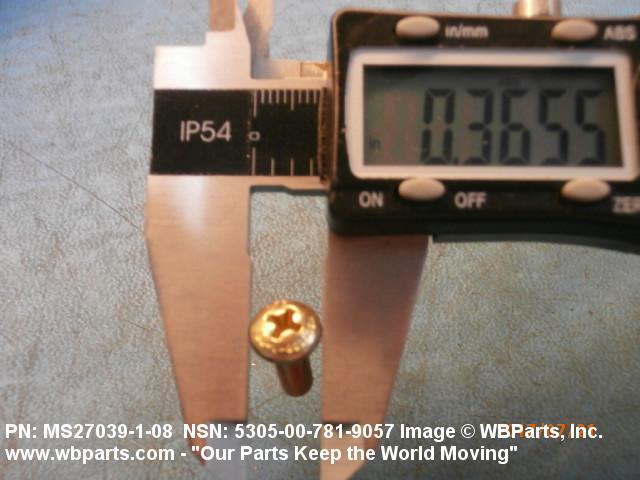

HEAD DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM

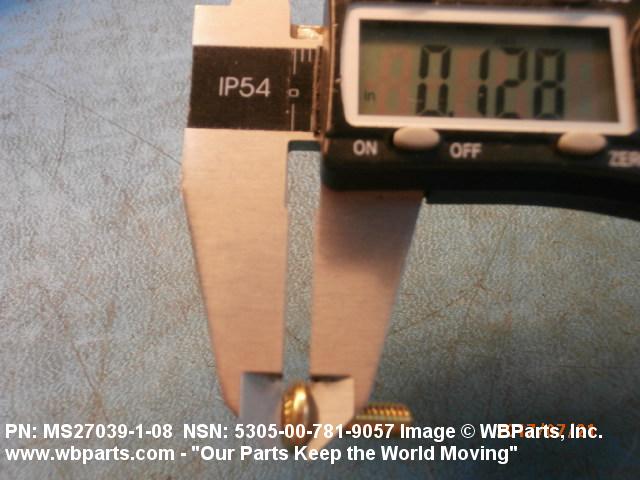

HEAD HEIGHT	0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM

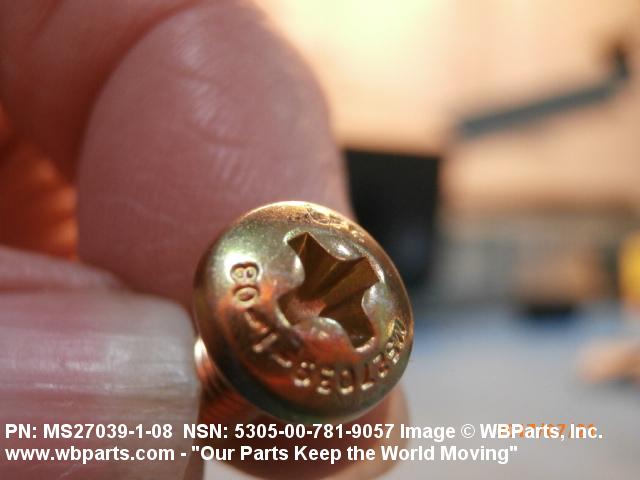

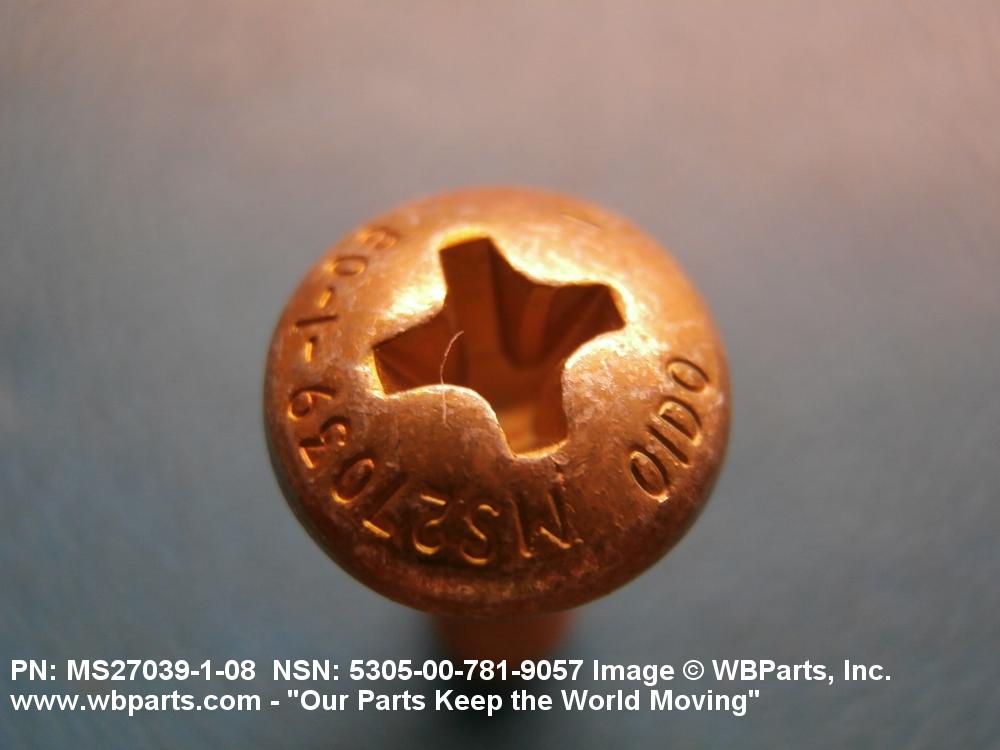

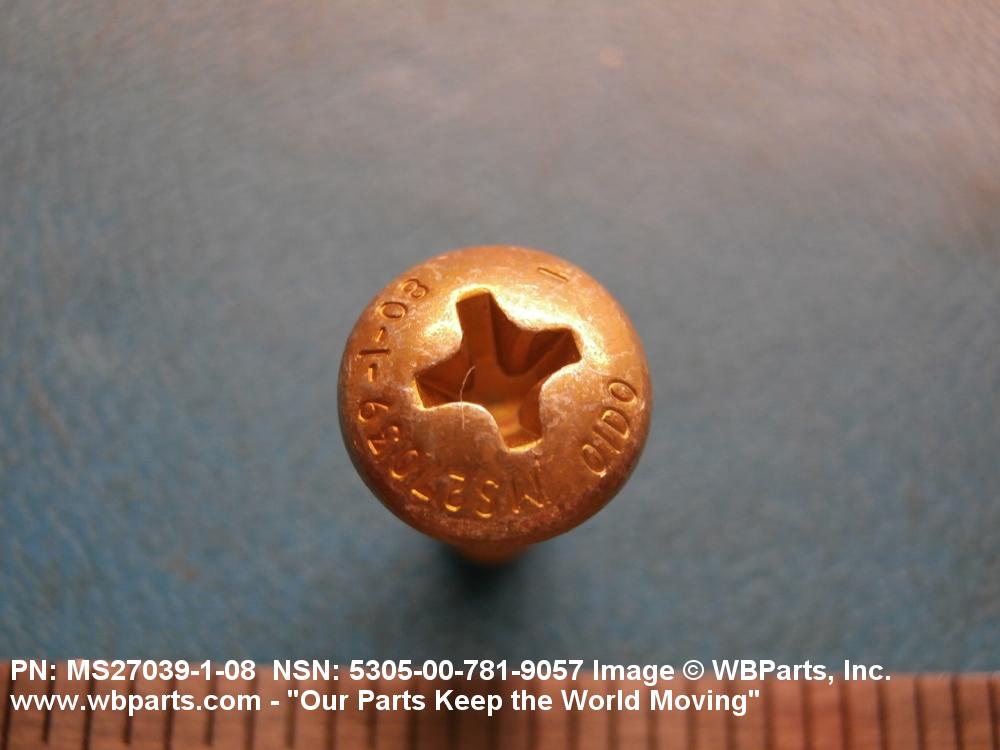

INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-781-9057

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-781-9057

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
