NSN 5305-00-782-9489 MS3529566, MS35295-66, MS9072866

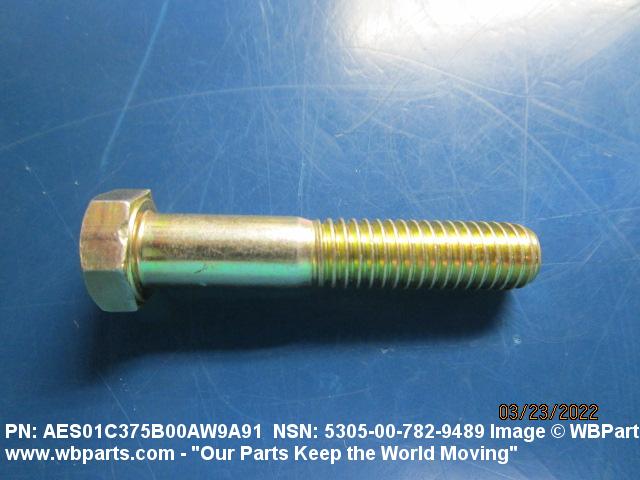

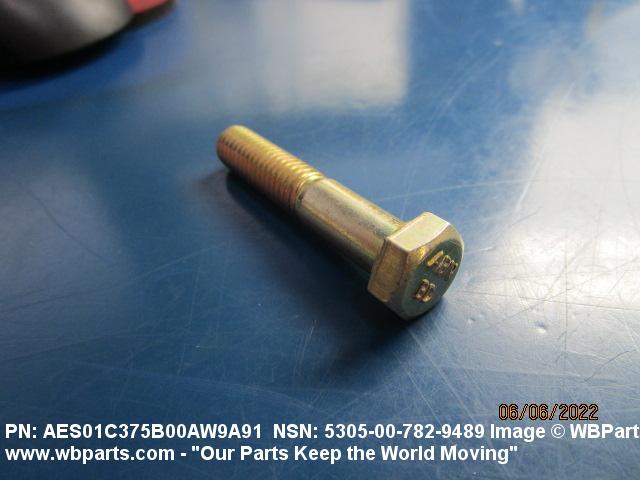

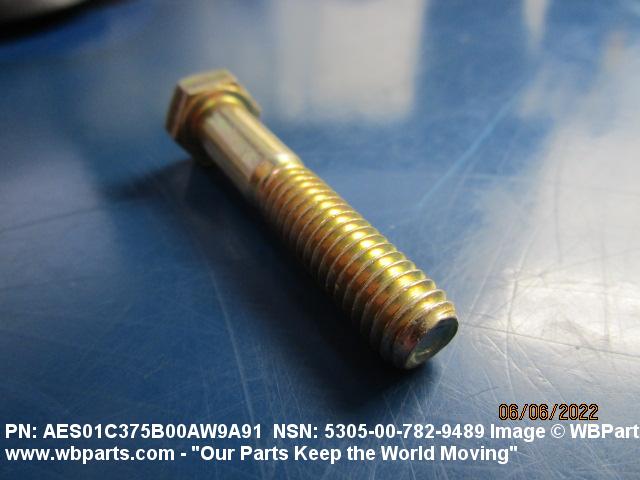

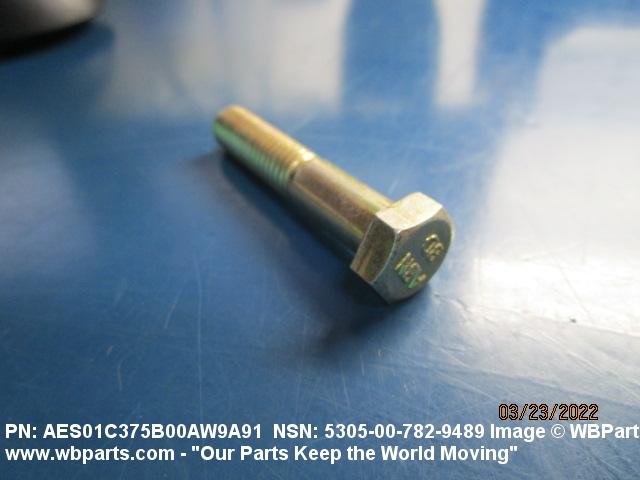

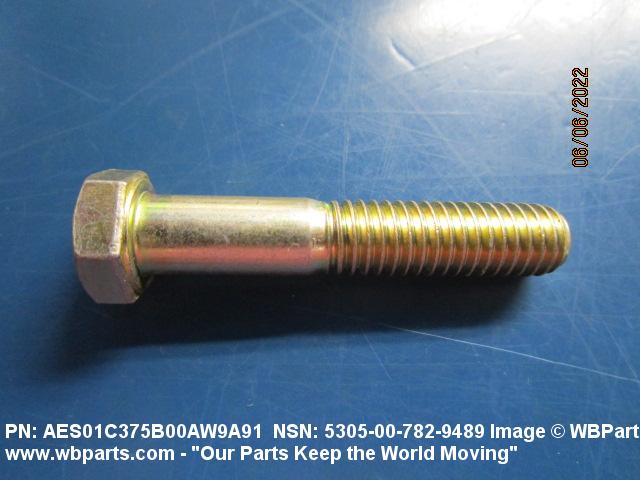

Product Details | HEXAGON HEAD CAP SCREW

5305-00-782-9489 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS3529566, MS35295-66, MS9072866, MS90728-66, AES01C375B00AW9A91, ASME B18.2.1 , ASMEB1821, B1821BH038C200N, 5305PL0656452 , 701-4711389 PIECE 24, 7014711389PIECE24, 7114566, 71145-66, 91102453, 91247A632, 10082598 , 122181, 122-5377661 ITEM 36, 1225377661ITEM36, 180130, 2EK429, 99041206, 5305-00-782-9489, 00-782-9489, 5305007829489, 007829489, 9904.1206

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-782-9489	18257 ( SCREW, CAP, HEXAGON HEAD )

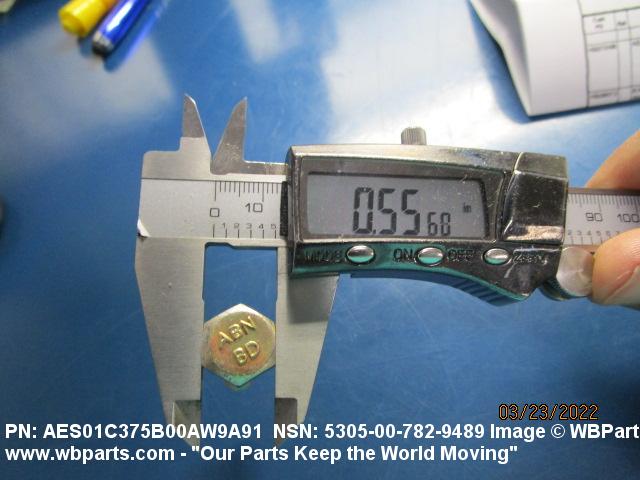

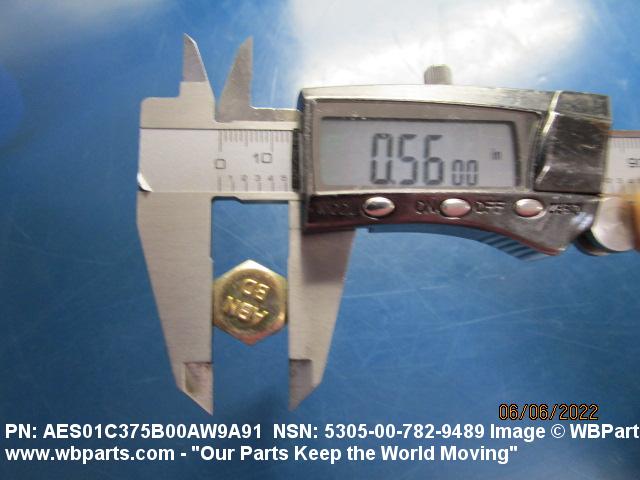

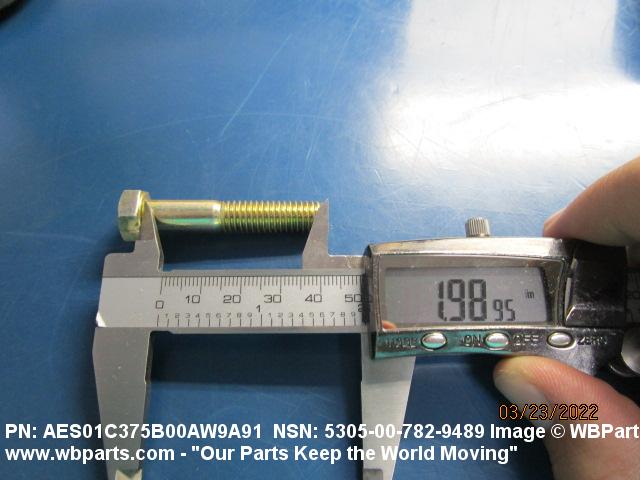

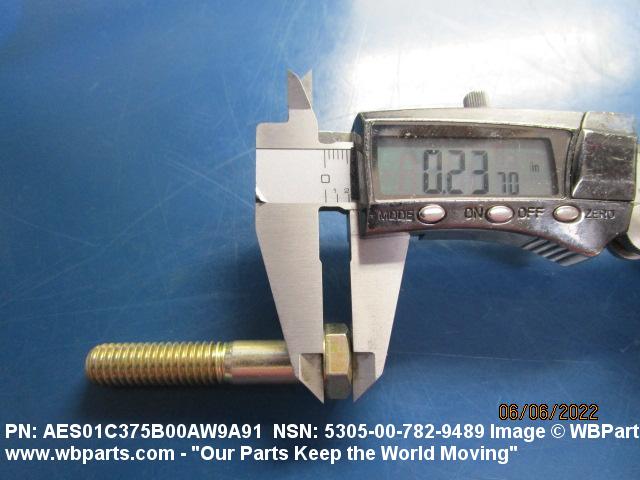

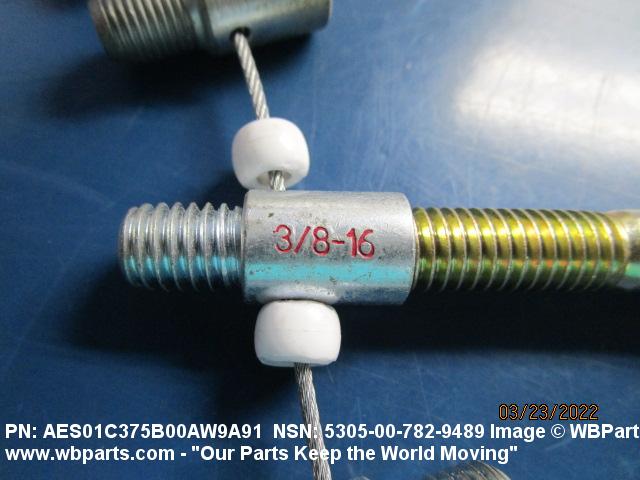

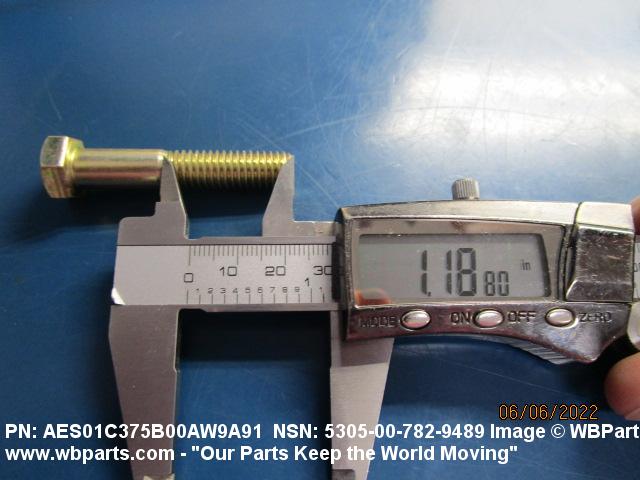

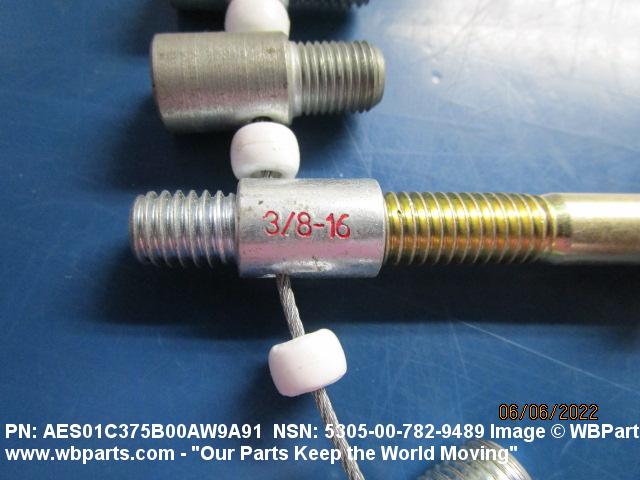

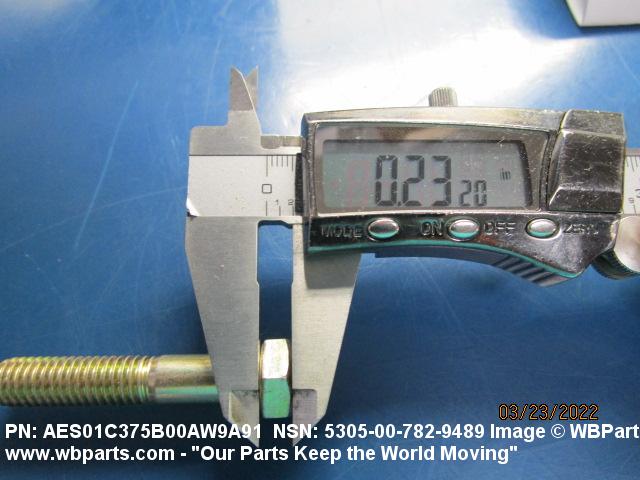

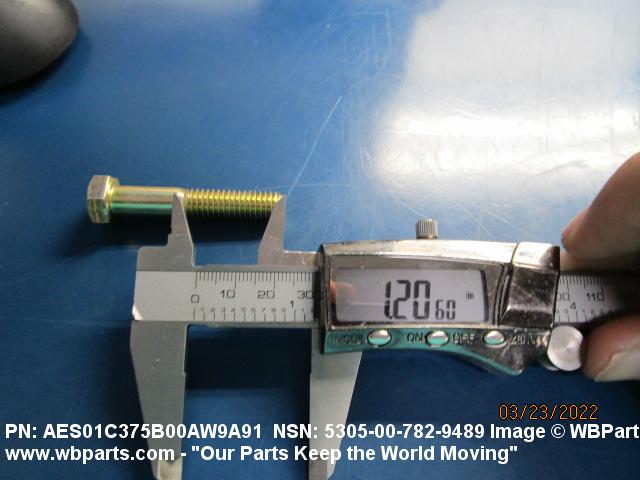

Drawings & Photos | NSN 5305-00-782-9489

Part Number	Request Date	QTY	Origin
MS9072866	2025-11-309	180	Israel
5305-00-782-9489	2024-07-183	750	United States
5305-00-782-9489	2022-05-127	625	Turkey
B1821BH038C200N	2022-02-54	1050	Turkey
B1821BH038C200N	2022-02-40	1050	Turkey
5305-00-782-9489	2021-01-20	112	United States
ASMEB1821	2020-07-189	48	United States
ASMEB1821	2020-07-189	8	United States
B1821BH038C200N	2017-11-319	3
5305-00-782-9489	2017-03-79	2	DIBBS-KIT
B1821BH038C200N	2017-03-79	2
5305-00-782-9489	2016-11-327	1	DIBBS-RFPs
MS90728-66	2016-05-137	8
B1821BH038C200N	2015-08-229	8	United States
5305-00-782-9489	2015-06-160	2	US
B1821BH038C200N	2015-06-159	6	US
MS9072866	2015-01-28	50	United States
5305-00-782-9489	2014-09-271	769	DIBBS
B1821BH038C200N	2014-03-71	207	United States
ASMEB1821	2014-03-65	5	South Africa
MS9072866	2012-04-93	42	US
B1821BH038C200N	2011-08-214	100	United States
MS9072866	2011-07-192	4	US
MS9072866	2011-06-152	25	United States
ASMEB1821	2011-04-111	160	United States
5305-00-782-9489	2010-07-200	68	Taiwan
B1821BH038C200N	2010-05-144	81600	US
ASMEB1821	2009-04-97	24	United States
5305-00-782-9489	2009-04-91	1500	DIBBS
5305-00-782-9489	2008-09-255	1300	DIBBS
B1821BH038C200N	2008-06-170	925	US
5305-00-782-9489	2008-04-119	1200	us
ASMEB1821	2008-01-23	80	United States

Cross Reference | NSN 5305-00-782-9489

Part Number	Cage Code	Manufacturer
122-5377661 ITEM 36	53711	NAVAL SEA SYSTEMS COMMAND
122181	80195	E D ETNYRE & CO DBA EDETNYRE
180130	72582	MTU AMERICA INC.
2EK429	45152	OSHKOSH CORPORATION
2EK429	75Q65	OSHKOSH DEFENSE, LLC
5305007829489	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0656452	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
701-4711389 PIECE 24	80064	NAVAL SHIP SYSTEMS COMMAND
71145-66	95097	LITTLE GIANT CRANE AND SHOVEL INC
91102453	82796	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
91247A632	39428	MCMASTER-CARR SUPPLY COMPANY
9904.1206	92858	HANNAY REELS, INC.
AES01C375B00AW9A91	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
ASME B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B1821BH038C200N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
MS35295-66	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS90728-66	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
