NSN 5305-00-807-9026 CA3105103212, CA3105-1032-12, H6310121553
Product Details | ASSEMBLED WASHER SCREW
5305-00-807-9026 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: CA3105103212, CA3105-1032-12, H6310121553, H63-101215-53, FX1015201, FX10-1520-1, 5305-00-807-9026, 00-807-9026, 5305008079026, 008079026
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-807-9026 | 06660 ( SCREW, ASSEMBLED WASHER ) |

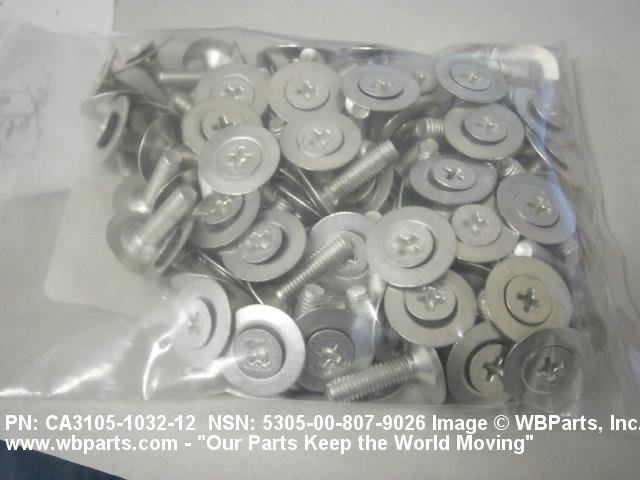

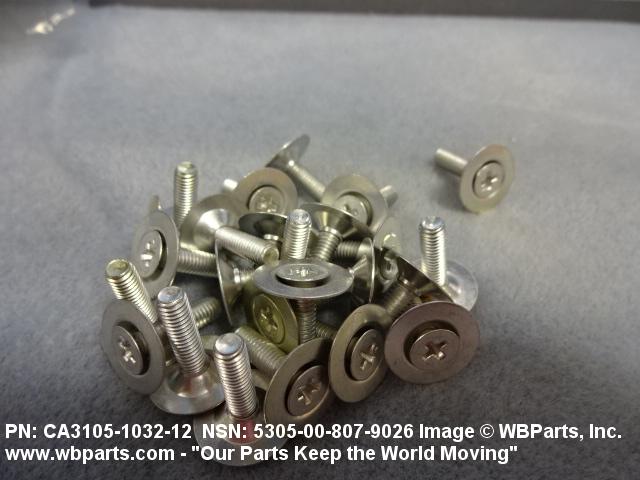

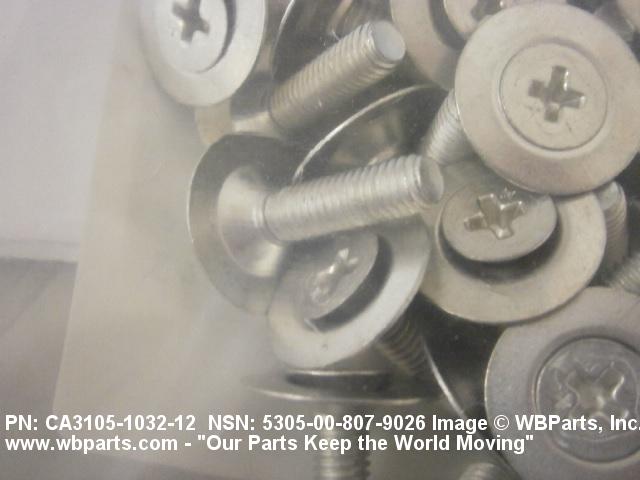

Drawings & Photos | NSN 5305-00-807-9026
Demand History | NSN 5305-00-807-9026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA3105103212 | 2023-04-109 | 5 | US |
| 5305-00-807-9026 | 2019-05-139 | 600 | United States |
| CA3105103212 | 2018-02-37 | 100 | United States |
| 5305-00-807-9026 | 2018-01-11 | 16514 | DIBBS |
| 5305-00-807-9026 | 2018-01-03 | 16514 | DIBBS |
| 5305-00-807-9026 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-00-807-9026 | 2013-12-350 | 19891 | DIBBS |
| 5305-00-807-9026 | 2012-03-75 | 19645 | DIBBS |
| CA3105103212 | 2012-03-69 | 100 | us |
| 5305-00-807-9026 | 2011-05-125 | 9778 | DIBBS |
| 5305-00-807-9026 | 2010-09-247 | 6174 | DIBBS |
| 5305-00-807-9026 | 2010-05-124 | 2855 | DIBBS |
| 5305-00-807-9026 | 2009-10-296 | 100 | US |
| 5305-00-807-9026 | 2009-06-154 | 3198 | DIBBS |
| 5305-00-807-9026 | 2009-04-105 | 2465 | DIBBS |
| 5305-00-807-9026 | 2008-11-316 | 1250 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-807-9026
Related Products | NSN 5305-00-807-9026
Technical Data | NSN 5305-00-807-9026
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

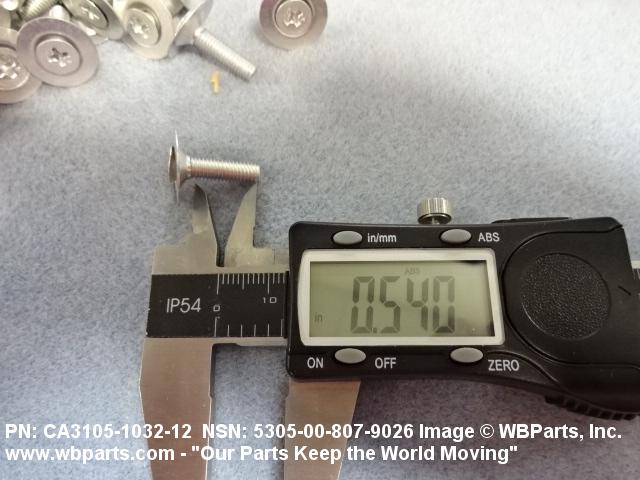

| THREAD LENGTH | 0.511 INCHES MINIMUM AND 0.542 INCHES MAXIMUM |

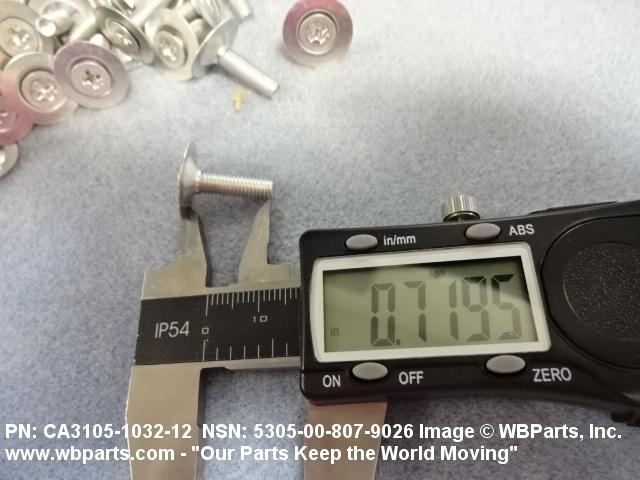

| FASTENER LENGTH | 0.719 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1022 OVERALL |
| HARDNESS RATING | 28.0 ROCKWELL C MINIMUM AND 34.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C50 FLAT COUNTERSUNK |

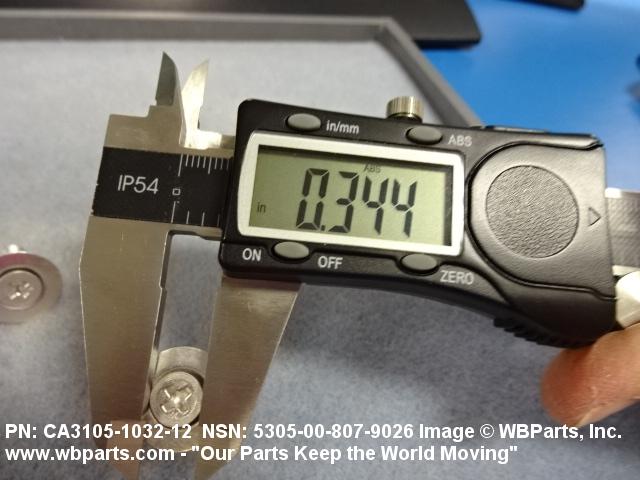

| HEAD DIAMETER | 0.390 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | G1 FLAT EXTERNAL TEETH |

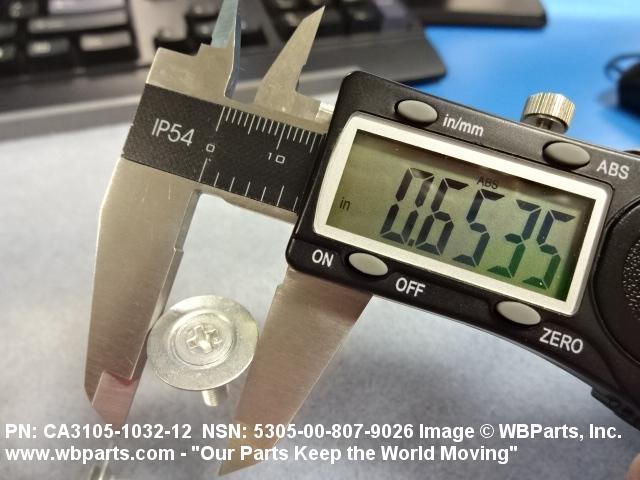

| PRIMARY WASHER OUTSIDE DIAMETER | 0.620 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |

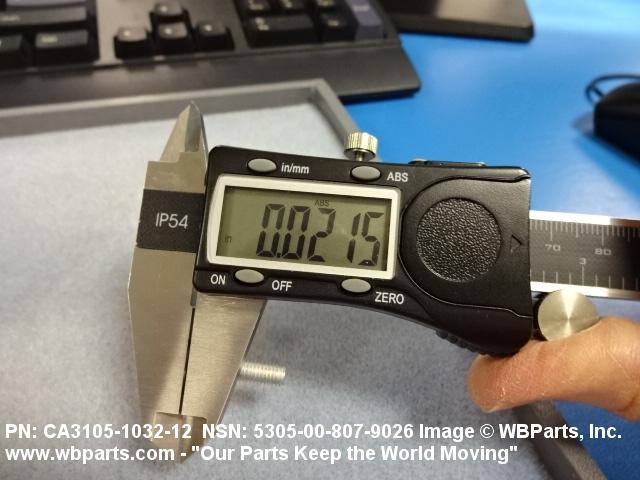

| PRIMARY WASHER MATERIAL THICKNESS | 0.015 INCHES MINIMUM AND 0.021 INCHES MAXIMUM |
| MANUFACTURERS CODE | 78189 |
| DESIGN CONTROL REFERENCE | CA3105-1032-12 |
Restrictions/Controls & Freight Information | NSN 5305-00-807-9026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-807-9026
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
