NSN 5305-00-807-9227 ARB800A, CA310510328, CA3105-1032-8
Product Details | ASSEMBLED WASHER SCREW

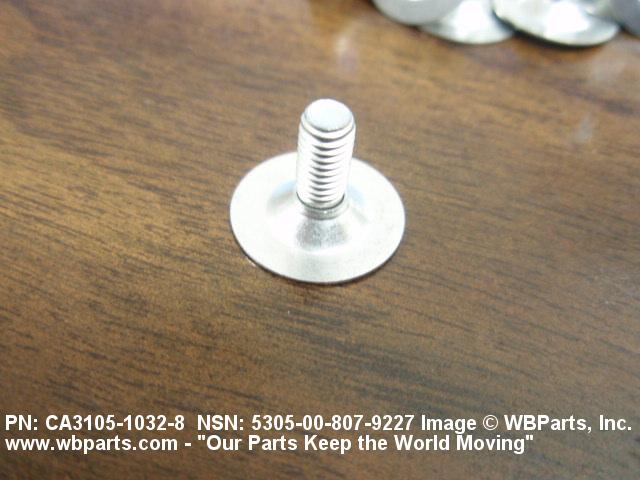

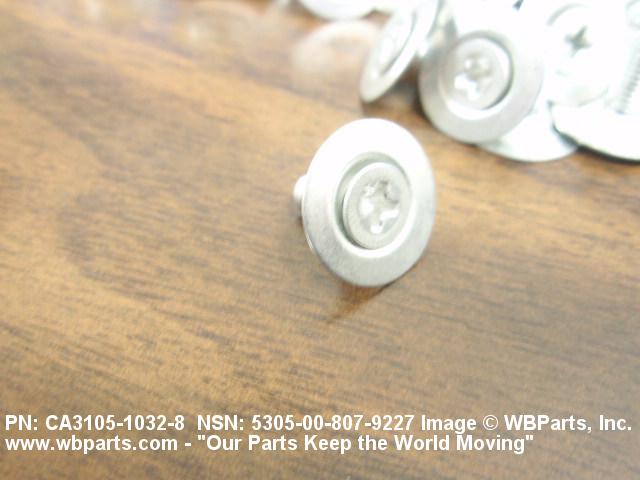

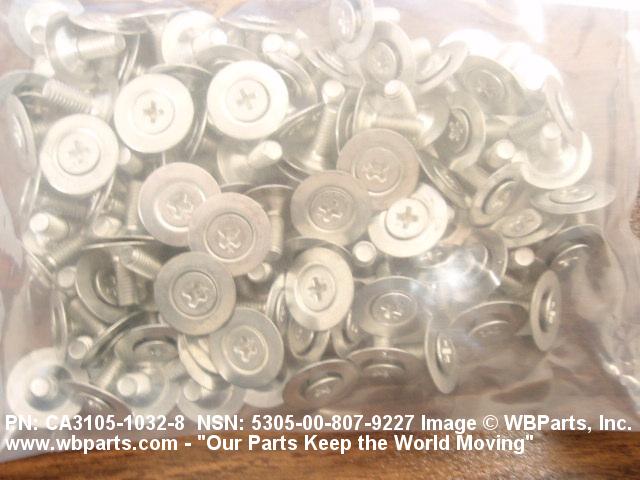

5305-00-807-9227 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: ARB800A, CA310510328, CA3105-1032-8, H6310081554, H63-100815-54, LS93788, LS9378-8, 5305-00-807-9227, 00-807-9227, 5305008079227, 008079227
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-807-9227 | 06660 ( SCREW, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5305-00-807-9227
Demand History | NSN 5305-00-807-9227
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-807-9227 | 2016-09-272 | 17351 | DIBBS |
| 5305-00-807-9227 | 2015-01-21 | 16314 | DIBBS |
| 5305-00-807-9227 | 2015-01-07 | 16314 | DIBBS |
| 5305-00-807-9227 | 2011-07-190 | 35034 | DIBBS |
| CA310510328 | 2010-07-210 | 14 | United States |
| H6310081554 | 2010-07-202 | 25 | us |
| 5305-00-807-9227 | 2010-05-147 | 32500 | DIBBS |
| 5305-00-807-9227 | 2010-04-95 | 22500 | DIBBS |
| 5305-00-807-9227 | 2009-11-324 | 22148 | DIBBS |
| 5305-00-807-9227 | 2009-06-180 | 22148 | DIBBS |
| 5305-00-807-9227 | 2009-04-105 | 18267 | DIBBS |
| 5305-00-807-9227 | 2008-04-108 | 7713 | DIBBS |
| 5305-00-807-9227 | 2008-03-70 | 6953 | DIBBS |
Cross Reference | NSN 5305-00-807-9227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ARB800A | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| CA3105-1032-8 | 1AW87 | LEWIS SCREW CO DIV OF MEDALIST FASTENERS INC |
| CA3105-1032-8 | 31068 | DUTCH VALLEY SUPPLY CO. |
| CA3105-1032-8 | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
| H63-100815-54 | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
| LS9378-8 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
