NSN 5305-00-815-9492 NK5071024R7, NK507-1024R7, 8532872
Product Details | SOCKET HEAD CAP SCREW
5305-00-815-9492 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NK5071024R7, NK507-1024R7, 8532872, 5305-00-815-9492, 00-815-9492, 5305008159492, 008159492
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-815-9492 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

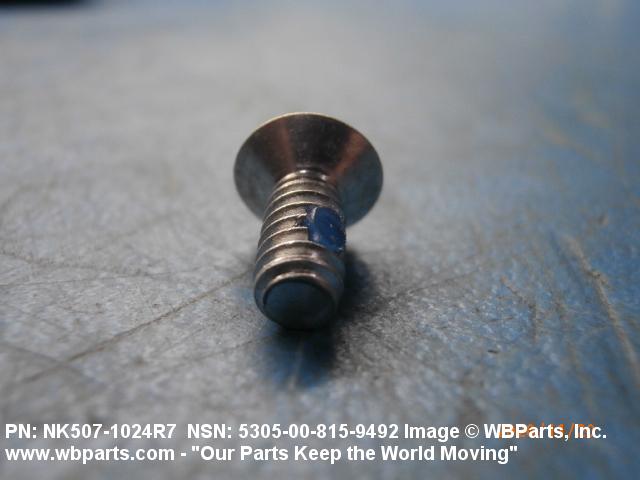

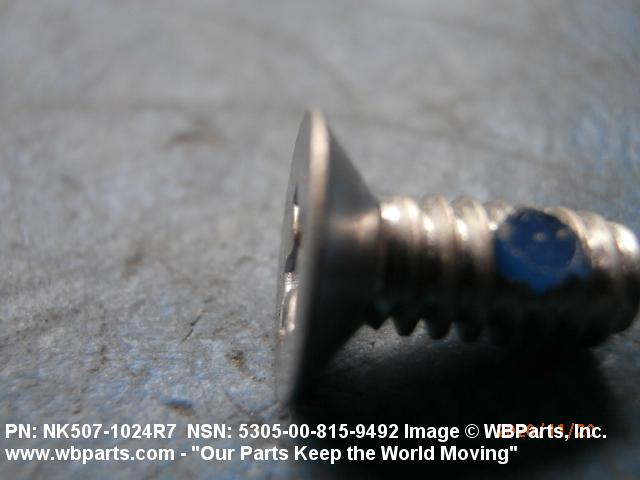

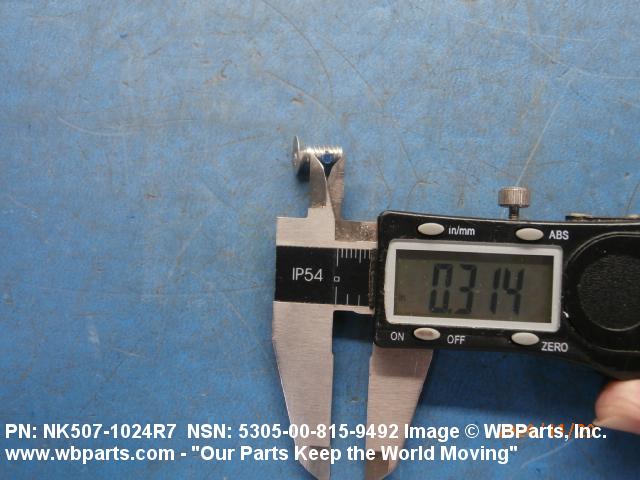

Drawings & Photos | NSN 5305-00-815-9492
Demand History | NSN 5305-00-815-9492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NK5071024R7 | 2020-11-317 | 100 | New Zealand |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-815-9492
Technical Data | NSN 5305-00-815-9492

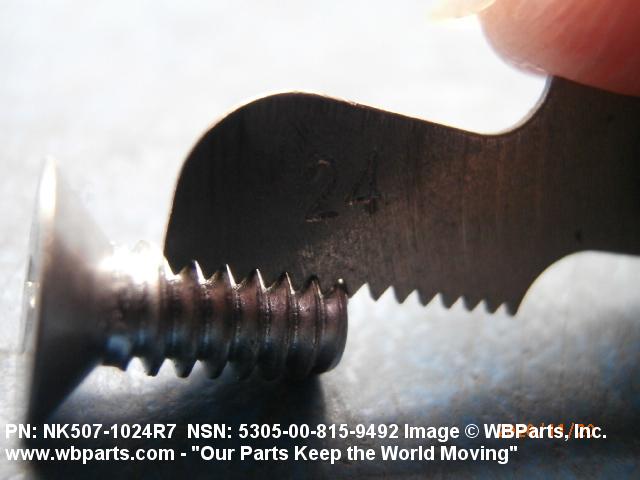

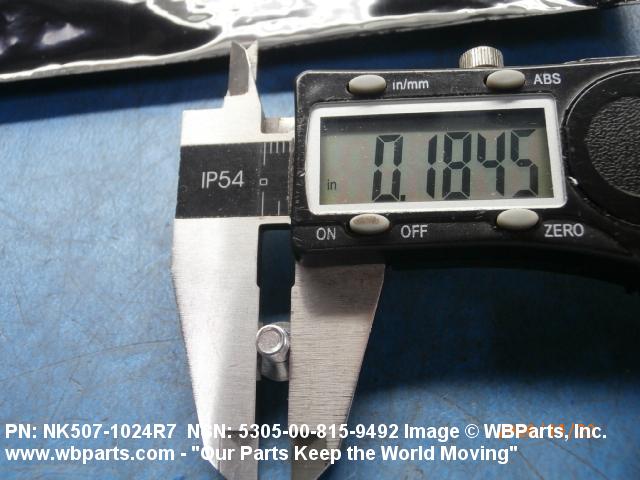

| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| HEAD DIAMETER | 0.348 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| HEAD STYLE | FLAT COUNTERSUNK |
| THREAD SERIES DESIGNATOR | UNC |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MATERIAL | STEEL COMP 1010 OVERALL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| THREAD QUANTITY PER INCH | 24 |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD CLASS | 2A |

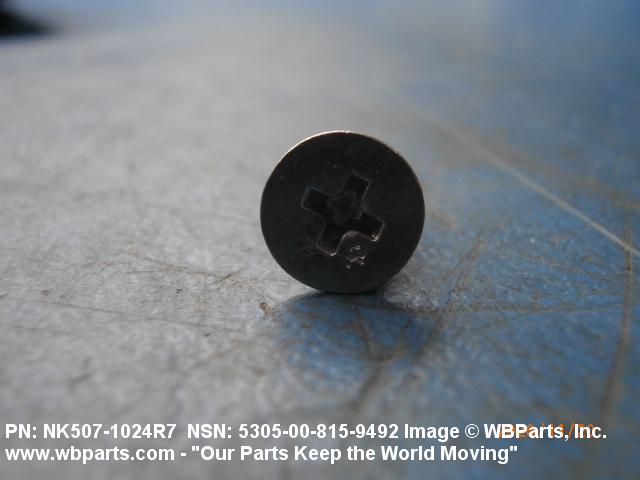

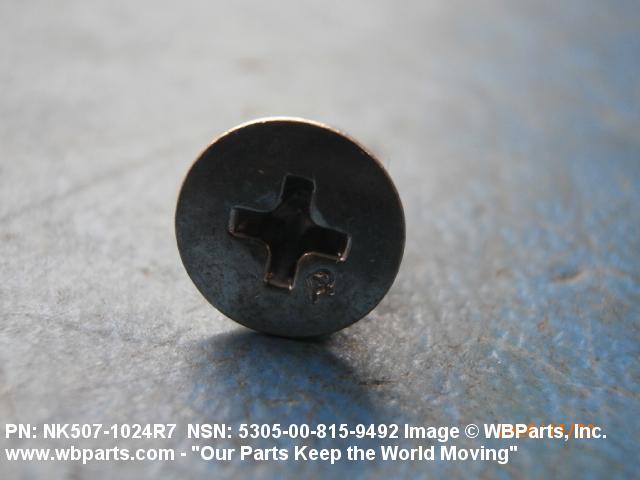

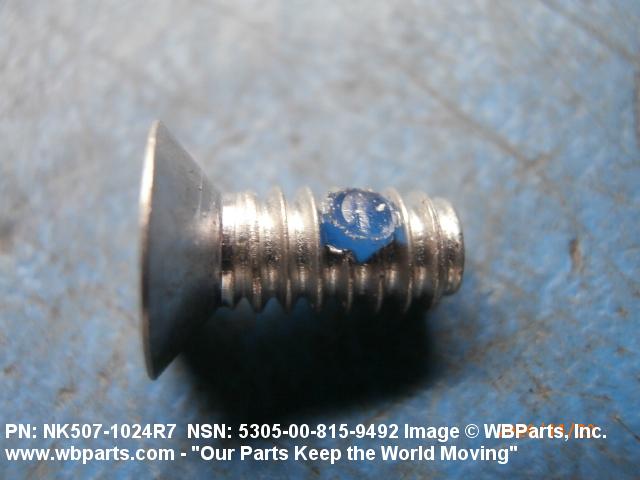

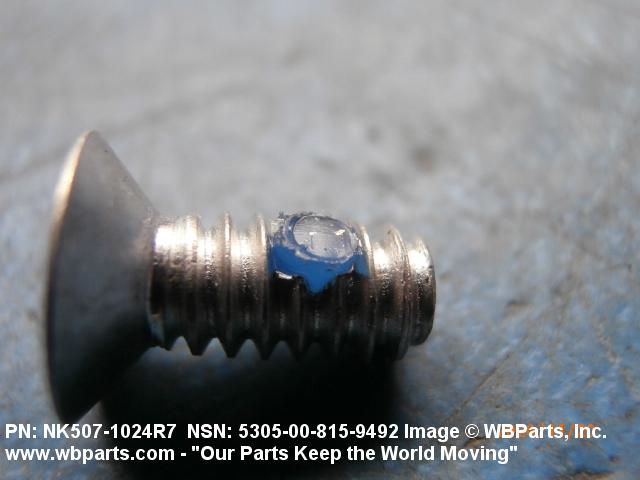

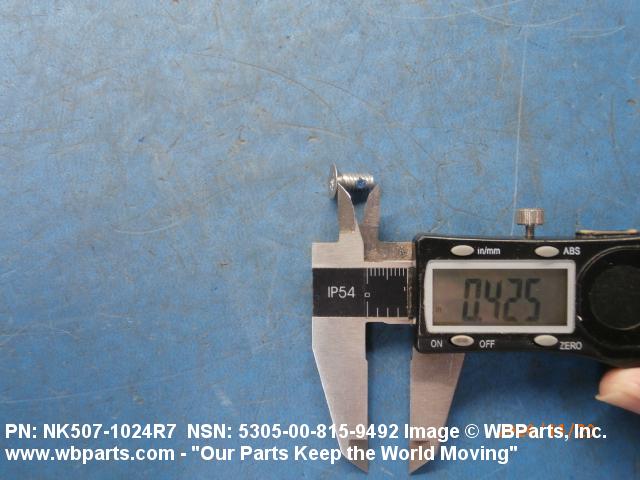

| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| LOCKING FEATURE | PELLET THREADS |
| FASTENER LENGTH | 0.437 INCHES NOMINAL |
| THREAD LENGTH | 0.437 INCHES MAXIMUM |
