NSN 5305-00-821-3869 MS3529565, MS35295-65, MS3530165

Product Details | HEXAGON HEAD CAP SCREW

5305-00-821-3869 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS3529565, MS35295-65, MS3530165, MS35301-65, MS9072565, MS90725-65, MS9072865, MS90728-65, N22P25026B6, AES01C375A75AW9AA1, ASME B18.2.1 , ASMEB1821, B18.24A-2006 , B1821BH038C175N, B1824A2006, HB1-3/8-16 X 28, HB13816X28, S1571, SSCY104PN , KE180126, 02114374, 021-14374, 1002879, 1032132, 10-32132, 122-5377661 ITEM 35, 1225377661ITEM35, 12Z2445, 12Z24-45, 14055557, 179844, 1C6171P14, 23036269065, 23036269-065, 26853983, 268539-83, 303844 , 3176210A092, 3176210-A-092, 4123249, 412-3249 , 454467, 456720130101, 462BO1 , 5305PL0656067 , 5305-00-821-3869, 00-821-3869, 5305008213869, 008213869

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-821-3869	18257 ( SCREW, CAP, HEXAGON HEAD )

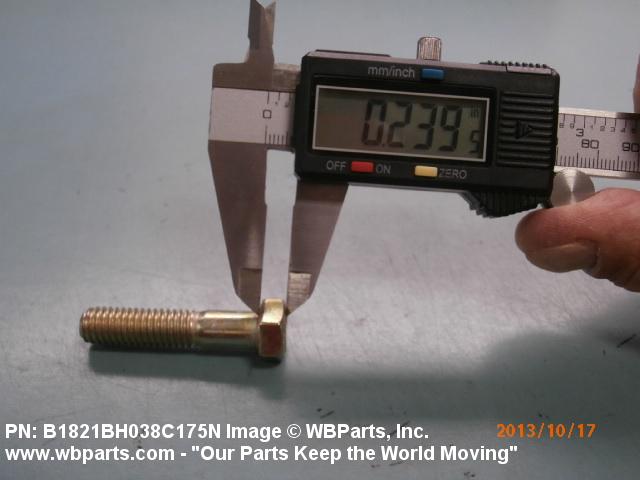

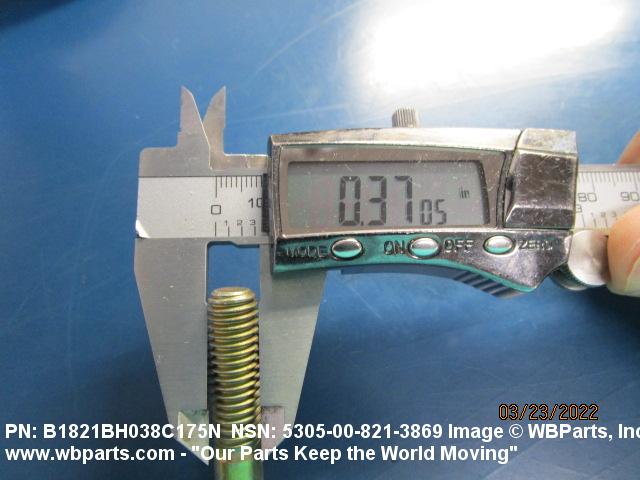

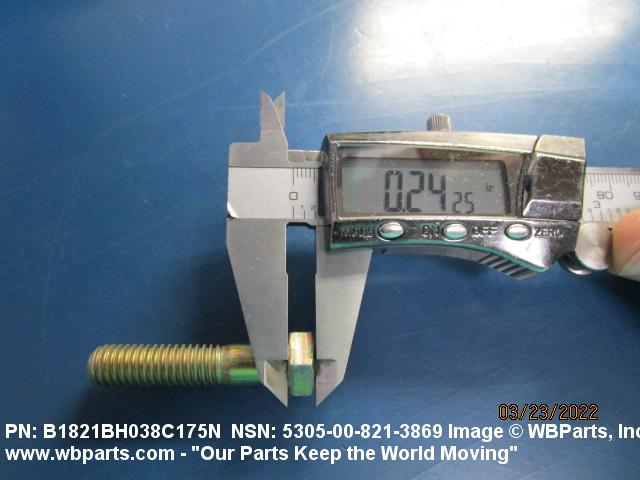

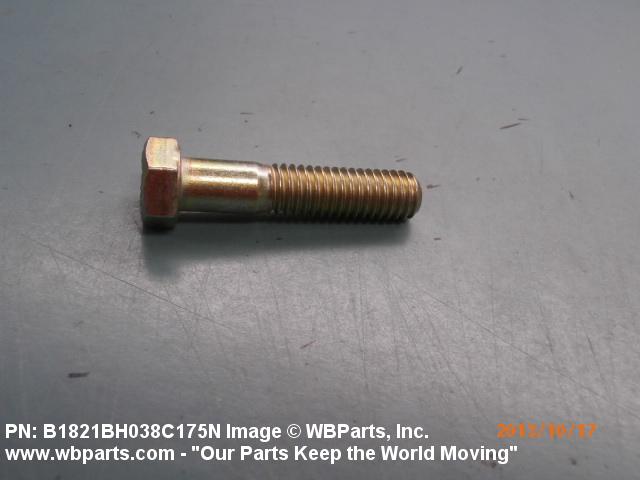

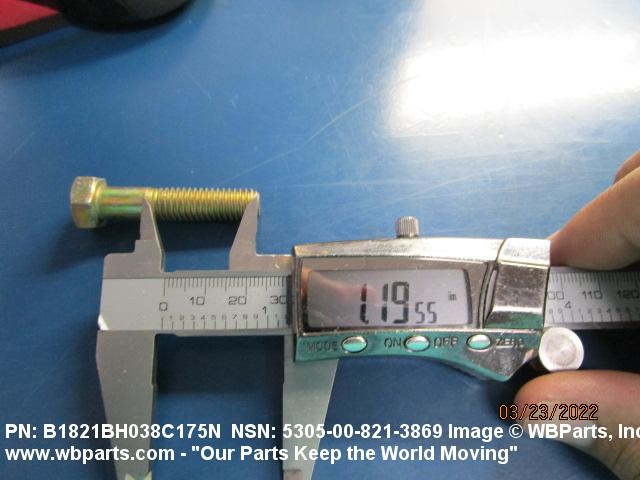

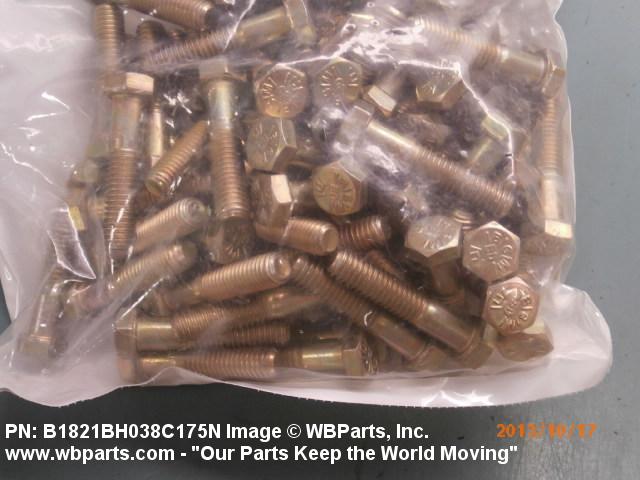

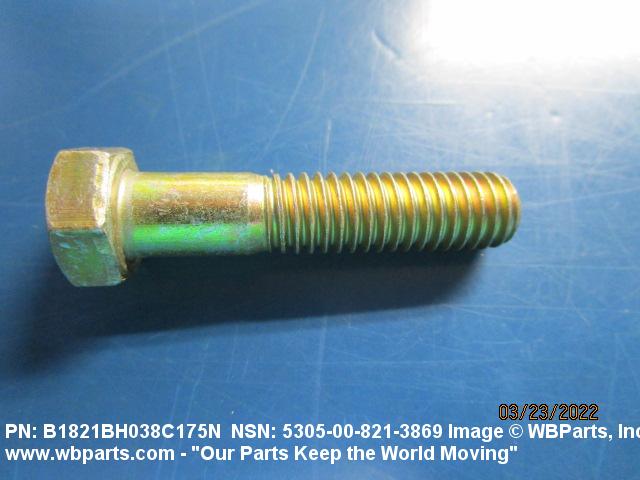

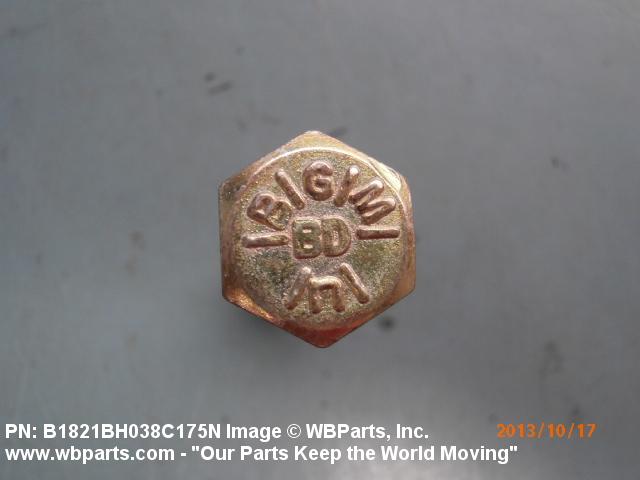

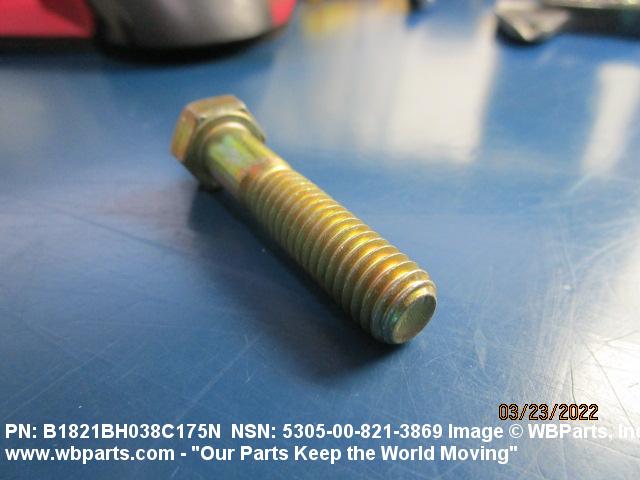

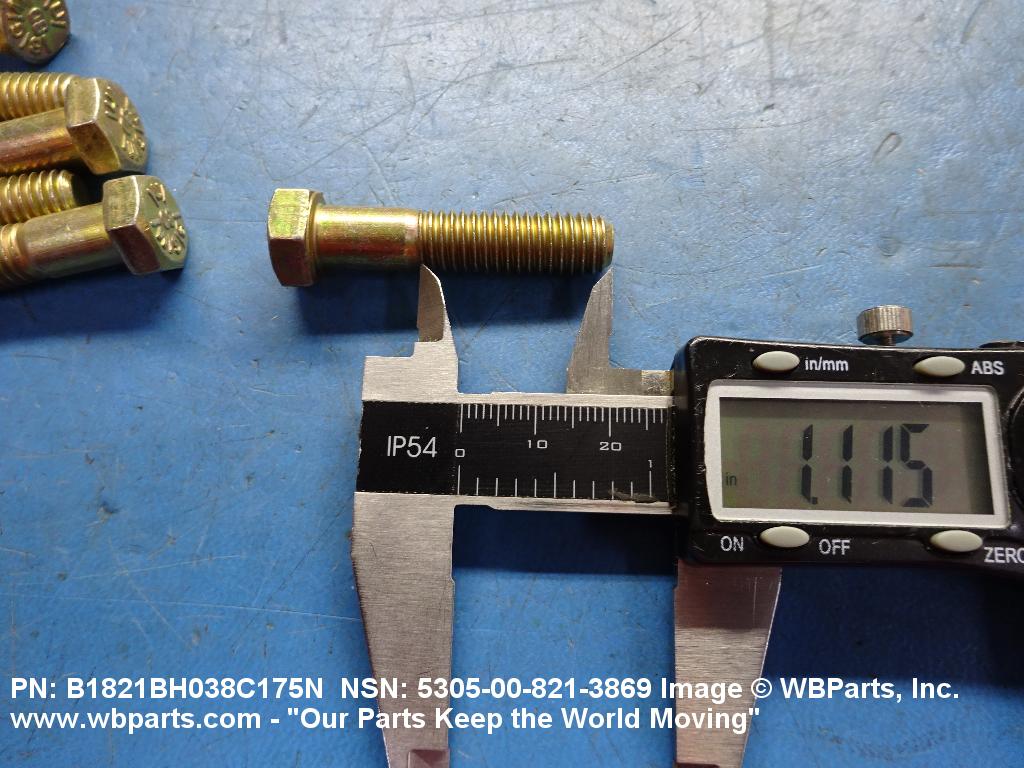

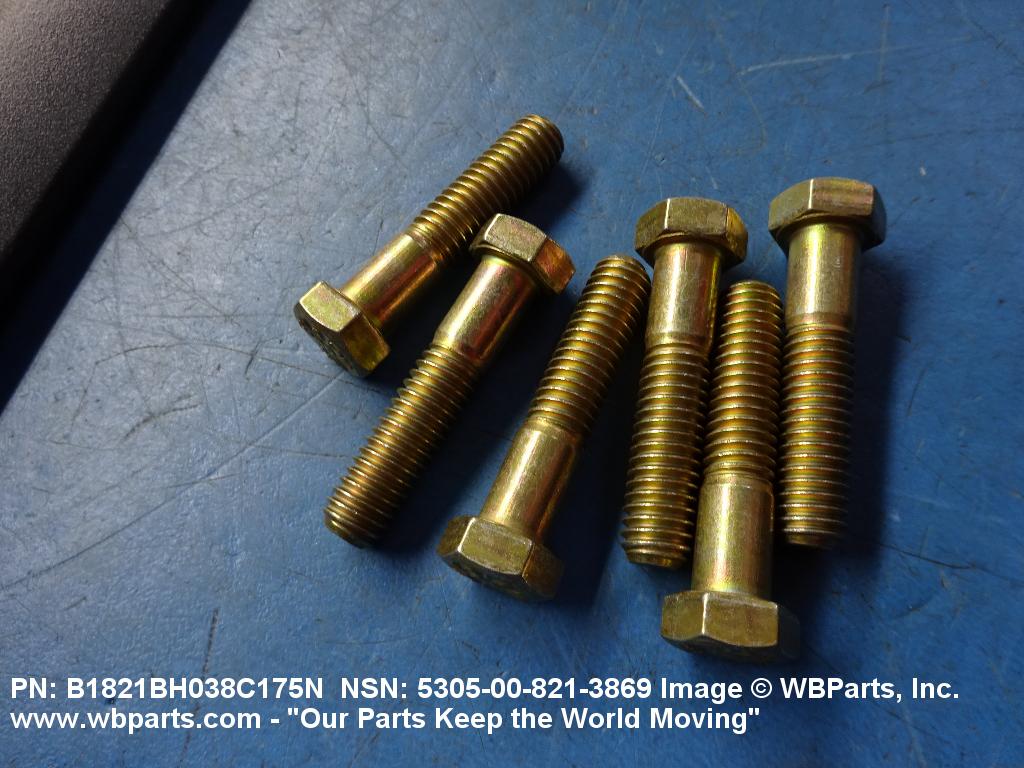

Drawings & Photos | NSN 5305-00-821-3869

Part Number	Request Date	QTY	Origin
MS9072565	2025-11-309	1080	Israel
MS9072565	2025-11-308	1080	Israel
5305-00-821-3869	2025-09-246	428	DIBBS
5305-00-821-3869	2025-05-149	9	US
5305-00-821-3869	2025-05-147	30	DIBBS
5305-00-821-3869	2025-03-71	230	DIBBS
5305-00-821-3869	2025-02-55	772	DIBBS
5305-00-821-3869	2025-01-24	630	us
MS9072565	2024-12-365	84	Japan
MS9072565	2024-12-352	28	Japan
5305-00-821-3869	2024-08-233	600	us
5305-00-821-3869	2024-07-183	1250	United States
5305-00-821-3869	2023-10-298	13500	US
5305-00-821-3869	2022-09-245	64	United States
B1821BH038C175N	2022-02-40	800	Turkey
ASMEB1821	2020-07-189	48	United States
ASMEB1821	2020-07-189	8	United States
5305-00-821-3869	2020-06-164	100	MANUAL
5305-00-821-3869	2020-03-62	1	DIBBS-RFPs
5305-00-821-3869	2018-04-116	100	DE
5305-00-821-3869	2018-02-36	4447	United States
5305-00-821-3869	2018-02-32	1057	United States
5305-00-821-3869	2018-02-32	3390	United States
5305-00-821-3869	2018-01-31	4447	DIBBS
5305-00-821-3869	2017-11-306	707	DIBBS
MS9072565	2015-04-100	30	United States
B1821BH038C175N	2014-03-71	141	United States
ASMEB1821	2014-03-65	5	South Africa
B1821BH038C175N	2013-11-316	2032	United States
B1821BH038C175N	2013-10-280	75	United States
B1821BH038C175N	2012-06-160	8	United States
5305-00-821-3869	2012-06-160	8	US
B1821BH038C175N	2012-06-159	1840	US
MS9072865	2012-04-93	47	US
B1821BH038C175N	2011-12-361	62	United States
MS9072565	2011-12-361	62	United States
MS9072865	2011-12-361	62	United States
B1821BH038C175N	2011-12-343	96	US
5305-00-821-3869	2011-10-286	250	US
B1821BH038C175N	2011-08-214	100	United States
MS9072865	2011-06-176	500	US
5305-00-821-3869	2011-05-137	4	Italy
5305-00-821-3869	2011-05-137	100	Italy
B1821BH038C175N	2011-04-111	7124	US
ASMEB1821	2011-04-111	160	United States
B1821BH038C175N	2011-03-88	2750	US
B1821BH038C175N	2011-03-88	4450	US
5305-00-821-3869	2011-03-81	1354	United States
5305-00-821-3869	2011-03-80	1	US
B1821BH038C175N	2011-03-69	490	US
5305-00-821-3869	2011-03-67	7200	US
5305-00-821-3869	2011-03-63	6000	United States
MS9072565	2010-10-286	1020	US
MS9072565	2009-09-251	1340	US
B1821BH038C175N	2009-05-128	2000	US
ASMEB1821	2009-04-97	24	United States
B1821BH038C175N	2009-01-26	356	US
5305-00-821-3869	2008-09-266	30	US
B1821BH038C175N	2008-08-224	1441	United States
B1821BH038C175N	2008-07-200	1450	US
5305-00-821-3869	2008-05-150	1159	DIBBS
ASMEB1821	2008-01-23	80	United States
5305-00-821-3869	2007-11-310	1400	us

Cross Reference | NSN 5305-00-821-3869

Part Number	Cage Code	Manufacturer
021-14374	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
10-32132	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1002879	1EFH8	GENERAL DYNAMICS LAND SYSTEMS - FORCE PROTECTION INC.
122-5377661 ITEM 35	53711	NAVAL SEA SYSTEMS COMMAND
12Z24-45	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
14055557	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
179844	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1C6171P14	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
23036269-065	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
268539-83	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
303844	H0G87	WIBA ZEVENAAR B.V.
3176210-A-092	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
454467	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
462BO1	45152	OSHKOSH CORPORATION
462BO1	75Q65	OSHKOSH DEFENSE, LLC
5305008213869	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0656067	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
B18.24A-2006	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
B1821BH038C175N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
HB1-3/8-16 X 28	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
KE180126	03240	LAL ACQUISITION INC. DBA LIFT-A-LOFT CORPORATION
MS35295-65	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35301-65	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90725-65	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS90725-65	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90728-65	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N22P25026B6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
S1571	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-821-3869

Compare

Related Products | NSN 5305-00-821-3869

5305-00-821-3901, 5305-00-821-4275, 5305-00-821-4284, 5305-00-821-4285, 5305-00-821-4550

Technical Data | NSN 5305-00-821-3869

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.375 INCHES

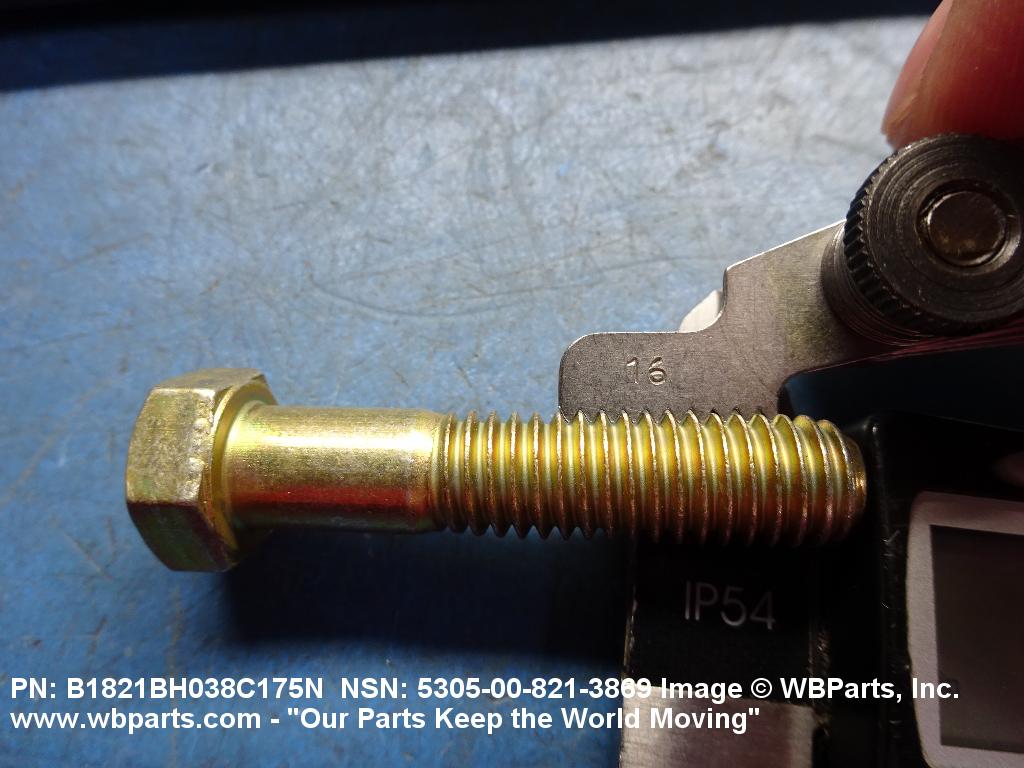

THREAD QUANTITY PER INCH	16
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

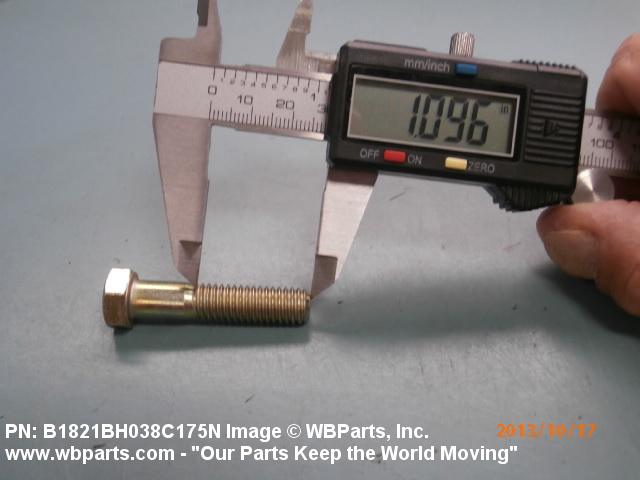

THREAD LENGTH	1.000 INCHES MINIMUM AND 1.188 INCHES MAXIMUM
FASTENER LENGTH	1.688 INCHES MINIMUM AND 1.750 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE J429 GRADE 8 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A354 GRADE BD ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

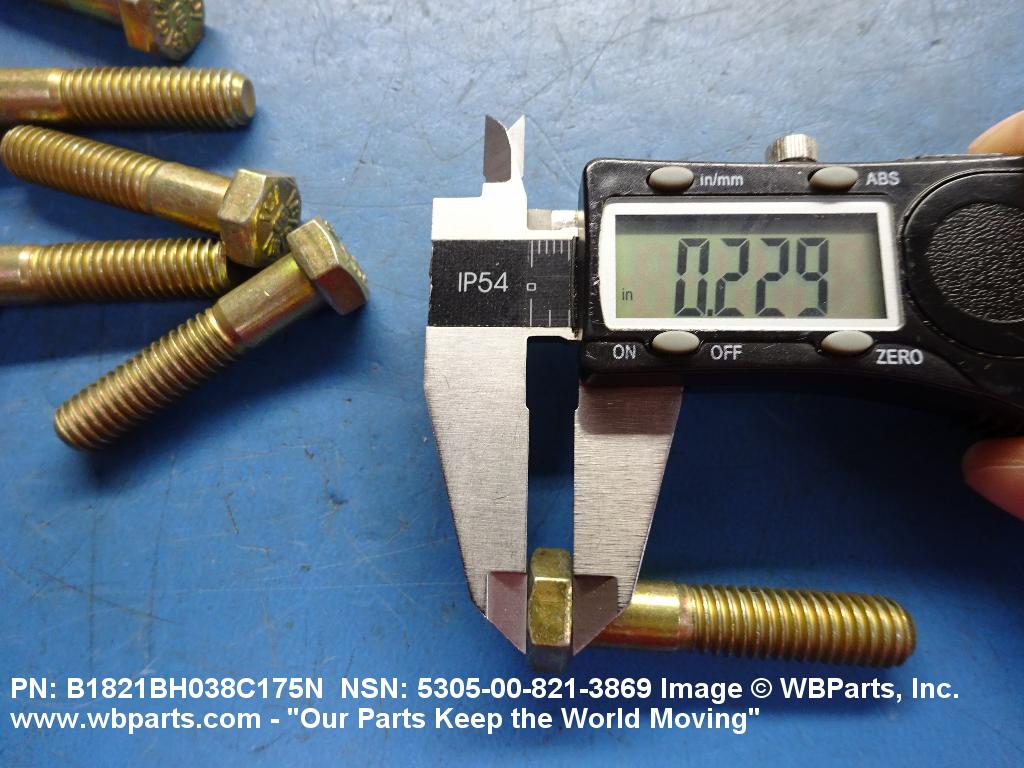

HEAD HEIGHT	0.226 INCHES MINIMUM AND 0.243 INCHES MAXIMUM

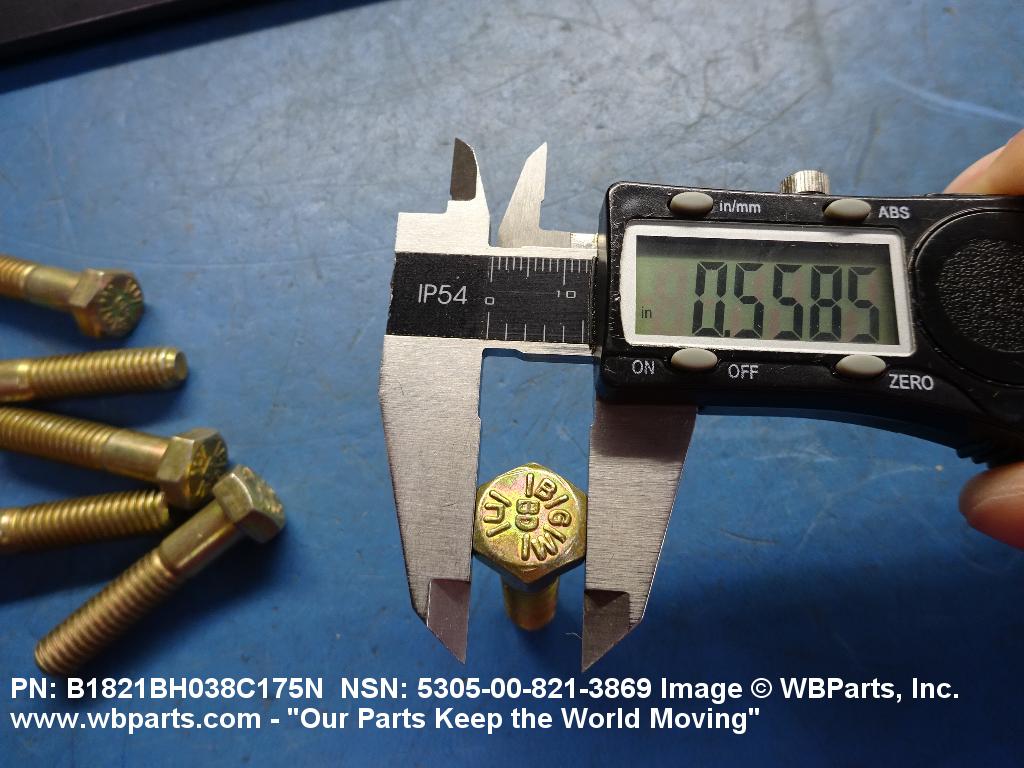

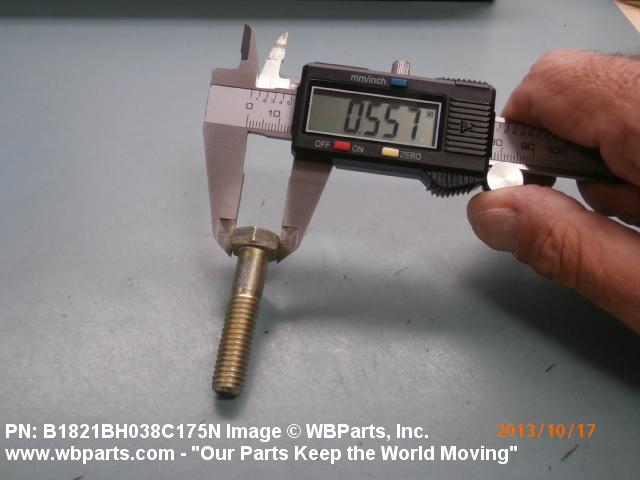

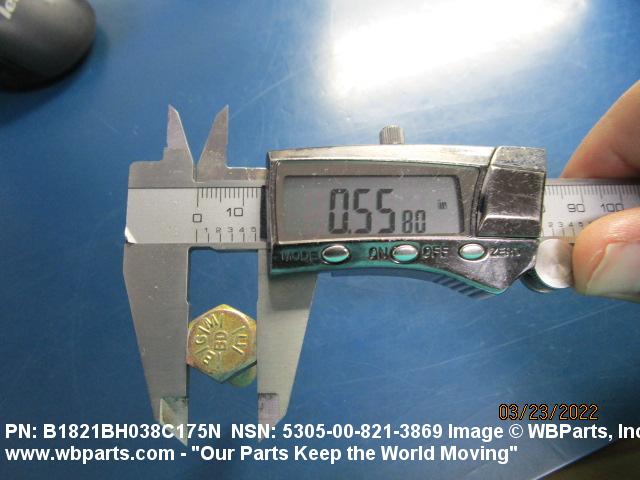

WIDTH BETWEEN FLATS	0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM
SURFACE FINISH	63.0 MICROINCHES THREADS

Restrictions/Controls & Freight Information | NSN 5305-00-821-3869

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-821-3869

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	QS	TG:AIRCRAFT GROUND SERVICES EQUIPMENT
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	6	Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9Z	Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	S9I	Defense Industrial Supply Center Philadelphia, PA 19111
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
