NSN 5305-00-849-8556 547952, 00-849-8556, 008498556
Product Details | MACHINE SCREW
5305-00-849-8556 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 547952, 5305-00-849-8556, 00-849-8556, 5305008498556, 008498556
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1967 | 00-849-8556 | 06657 ( SCREW, MACHINE ) |

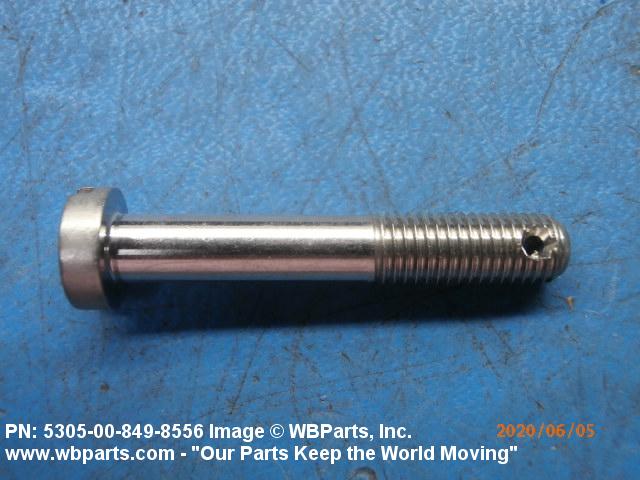

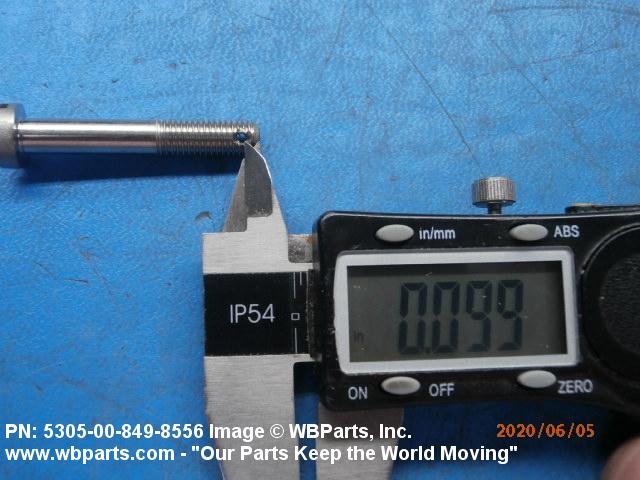

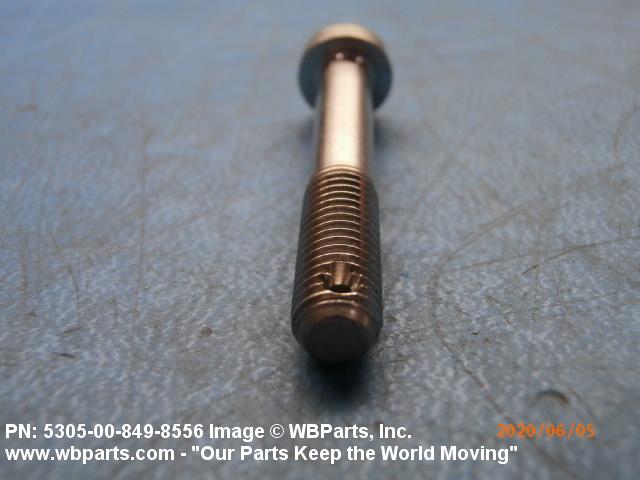

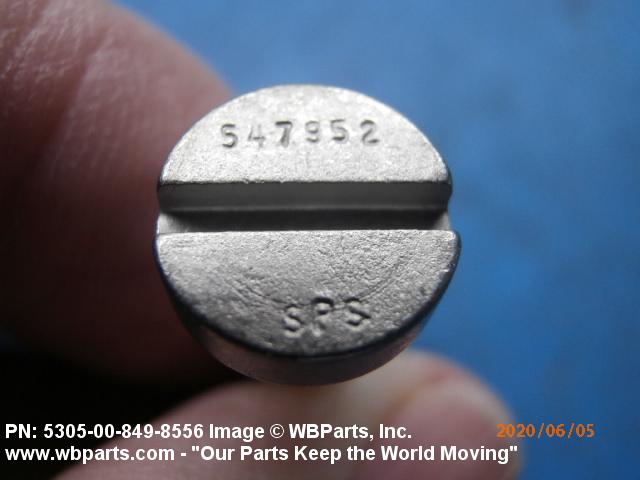

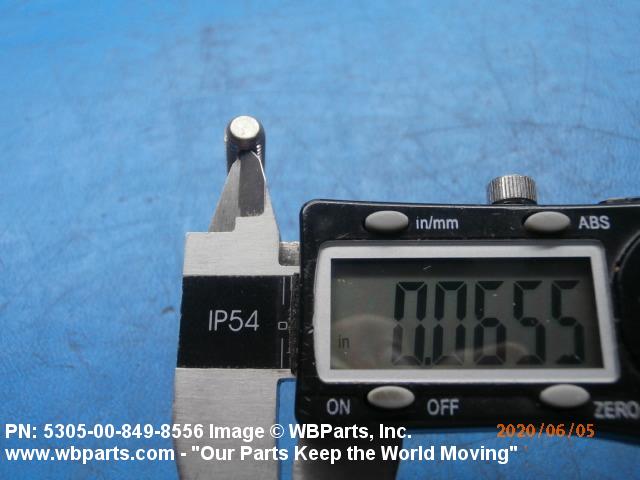

Drawings & Photos | NSN 5305-00-849-8556
Demand History | NSN 5305-00-849-8556
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 547952 | 2024-02-32 | 10 | DIBBS |
| 5305-00-849-8556 | 2020-05-139 | 20 | United Arab Emirates |
| 5305-00-849-8556 | 2013-12-336 | 15 | DIBBS |
| 5305-00-849-8556 | 2013-11-321 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-849-8556
Technical Data | NSN 5305-00-849-8556

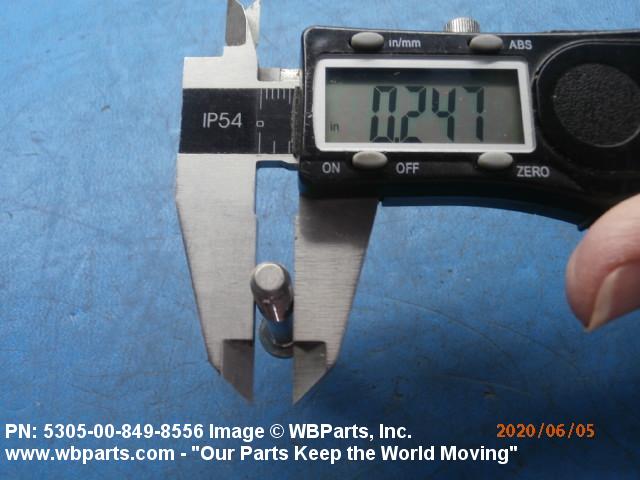

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |

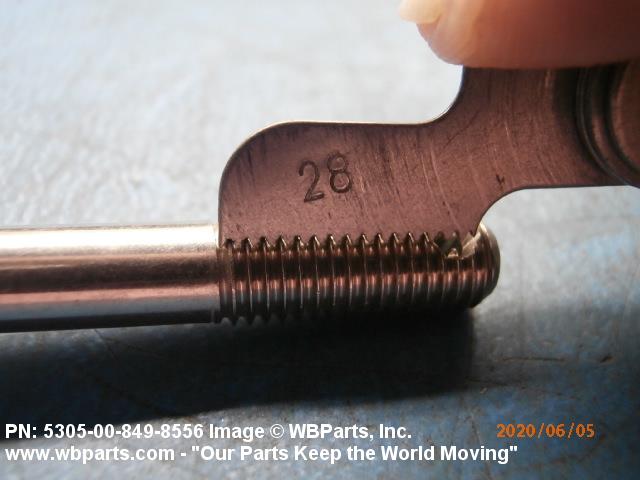

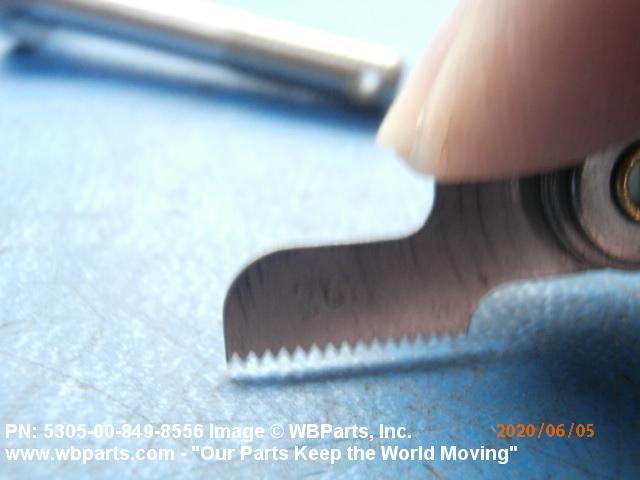

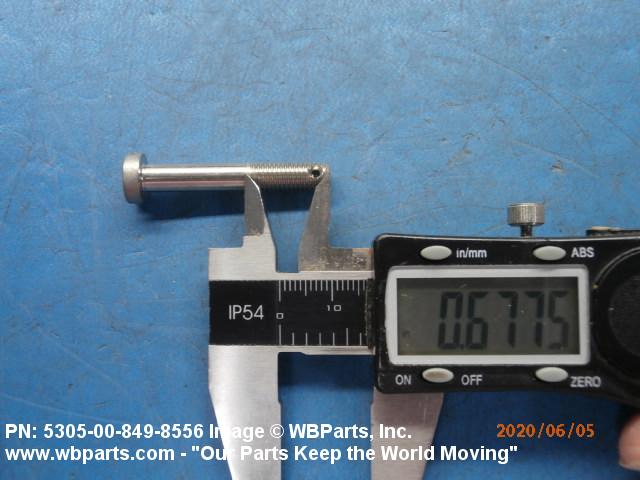

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.626 INCHES MINIMUM |

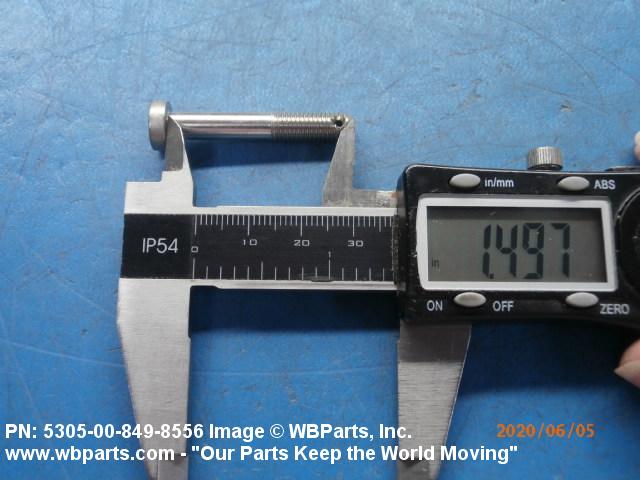

| FASTENER LENGTH | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5625 ASSN STD SINGLE MATERIAL RESPONSE |
| HEAD STYLE | A38 FLAT CHAMFER |

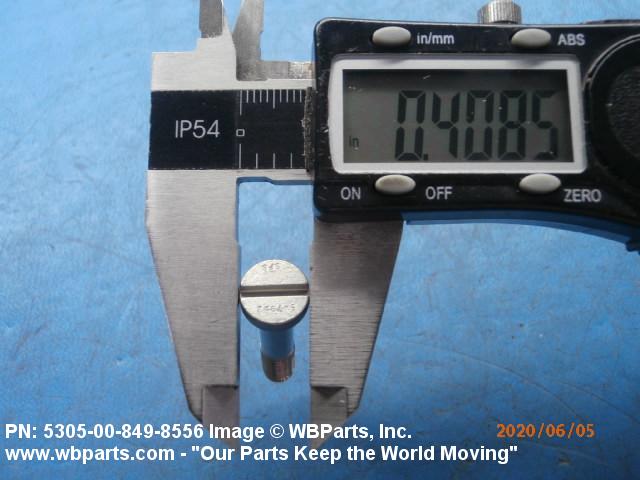

| HEAD DIAMETER | 0.389 INCHES MINIMUM AND 0.414 INCHES MAXIMUM |

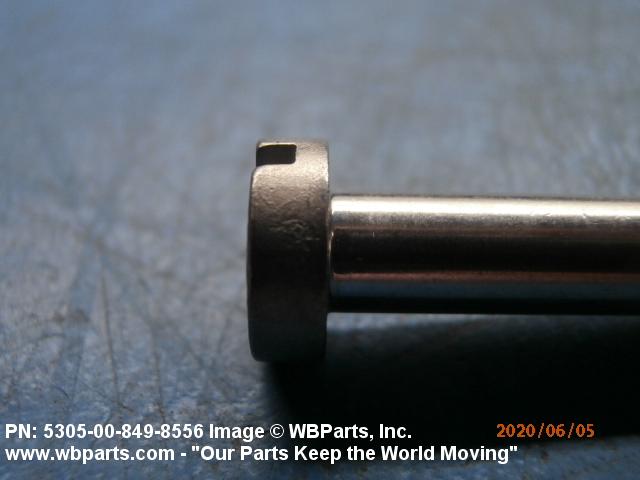

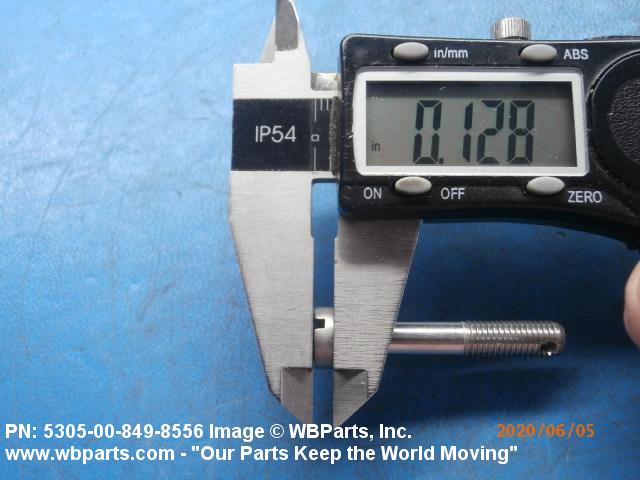

| HEAD HEIGHT | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |

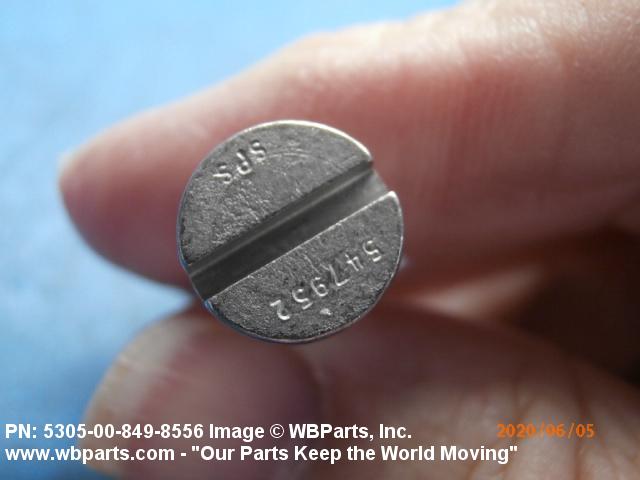

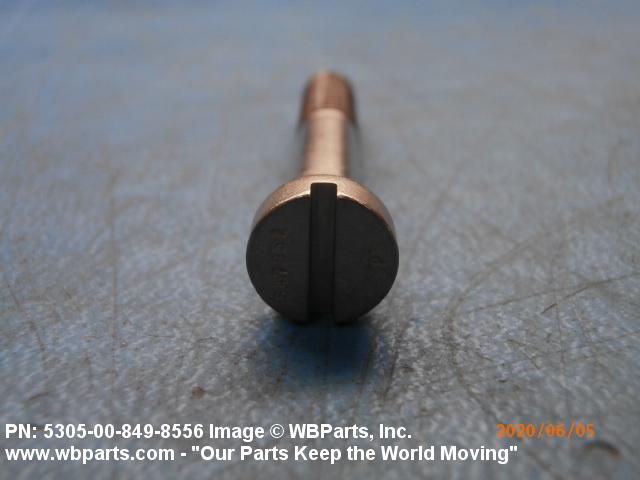

| INTERNAL DRIVE STYLE | B10 SLOT |
| MANUFACTURERS CODE | 80539 |
| DESIGN CONTROL REFERENCE | 547952 |
Restrictions/Controls & Freight Information | NSN 5305-00-849-8556
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
