NSN 5305-00-880-8192 NAS1301C45, NAS1301C4-5, 10114637
Product Details | ASSEMBLED WASHER SCREW

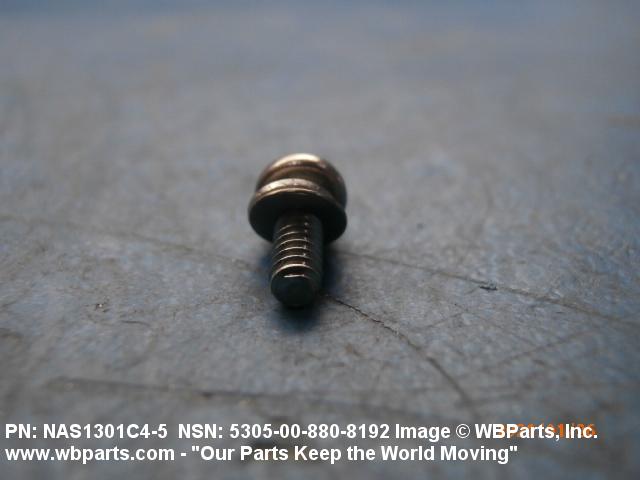

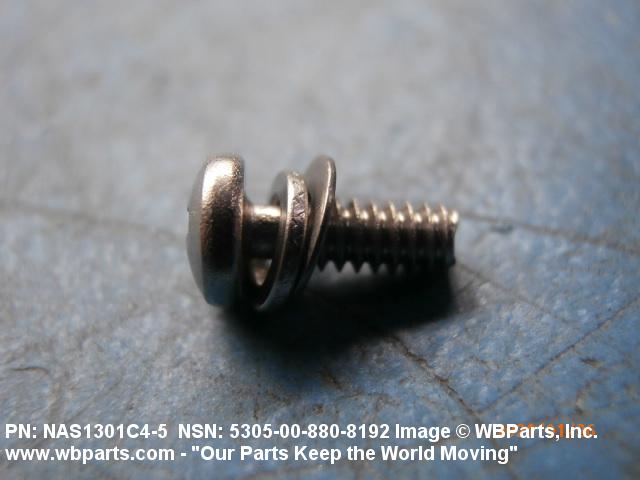

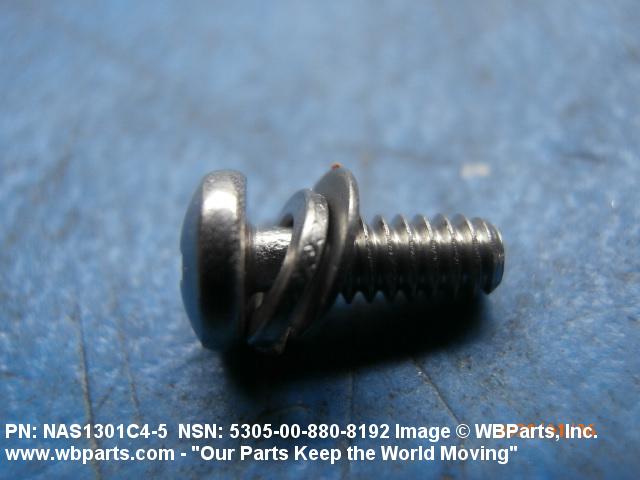

5305-00-880-8192 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: NAS1301C45, NAS1301C4-5, 10114637 , 5305-00-880-8192, 00-880-8192, 5305008808192, 008808192
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-880-8192 | 06660 ( SCREW, ASSEMBLED WASHER ) |

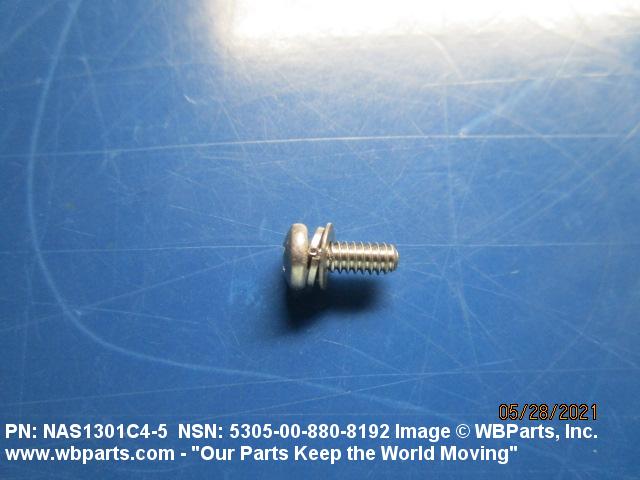

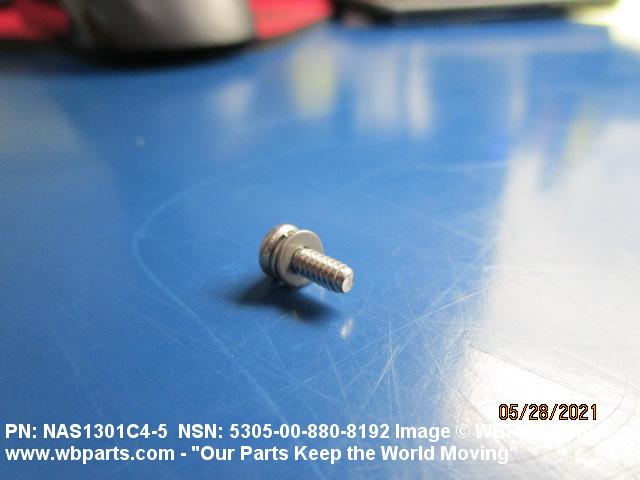

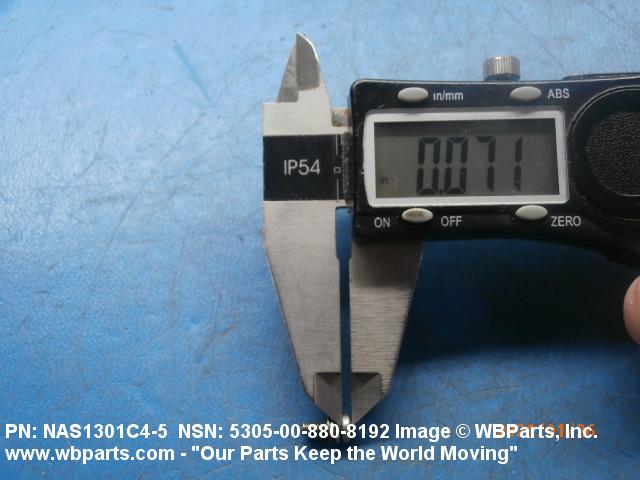

Drawings & Photos | NSN 5305-00-880-8192
Demand History | NSN 5305-00-880-8192
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-880-8192 | 2024-05-126 | 112 | DIBBS |
| 5305-00-880-8192 | 2024-05-122 | 112 | DIBBS |
| 5305-00-880-8192 | 2024-03-71 | 18 | DIBBS |
| 5305-00-880-8192 | 2023-11-326 | 50 | IL |
| 5305-00-880-8192 | 2023-11-305 | 17 | DIBBS |
| 5305-00-880-8192 | 2023-07-204 | 33 | DIBBS |
| NAS1301C45 | 2023-04-95 | 30 | United States |
| NAS1301C45 | 2023-04-95 | 90 | United States |
| NAS1301C45 | 2022-02-34 | 30 | United States |
| NAS1301C45 | 2022-02-34 | 60 | United States |
| NAS1301C45 | 2021-05-145 | 60 | United States |
| NAS1301C45 | 2021-01-15 | 60 | United States |
| NAS1301C45 | 2021-01-15 | 100 | United States |
| 5305-00-880-8192 | 2020-12-359 | 300000 | IL |
| 5305-00-880-8192 | 2020-06-182 | 70 | United States |
| NAS1301C45 | 2013-08-213 | 50000 | IN |
| 5305-00-880-8192 | 2013-06-156 | 1848 | DIBBS |
| NAS1301C45 | 2013-03-78 | 40 | US |
| NAS1301C45 | 2013-03-77 | 250 | US |
| NAS1301C45 | 2013-03-77 | 250 | US |
| 5305-00-880-8192 | 2010-12-355 | 5000 | United States |
| 5305-00-880-8192 | 2010-01-21 | 2900 | DIBBS |
| 5305-00-880-8192 | 2009-10-279 | 1500 | Canada |
Cross Reference | NSN 5305-00-880-8192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1301C4-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-880-8192
Related Products | NSN 5305-00-880-8192
Technical Data | NSN 5305-00-880-8192

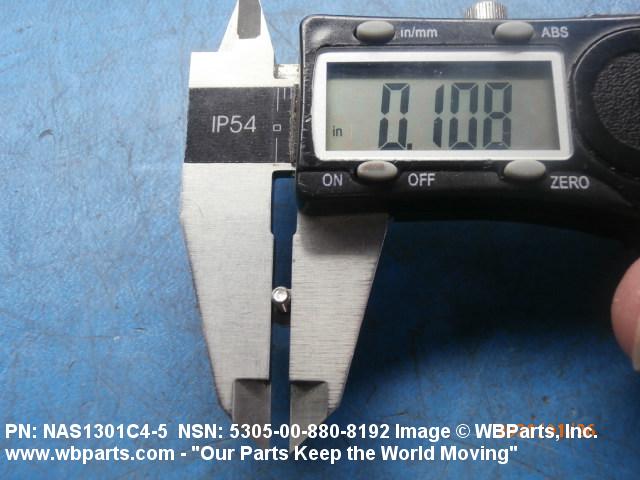

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |

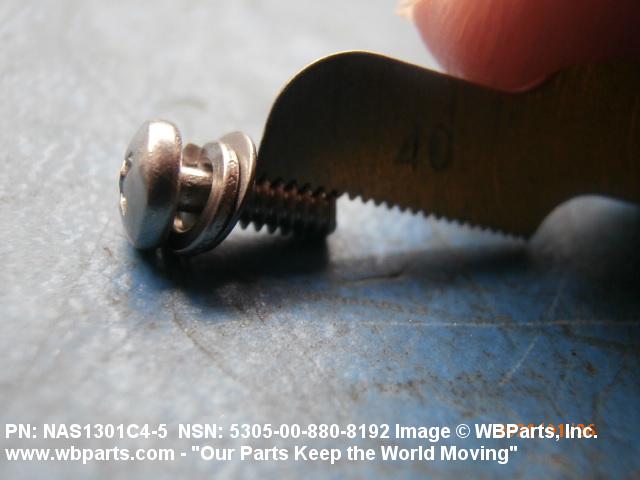

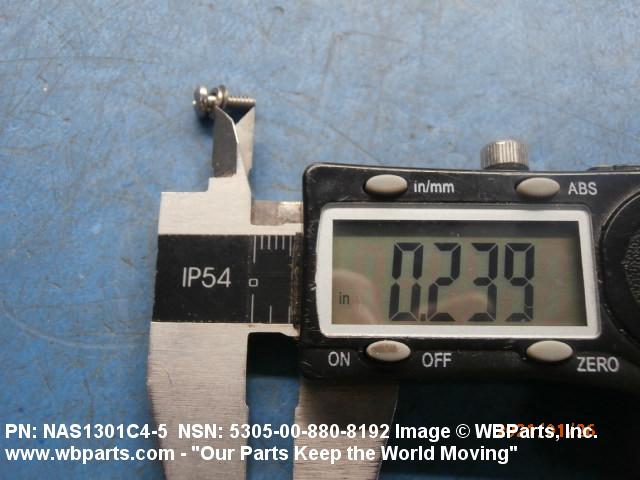

| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.231 INCHES MINIMUM |

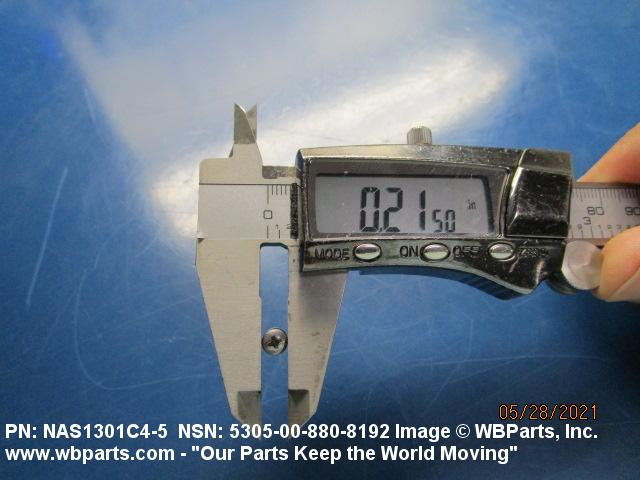

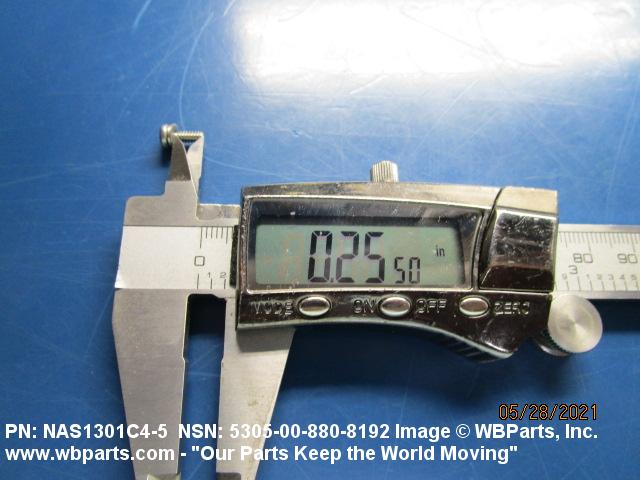

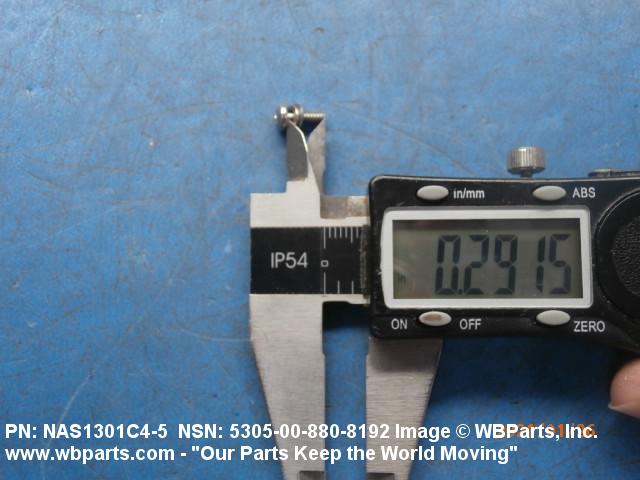

| FASTENER LENGTH | 0.280 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 430 OR STEEL COMP 303SE OR STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR MIL-S-7720 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-18732 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 5TH MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 6TH MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 7TH MATERIAL RESPONSE OR MIL-S-6721 MIL SPEC 8TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

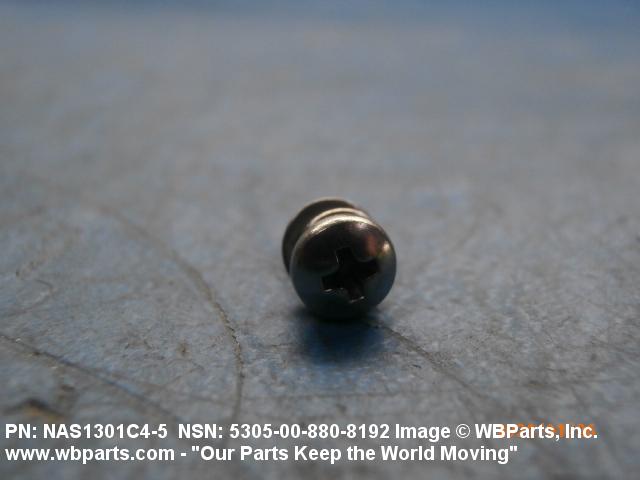

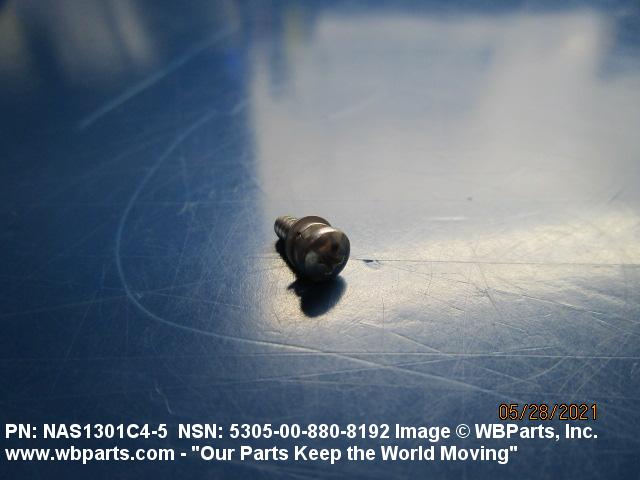

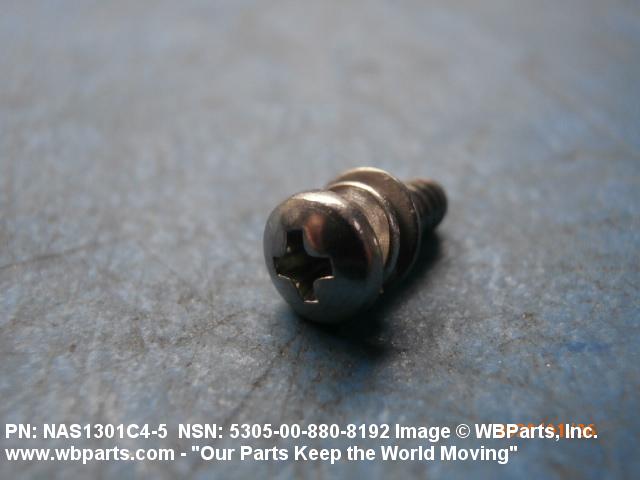

| HEAD STYLE | C32 PAN |

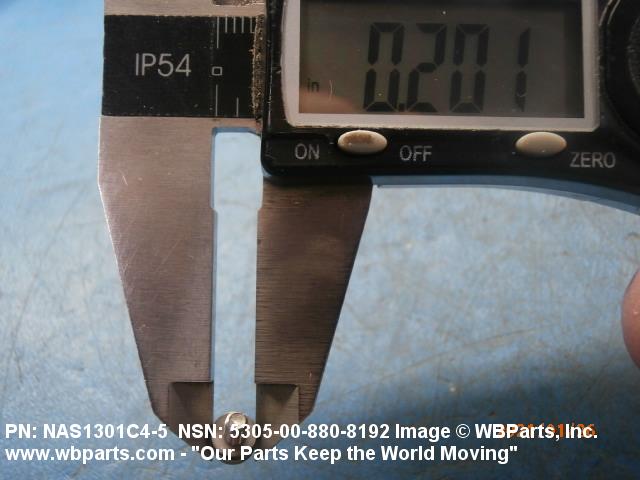

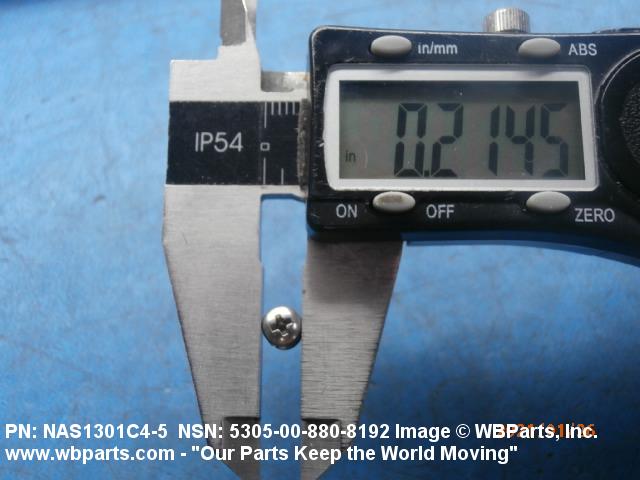

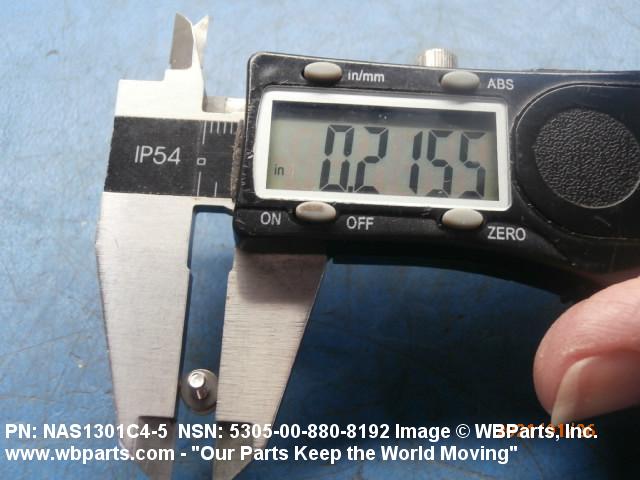

| HEAD DIAMETER | 0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
