NSN 5305-00-896-0840 MS5195728, MS51957-28, NO632UNC2A38inchLGCRES316

Product Details | MACHINE SCREW

5305-00-896-0840 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS5195728, MS51957-28, NO632UNC2A38inchLGCRES316, NO632UNC2A38LGCRES316, WC1052028, WC1052-028, GA3135028, GA3135-028, 1120782028, 112-0782-028, 5305-00-896-0840, 00-896-0840, 5305008960840, 008960840

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 FEB 1967	00-896-0840	06657 ( SCREW, MACHINE )

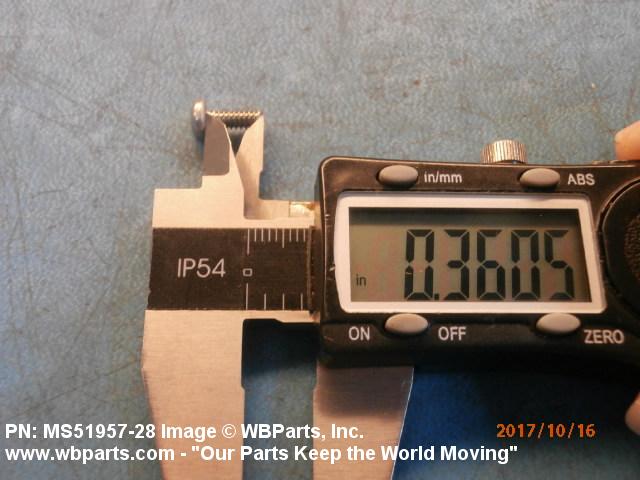

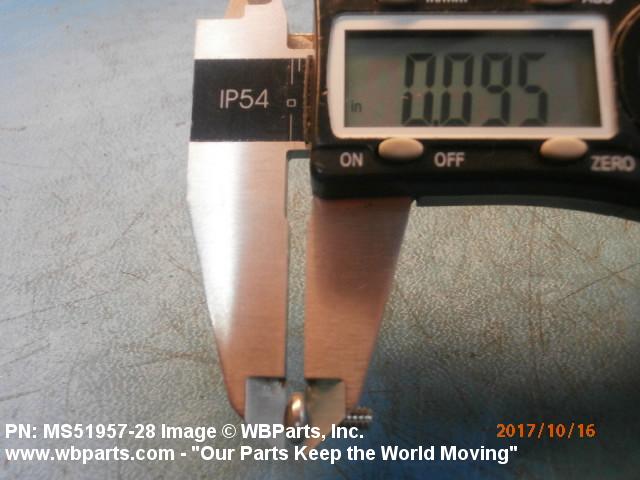

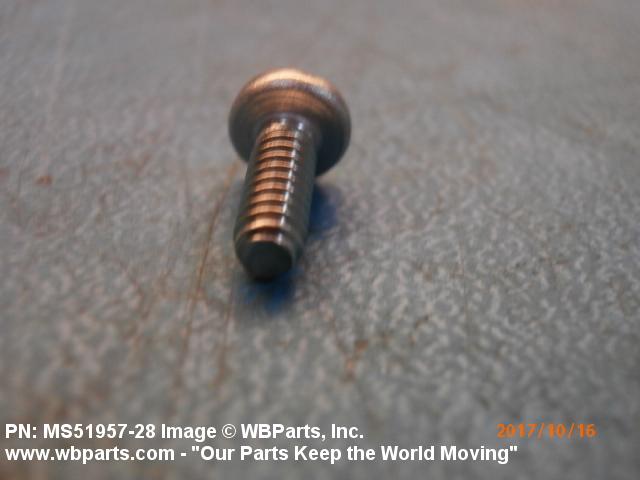

Drawings & Photos | NSN 5305-00-896-0840

Part Number	Request Date	QTY	Origin
MS5195728	2025-09-267	144	United States
MS5195728	2024-10-295	52	us
5305-00-896-0840	2024-08-225	530	DIBBS
MS5195728	2024-07-185	52	US
MS5195728	2023-12-352	29868	United States
MS5195728	2023-12-348	29868	United States
5305-00-896-0840	2023-12-340	694	DIBBS
5305-00-896-0840	2023-11-332	694	DIBBS
5305-00-896-0840	2023-11-324	829	DIBBS
MS5195728	2023-09-263	650	us
5305-00-896-0840	2023-08-243	829	DIBBS
MS5195728	2023-08-237	1350	Korea
5305-00-896-0840	2023-07-193	652	DIBBS
5305-00-896-0840	2023-07-185	652	DIBBS
5305-00-896-0840	2023-05-127	1074	DIBBS
MS5195728	2023-03-79	1320	Korea
5305-00-896-0840	2023-02-32	356	DIBBS
MS5195728	2022-04-95	10000	India
MS5195728	2022-02-40	25	United States
MS5195728	2022-01-04	30	United States
MS5195728	2021-09-264	6	United States
MS5195728	2021-02-53	192	United States
MS51957-28	2020-09-268	1872	South Korea
MS51957-28	2020-06-174	2040	Hong Kong
MS5195728	2020-01-03	1	United States
MS5195728	2019-11-311	100	US
MS5195728	2019-09-260	200	United States
MS5195728	2019-08-232	2	United States
MS5195728	2019-07-198	288	United States
MS51957-28	2019-02-45	740	South Korea
MS51957-28	2019-01-17	740	South Korea
MS51957-28	2018-05-135	445	South Korea
MS5195728	2018-03-80	100	Turkey
MS5195728	2018-03-71	800	US
MS5195728	2018-03-71	2000	US
MS5195728	2018-03-71	3500	US
MS5195728	2018-02-38	600	United States
MS5195728	2018-02-32	50	Turkey
MS5195728	2017-12-349	400	South Korea
MS51957-28	2017-11-324	364	South Korea
MS51957-28	2017-01-19	770	South Korea
MS5195728	2017-01-16	200	South Korea
MS5195728	2017-01-11	200	Turkey
MS5195728	2016-12-363	800	Korea
MS5195728	2016-11-308	1	United States
MS5195728	2016-04-96	673	US
MS5195728	2015-09-259	1	United States
MS5195728	2015-06-175	264	us
MS5195728	2015-05-146	4800	US
MS5195728	2014-10-279	200	TW
MS51957-28	2014-09-271	100	United States
MS5195728	2014-07-212	840	US
MS51957-28	2014-07-199	100	United States
MS5195728	2014-06-153	3000	CN
MS5195728	2014-02-37	70	Korea
MS5195728	2014-02-35	780	United States
MS51957-28	2013-09-249	20
MS5195728	2013-07-199	100	United States
MS51957-28	2012-07-195	240	United States
MS51957-28	2012-06-163	128	India
MS5195728	2011-10-286	40	United States
5305-00-896-0840	2011-08-238	1400	United States
5305-00-896-0840	2011-05-143	800	IN
MS51957-28	2011-04-95	32	United States
5305-00-896-0840	2011-01-31	50	United States
MS5195728	2011-01-17	150	India
MS5195728	2010-10-300	15	United States
MS5195728	2010-10-278	152	Saudi Arabia
MS5195728	2010-10-278	152	Saudi Arabia
1120782028	2010-08-225	2576	United States
MS5195728	2010-03-80	50	US
MS5195728	2010-03-80	50	US
5305-00-896-0840	2010-02-41	1	US
MS5195728	2009-10-293	64	US
5305-00-896-0840	2009-07-211	17619	DIBBS
MS5195728	2009-07-183	1	US
5305-00-896-0840	2009-01-07	7954	DIBBS
MS5195728	2008-09-247	184	United States
MS5195728	2008-05-128	100	US

Cross Reference | NSN 5305-00-896-0840

Part Number	Cage Code	Manufacturer
112-0782-028	94756	BOEING COMPANY, THE DBA BOEING
GA3135-028	03647	GLOBE AEROSPACE INC
MS51957-28	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NO.6-32UNC-2A, 3/8"LG,CRES 316	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
WC1052-028	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-896-0840

Compare

Related Products | NSN 5305-00-896-0840

5305-00-896-0846, 5305-00-896-0847, 5305-00-896-0850, 5305-00-896-0861, 5305-00-896-1025

Technical Data | NSN 5305-00-896-0840

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

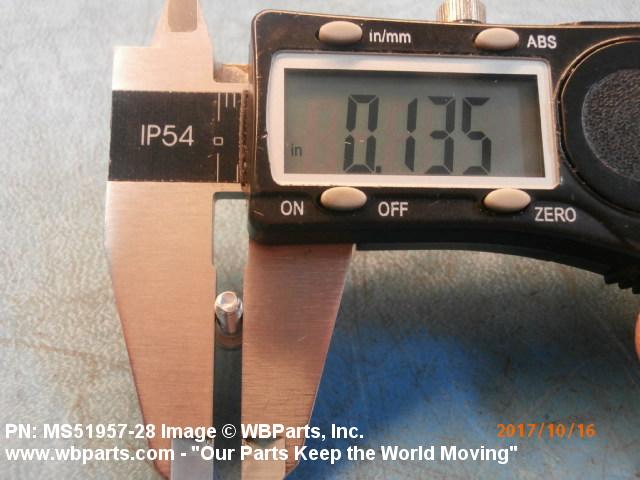

NOMINAL THREAD DIAMETER	0.138 INCHES

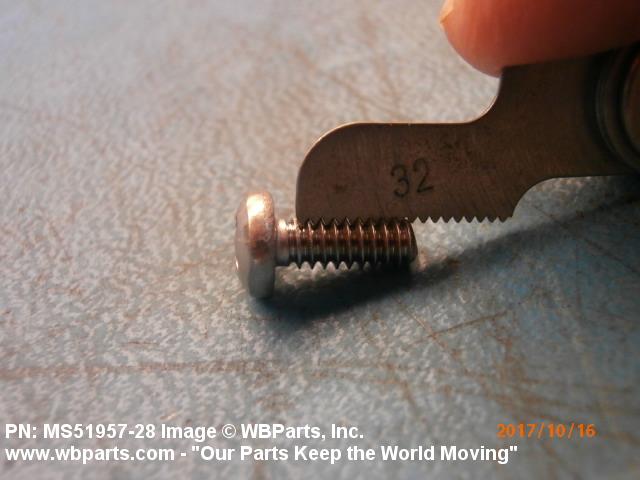

THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.375 INCHES MAXIMUM

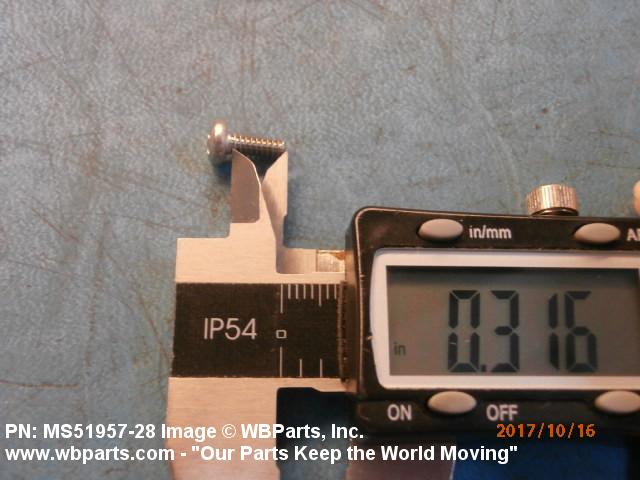

FASTENER LENGTH	0.375 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 309 OR STEEL COMP 310 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347
SCREW SURFACE TREATMENT	PASSIVATE

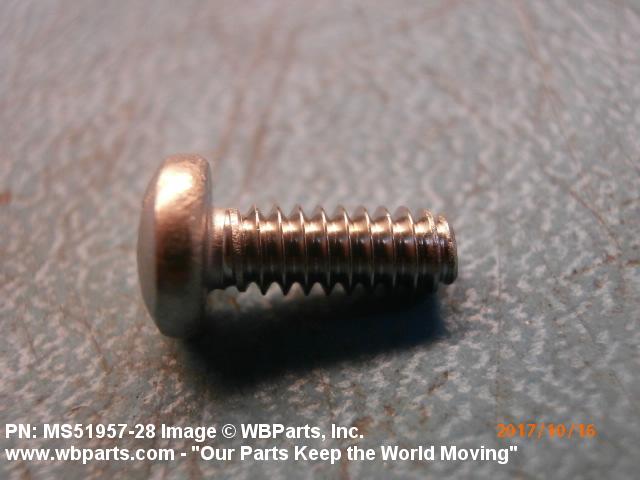

HEAD STYLE	A24 PAN NO. 2

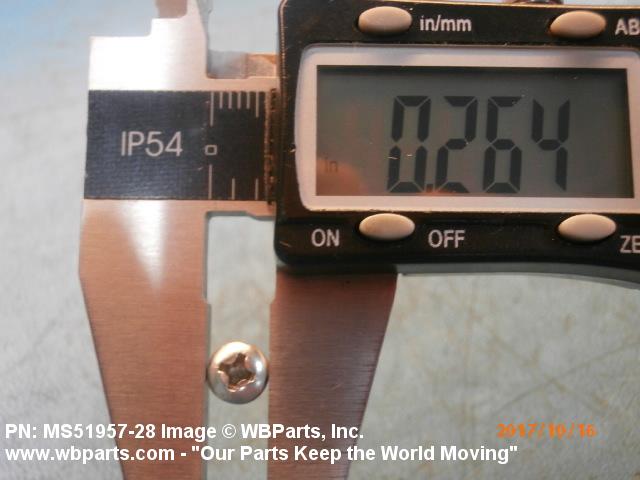

HEAD DIAMETER	0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM
HEAD HEIGHT	0.072 INCHES MINIMUM AND 0.082 INCHES MAXIMUM

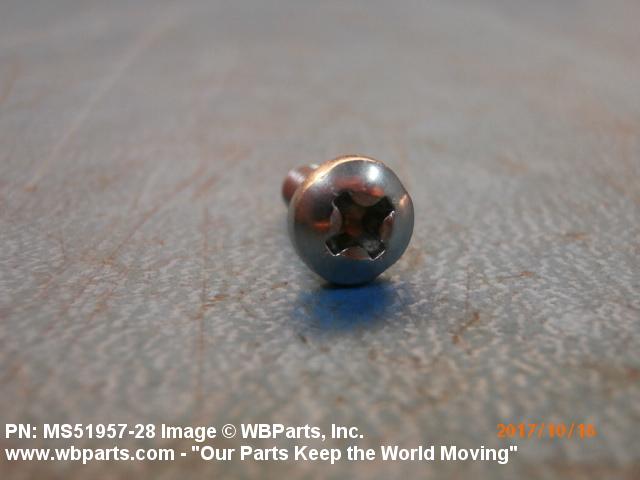

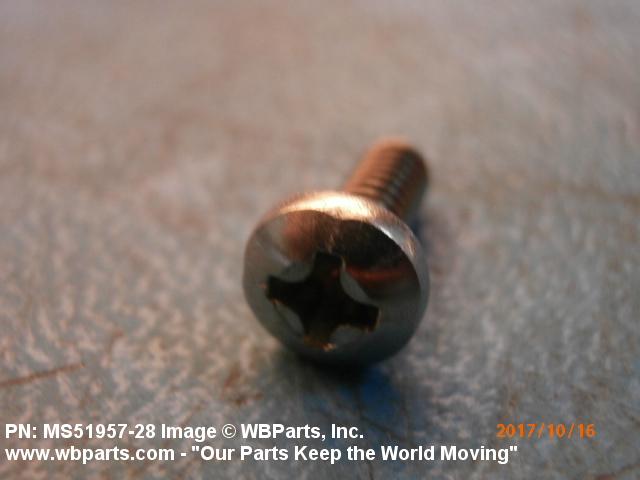

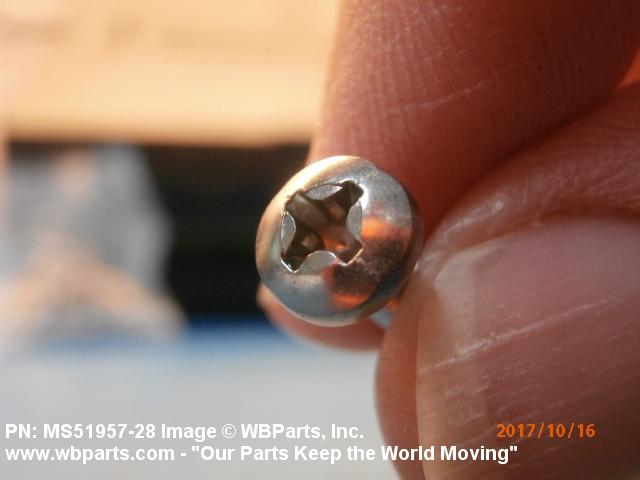

INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-896-0840

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-896-0840

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
