NSN 5305-00-901-3142 MS35492586, MS35492-586, MS3549286
Product Details | WOOD SCREW
5305-00-901-3142 An unhardened externally threaded fastener whose continuous thread extends from a gimlet point for a distance of approximately two-thirds of the length of the screw and which is designed to be driven with an inserted driver.
Part Alternates: MS35492586, MS35492-586, MS3549286, MS35492-86, ANSI B18.6.1, ANSIB1861, FFS111, FF-S-111, FF-S-111 TY1ST1C, FFS111TY1ST1C, 5305-00-901-3142, 00-901-3142, 5305009013142, 009013142
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-901-3142 | 01867 ( SCREW, WOOD ) |

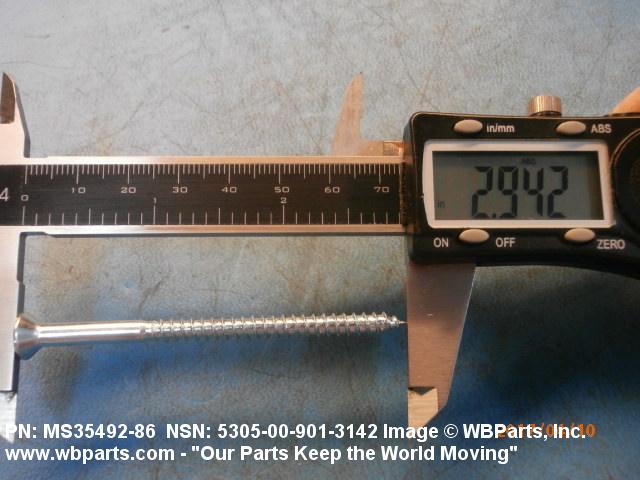

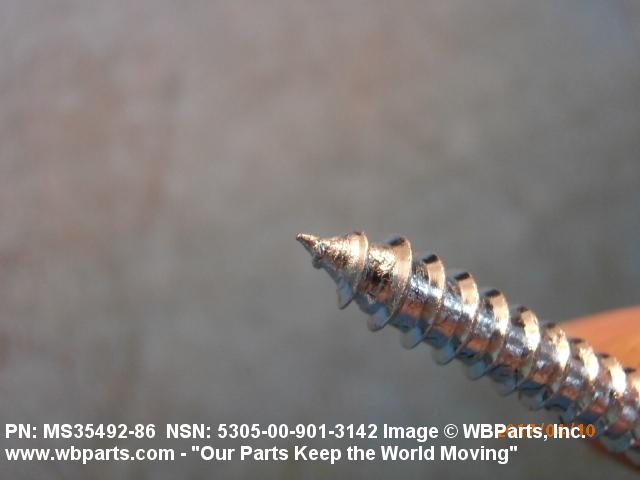

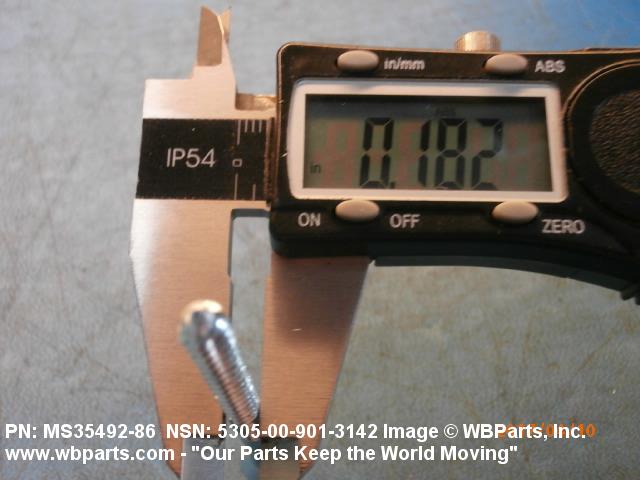

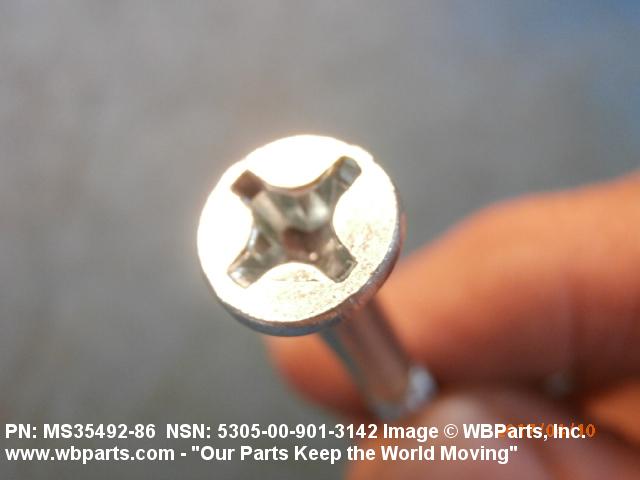

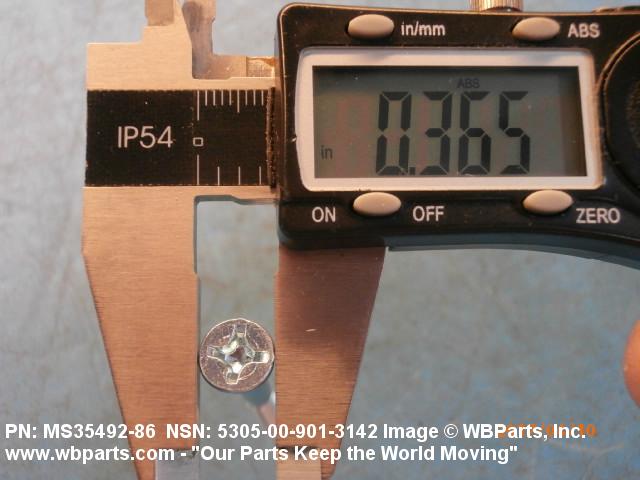

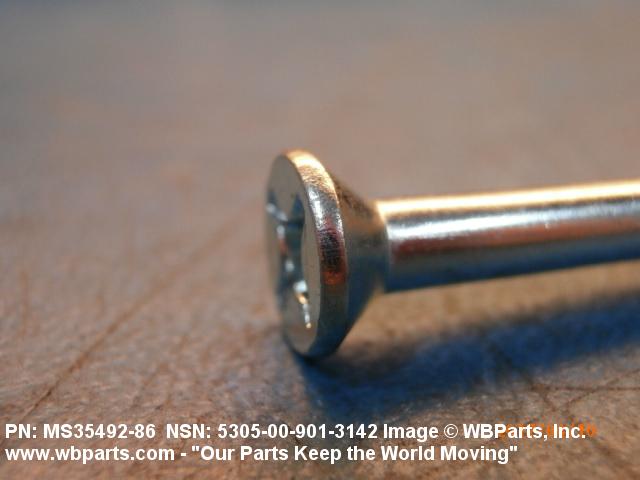

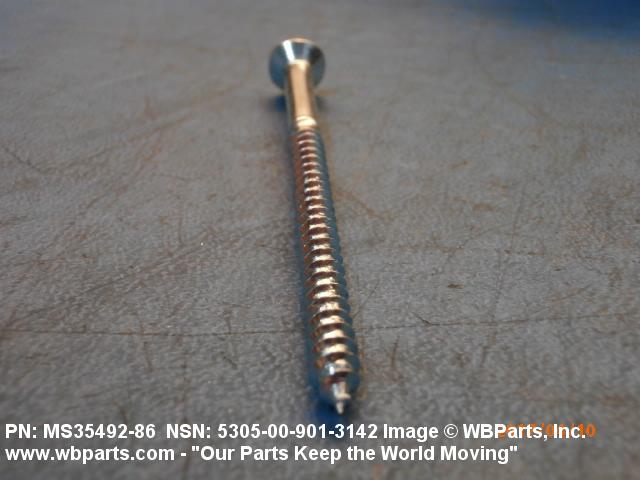

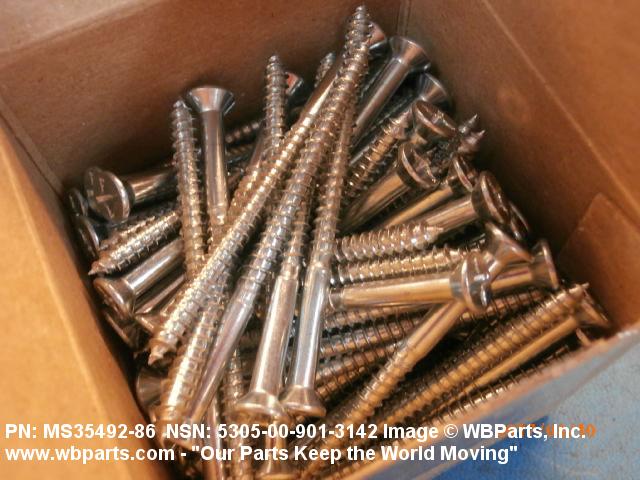

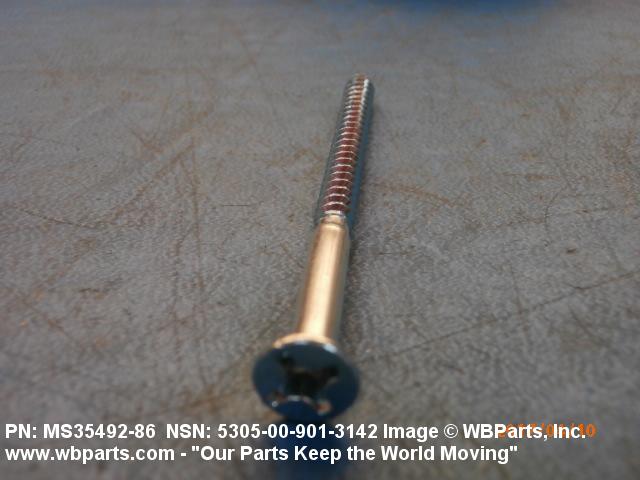

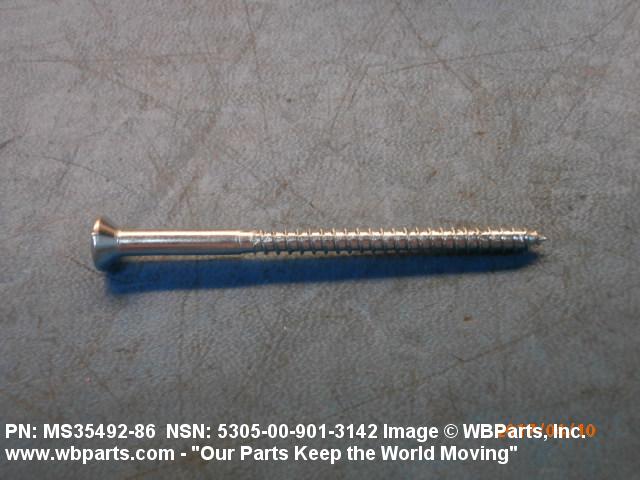

Drawings & Photos | NSN 5305-00-901-3142
Demand History | NSN 5305-00-901-3142
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3549286 | 2017-03-82 | 20 | us |
| FFS111 | 2012-05-128 | 20 | US |
| MS3549286 | 2010-06-166 | 150 | US |
| 5305-00-901-3142 | 2009-08-218 | 10622 | US |
| ANSIB1861 | 2009-08-215 | 500 | US |
Cross Reference | NSN 5305-00-901-3142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ANSI B18.6.1 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| FF-S-111 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| FF-S-111 TY1ST1C | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MS35492-586 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35492-86 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-901-3142
Related Products | NSN 5305-00-901-3142
Technical Data | NSN 5305-00-901-3142
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | A13 GIMLET POINT |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.190 INCHES |
| FASTENER LENGTH | 2.906 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1108 OR STEEL COMP 1109 OR STEEL COMP 1110 OR STEEL COMP 1211 OR STEEL COMP 1212 OR STEEL COMP 1213 OR STEEL COMP 1115 OR STEEL COMP 1116 OR STEEL COMP 1117 OR STEEL COMP 1118 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A549 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A108 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A576 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A549 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A576 ASSN STD 3RD MATERIAL RESPONSE OR ASTM A549 ASSN STD 3RD MATERIAL RESPONSE OR ASTM A108 ASSN STD 4TH MATERIAL RESPONSE OR ASTM A576 ASSN STD 4TH MATERIAL RESPONSE OR ASTM A549 ASSN STD 4TH MATERIAL RESPONSE OR ASTM A108 ASSN STD 5TH MATERIAL RESPONSE OR ASTM A576 ASSN STD 5TH MATERIAL RESPONSE OR ASTM A549 ASSN STD 5TH MATERIAL RESPONSE OR ASTM A576 ASSN STD 6TH MATERIAL RESPONSE OR ASTM A549 ASSN STD 6TH MATERIAL RESPONSE OR ASTM A108 ASSN STD 7TH MATERIAL RESPONSE OR ASTM A576 ASSN STD 7TH MATERIAL RESPONSE OR ASTM A549 ASSN STD 7TH MATERIAL RESPONSE OR ASTM A576 ASSN STD 8TH MATERIAL RESPONSE OR ASTM A108 ASSN STD 9TH MATERIAL RESPONSE OR ASTM A576 ASSN STD 9TH MATERIAL |
Restrictions/Controls & Freight Information | NSN 5305-00-901-3142
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 199970 | WOODENWARE SUB6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-901-3142
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
