NSN 5305-00-926-5590 00-926-5590, 009265590
Product Details | INSTRUMENT SCREW
5305-00-926-5590 An externally threaded fastener similar to a SCREW, MACHINE but smaller than No. 0 (0.060 IN.) (1.5 mm) in size.
Part Alternates: 5305-00-926-5590, 00-926-5590, 5305009265590, 009265590
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-926-5590 | 06656 ( SCREW, INSTRUMENT ) |

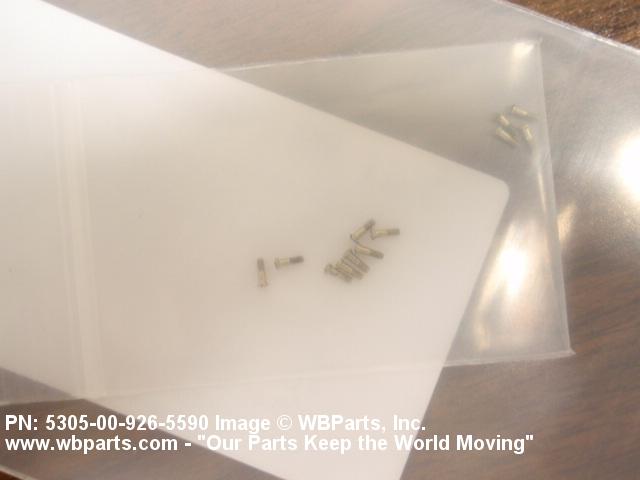

Drawings & Photos | NSN 5305-00-926-5590
Demand History | NSN 5305-00-926-5590
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-926-5590 | 2010-09-257 | 12 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-926-5590
Related Products | NSN 5305-00-926-5590
Technical Data | NSN 5305-00-926-5590
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD DIAMETER | 0.047 INCHES |
| THREAD QUANTITY PER INCH | 90 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| FASTENER LENGTH | 0.173 INCHES MINIMUM AND 0.177 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-586 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C54 OVAL COUNTERSUNK |
| HEAD DIAMETER | 0.077 INCHES MINIMUM AND 0.079 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 70.0 DEGREES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 576 |
| III UNIT OF ISSUE WEIGHT | 0.0694 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 40.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.0026 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 1.50 CUBIC FEET |
Restrictions/Controls & Freight Information | NSN 5305-00-926-5590
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
