NSN 5305-00-932-2103 3001T70P06, 00-932-2103, 009322103
Product Details | MACHINE SCREW
5305-00-932-2103 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 3001T70P06, 5305-00-932-2103, 00-932-2103, 5305009322103, 009322103
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 SEP 1966 | 00-932-2103 | 06657 ( SCREW, MACHINE ) |

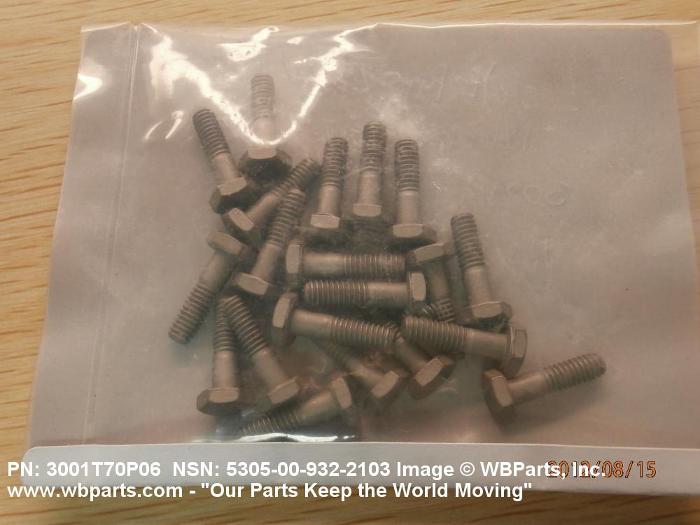

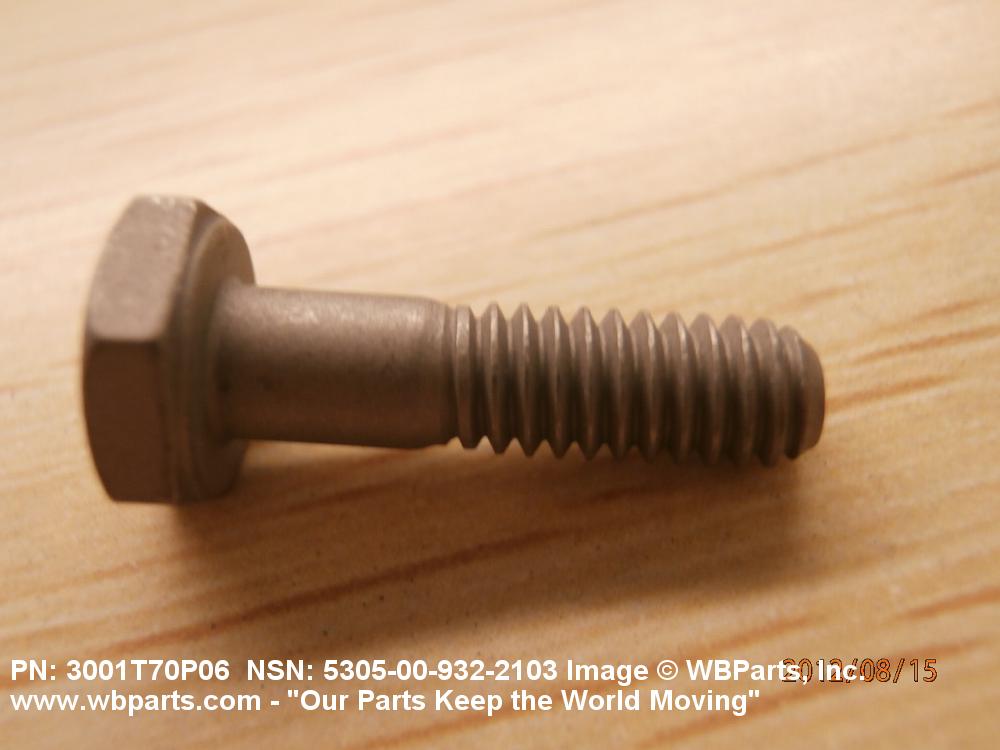

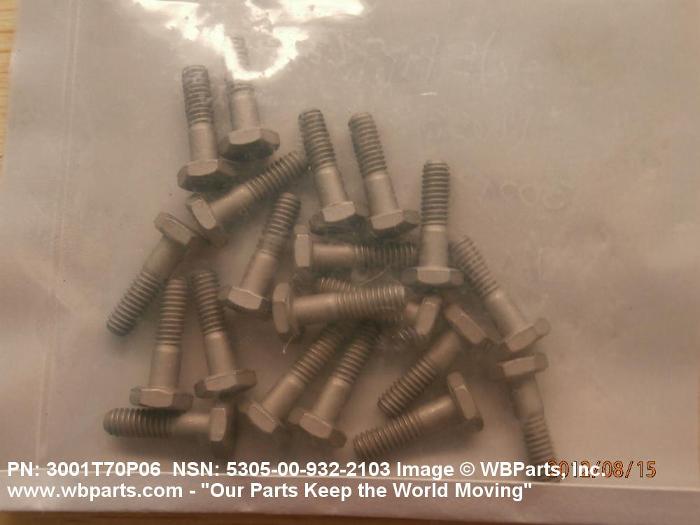

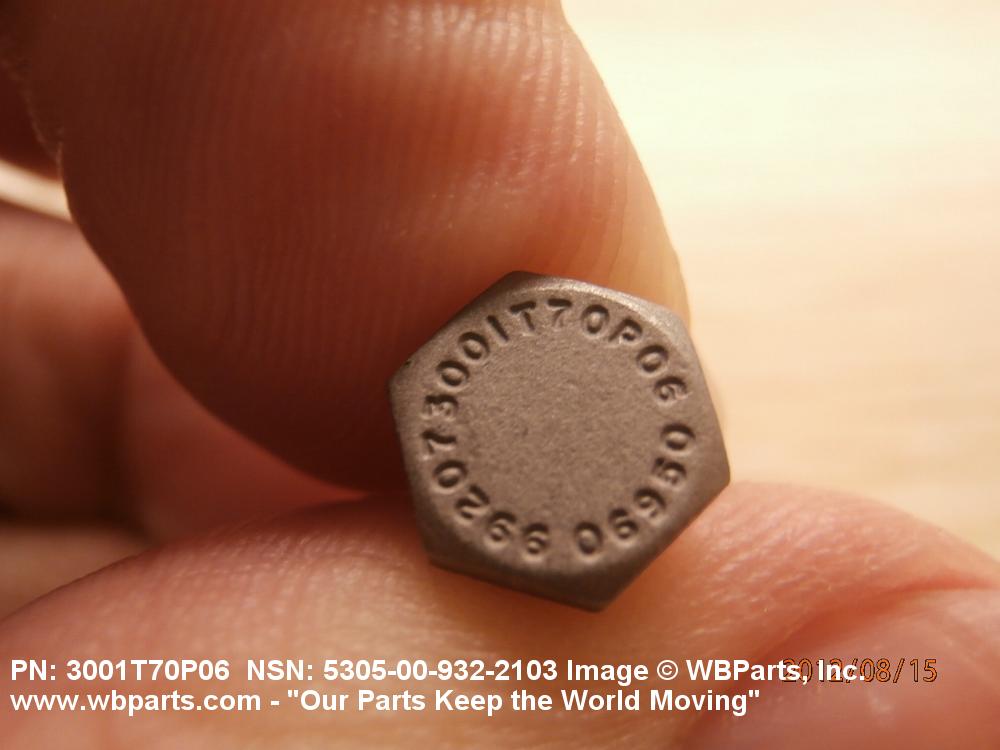

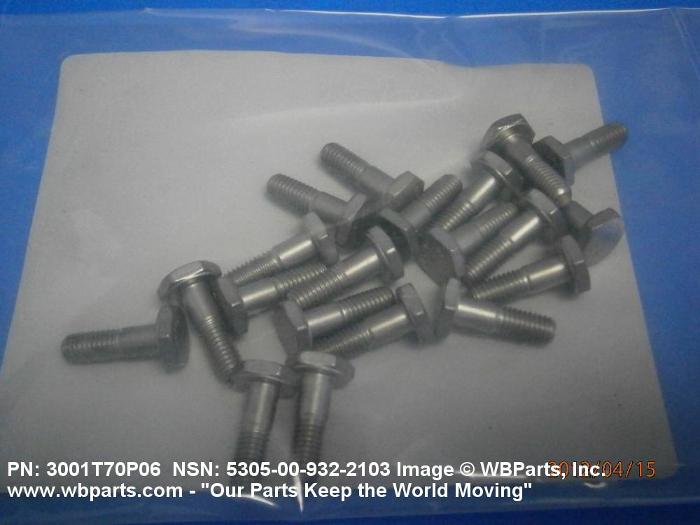

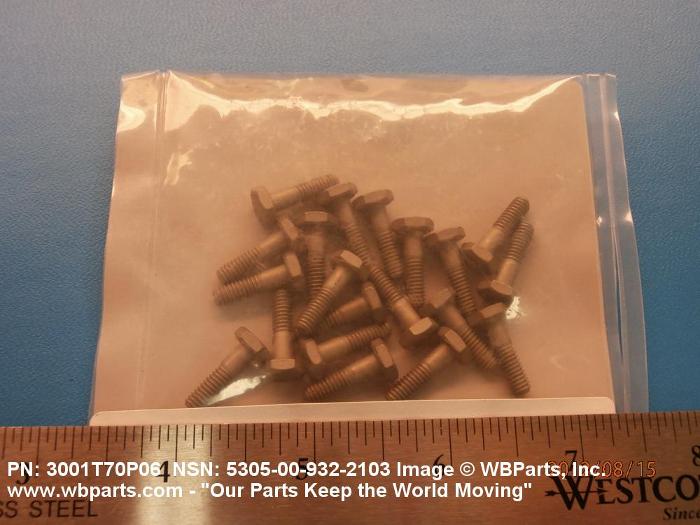

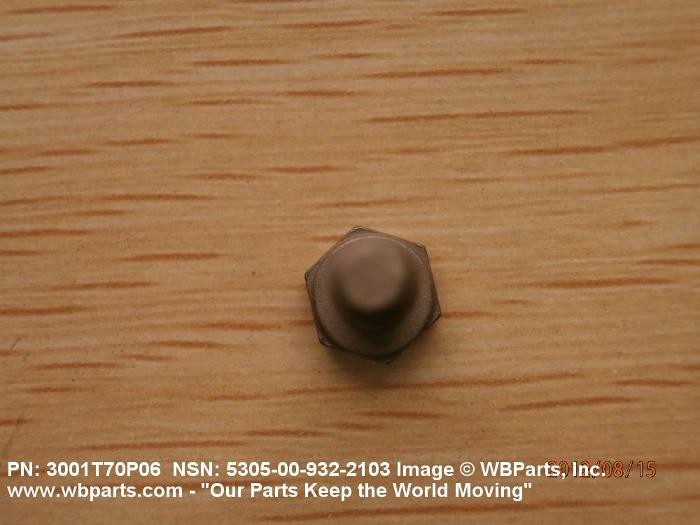

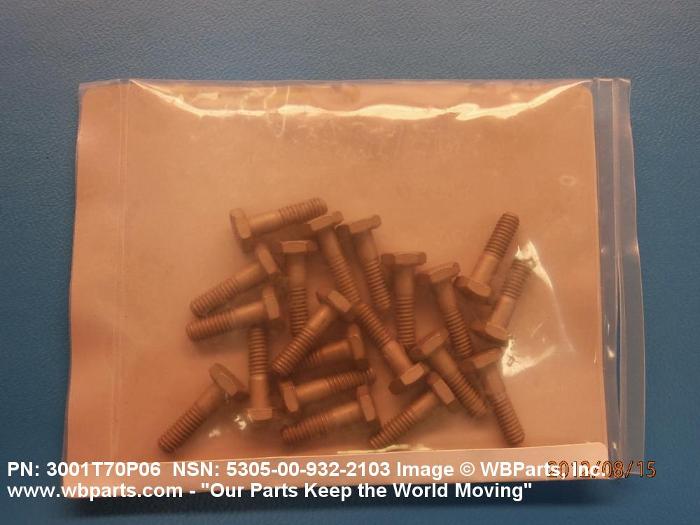

Drawings & Photos | NSN 5305-00-932-2103
Demand History | NSN 5305-00-932-2103
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3001T70P06 | 2012-08-222 | 20 | Turkey |
| 3001T70P06 | 2012-03-83 | 20 | Turkey |
| 3001T70P06 | 2012-02-45 | 1 | Turkey |
| 3001T70P06 | 2012-01-27 | 20 | Turkey |
Cross Reference | NSN 5305-00-932-2103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3001T70P06 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-932-2103
Technical Data | NSN 5305-00-932-2103
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.332 INCHES MINIMUM AND 0.372 INCHES MAXIMUM |
| FASTENER LENGTH | 0.612 INCHES MINIMUM AND 0.632 INCHES MAXIMUM |
| SCREW MATERIAL | IRON ALLOY 660 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| HEAD STYLE | A1 HEXAGON |
| HEAD HEIGHT | 0.085 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| HEAD HOLE CONFIGURATION STYLE | C6 HEXAGON FLATS |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.046 INCHES NOMINAL |
| MANUFACTURERS CODE | 99207 |
| DESIGN CONTROL REFERENCE | 3001T70P06 |
Restrictions/Controls & Freight Information | NSN 5305-00-932-2103
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096630 | SCREWS NOI BRASS/BRONZE/COPPER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
