NSN 5305-00-955-5035 27023, 00-955-5035, 009555035
Product Details | MACHINE SCREW
5305-00-955-5035 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 27023, 5305-00-955-5035, 00-955-5035, 5305009555035, 009555035
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-955-5035 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-955-5035
Cross Reference | NSN 5305-00-955-5035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27023 | 47486 | PITNEY BOWES INC. DBA PITNEY BOWES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-955-5035
Technical Data | NSN 5305-00-955-5035
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD DIAMETER | 0.242 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| NONSTANDARD THREAD PITCH DIAMETER | 0.2120 TO 0.2160 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES MINIMUM |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| SCREW MATERIAL | STEEL |
| SCREW SURFACE TREATMENT | CADMIUM |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |

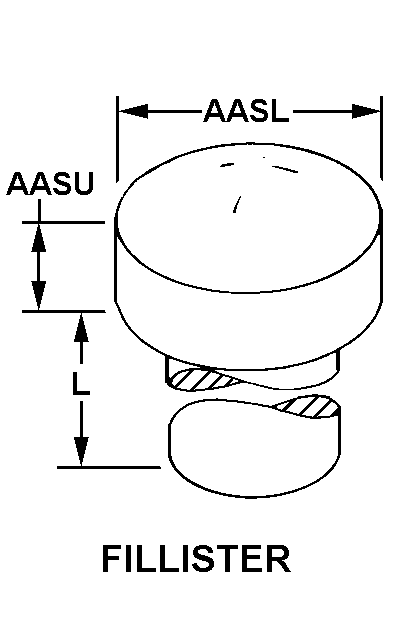

| HEAD STYLE | A33 FILLISTER |
| HEAD DIAMETER | 0.388 INCHES NOMINAL |
| HEAD HEIGHT | 0.215 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | B10 SLOT |
Restrictions/Controls & Freight Information | NSN 5305-00-955-5035
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
