NSN 5305-00-956-0055 2254406, 00-956-0055, 009560055
Product Details | MACHINE SCREW
5305-00-956-0055 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 2254406, 5305-00-956-0055, 00-956-0055, 5305009560055, 009560055
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-956-0055 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-956-0055
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-956-0055
Technical Data | NSN 5305-00-956-0055
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.270 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| FASTENER LENGTH | 0.410 INCHES NOMINAL |
| SCREW MATERIAL | NICKEL ALLOY K-500 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-286,CL A FED SPEC SINGLE MATERIAL RESPONSE |
| HEAD STYLE | A33 FILLISTER |
| HEAD DIAMETER | 0.500 INCHES NOMINAL |
| HEAD HEIGHT | 0.206 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | B10 SLOT |

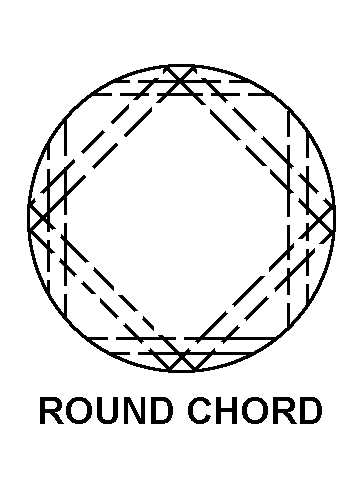

| HEAD HOLE CONFIGURATION STYLE | C9 ROUND CHORD |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | NAVORD OD 44548 |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2254406 |
Restrictions/Controls & Freight Information | NSN 5305-00-956-0055
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
