NSN 5305-00-959-1082 MS1699518, MS16995-18, NAS1352C068
Product Details | MACHINE SCREW
5305-00-959-1082 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS1699518, MS16995-18, NAS1352C068, NAS1352C06-8, A05232, B68152, H667160608, 946594-608, 207-1020-13, 2071020P13, 207-1020P13, 2071020PT13, 207-1020PT13, 291608SS, 291-608SS, 41826218, 418262-18, 43S4365176, 43S4365-176, 4575544, 457-5544 , 4853621316, 485-3621-316, 0310132018, 0310132-018, 100A900015, 10511919, 11745884, 13211E44383, 13211E4438-3, 003007868018, 003-007868-018, 1437561-39, 1446214-42, 5305-00-959-1082, 00-959-1082, 5305009591082 , 946594608, 207102013, 144621442, 009591082, 143756139
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-959-1082 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

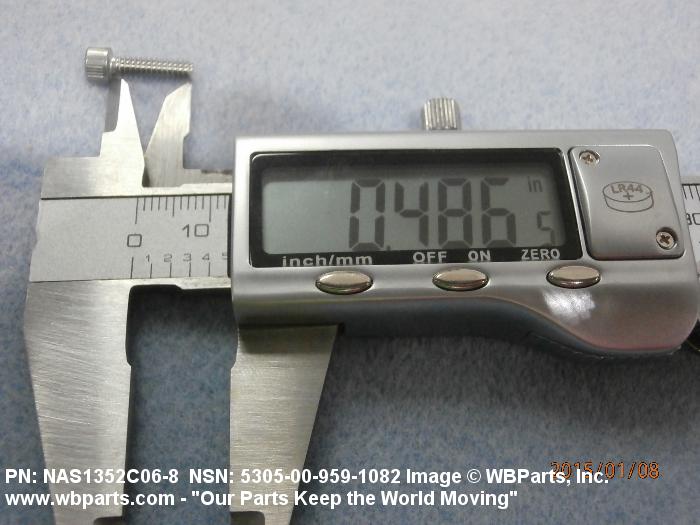

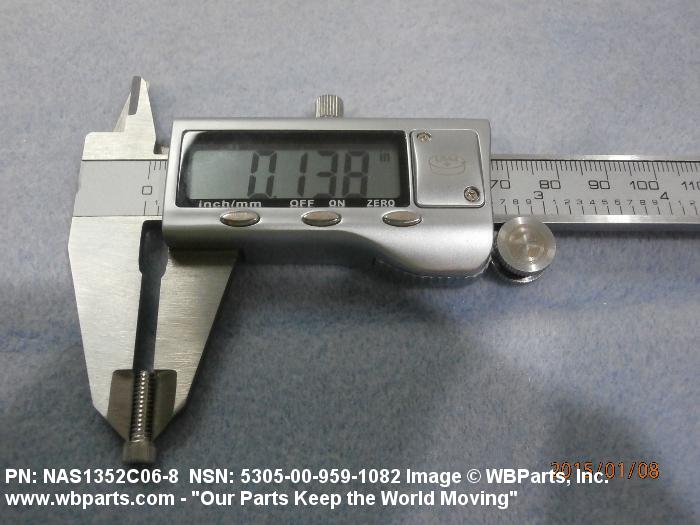

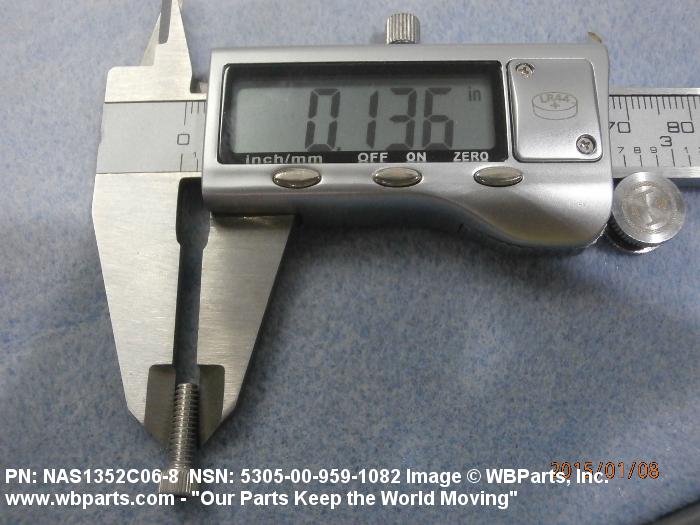

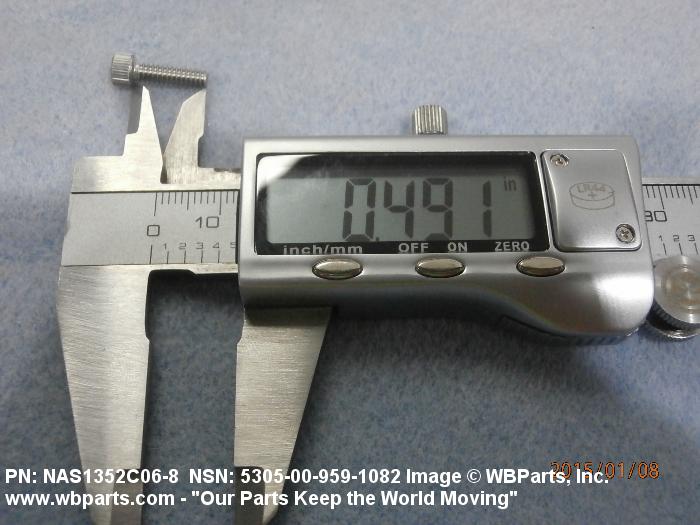

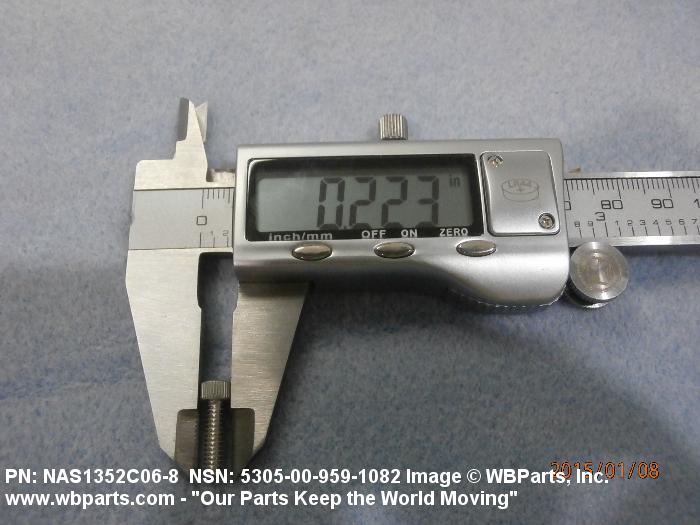

Drawings & Photos | NSN 5305-00-959-1082
Demand History | NSN 5305-00-959-1082
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-959-1082 | 2025-07-190 | 188 | DIBBS |
| 5305-00-959-1082 | 2025-06-181 | 1496 | US |
| MS1699518 | 2025-06-169 | 2000 | Hong Kong |
| 5305-00-959-1082 | 2025-05-132 | 150 | DIBBS |
| 5305-00-959-1082 | 2025-01-27 | 140 | DIBBS |
| 5305-00-959-1082 | 2025-01-16 | 140 | DIBBS |
| MS1699518 | 2024-12-344 | 88 | Japan |
| MS1699518 | 2024-12-344 | 88 | Japan |
| MS1699518 | 2024-12-344 | 88 | Japan |
| MS1699518 | 2024-12-344 | 88 | Japan |
| MS1699518 | 2024-05-142 | 500 | us |
| MS1699518 | 2024-02-59 | 600 | us |
| 5305-00-959-1082 | 2023-08-229 | 500 | IL |
| MS1699518 | 2022-01-04 | 60 | United States |
| NAS1352C068 | 2021-08-223 | 4 | SG |
| MS1699518 | 2021-06-161 | 5000 | us |
| MS1699518 | 2021-06-161 | 10000 | us |
| MS1699518 | 2021-06-161 | 15000 | us |
| MS16995-18 | 2020-06-174 | 480 | Hong Kong |
| MS1699518 | 2019-12-345 | 200 | IN |
| NAS1352C068 | 2019-06-156 | 30 | United States |
| MS1699518 | 2018-05-143 | 120 | United States |
| MS1699518 | 2018-04-93 | 20 | US |
| NAS1352C068 | 2017-06-170 | 8 | us |
| 5305-00-959-1082 | 2017-03-79 | 914 | DIBBS |
| 5305-00-959-1082 | 2017-03-71 | 914 | DIBBS |
| NAS1352C068 | 2016-04-97 | 250 | United States |
| NAS1352C068 | 2016-02-36 | 1 | US |
| MS16995-18 | 2015-05-141 | 6 | United States |
| MS16995-18 | 2015-05-141 | 6 | United States |
| NAS1352C068 | 2015-04-98 | 40 | US |
| MS1699518 | 2014-10-304 | 24 | United States |
| MS1699518 | 2014-06-168 | 2021 | UM |
| MS1699518 | 2014-06-153 | 1200 | CN |
| MS1699518 | 2014-06-153 | 2500 | CN |
| NAS1352C068 | 2014-02-36 | 15 | United Kingdom |
| NAS1352C068 | 2013-12-338 | 100 | United States |
| NAS1352C068 | 2013-10-281 | 80 | US |
| MS1699518 | 2012-09-258 | 25 | US |
| MS1699518 | 2011-06-159 | 3000 | United States |
| MS1699518 | 2011-06-157 | 36 | US |
| MS1699518 | 2011-04-116 | 500 | US |
| MS1699518 | 2011-02-33 | 100 | TW |
| MS1699518 | 2011-01-06 | 100 | United States |
| MS1699518 | 2011-01-04 | 100 | United States |
| 5305-00-959-1082 | 2010-09-246 | 50 | US |
| MS1699518 | 2010-03-89 | 432 | US |
| NAS1352C068 | 2009-07-204 | 1500 | United States |
| 5305-00-959-1082 | 2009-06-167 | 30 | us |
| NAS1352C068 | 2009-06-161 | 33 | us |
| 5305-00-959-1082 | 2009-06-160 | 40 | us |
| MS1699518 | 2009-01-22 | 148 | Greece |
| MS1699518 | 2008-06-178 | 5000 | United States |
Cross Reference | NSN 5305-00-959-1082
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003-007868-018 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 0310132-018 | 05157 | COHU, INC. DBA COHU ELECTRONIC'S DIVISION |
| 100A900015 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 10511919 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 11745884 | 19200 | US ARMY ARDEC RDECOM |
| 13211E4438-3 | 97403 | CECOM LR CENTER |
| 1437561-39 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1446214-42 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 207-1020-13 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 207-1020-13 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 207-1020P13 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 207-1020P13 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 207-1020PT13 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 207-1020PT13 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 291-608SS | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 291-608SS | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 418262-18 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 43S4365-176 | 94135 | NAVAL ORDNANCE STANDARDS |
| 485-3621-316 | 91141 | DAVIDSON OPTRONICS INC. |
| 5305009591082 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 946594-608 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| A05232 | K0967 | MBDA UK LTD |
| B68152 | K0967 | MBDA UK LTD |
| H667160608 | 08437 | CAL-AIR INC |
| H667160608 | 08818 | MINERVA ALUMINUM CO |
| MS16995-18 | 1WL60 | LOCKHEED MARTIN SERVICES, INC. |
| MS16995-18 | 74703 | LOCKHEED MARTIN AERONAUTICAL SYSTEMS SUPPORT COMPANY |
| MS16995-18 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16995-18 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS1352C06-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-959-1082
Related Products | NSN 5305-00-959-1082
Technical Data | NSN 5305-00-959-1082
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.408 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| FASTENER LENGTH | 0.470 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 304 OR STEEL COMP 316 |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| HEAD STYLE | A38 FLAT CHAMFER |
| HEAD DIAMETER | 0.218 INCHES MINIMUM AND 0.226 INCHES MAXIMUM |
| HEAD HEIGHT | 0.134 INCHES MINIMUM AND 0.138 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 6 TYPE |
Restrictions/Controls & Freight Information | NSN 5305-00-959-1082
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-959-1082
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
