NSN 5305-00-964-0589 MS51095416, MS51095-416, MS90725115
Product Details | HEXAGON HEAD CAP SCREW
5305-00-964-0589 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS51095416, MS51095-416, MS90725115, MS90725-115, F-167-210 PIECE 420, F167210PIECE420, FFS85, FF-S-85, 0826V081, 2AX185, 50P10053323, 50P1005-3323, 5315416, 5315-416, 6057255, 8775048, 87750-48, 5305-00-964-0589, 00-964-0589, 5305009640589, 009640589
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JUN 1966 | 00-964-0589 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

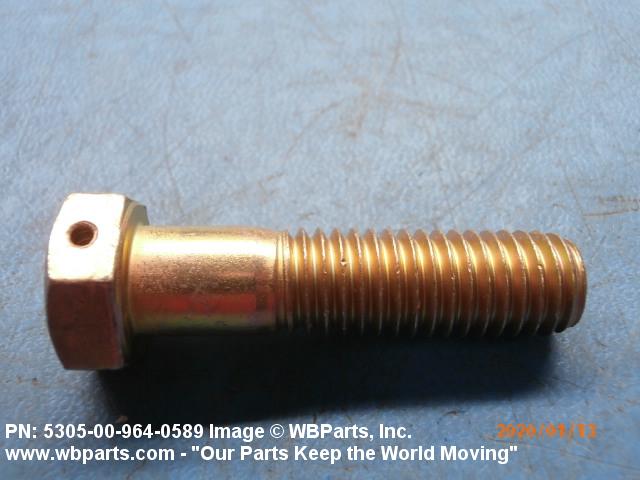

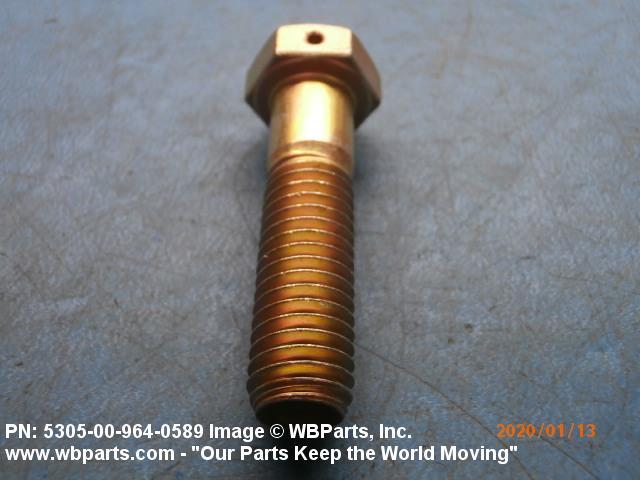

Drawings & Photos | NSN 5305-00-964-0589
Demand History | NSN 5305-00-964-0589
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS90725115 | 2025-04-112 | 8 | us |
| MS51095416 | 2025-04-105 | 24 | us |
| 5305-00-964-0589 | 2025-02-46 | 24 | US |
| MS90725115 | 2024-06-169 | 600 | US |
| 5305-00-964-0589 | 2020-11-321 | 855 | DIBBS |
| 5305-00-964-0589 | 2020-11-309 | 855 | DIBBS |
| 5305-00-964-0589 | 2020-10-278 | 587 | DIBBS |
| MS90725115 | 2020-08-223 | 1132 | US |
| 0826V081 | 2019-12-347 | 10 | United States |
| 5305-00-964-0589 | 2019-12-347 | 25 | United States |
| 5305-00-964-0589 | 2019-10-300 | 508 | DIBBS |
| 5305-00-964-0589 | 2019-03-85 | 100 | United States |
| 5305-00-964-0589 | 2019-02-32 | 440 | DIBBS |
| 5305-00-964-0589 | 2019-01-24 | 440 | DIBBS |
| MS90725115 | 2018-11-320 | 128 | United States |
| 5305-00-964-0589 | 2017-12-346 | 693 | DIBBS |
| 5305-00-964-0589 | 2017-12-338 | 693 | DIBBS |
| 5305-00-964-0589 | 2017-08-240 | 100 | United States |
| 5305-00-964-0589 | 2017-06-167 | 300 | DIBBS |
| 5305-00-964-0589 | 2017-06-159 | 300 | DIBBS |
| MS90725115 | 2017-03-89 | 56 | United States |
| 5305-00-964-0589 | 2017-03-68 | 781 | DIBBS |
| 5305-00-964-0589 | 2017-03-60 | 781 | DIBBS |
| 5305-00-964-0589 | 2017-01-12 | 291 | DIBBS |
| 5305-00-964-0589 | 2017-01-04 | 291 | DIBBS |
| MS90725-115 | 2016-11-334 | 64 | United States |
| 5305-00-964-0589 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-00-964-0589 | 2016-03-90 | 4421 | DIBBS |
| 5305-00-964-0589 | 2016-03-82 | 4421 | DIBBS |
| MS90725115 | 2014-04-92 | 1932 | United States |
| MS90725115 | 2014-04-92 | 1932 | United States |
| MS90725115 | 2014-03-83 | 84 | United States |
| MS90725115 | 2013-04-98 | 4 | United States |
| 5305-00-964-0589 | 2013-02-46 | 28640 | DIBBS |
| FFS85 | 2013-01-11 | 473 | US |
| FFS85 | 2011-10-280 | 95 | United States |
| FFS85 | 2011-09-265 | 14 | US |
| FFS85 | 2010-03-84 | 100 | US |
| FFS85 | 2010-02-43 | 10 | United States |
| MS90725115 | 2009-11-309 | 220 | US |
| FFS85 | 2009-09-272 | 50 | US |
Cross Reference | NSN 5305-00-964-0589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0826V081 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2AX185 | 45152 | OSHKOSH CORPORATION |
| 2AX185 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 50P1005-3323 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 53059640589 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5315-416 | 61796 | CEMEN TECH, INC. |
| 6057255 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 87750-48 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| F-167-210 PIECE 420 | 11440 | ALSTOM POWER INC. |
| FF-S-85 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS51095-416 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS51095-416 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51095-416 | A9271 | GORIZIANE GROUP SPA |
| MS90725-115 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-964-0589
Technical Data | NSN 5305-00-964-0589
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

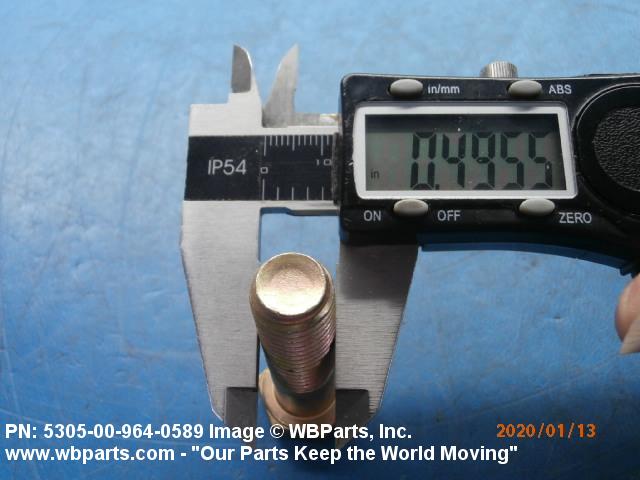

| NOMINAL THREAD DIAMETER | 0.500 INCHES |

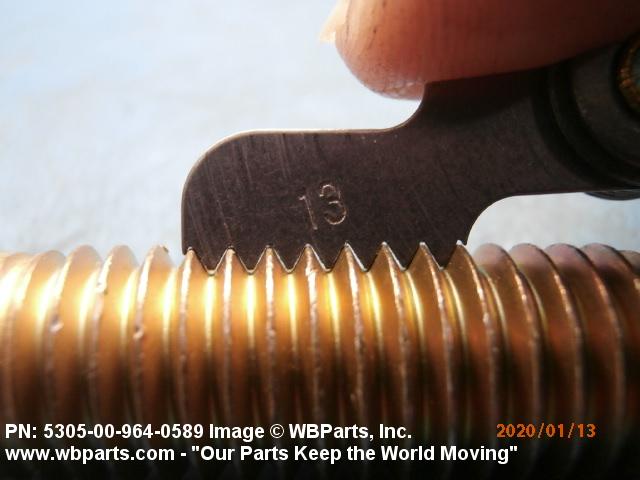

| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

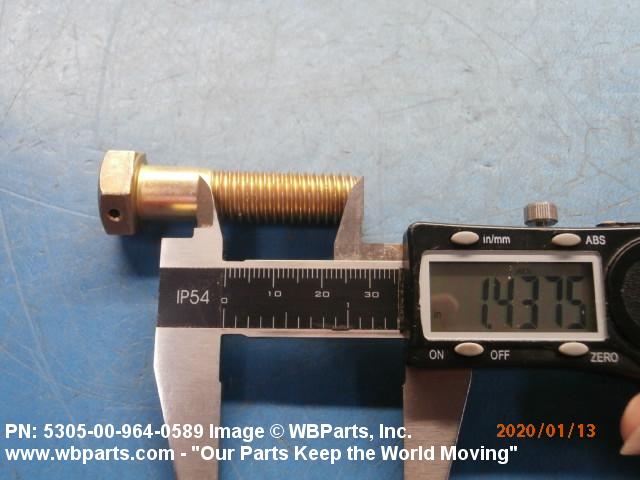

| THREAD LENGTH | 1.250 INCHES MINIMUM AND 1.442 INCHES MAXIMUM |

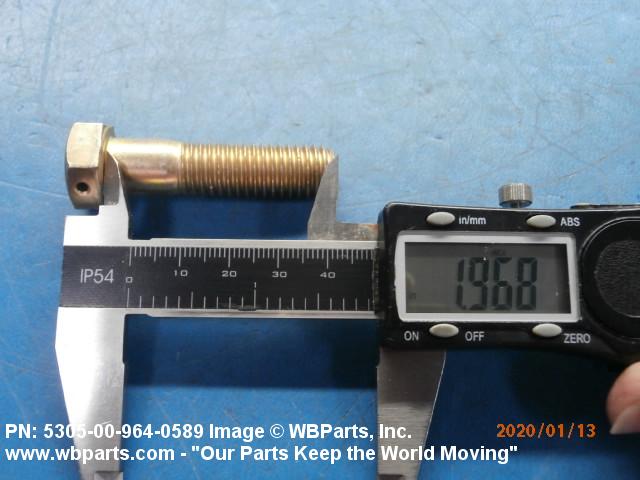

| FASTENER LENGTH | 1.938 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE GR 5 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 34.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 120000 POUNDS PER SQUARE INCH |

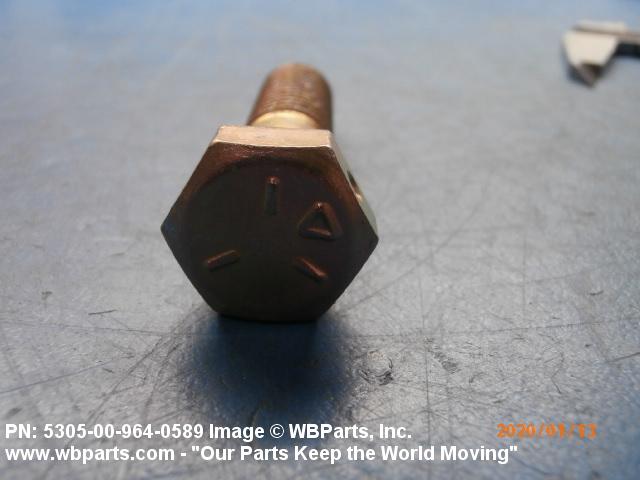

| HEAD STYLE | C1 HEXAGON |

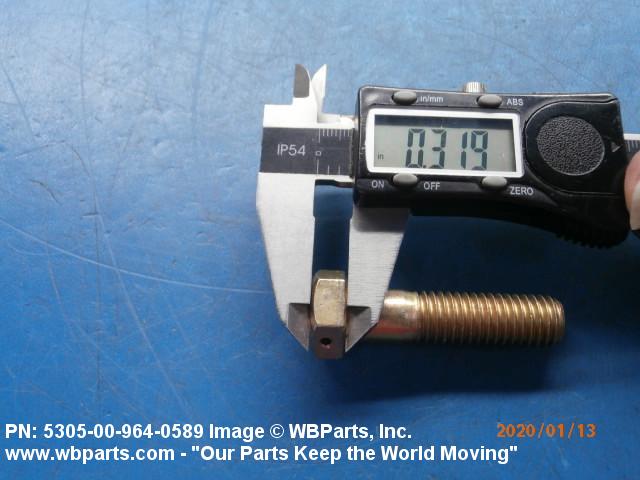

| HEAD HEIGHT | 0.302 INCHES MINIMUM AND 0.323 INCHES MAXIMUM |

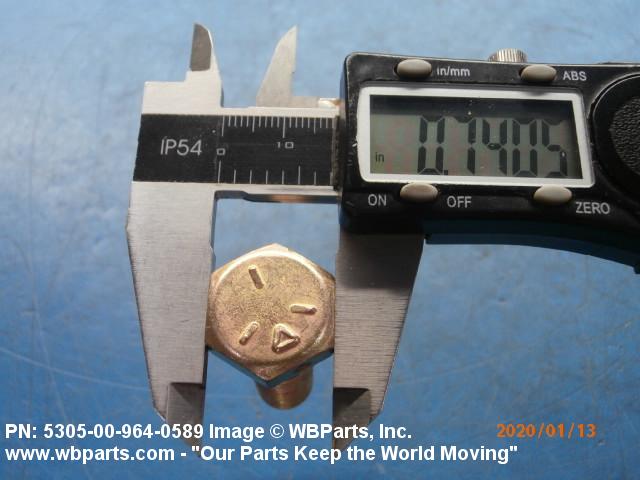

| WIDTH BETWEEN FLATS | 0.736 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |

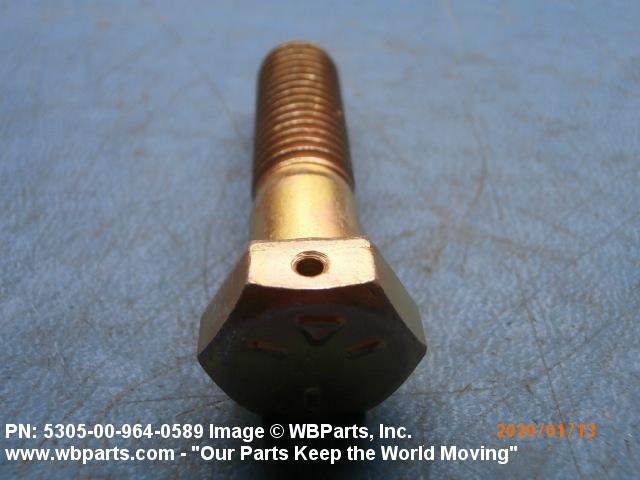

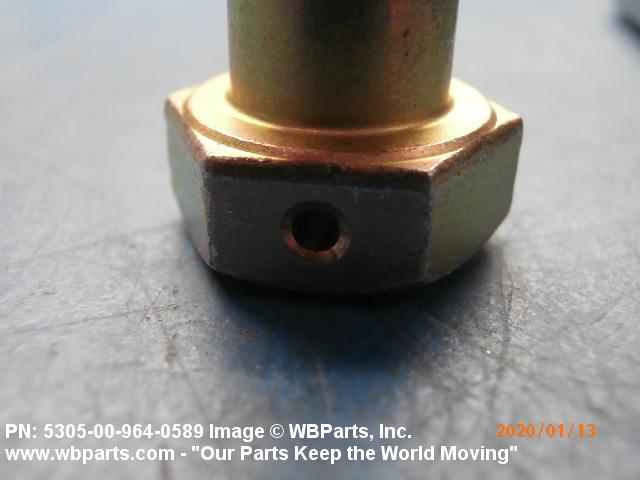

| HOLE CONFIGURATION STYLE | E6 HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |

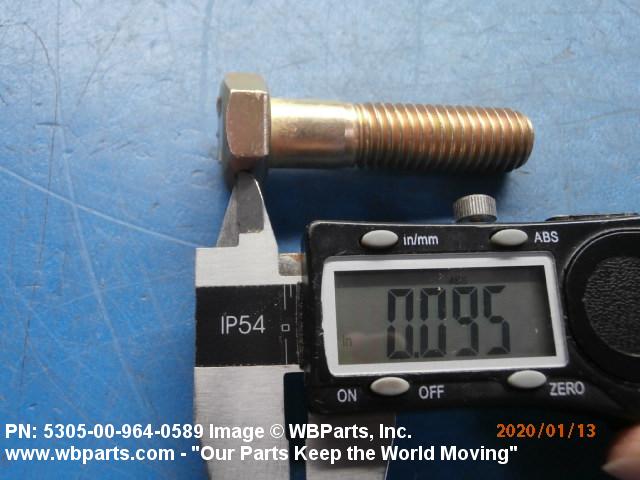

| HOLE DIAMETER | 0.094 INCHES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES THREADS |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 10P STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-85 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51095-416 |
Restrictions/Controls & Freight Information | NSN 5305-00-964-0589
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
