NSN 5305-00-974-6627 NAS1352C04H10, 00-974-6627, 009746627

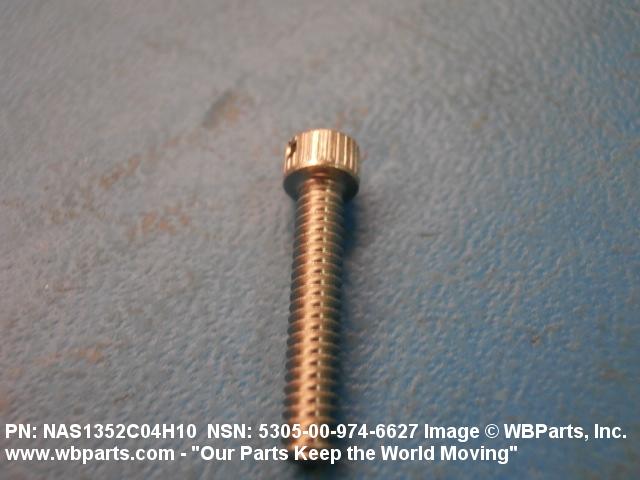

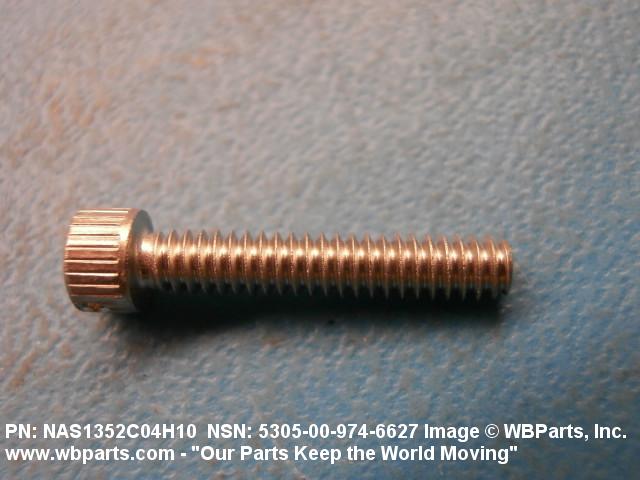

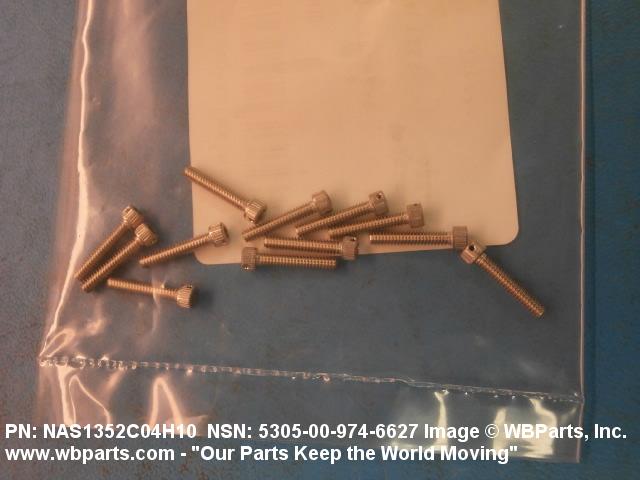

Product Details | SOCKET HEAD CAP SCREW
5305-00-974-6627 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1352C04H10, 5305-00-974-6627, 00-974-6627, 5305009746627, 009746627
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 OCT 1966 | 00-974-6627 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-00-974-6627
Demand History | NSN 5305-00-974-6627
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1352C04H10 | 2014-05-140 | 12 | United States |
Cross Reference | NSN 5305-00-974-6627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1352C04H10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-974-6627
Technical Data | NSN 5305-00-974-6627
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

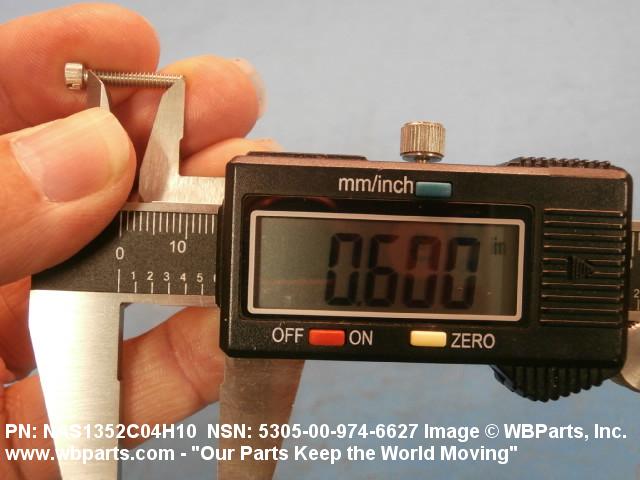

| THREAD LENGTH | 0.575 INCHES MINIMUM |

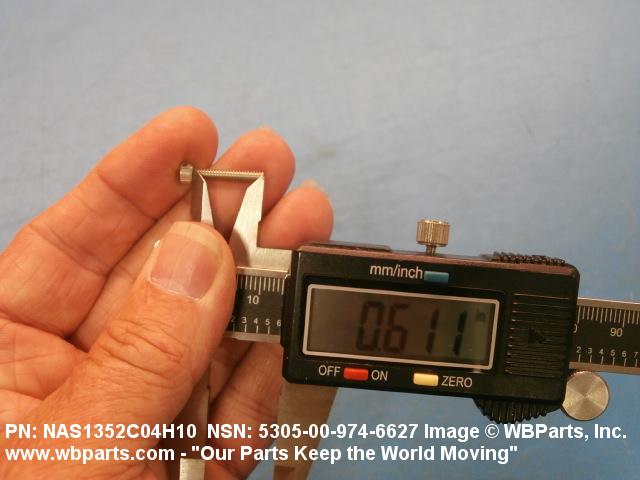

| FASTENER LENGTH | 0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 80.0 ROCKWELL B MINIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 30000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

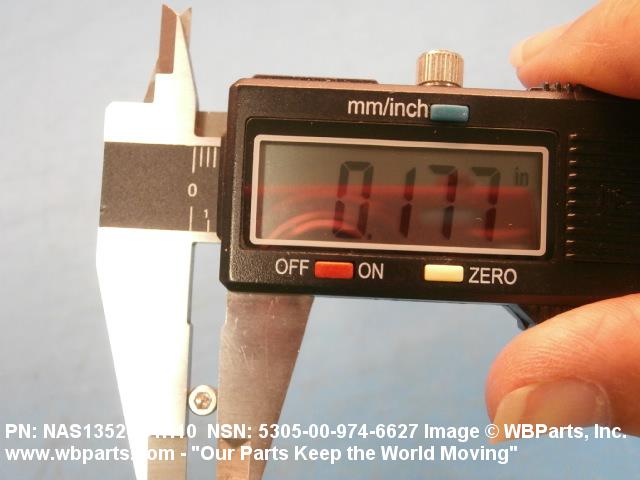

| HEAD DIAMETER | 0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |

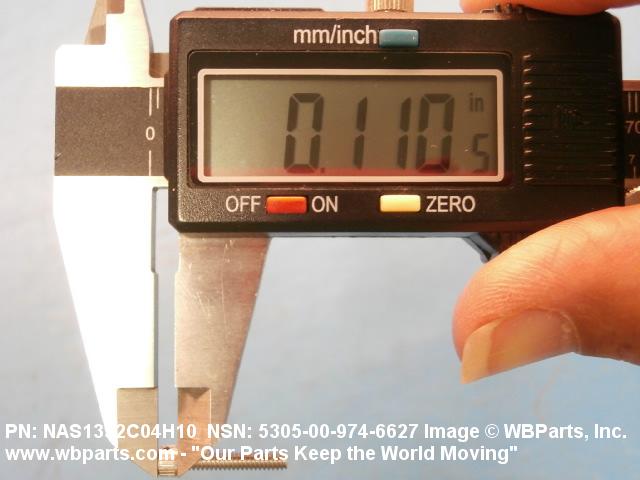

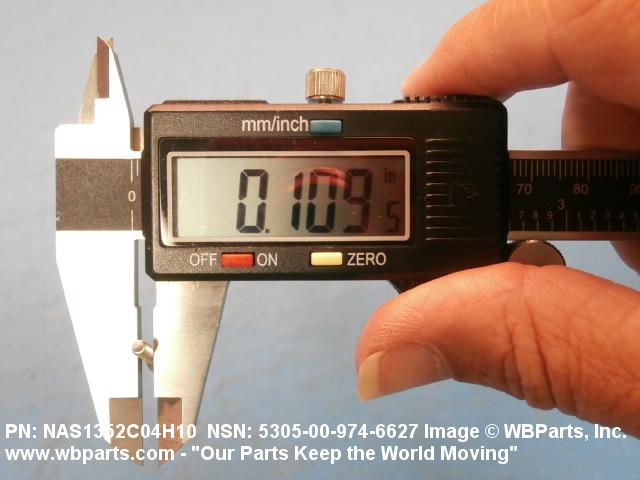

| HEAD HEIGHT | 0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |

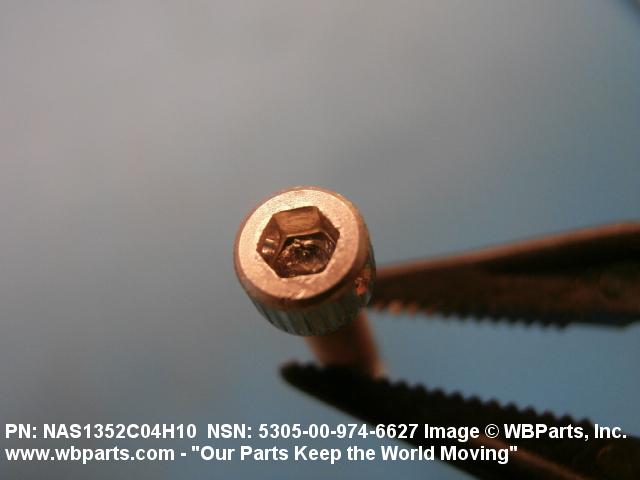

| INTERNAL DRIVE STYLE | D5 HEXAGON |

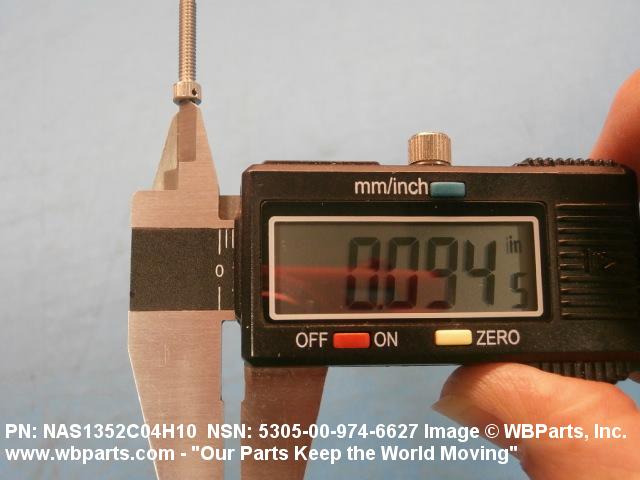

| WIDTH ACROSS FLATS | 0.094 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |

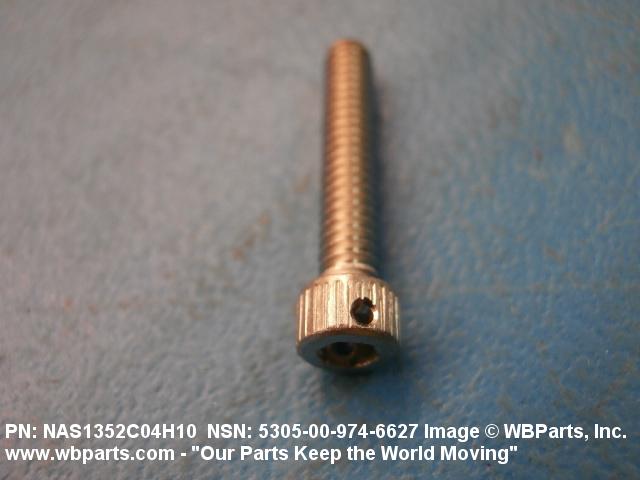

| HOLE CONFIGURATION STYLE | E12 ROUND LONGITUDINAL HOLE |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 0.036 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 6 TYPE |
