Product Details | SOCKET HEAD CAP SCREW
5305-00-983-6654 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS1699831, MS16998-31, NAS1351-3LE16P/EXCLUDING PEL, NAS13513LE16PEXCLUDINGPEL, 6300766-31, 87077300, 870773-00, 0774416, 07744-16, 10042, 1756471, 5305-00-983-6654, 00-983-6654, 5305009836654, 009836654, 630076631
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-983-6654 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

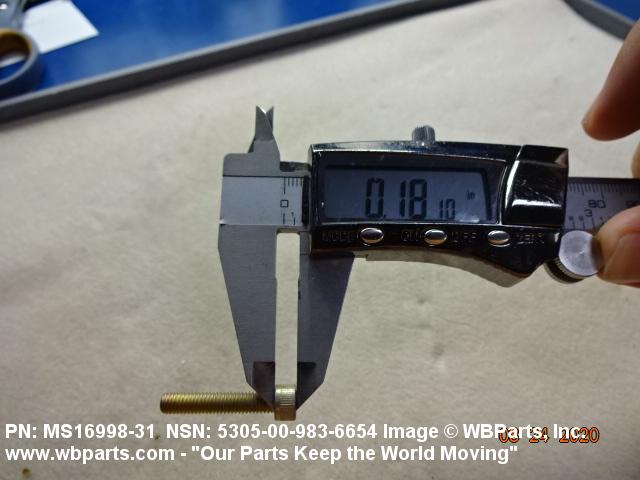

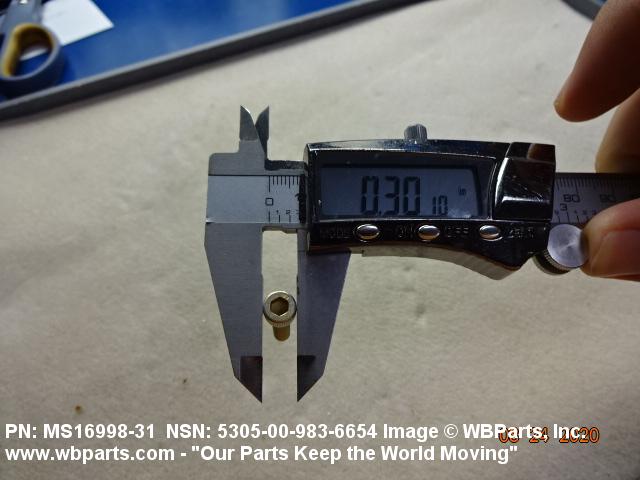

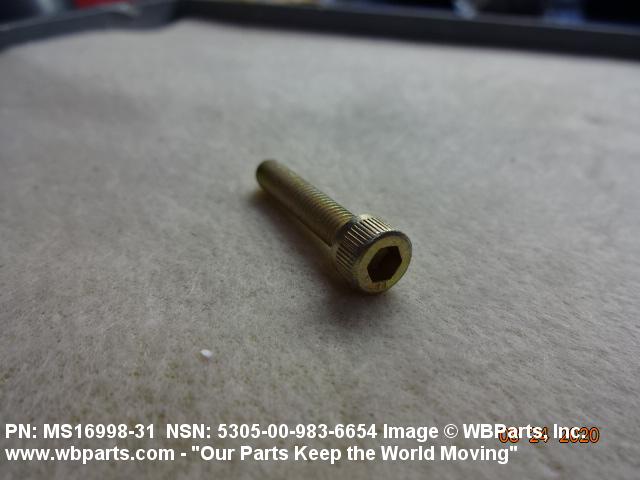

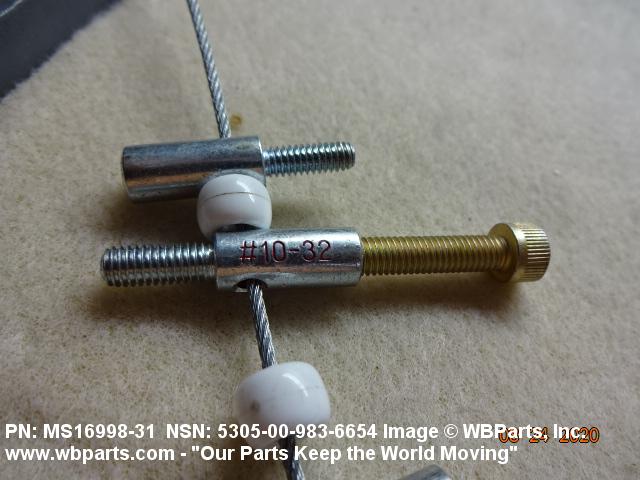

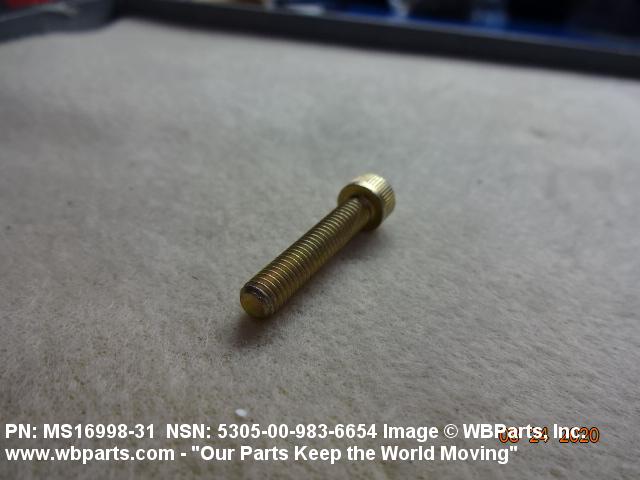

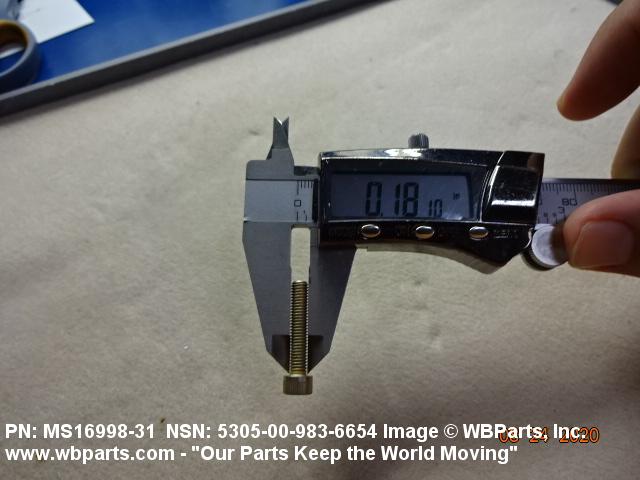

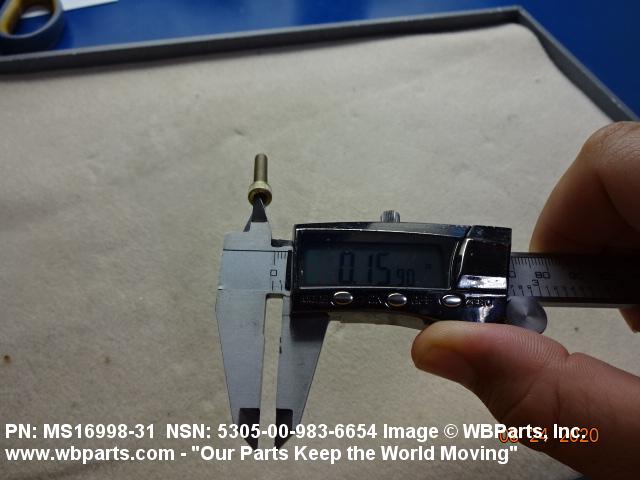

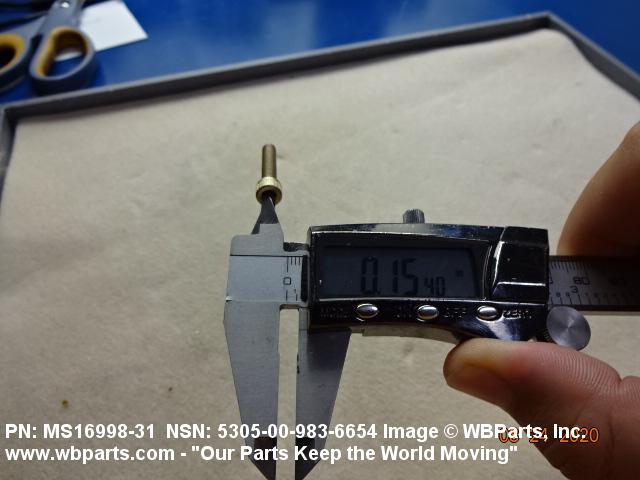

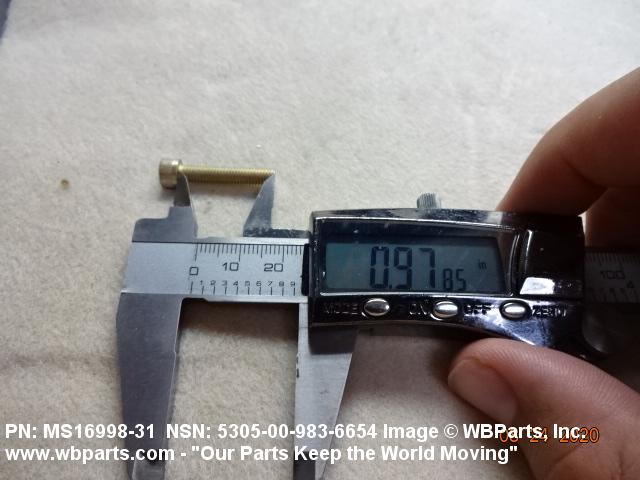

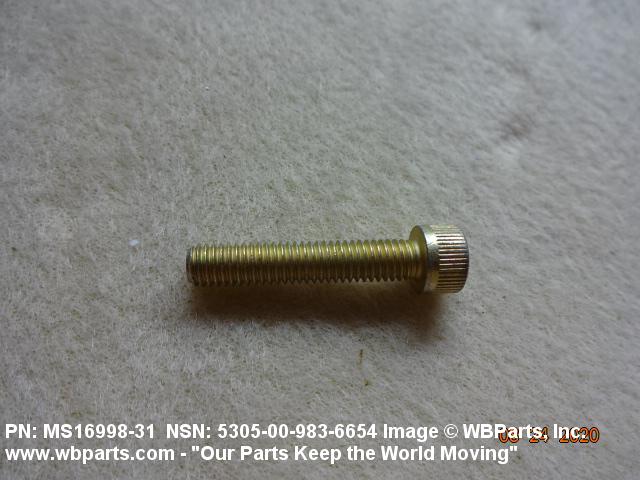

Drawings & Photos | NSN 5305-00-983-6654
Demand History | NSN 5305-00-983-6654
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1699831 | 2024-03-25 | 2 | United States |
| 5305-00-983-6654 | 2020-04-23 | 1 | DIBBS-RFPs |
| MS1699831 | 2019-11-12 | 3 | US |
| 5305-00-983-6654 | 2018-02-28 | 250 | US |
| 5305-00-983-6654 | 2017-04-18 | 1 | DIBBS-RFPs |
| MS1699831 | 2016-11-09 | 1 | Italy |
| MS1699831 | 2011-04-19 | 6 | us |
| MS16998-31 | 2011-04-05 | 96 | United States |
| MS16998-31 | 2011-04-05 | 128 | United States |
| MS16998-31 | 2011-04-05 | 224 | United States |
| MS1699831 | 2010-06-23 | 60 | Sri Lanka |
| MS1699831 | 2008-08-11 | 3235 | US |
| MS1699831 | 2007-12-28 | 20 | us |
| MS1699831 | 2007-12-21 | 10 | Lithuania |
Cross Reference | NSN 5305-00-983-6654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 07744-16 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 10042 | 82423 | KLEINSCHMIDT INC |
| 1756471 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 6300766-31 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 870773-00 | 32345 | DEFENSE REDUCTION AGENCY |
| MS16998-31 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS1351-3LE16P/EXCLUDING PEL | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-00-983-6654
Related Products | NSN 5305-00-983-6654
5305-00-983-6655, 5305-00-983-6656, 5305-00-983-6657, 5305-00-983-6658, 5305-00-983-6659
Technical Data | NSN 5305-00-983-6654
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.969 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| FASTENER LENGTH | 0.969 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 130000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| HEAD HEIGHT | 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.156 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| SPECIAL FEATURES | WITH PATCH OR STRIP TYPE LOCKING ELEMENT |
Restrictions/Controls & Freight Information | NSN 5305-00-983-6654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057760 | BINOCULARS/FIELD GLASSES ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-983-6654
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
