NSN 5305-00-983-7448 MS1699874, MS16998-74, NAS13516LL16P
Product Details | SOCKET HEAD CAP SCREW
5305-00-983-7448 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS1699874, MS16998-74, NAS13516LL16P, NAS1351-6LL16P, XX0020287, XX002-0287, 41816774, 418167-74, 62A610H, 62A6-10H, 5305-00-983-7448, 00-983-7448, 5305009837448, 009837448
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-983-7448 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

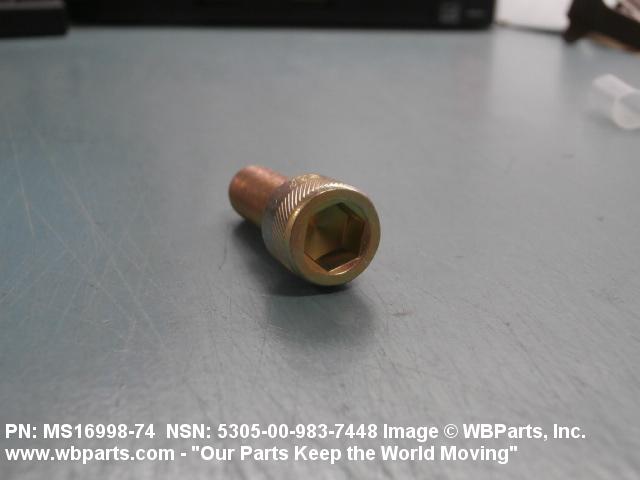

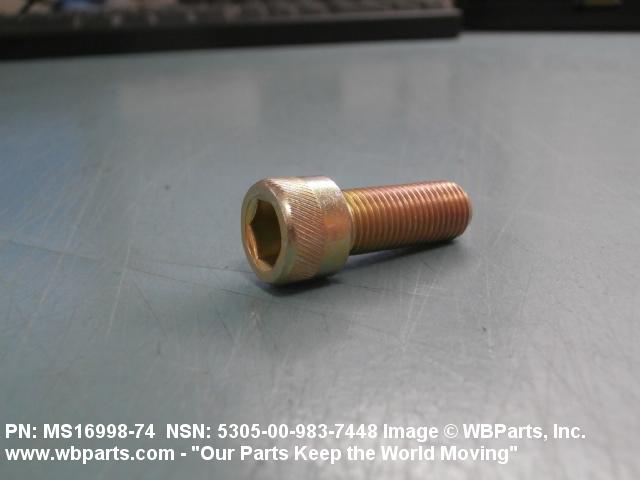

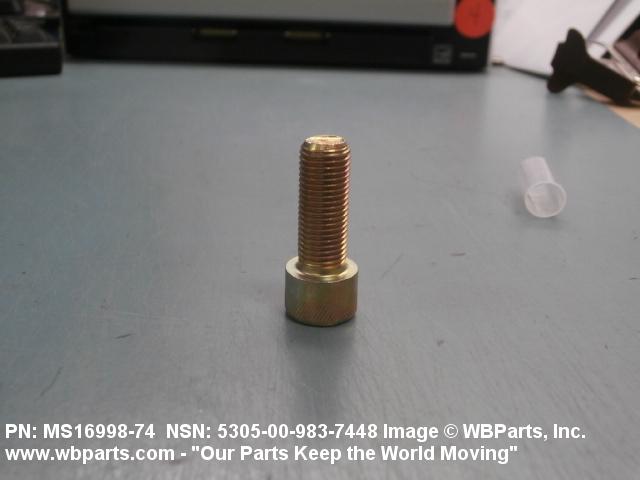

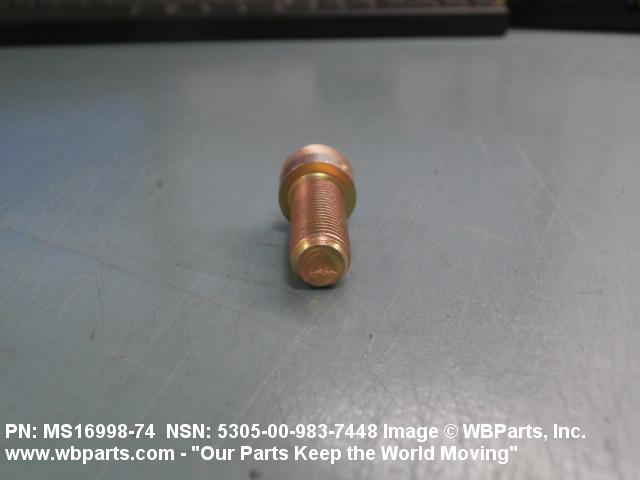

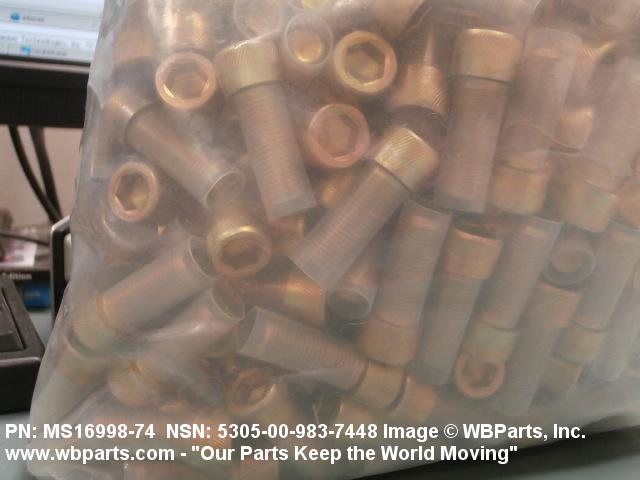

Drawings & Photos | NSN 5305-00-983-7448
Demand History | NSN 5305-00-983-7448
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS13516LL16P | 2025-05-147 | 240 | United States |
| MS1699874 | 2023-11-332 | 100 | TW |
| 5305-00-983-7448 | 2021-05-138 | 5 | US |
| 5305-00-983-7448 | 2014-03-65 | 400 | United States |
| MS1699874 | 2012-04-101 | 40 | US |
| MS1699874 | 2011-04-96 | 1800 | Taiwan |
| 5305-00-983-7448 | 2009-03-69 | 10 | US |
| 5305-00-983-7448 | 2008-02-46 | 1200 | Taiwan |
Cross Reference | NSN 5305-00-983-7448
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 418167-74 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5305009837448 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 62A6-10H | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS16998-74 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS1351-6LL16P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| XX002-0287 | H2229 | RDM TECHNOLOGY B.V. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-983-7448
Technical Data | NSN 5305-00-983-7448
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

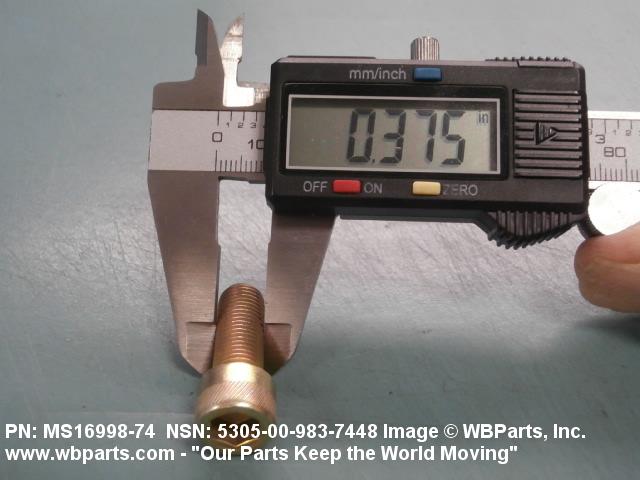

| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.969 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| FASTENER LENGTH | 0.969 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 130000 POUNDS PER SQUARE INCH |

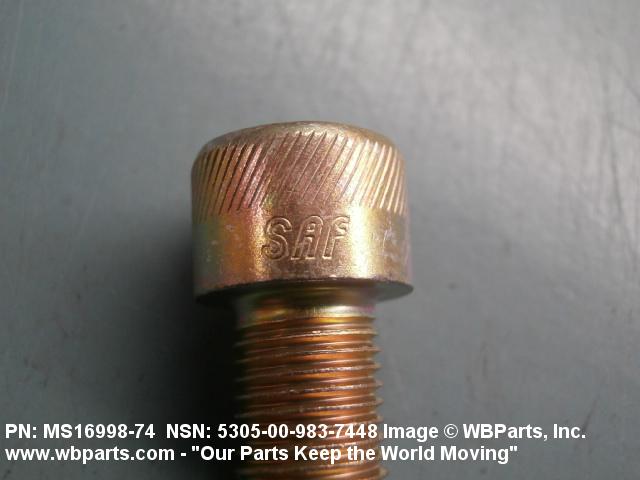

| HEAD STYLE | C49 FLAT CHAMFER |

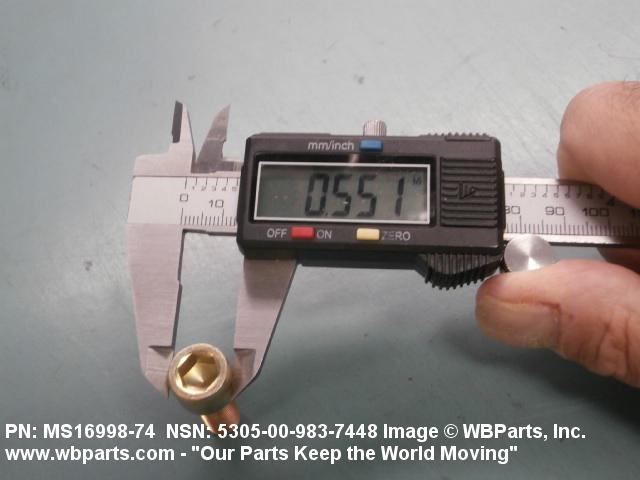

| HEAD DIAMETER | 0.550 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |

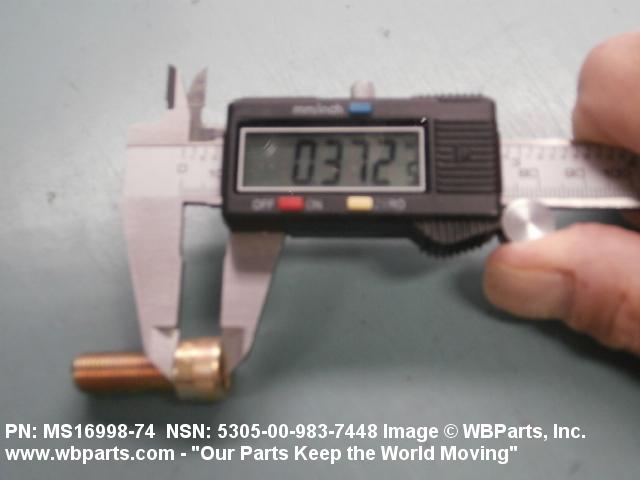

| HEAD HEIGHT | 0.368 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

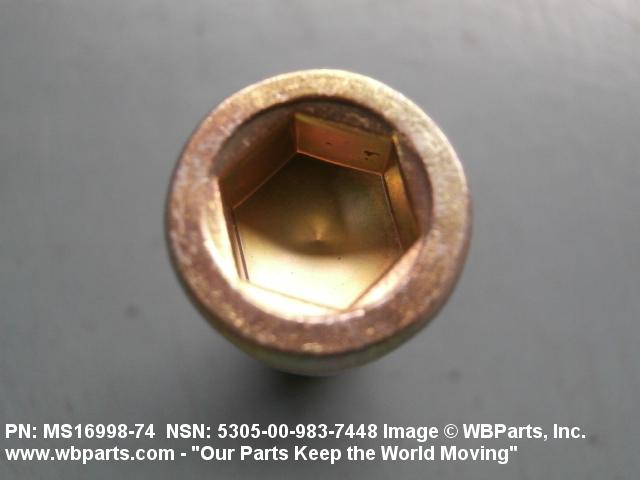

| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.312 INCHES MINIMUM AND 0.316 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16998-74 |
Restrictions/Controls & Freight Information | NSN 5305-00-983-7448
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
