NSN 5305-00-984-4993 MS2458430, MS24584-30, MS35206233
Product Details | MACHINE SCREW
5305-00-984-4993 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS2458430, MS24584-30, MS35206233, MS35206-233, MS3520630, MS35206-30, MS3522133, MS35221-33, AN5156R13, AN515-6R13, AN526632R14, AN526-632R14, D76701K, MILR551821, MILR55182-1 , RNC55J5972BP , RNC55J5972BS, 19049, 19049ADX, 804127, 80412700, 804127-00, 8221035, 822-1035, 935.63.11.046, 9356311046, 5305-00-984-4993, 00-984-4993, 5305009844993, 009844993
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-984-4993 | 06657 ( SCREW, MACHINE ) |

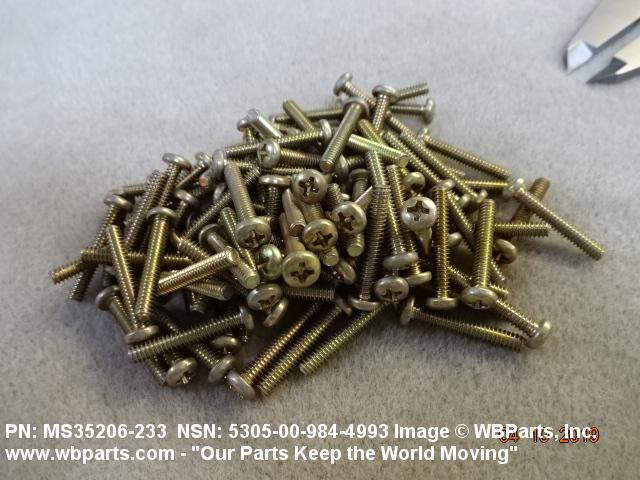

Drawings & Photos | NSN 5305-00-984-4993
Demand History | NSN 5305-00-984-4993
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS35206233 | 2025-11-322 | 50 | us |
| 19049 | 2024-11-327 | 2 | United States |
| 5305-00-984-4993 | 2023-07-193 | 3 | Germany |
| 5305-00-984-4993 | 2023-07-192 | 10 | US |
| 5305-00-984-4993 | 2023-07-192 | 50 | US |
| 5305-00-984-4993 | 2023-07-192 | 50 | US |
| 5305-00-984-4993 | 2018-08-236 | 100 | Singapore |
| MS35206233 | 2016-10-301 | 90 | IN |
| MS35206233 | 2016-10-301 | 90 | IN |
| MS35206233 | 2016-07-203 | 50 | Thailand |
| MS35206233 | 2015-06-161 | 1 | IN |
| MS35206233 | 2015-04-118 | 43 | United States |
| MS35206233 | 2014-10-302 | 1 | IN |
| MS35206-233 | 2014-07-210 | 23 | India |
| MS35206233 | 2011-02-47 | 500 | US |
| MS35206233 | 2011-01-20 | 600 | United States |
| AN526632R14 | 2009-05-138 | 480 | China |
Cross Reference | NSN 5305-00-984-4993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19049 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 19049ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 5305009844993 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 804127 | 19203 | PICATINNY ARSENAL |
| 804127-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 822-1035 | 44940 | CUMMINS POWER GENERATION INC. |
| 935.63.11.046 | S4080 | PILATUS AIRCRAFT LTD |
| AN515-6R13 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN526-632R14 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| D76701K | 04773 | GTE COMMUNICATION SYSTEMS CORP |
| MS24584-30 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35206-233 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35206-30 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35221-33 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-984-4993
Technical Data | NSN 5305-00-984-4993
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

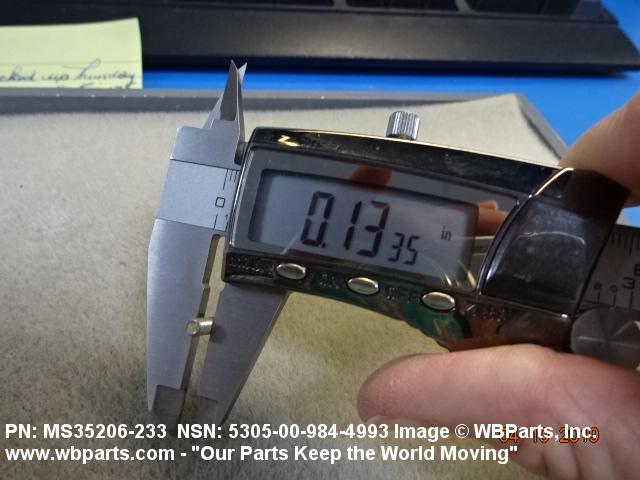

| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

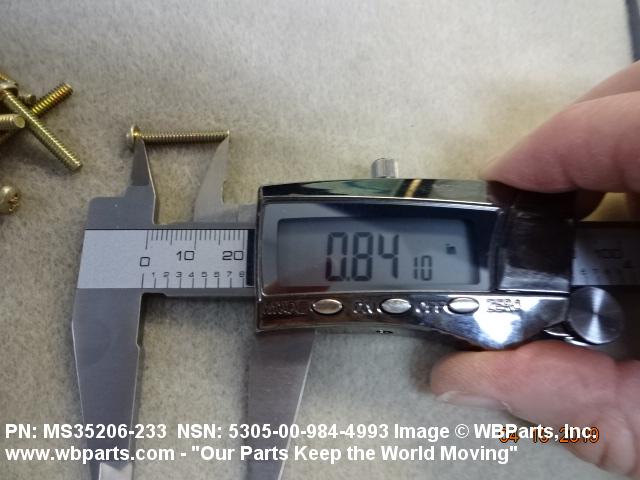

| THREAD LENGTH | 0.813 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |

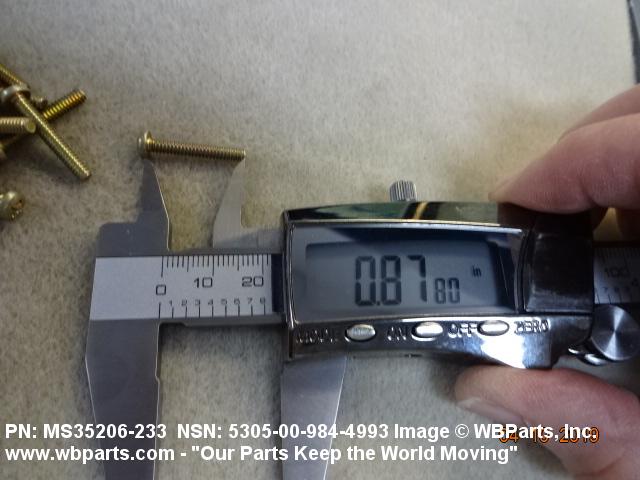

| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |

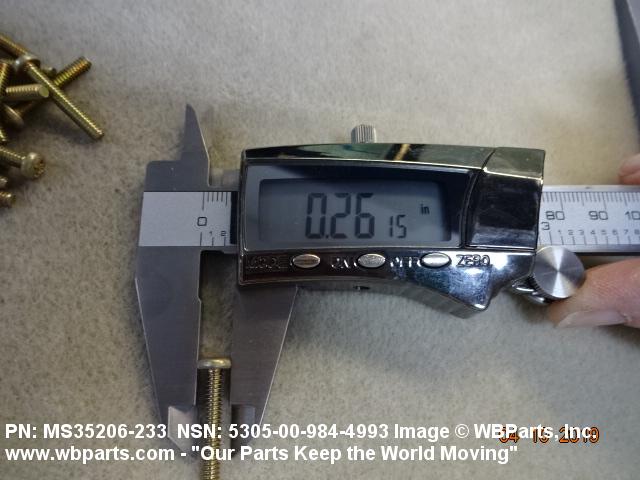

| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |

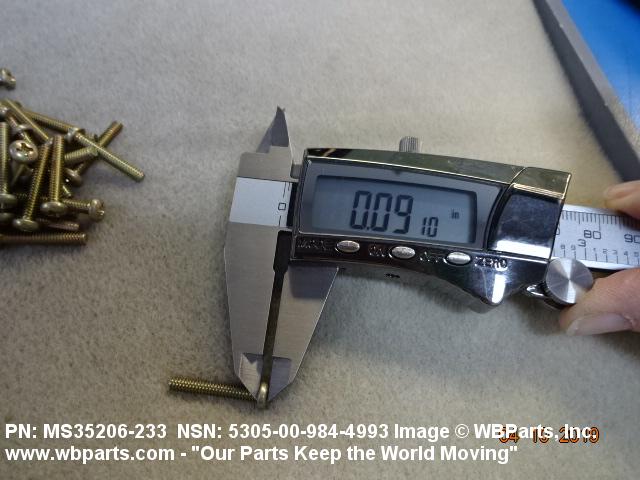

| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35206-233 |
Restrictions/Controls & Freight Information | NSN 5305-00-984-4993
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5305-00-984-4993
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
