NSN 5305-00-984-6211 MS35206264, MS35206-264, MS35206264Z
Product Details | MACHINE SCREW
5305-00-984-6211 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS35206264, MS35206-264, MS35206264Z, MS35206-264Z, MS5206, NASM35206, ASME B18.6.3, ASMEB1863, B18.6.3, B1863, FFS92, FF-S-92, FF-S-92 TY3ST9C, FFS92TY3ST9C, 0708615, 1503670, 4177200117, 4177200-117, 4177205-35, 509186, 62005, 6614929, 7111100510, 7-111-100510, 740299-360, 5305-00-984-6211, 00-984-6211, 5305009846211, 009846211, 417720535, 740299360
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-984-6211 | 06657 ( SCREW, MACHINE ) |

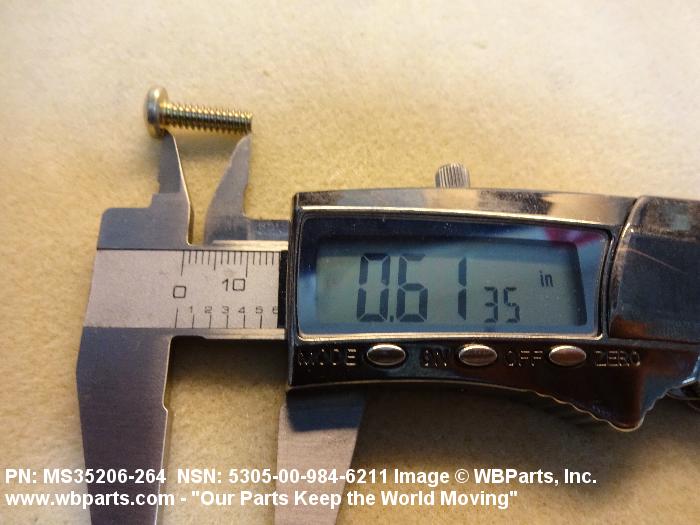

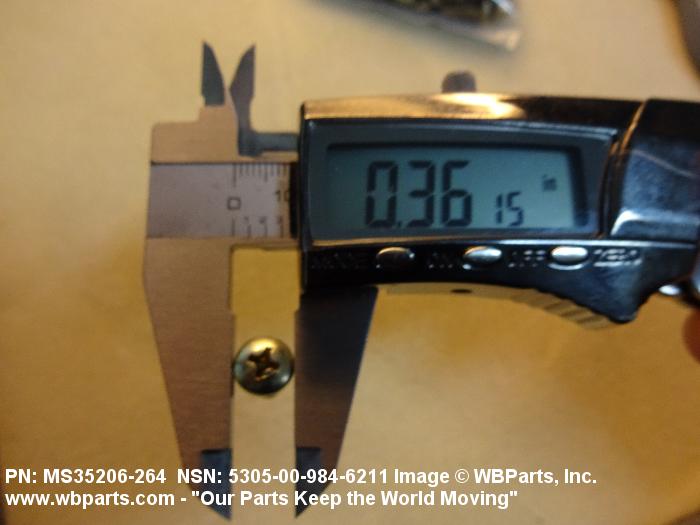

Drawings & Photos | NSN 5305-00-984-6211
Demand History | NSN 5305-00-984-6211
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFS92 | 2023-08-236 | 14 | US |
| 5305-00-984-6211 | 2020-06-182 | 328 | MANUAL |
| 5305-00-984-6211 | 2017-06-171 | 200 | United States |
| 5305-00-984-6211 | 2016-08-223 | 100 | United States |
| MS35206264 | 2015-08-234 | 1 | Pakistan |
| MS35206264 | 2015-08-226 | 210 | South Korea |
| MS35206-264 | 2014-03-71 | 713 | United States |
| FF-S-92 | 2014-02-59 | 75 | United States |
| 5305-00-984-6211 | 2014-02-36 | 52 | MANUAL |
| FF-S-92 TY3ST9C | 2014-02-36 | 52 | US |
| MS35206-264 | 2012-11-310 | 50 | |
| MS35206264 | 2012-10-303 | 300 | United States |
| 5305-00-984-6211 | 2011-05-137 | 6 | Italy |
| 5305-00-984-6211 | 2011-05-137 | 100 | Italy |
| FFS92 | 2011-02-49 | 5 | US |
| FFS92 | 2011-02-49 | 50 | US |
| FFS92 | 2010-11-323 | 165 | US |
| FFS92 | 2009-12-338 | 100 | US |
| FFS92 | 2009-10-292 | 50 | United States |
| NASM35206 | 2009-06-174 | 1624 | US |
| ASMEB1863 | 2008-05-129 | 20 | US |
| FFS92 | 2008-03-80 | 50 | United States |
| MS35206264 | 2007-08-218 | 150 | IL |
Cross Reference | NSN 5305-00-984-6211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0708615 | S3002 | GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH |
| 1503670 | 45152 | OSHKOSH CORPORATION |
| 1503670 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 303856 | H0G87 | WIBA ZEVENAAR B.V. |
| 4177200-117 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4177205-35 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4177205-35 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 509186 | 01014 | AVTRON AEROSPACE, INC. |
| 5305009846211 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5305PL0726479 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 62005 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| 62005 | 90598 | ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS |
| 6614929 | S3421 | VOLVO CONSTRUCTION EQUIPMENT AB |
| 7-111-100510 | 12361 | GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP |
| 740299-360 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| ASME B18.6.3 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B18.6.3 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| FF-S-92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| FF-S-92 TY3ST9C | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MS35206-264 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35206-264 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35206-264Z | 3S2P2 | QUEST COMPONENTS, INC. |
| MS35206-264Z | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35206-264Z | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS5206 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM35206 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-984-6211
Technical Data | NSN 5305-00-984-6211
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES MINIMUM |
| FASTENER LENGTH | 0.625 INCHES NOMINAL |
| SCREW MATERIAL | STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633 FED SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM OR ZINC |
| MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |
| HEAD DIAMETER | 0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| HEAD HEIGHT | 0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-92 |
Restrictions/Controls & Freight Information | NSN 5305-00-984-6211
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-984-6211
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
