NSN 5305-00-984-6221 MS2458431, MS24584-31, MS35206234
Product Details | MACHINE SCREW
5305-00-984-6221 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS2458431, MS24584-31, MS35206234, MS35206-234, MS35225234, MS35225-234, N80P13016C6, N80P9016C6, A2238, AN515616, AN515-6-16, AN5156R16, AN515-6R16, BM113522410, BM11352-24-10, FFS92TYPE1STYLE1S, 1881900414, 19050, 19050ADX, 2417114, 4040, 415 514, 415514, 4177200-95, 55020634, 55-0206-34, 65564493234, 655-644-93234, 8221036, 822-1036, 852754, 5305-00-984-6221, 00-984-6221, 5305009846221, 009846221, 417720095
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-984-6221 | 06657 ( SCREW, MACHINE ) |

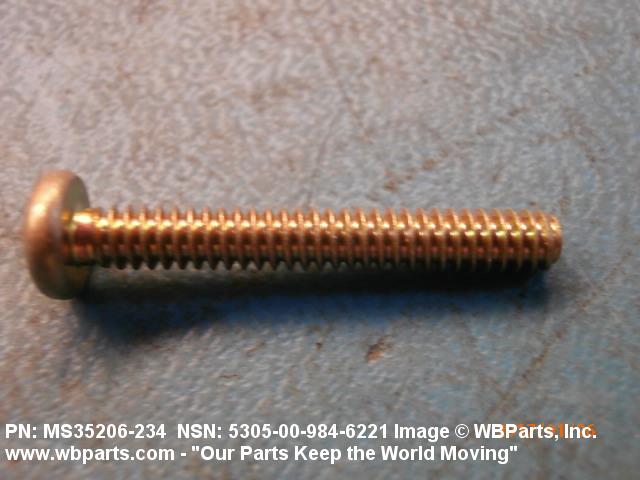

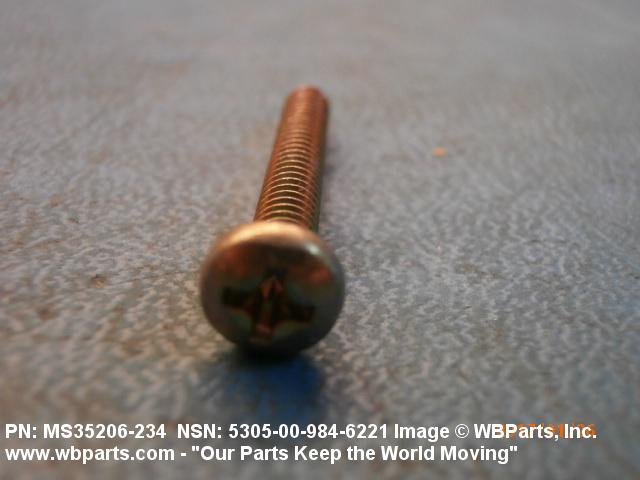

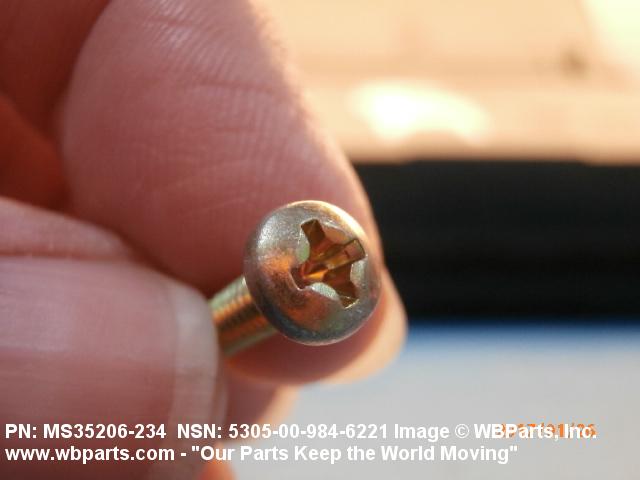

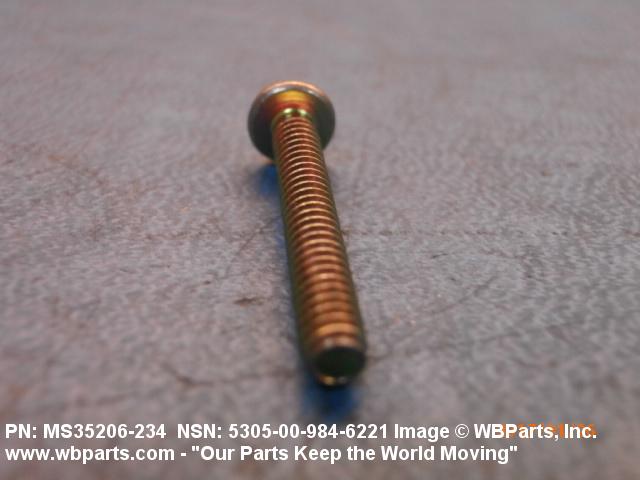

Drawings & Photos | NSN 5305-00-984-6221
Demand History | NSN 5305-00-984-6221
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-984-6221 | 2020-02-56 | 50 | US |
| 5305-00-984-6221 | 2019-08-233 | 268 | DIBBS |
| 5305-00-984-6221 | 2018-11-305 | 258 | DIBBS |
| MS35206234 | 2018-01-31 | 16 | United States |
| 5305-00-984-6221 | 2018-01-15 | 360 | DIBBS |
| 5305-00-984-6221 | 2018-01-09 | 292 | DIBBS |
| MS35206234 | 2017-01-24 | 100 | United States |
| MS35206-234 | 2012-11-310 | 50 | |
| 5305-00-984-6221 | 2011-01-06 | 11 | FR |
| 4040 | 2010-12-341 | 15 | India |
Cross Reference | NSN 5305-00-984-6221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1881900414 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 19050 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 19050ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 4040 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 415 514 | 77294 | PIPER AIRCRAFT INC. |
| 4177200-95 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5305009846221 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 55-0206-34 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 655-644-93234 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 822-1036 | 44940 | CUMMINS POWER GENERATION INC. |
| 852754 | 19203 | PICATINNY ARSENAL |
| 900060-014 | K5294 | GE AVIATION SYSTEMS LTD |
| A2238 | 51403 | BENMAR HEATER DIV STACEE MFG INC |
| AN515-6-16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN515-6R16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| BM11352-24-10 | 19422 | DEMARKUS CORP REFRIGERATION ENGINEERING CORP |
| FFS92TYPE1STYLE1S | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24584-31 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35206-234 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35225-234 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N80P13016C6 | 24446 | GENERAL ELECTRIC CO |
| N80P9016C6 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| N80P9016C6 | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-984-6221
Technical Data | NSN 5305-00-984-6221
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

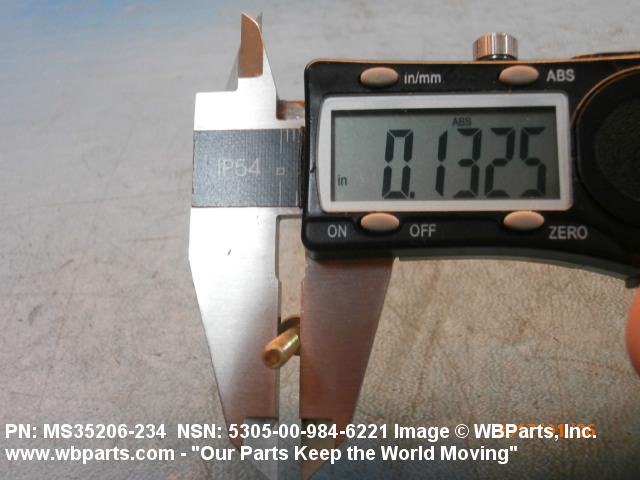

| NOMINAL THREAD DIAMETER | 0.138 INCHES |

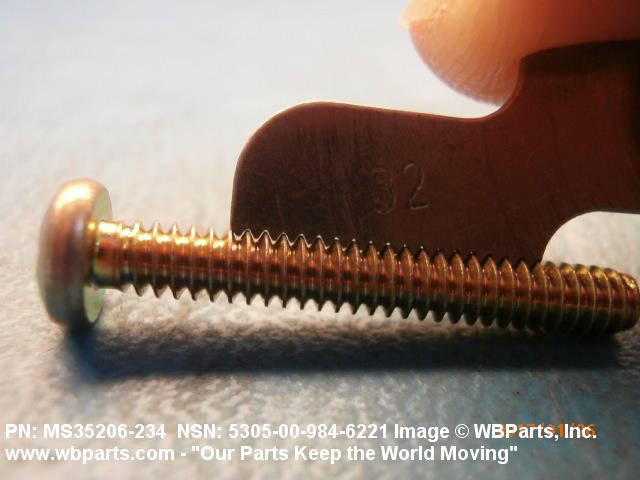

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

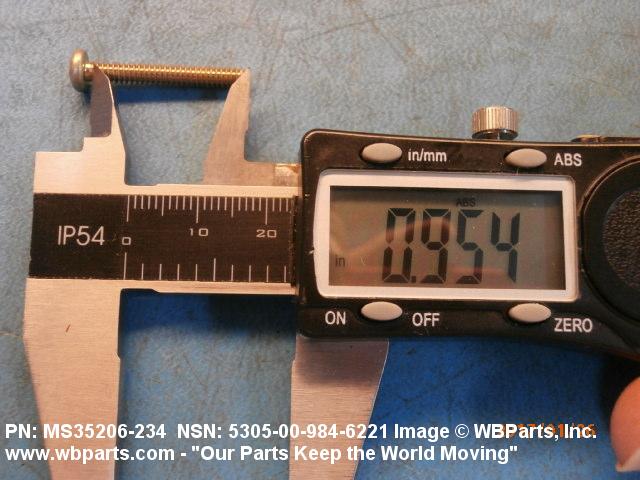

| THREAD LENGTH | 0.938 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |

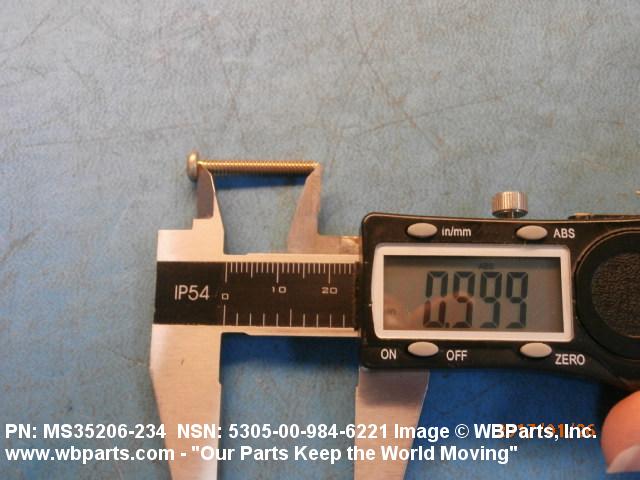

| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |

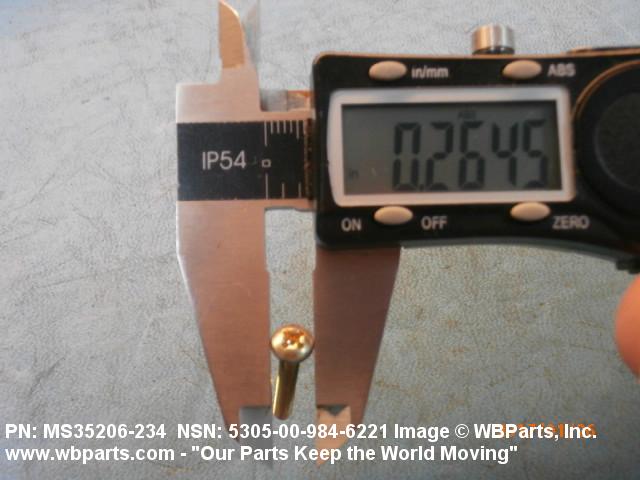

| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |

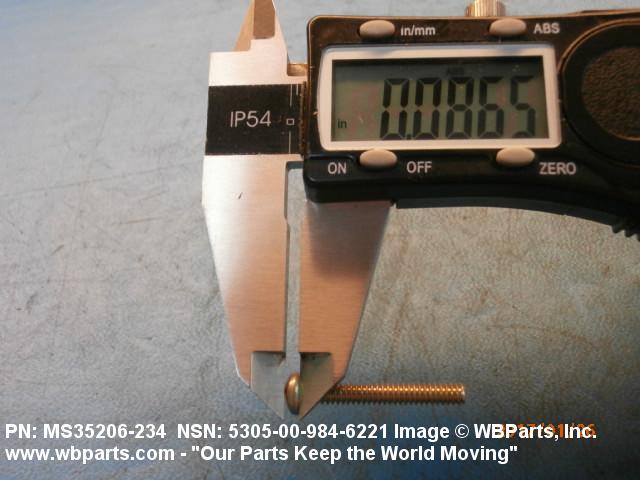

| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |

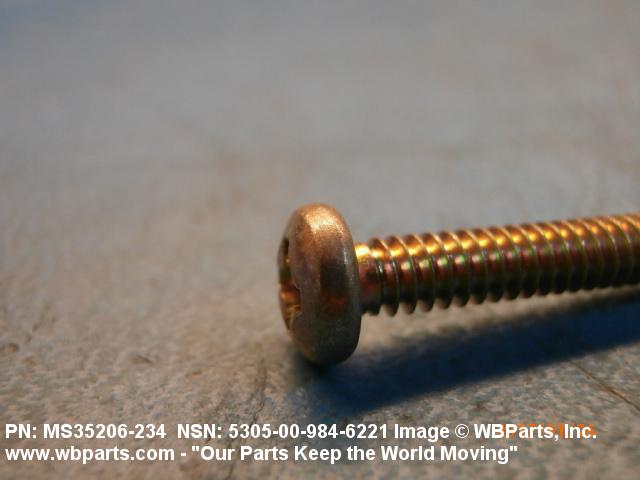

| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92TYPE1STYLE1S |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35206-234 |
Restrictions/Controls & Freight Information | NSN 5305-00-984-6221
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
