Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-00-985-3674 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: SMB546962, 0-1016-0001, 100010160001, 1000-1016-0001, 2994648-26, 610074P15, 6235SS0632, 6235-SS-0632, 6235SS06327, 6235SS0632-7, 71011683001, 9333C000226, 9333C0002-26, 5305-00-985-3674, 00-985-3674, 5305009853674, 010160001, 299464826, 009853674
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1966 | 00-985-3674 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |

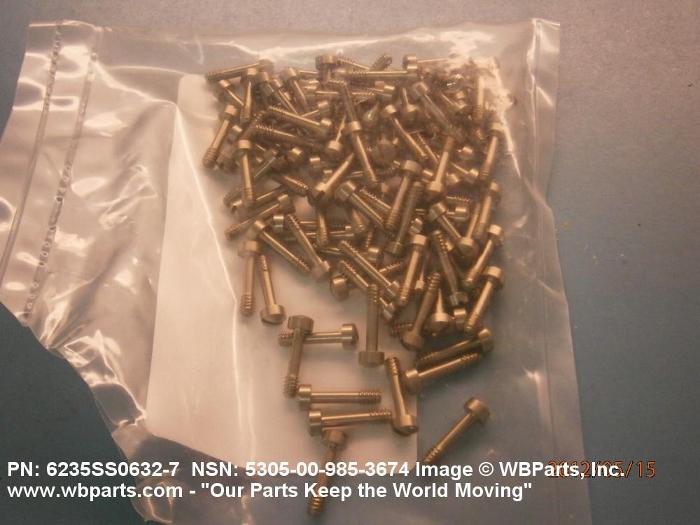

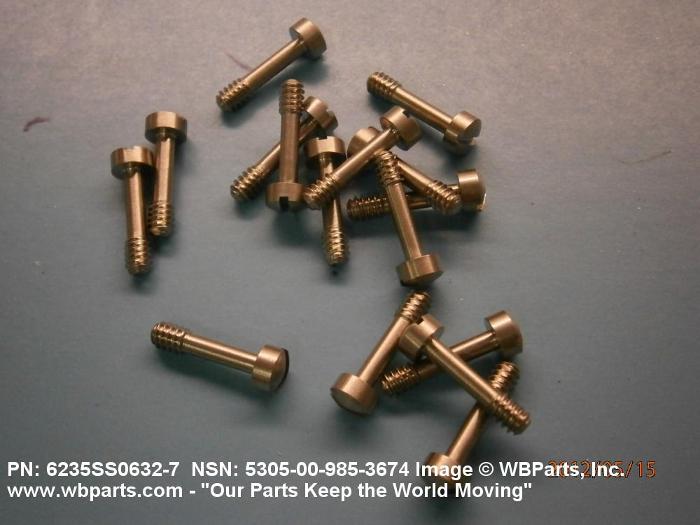

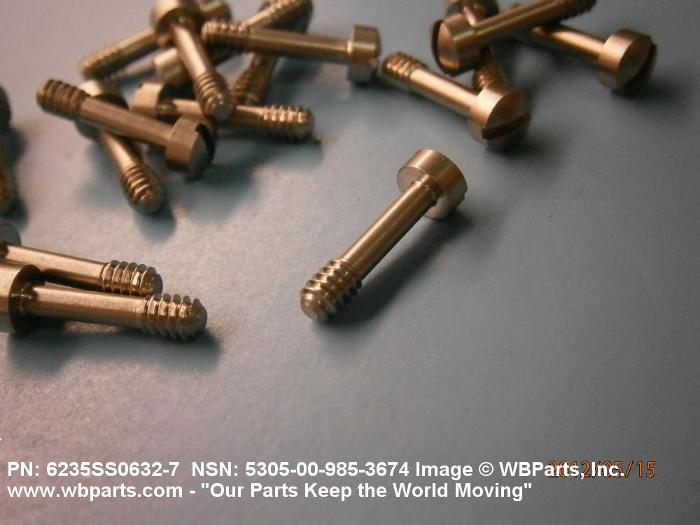

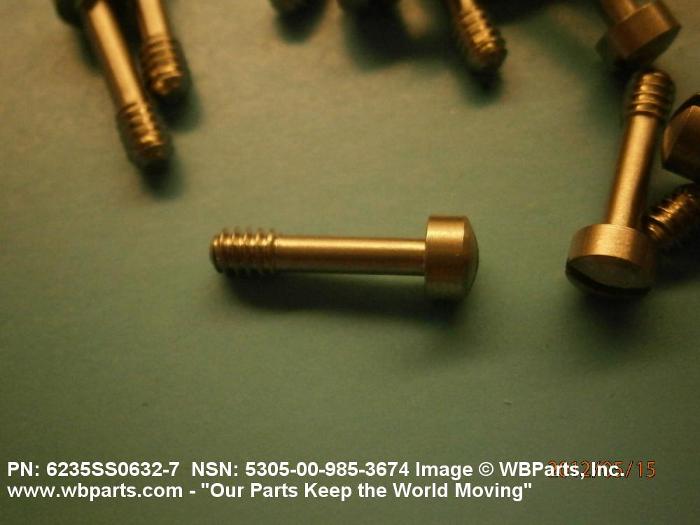

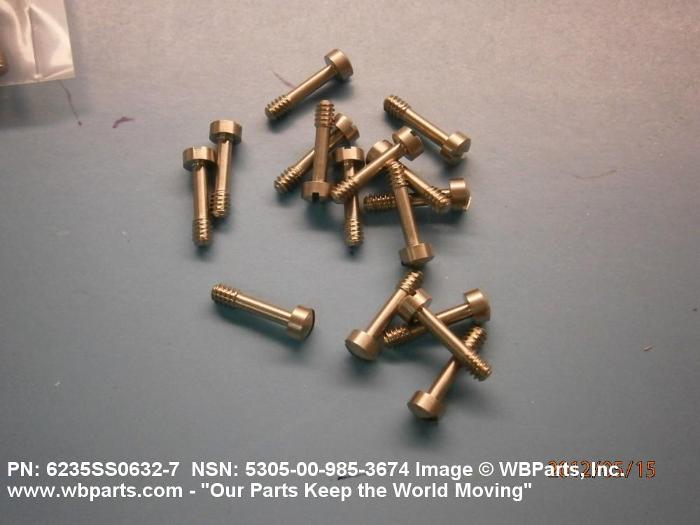

Drawings & Photos | NSN 5305-00-985-3674
Demand History | NSN 5305-00-985-3674
Cross Reference | NSN 5305-00-985-3674
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0-1016-0001 | 28100 | ALLISON MFG CO DIV OF BEATRICE FOODS |
| 1000-1016-0001 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION |
| 2994648-26 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 610074P15 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 6235-SS-0632 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 6235SS0632 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 6235SS0632 | 1YGB8 | CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE |
| 6235SS0632-7 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 6235SS0632-7 | 1YGB8 | CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE |
| 71011683001 | 89944 | KOLLSMAN, INC. |
| 9333C0002-26 | 87557 | LOCKHEED CORP LOCKHEED ELECTRONICS CO INC |
| 9333C0002-26 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| SMB546962 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5305-00-985-3674
5305-00-985-3771, 5305-00-985-3995, 5305-00-985-4172, 5305-00-985-4189, 5305-00-985-4190
Technical Data | NSN 5305-00-985-3674
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.188 INCHES MINIMUM |
| FASTENER LENGTH | 0.534 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | C44 FILLISTER |
| HEAD DIAMETER | 0.208 INCHES MINIMUM AND 0.226 INCHES MAXIMUM |
| HEAD HEIGHT | 0.086 INCHES MINIMUM AND 0.096 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D14 SLOT |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| FIRST DIAMETER FROM HEAD | 0.090 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.335 INCHES MINIMUM AND 0.355 INCHES MAXIMUM |
| MANUFACTURERS CODE | 1YGB8 |
| DESIGN CONTROL REFERENCE | 6235SS0632 |
Restrictions/Controls & Freight Information | NSN 5305-00-985-3674
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-985-3674
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
