NSN 5305-00-988-7602 MS1699526, MS16995-26, MS354612

Product Details | SOCKET HEAD CAP SCREW

5305-00-988-7602 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699526, MS16995-26, MS354612, MS35461-2, NAS1352C088, NAS1352C08-8, NAS608C8328, NAS608C832-8, NDN846205ND22, NDN8462-05ND22, A20400808, A20400-808, AJD0808G, ASC1536813, HC8328SSP, HC-832-8-SS-P, HP933R16832, HP933R16-832 , G39580625, G395806-25, VA970177026, VA-97-0177-026, 8-32X1/2, 832X12, 003007868026, 003-007868-026, 5M.3014.220.91, 5M301422091, 714-014/006, 115351-110, 18080987, 1808098-7, 2000218, 200021-8, 2009898C8, 20098-98C8, 213039PC389, 352250012805, 41760866, 4176086-6, 10050150069, 1005-0150-069, 10114787 , 418132-808, 41826226, 418262-26, 5305-00-988-7602, 00-988-7602, 5305009887602 , 115351110, 418132808, 009887602, 714014006

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-988-7602	16282 ( SCREW, CAP, SOCKET HEAD )

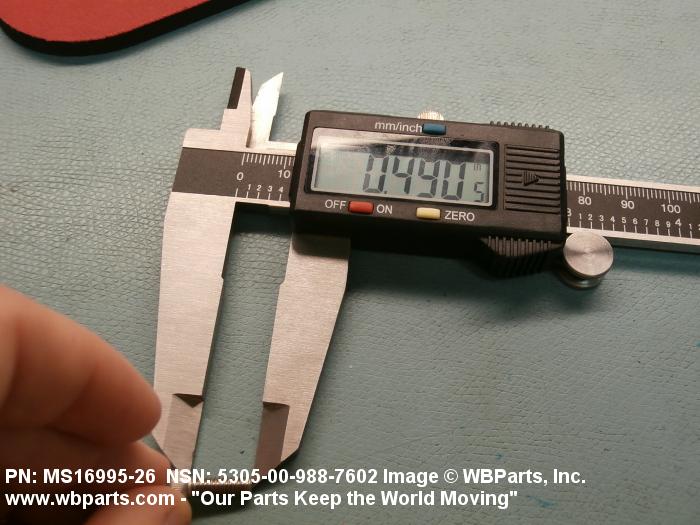

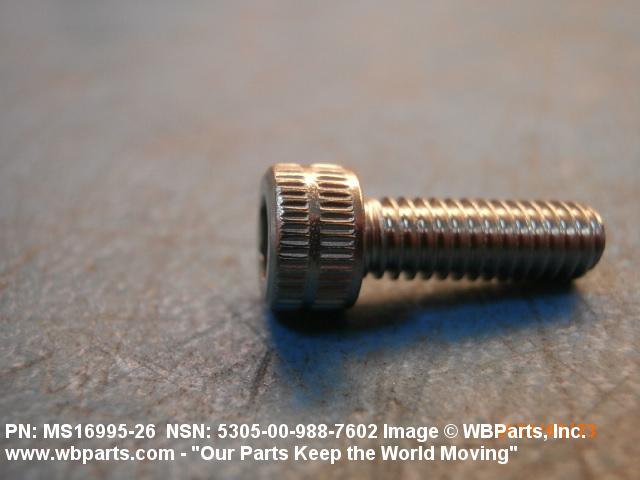

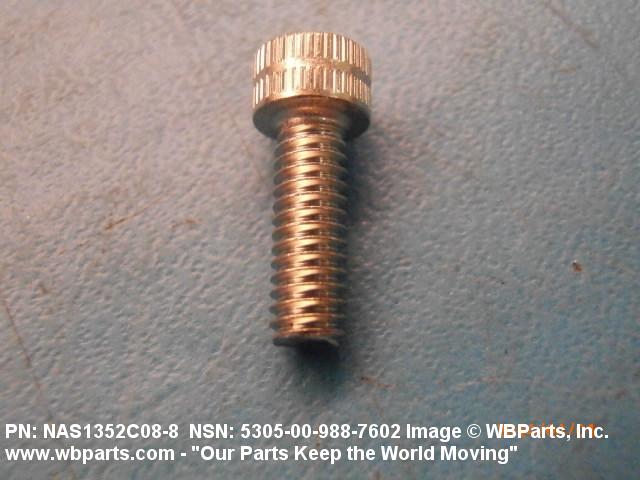

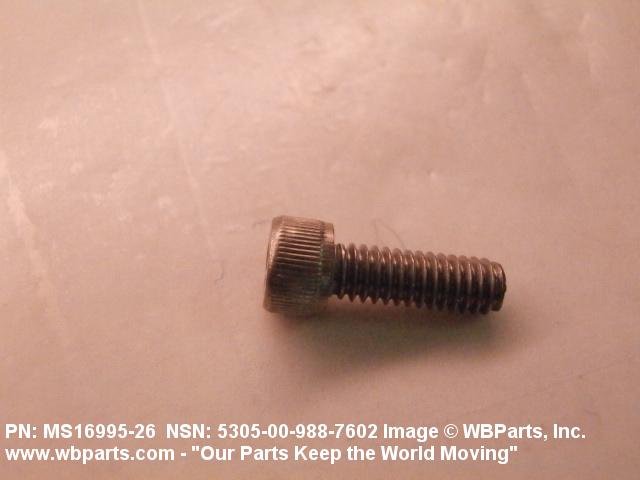

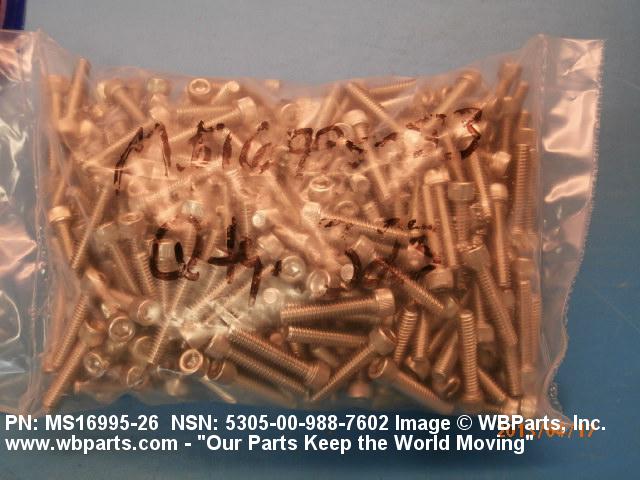

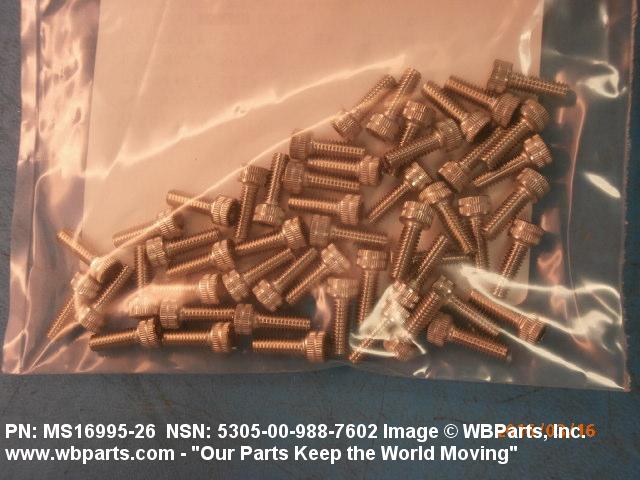

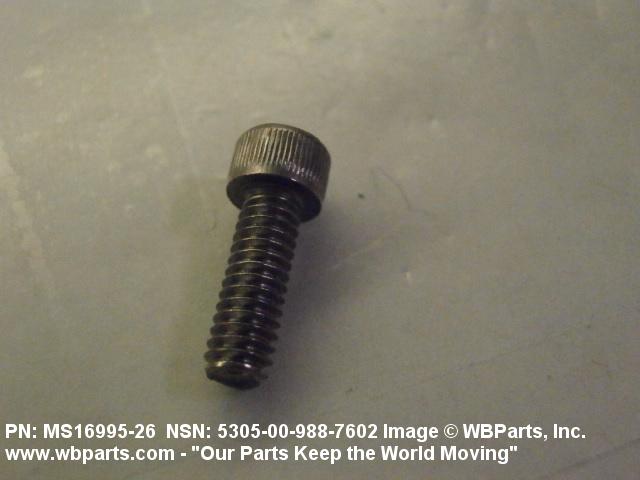

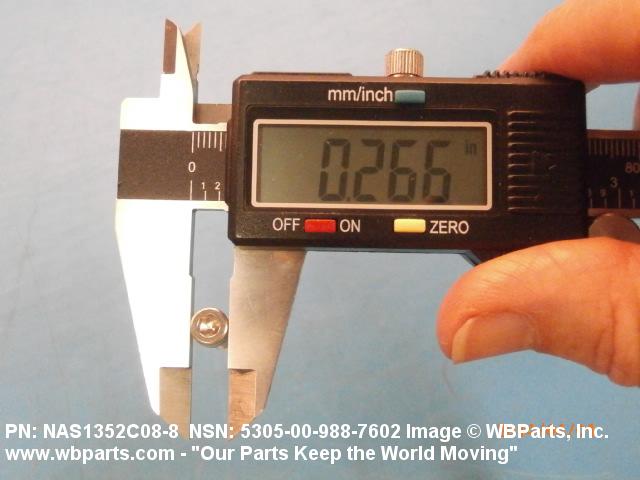

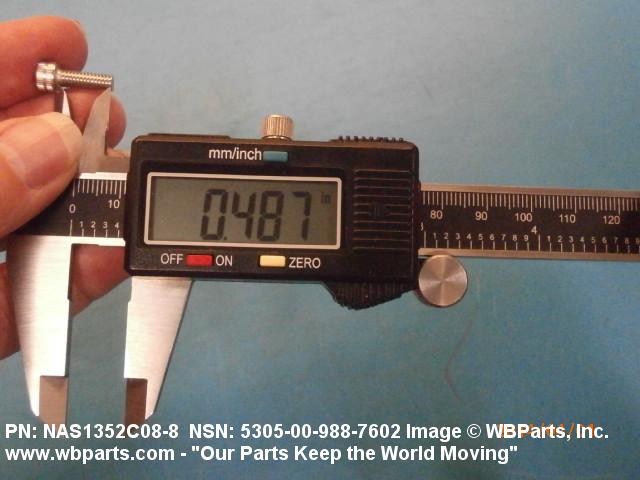

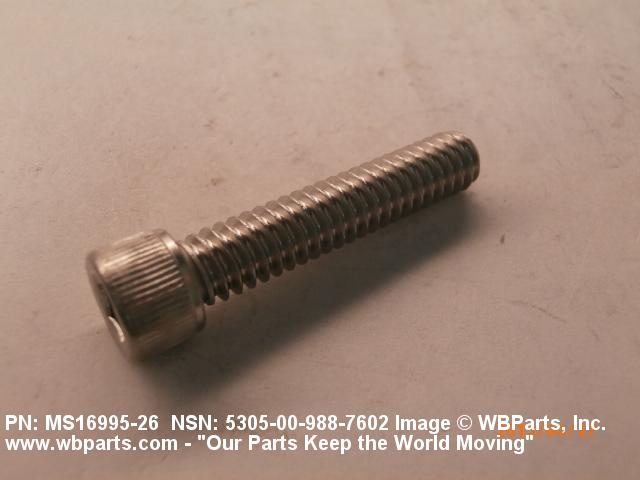

Drawings & Photos | NSN 5305-00-988-7602

Part Number	Request Date	QTY	Origin
MS16995-26	2025-10-289	3129	DIBBS
5305-00-988-7602	2025-09-257	172	DIBBS
5305-00-988-7602	2025-08-224	4794	DIBBS
5305-00-988-7602	2025-07-202	5976	DIBBS
5305-00-988-7602	2025-06-168	51	DIBBS
5305-00-988-7602	2025-06-161	102	DIBBS
5305-00-988-7602	2025-05-140	180	KR
5305-00-988-7602	2025-03-78	277	DIBBS
MS1699526	2025-01-20	594	United States
MS1699526	2024-12-344	61	Japan
MS1699526	2024-12-344	61	Japan
MS1699526	2024-12-344	61	Japan
MS1699526	2024-12-344	61	Japan
MS1699526	2024-11-330	10	DE
MS16995-26	2024-11-317	230	DIBBS
MS16995-26	2024-10-302	240	DIBBS
5305-00-988-7602	2024-10-291	230	United States
NAS1352C088	2024-09-261	20	us
NAS1352C088	2024-07-200	100	United Kingdom
MS16995-26	2024-06-176	331	DIBBS
NAS1352C088	2024-06-173	100	United States
NAS1352C088	2024-04-106	230	United States
MS16995-26	2024-02-52	230	DIBBS
5305-00-988-7602	2023-11-306	651	US
MS16995-26	2023-10-302	614	DIBBS
MS16995-26	2023-08-241	624	DIBBS
09887602QF	2023-07-190	1	DIBBS
003-007868-026	2022-03-69	57	DIBBS
1005-0150-069	2022-03-69	57	DIBBS
418262-26	2022-03-69	57	DIBBS
714-014/006	2022-03-69	57	DIBBS
MS16995-26	2022-03-69	57	DIBBS
MS1699526	2022-01-04	240	United States
5305-00-988-7602	2021-06-168	5	US
MS1699526	2020-06-174	130	US
MS1699526	2019-10-288	10	United States
MS1699526	2019-05-123	100	United States
5305-00-988-7602	2019-04-114	423	DIBBS
5305-00-988-7602	2018-12-346	300	US
MS16995-26	2018-11-310	2198	Israel
5305-00-988-7602	2018-08-226	467	DIBBS
5305-00-988-7602	2018-07-200	4210	DIBBS
5305-00-988-7602	2018-05-126	241	DIBBS
MS1699526	2018-02-43	200	United States
5305-00-988-7602	2017-12-339	823	DIBBS
5305-00-988-7602	2017-08-228	30	Malaysia
5305-00-988-7602	2017-08-228	50	Malaysia
5305-00-988-7602	2017-08-228	30	Malaysia
5305-00-988-7602	2017-08-228	50	Malaysia
NAS1352C088	2017-07-193	300	United States
MS1699526	2017-07-192	300	United States
5305-00-988-7602	2017-07-183	379	DIBBS
5305-00-988-7602	2017-04-115	290	DIBBS
MS1699526	2016-09-263	425	US
5305-00-988-7602	2016-08-223	290	DIBBS
5305-00-988-7602	2016-05-146	4	IN
5305-00-988-7602	2016-02-34	50	Malaysia
MS1699526	2015-06-169	100	US
MS1699526	2014-10-274	2	US
MS1699526	2014-07-212	140	US
NAS1352C088	2014-03-87	200	United States
MS1699526	2014-03-86	300	United States
5305-00-988-7602	2014-02-42	1299	DIBBS
MS1699526	2013-12-339	5500	United States
MS1699526	2013-01-09	957	Israel
MS1699526	2013-01-09	957	Israel
MS1699526	2013-01-09	957	Israel
MS1699526	2013-01-09	957	Israel
MS1699526	2012-12-349	15	US
NAS1352C088	2011-12-349	5000	United States
MS1699526	2011-10-304	16	United States
NAS1352C088	2011-06-152	100	United States
MS1699526	2011-05-131	8	US
MS1699526	2011-04-116	500	US
NAS1352C088	2011-04-104	600	DE
NAS1352C088	2011-02-46	8	United States
MS1699526	2011-01-31	500	MX
5305-00-988-7602	2010-12-355	100	India
5305-00-988-7602	2010-09-245	778	DIBBS
NAS1352C088	2009-10-288	200	Turkey
5305-00-988-7602	2009-05-147	473	DIBBS
5305-00-988-7602	2008-12-350	164	DIBBS
5305-00-988-7602	2008-11-330	200	IL
MS1699526	2008-09-273	40	US
5305-00-988-7602	2008-06-155	25	US

Cross Reference | NSN 5305-00-988-7602

Part Number	Cage Code	Manufacturer
003-007868-026	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
1005-0150-069	04577	CARLETON TECHNOLOGIES INC
115351-110	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1808098-7	19315	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND
1808098-7	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
200021-8	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
20098-98C8	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
213039PC389	53711	NAVAL SEA SYSTEMS COMMAND
352250012805	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
4176086-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418132-808	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418262-26	96214	RAYTHEON COMPANY DBA RAYTHEON
5305009887602	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5M.3014.220.91	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
714-014/006	90031	RAYMOND CORPORATION, THE
8-32X1/2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
A20400-808	94697	MOOG, INC.
AJD0808G	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS
ASC1536813	Z4779	ASC PTY LTD
G395806-25	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
HC-832-8-SS-P	26136	KEARFLEX ENGINEERING COMPANY
HP933R16-832	94931	BENDIX CORP THE BENDIX INTERNATIONAL DIV
MS16995-26	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16995-26	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35461-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1352C08-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS608C832-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NDN8462-05ND22	K0185	SMITHS AEROSPACE CUSTOMER SERVICES DIVISION
NDN8462-05ND22	K5294	GE AVIATION SYSTEMS LTD
VA-97-0177-026	K0668	SELEX ES LTD DBA SELEX S & A S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-988-7602

Compare

Related Products | NSN 5305-00-988-7602

5305-00-988-7603, 5305-00-988-7604, 5305-00-988-7605, 5305-00-988-7606, 5305-00-988-7607

Technical Data | NSN 5305-00-988-7602

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES

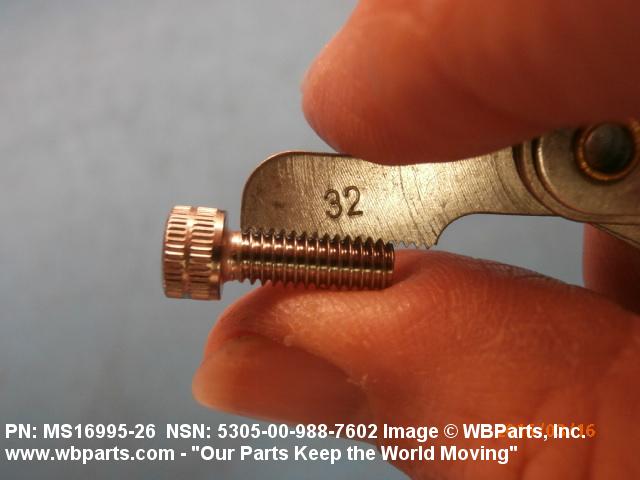

THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.408 INCHES MINIMUM AND 0.500 INCHES MAXIMUM

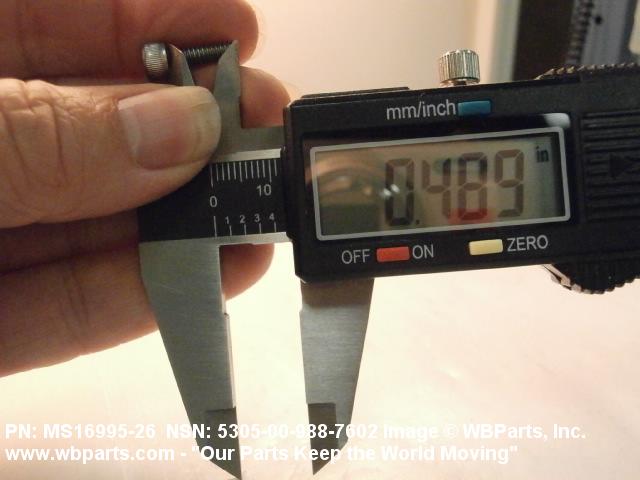

FASTENER LENGTH	0.470 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 OR STEEL COMP XM-7 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A493 ASSN STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER

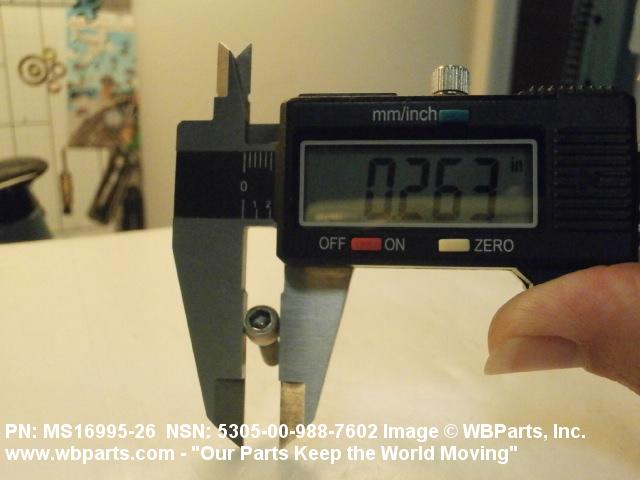

HEAD DIAMETER	0.262 INCHES MINIMUM AND 0.270 INCHES MAXIMUM

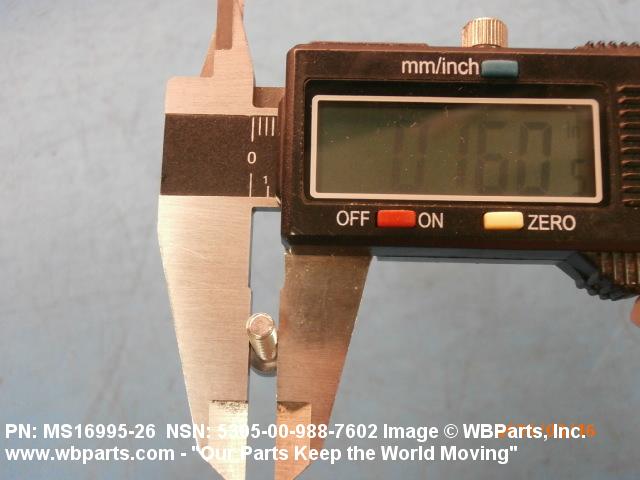

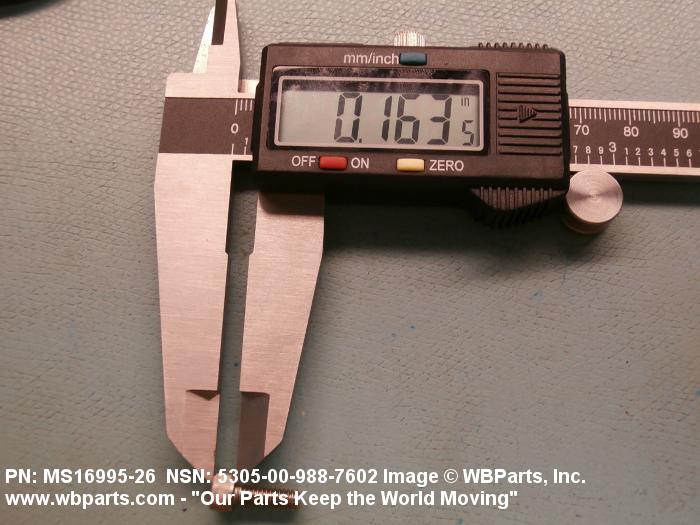

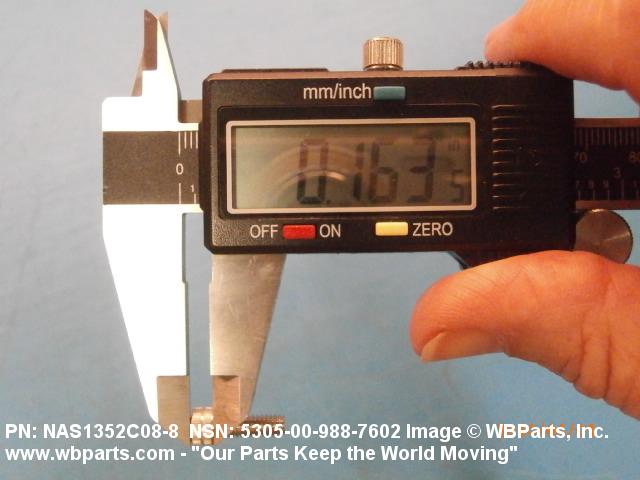

HEAD HEIGHT	0.158 INCHES MINIMUM AND 0.164 INCHES MAXIMUM

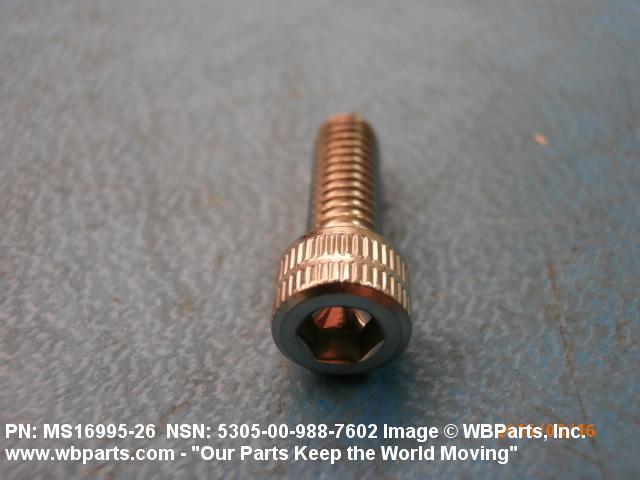

INTERNAL DRIVE STYLE	D5 HEXAGON

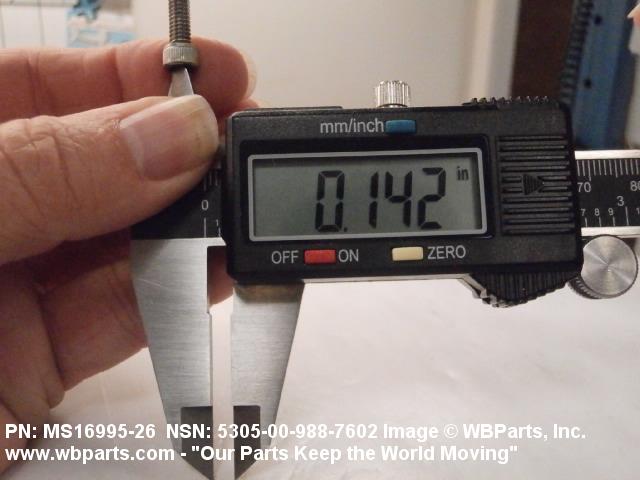

WIDTH ACROSS FLATS	0.140 INCHES MINIMUM AND 0.142 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-00-988-7602

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-988-7602

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
