NSN 5305-00-988-7609 MS1699514, MS16995-14, MS1699538
Product Details | SOCKET HEAD CAP SCREW
5305-00-988-7609 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS1699514, MS16995-14, MS1699538, MS16995-38, MS3546114, MS35461-14, G29A29 , MILS933, 92A2Z173316, 92A2Z173-316, 003007868038, 003-007868-038, 100A900031, 11031386-1 , 12Z100766, 12Z1007-66, 5305-00-988-7609, 00-988-7609, 5305009887609, 110313861, 009887609
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-988-7609 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

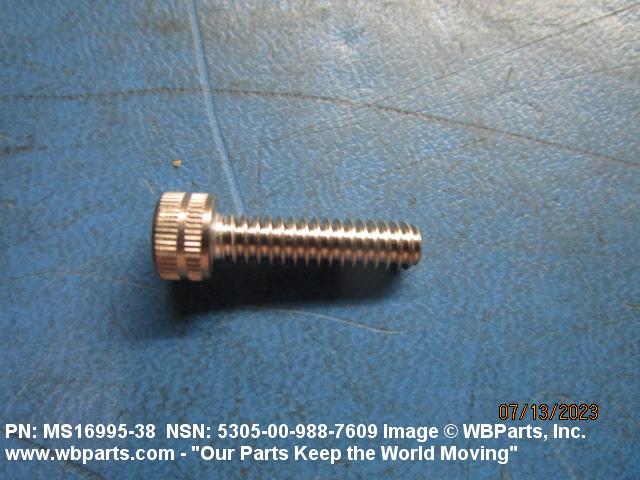

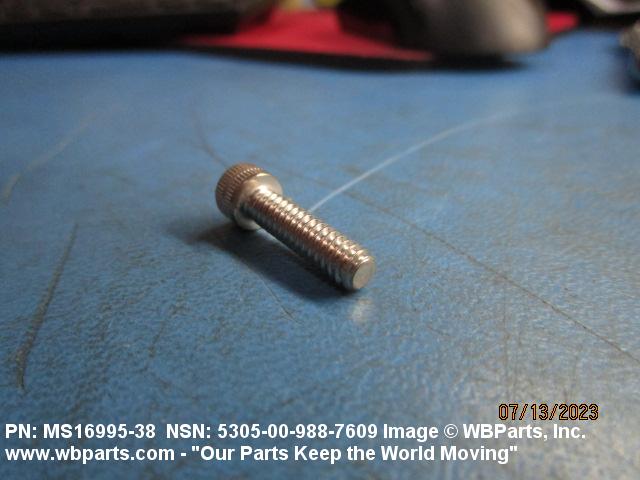

Drawings & Photos | NSN 5305-00-988-7609
Demand History | NSN 5305-00-988-7609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1699538 | 2023-10-285 | 600 | United States |
| MS1699538 | 2023-10-285 | 3000 | United States |
| 5305-00-988-7609 | 2023-04-100 | 180 | United States |
| MS16995-38 | 2018-11-310 | 1760 | Israel |
| 5305-00-988-7609 | 2016-10-301 | 9424 | DIBBS |
| MS1699538 | 2015-05-141 | 300 | United States |
| MS1699538 | 2015-05-140 | 375 | US |
| MS1699538 | 2014-07-196 | 20 | US |
| MS1699538 | 2013-01-09 | 679 | Israel |
| MS1699538 | 2013-01-09 | 679 | Israel |
| MS1699538 | 2013-01-09 | 679 | Israel |
| MS1699538 | 2013-01-09 | 679 | Israel |
| MS1699538 | 2012-12-346 | 5 | United States |
| MS1699538 | 2012-09-262 | 34 | United States |
| MS1699538 | 2012-03-88 | 480 | Israel |
| MS1699538 | 2012-03-73 | 480 | Israel |
| MS1699538 | 2011-04-116 | 500 | US |
| 5305-00-988-7609 | 2009-01-08 | 7000 | US |
| MILS933 | 2009-01-07 | 7000 | US |
Cross Reference | NSN 5305-00-988-7609
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003-007868-038 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 100A900031 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 12Z1007-66 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 5305009887609 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 92A2Z173-316 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MILS933 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS16995-14 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS16995-38 | 5M696 | UFC AEROSPACE CORP. |
| MS16995-38 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16995-38 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35461-14 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-988-7609
Technical Data | NSN 5305-00-988-7609
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |

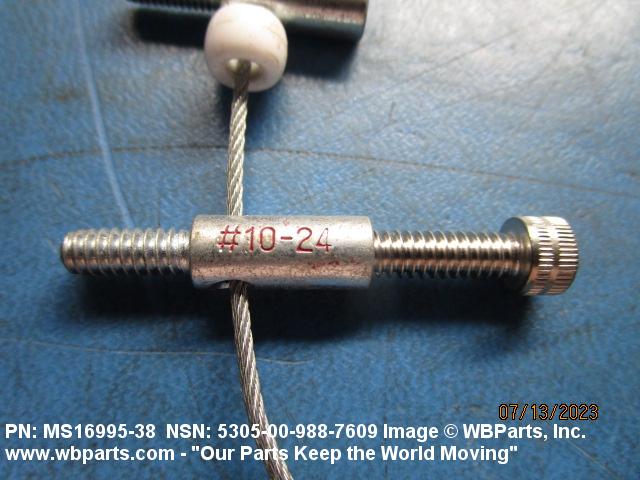

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.651 INCHES MINIMUM AND 0.734 INCHES MAXIMUM |

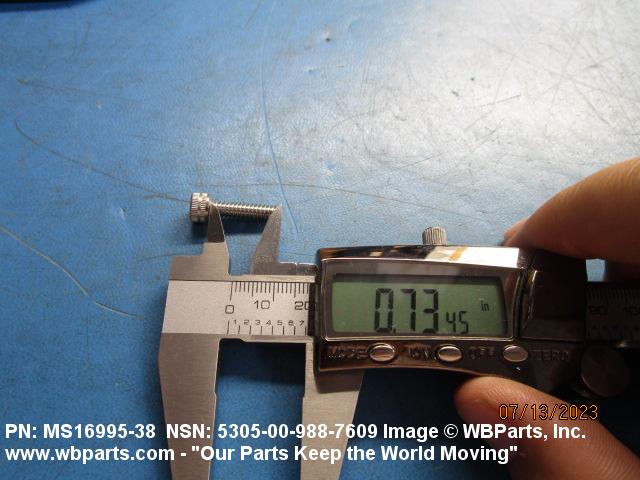

| FASTENER LENGTH | 0.734 INCHES MINIMUM AND 0.766 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 80.0 ROCKWELL B MINIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 30000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

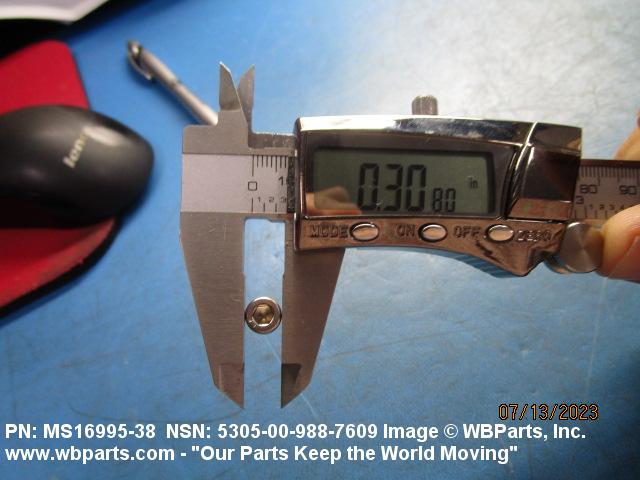

| HEAD DIAMETER | 0.303 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |

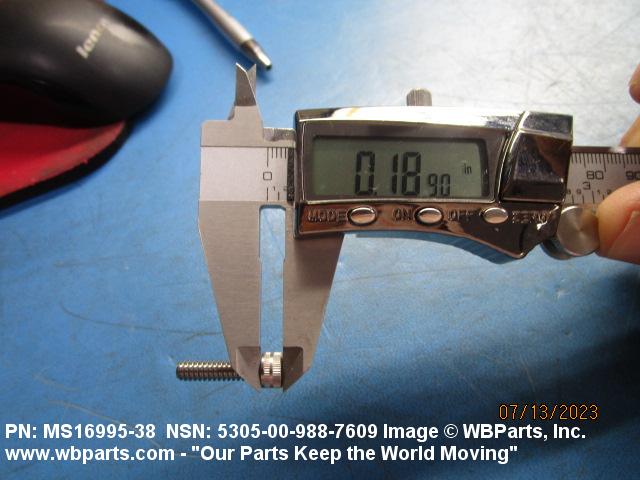

| HEAD HEIGHT | 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |

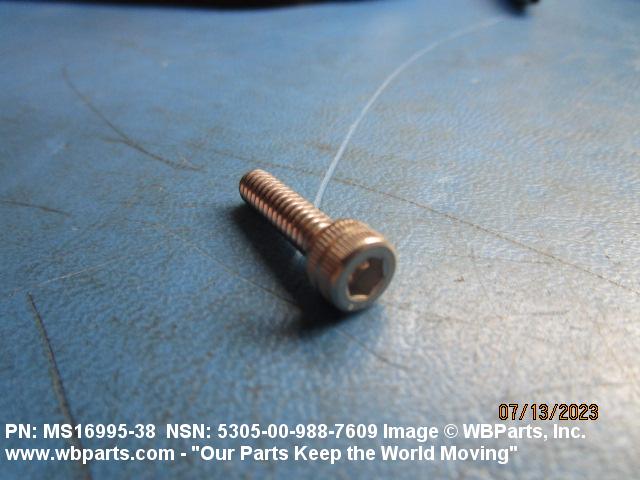

| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS933 |
Restrictions/Controls & Freight Information | NSN 5305-00-988-7609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
